Home >> Mercury >> 2000 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Windows and Glass >> Testing and Inspection >> Pinpoint Tests >> Test E: A Single Power Window Is Inoperative - Right Rear

Test E: A Single Power Window Is Inoperative - Right Rear

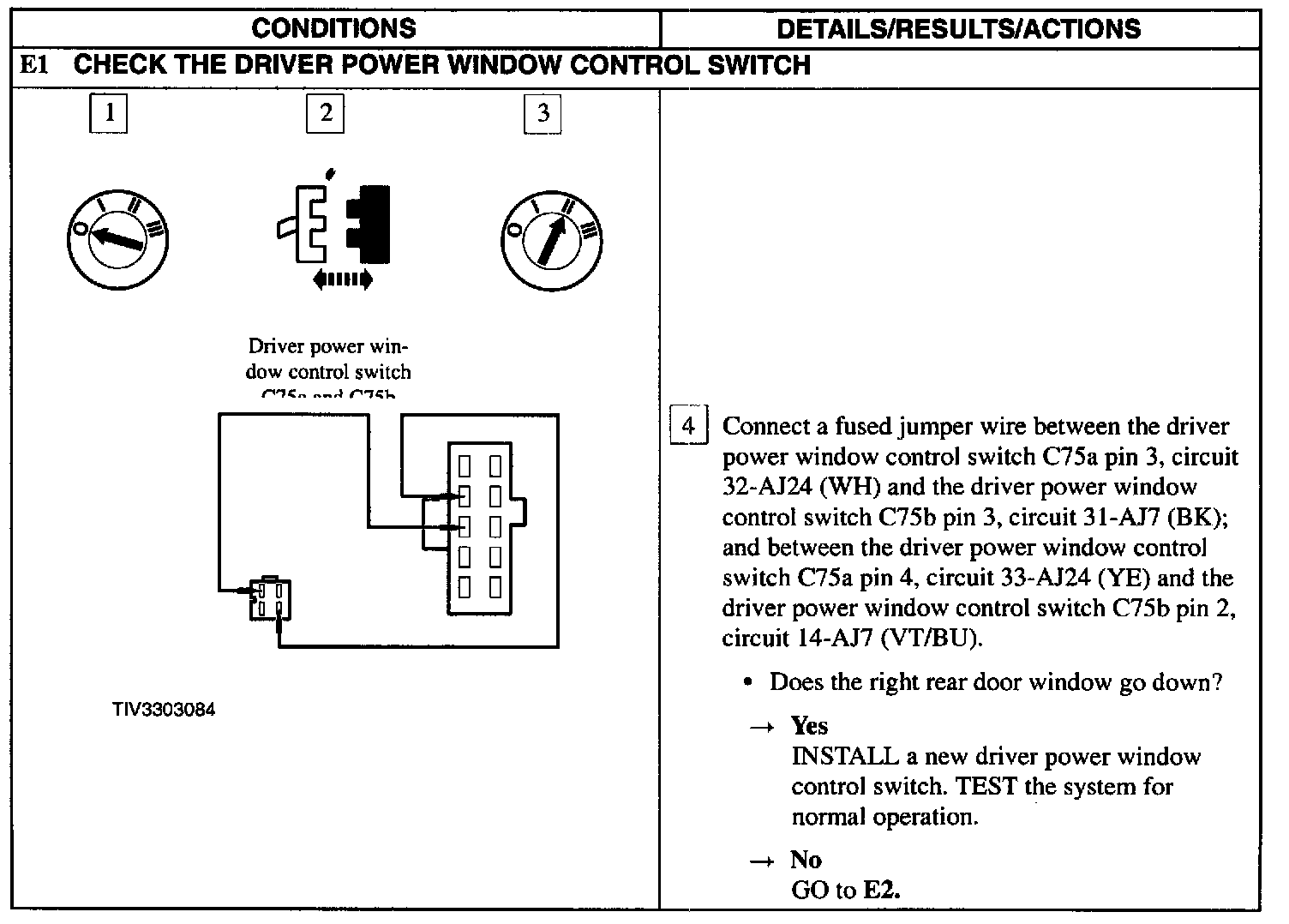

E1:






E2:

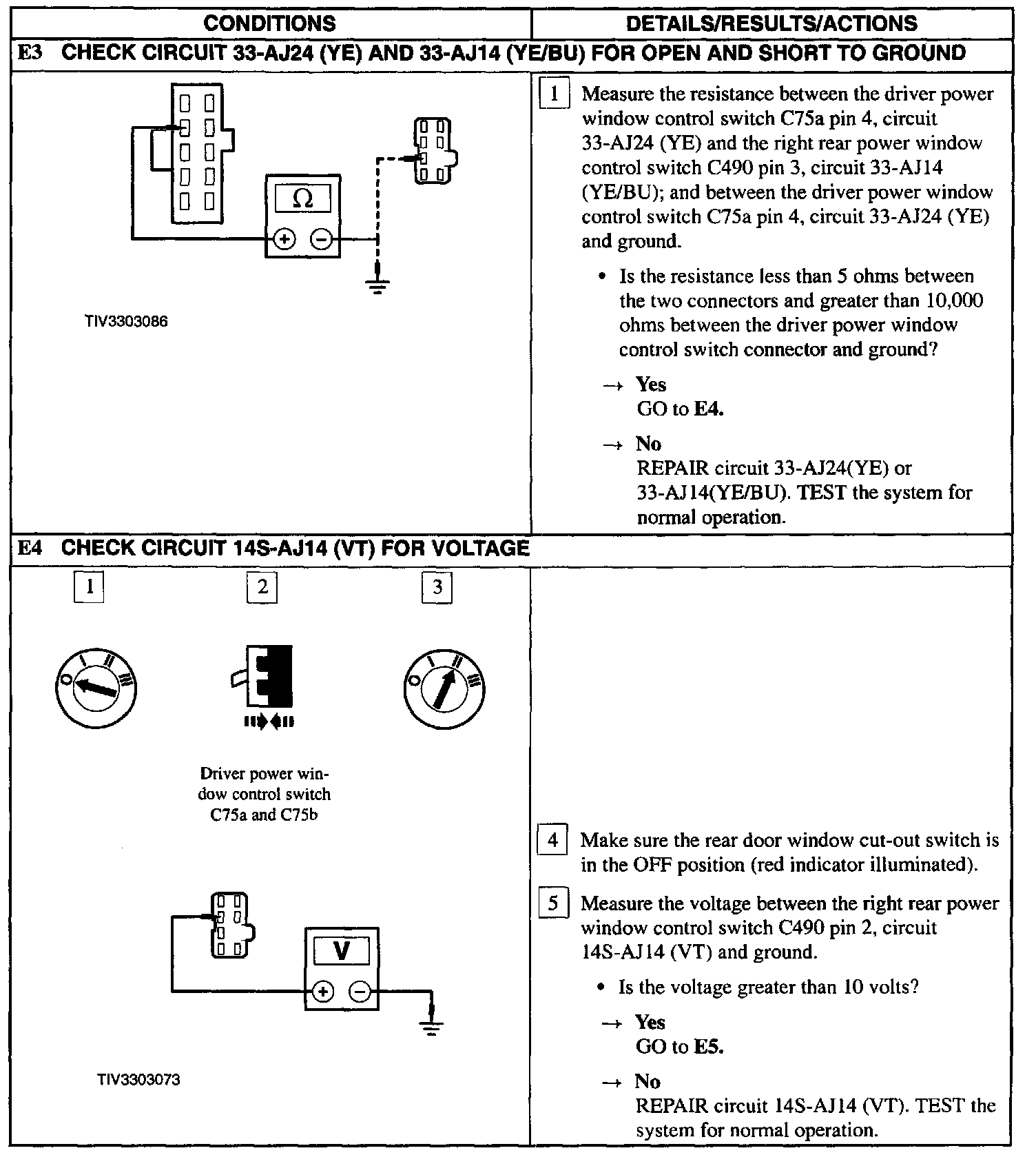

E3 - E4:

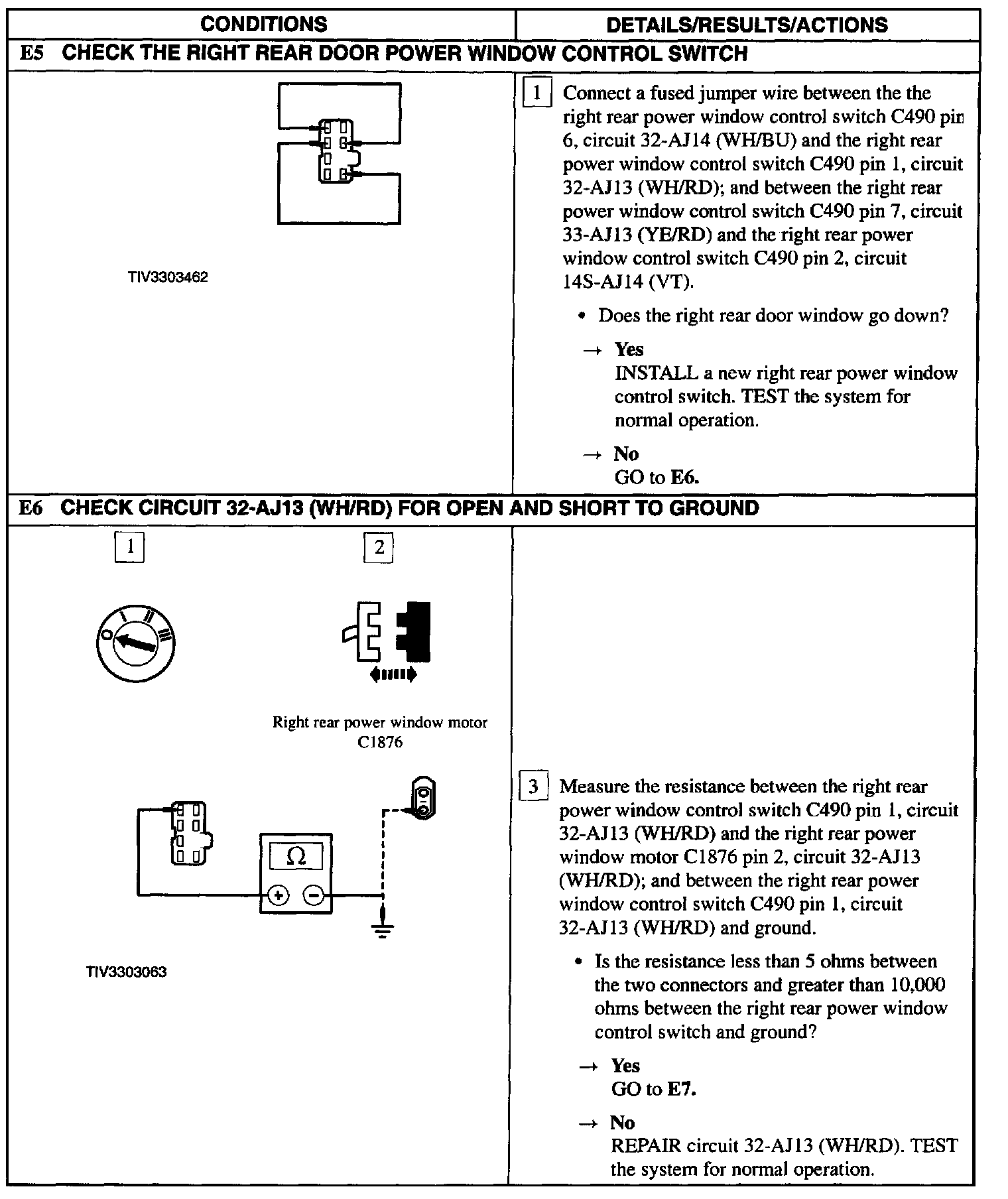

E5 - E6:

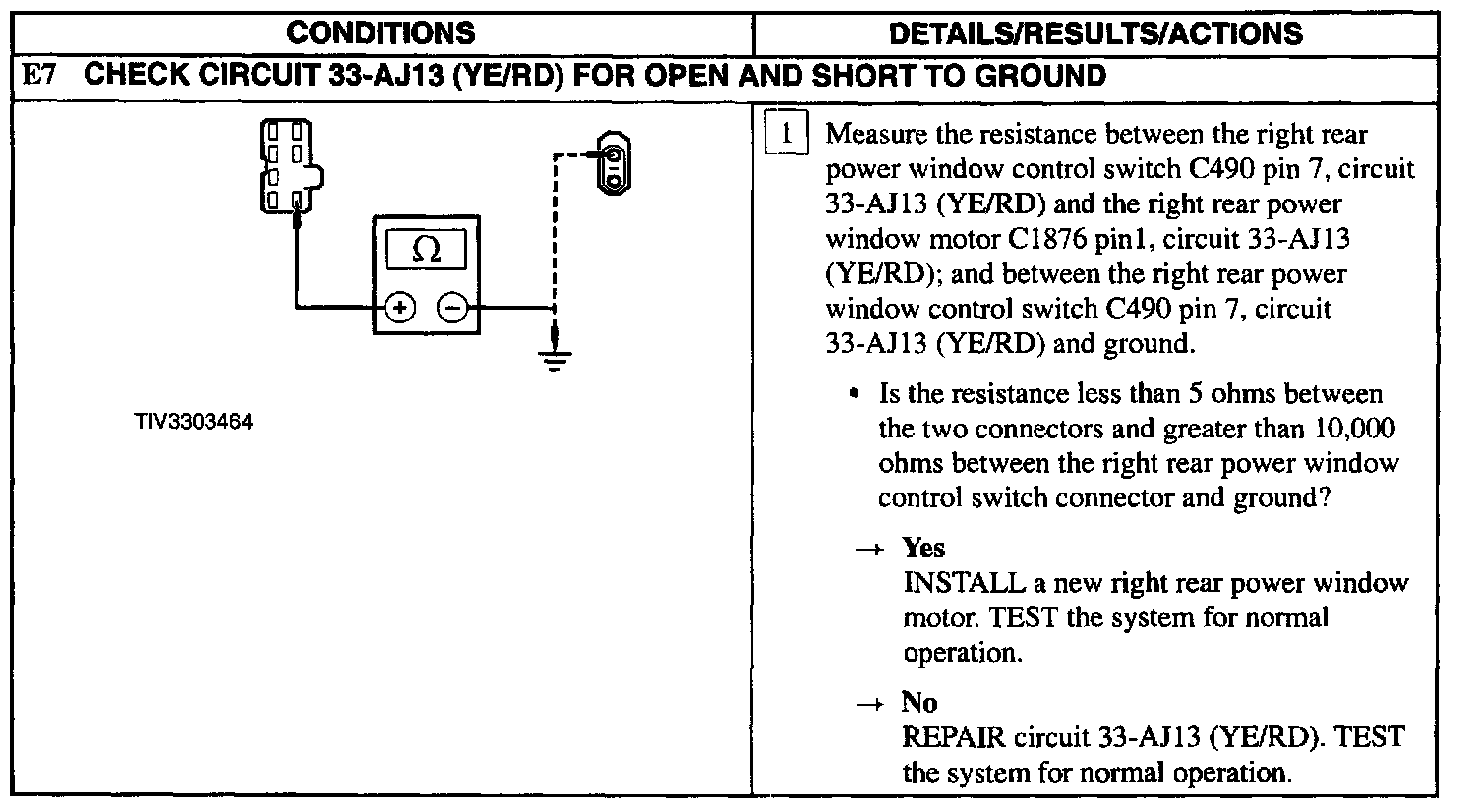

E7:
