Removal and Installation

Removal
1. Disconnect the battery ground cable.
2. Raise the vehicle.

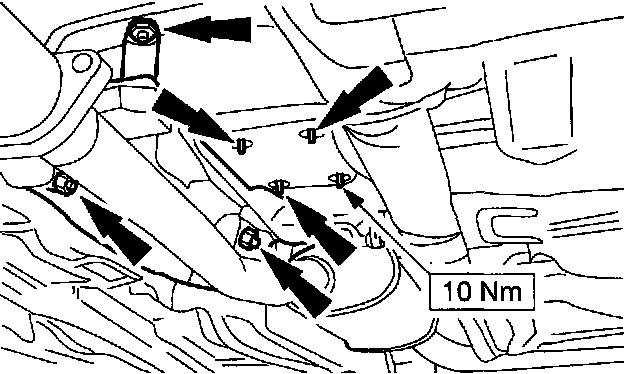

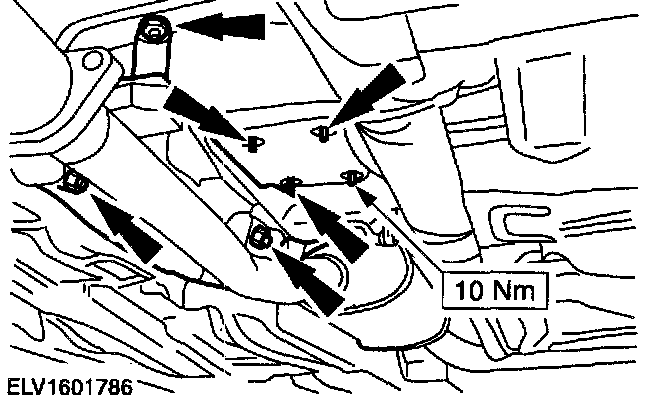

3. Disconnect the heat shield and remove the nuts on the shifter assembly.
- Lower the vehicle.

4. Remove the floor console.





5. Remove the shifter assembly.

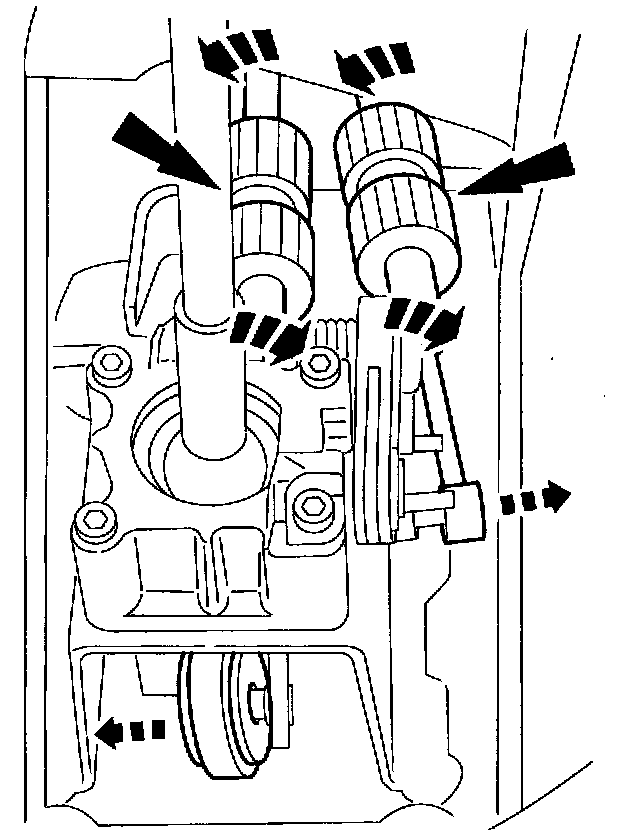

- Disconnect the shift cable and the selector cable.
- Remove the cables from their abutment brackets by twisting each abutment bracket counterclockwise.
- Remove the shifter assembly.

Installation





1. To install, reverse the removal procedure.
- Adjust the shifter cables.
