Disassembly and Assembly

Disassembly

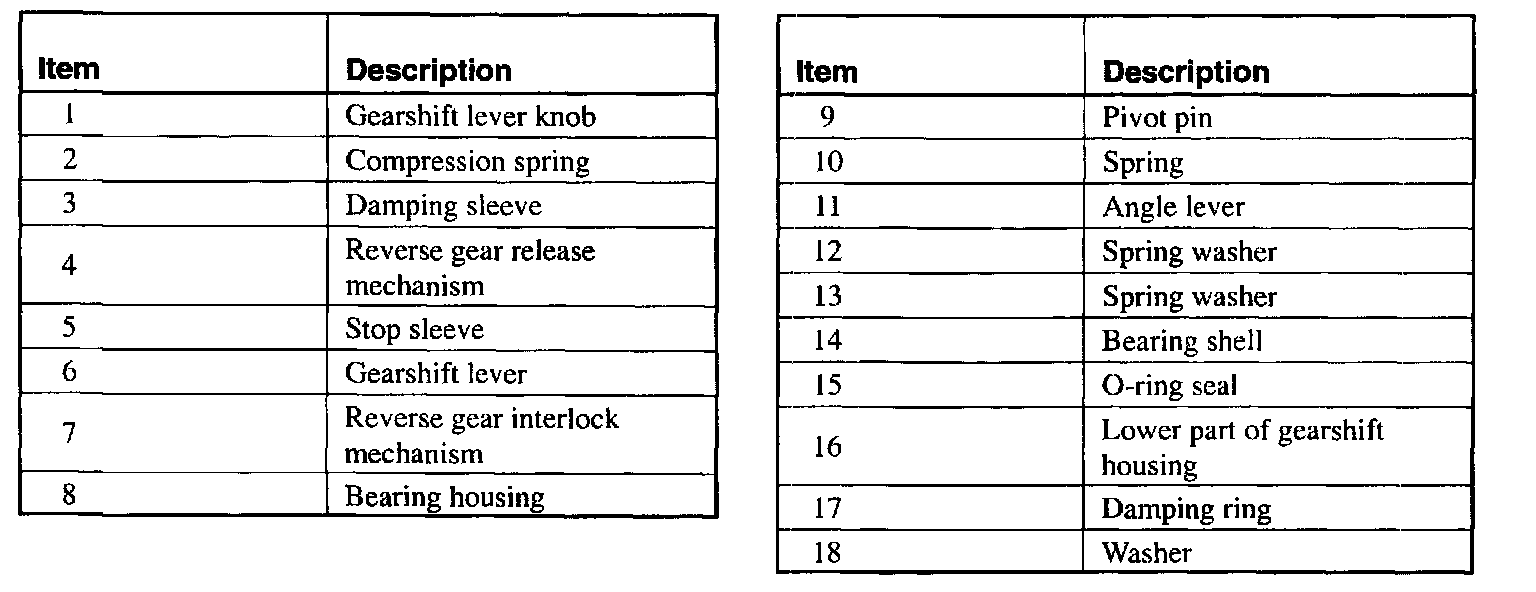

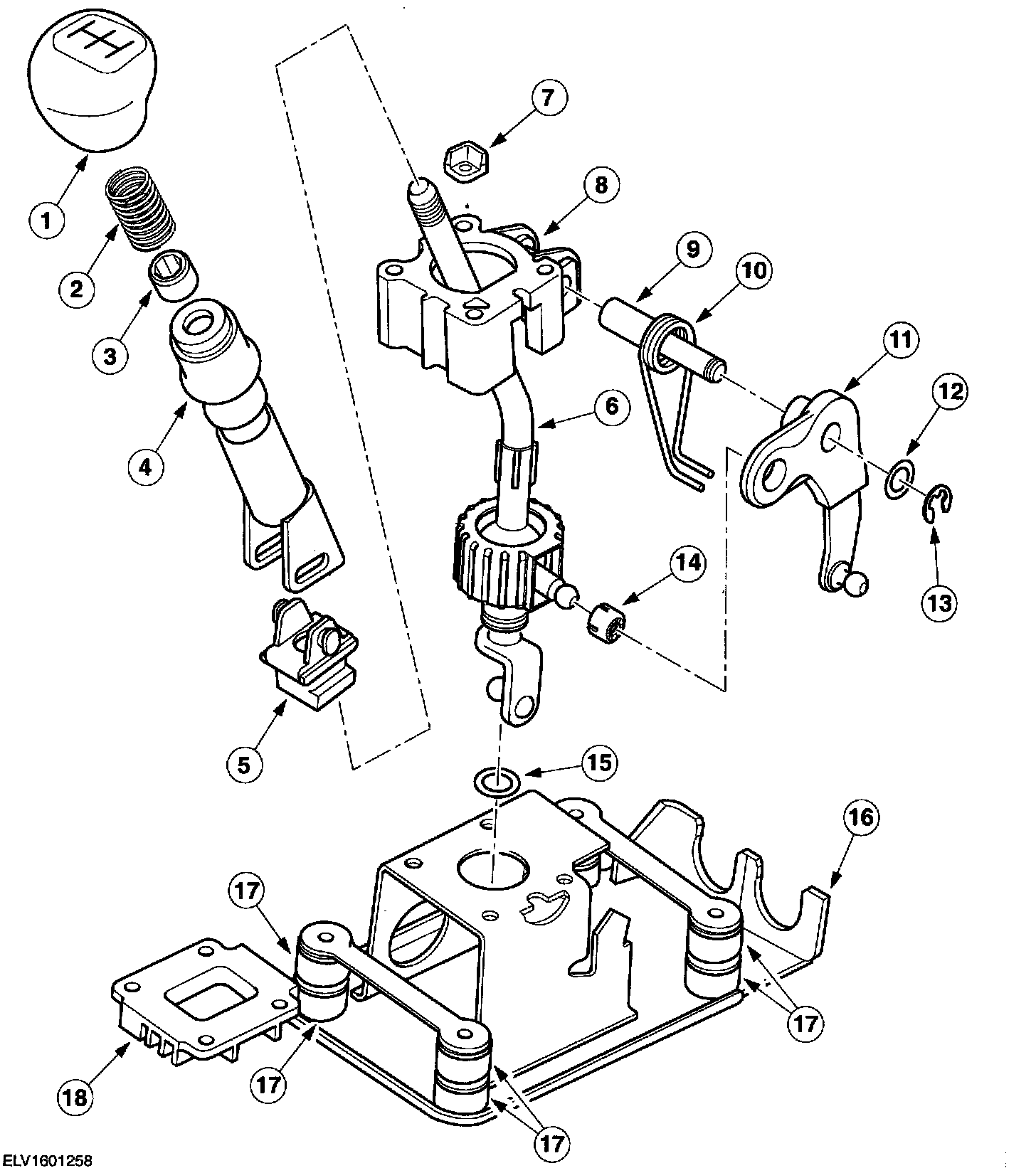

1. Unscrew the gearshift lever knob and remove the compression spring.
1 Remove the outer boot with the reverse gear release mechanism.

2. NOTE: Installation position of the spring.





Disconnect the angle lever.
- Remove the snap-ring.

3. Disassemble the angle lever.





1 Angle lever
2 Spring
3 Shim

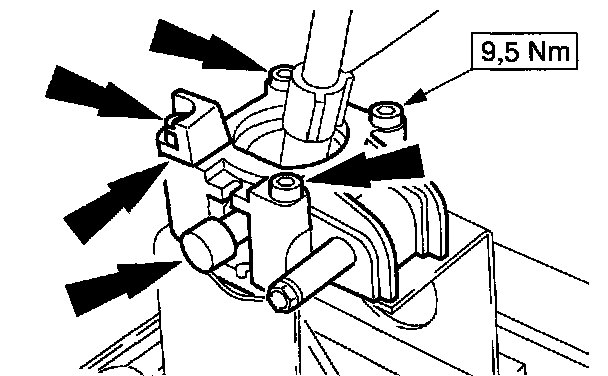

4. Remove the bearing housing with the washer, reverse gear interlock mechanism and bearing shell.

5. NOTE: Only if the threaded pins are damaged.

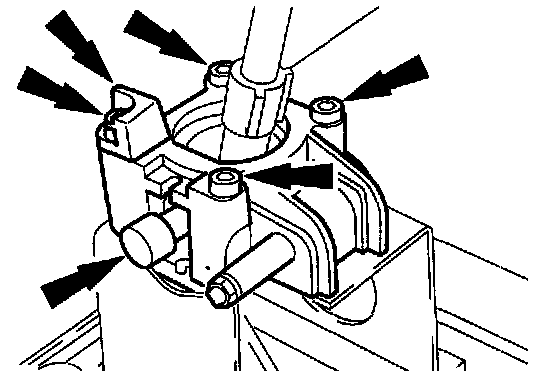

Bend the retaining tabs back and remove the retainers with the threaded pins.

Assembly





1. To install, reverse the removal procedure.
