Seals and Gaskets: Service and Repair

Removal
1. Remove the halfshaft.

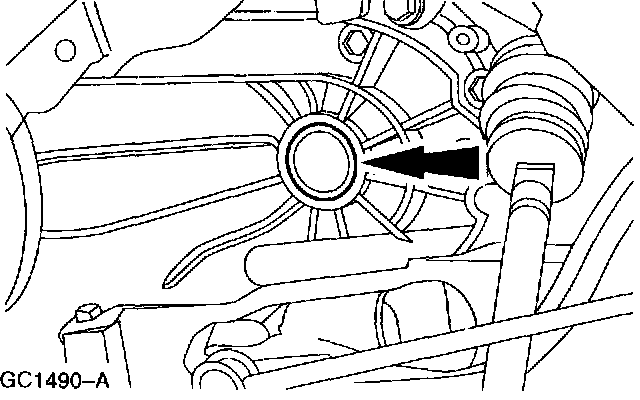

2. Remove the differential seal (left-hand side shown, right-hand side similar).

Installation

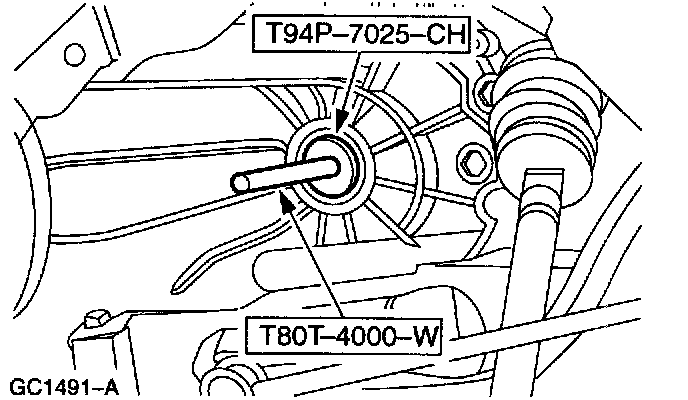

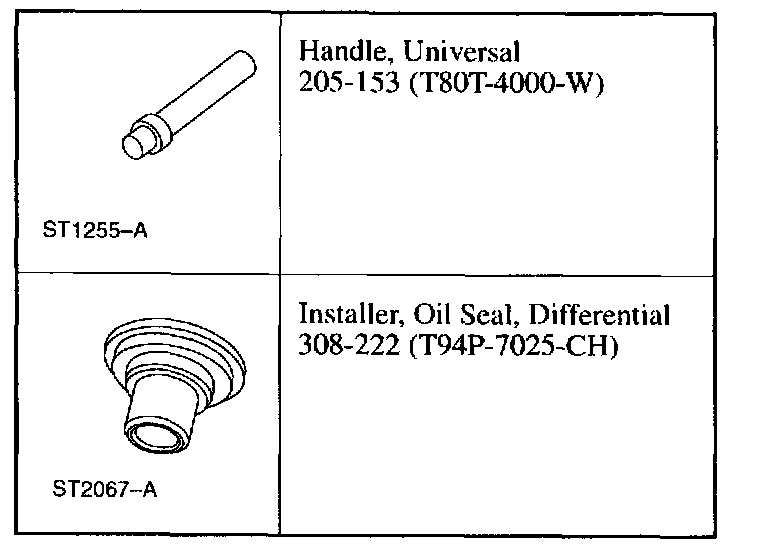

1. Use special tools to install the new differential seal.
- Lubricate seal with automatic transmission fluid

2. NOTE: Always install a new driveshaft bearing retainer circlip.

Install the halfshaft.
