Test E: Electronic Pressure Control (EPC) Solenoid

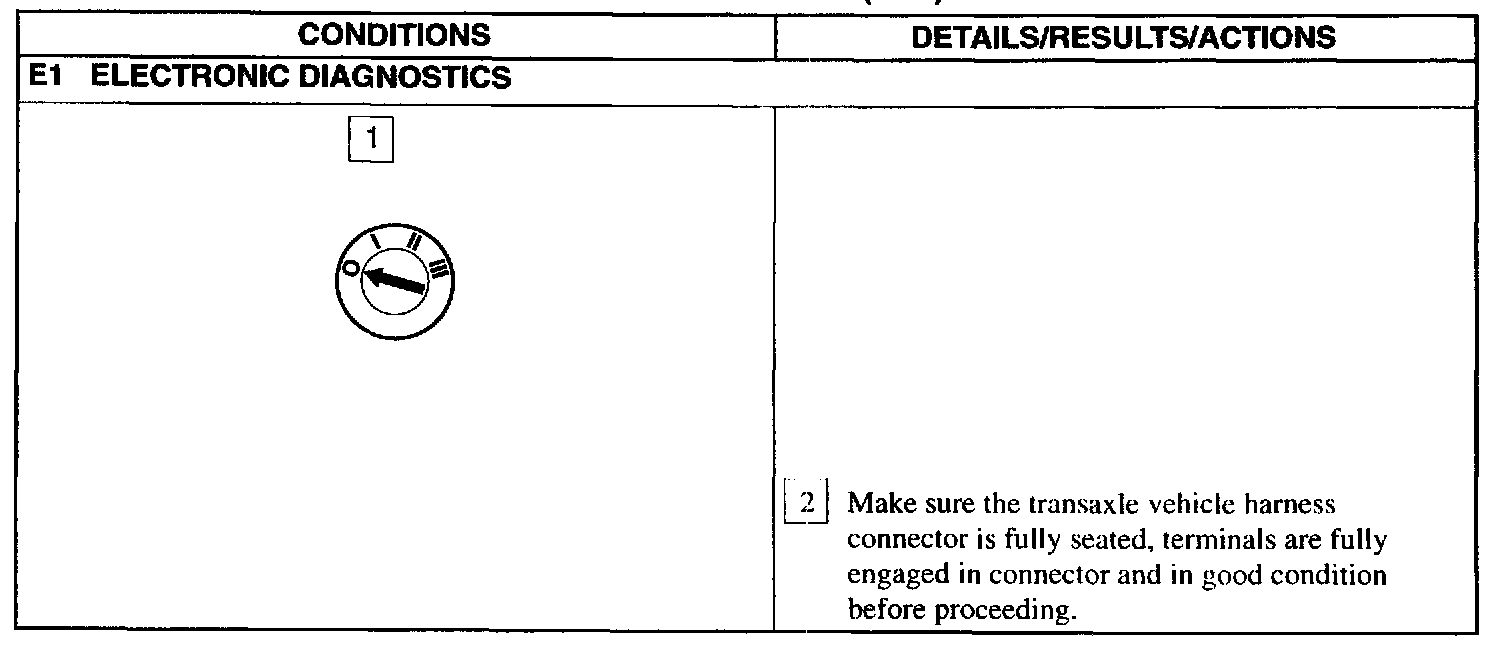

E1

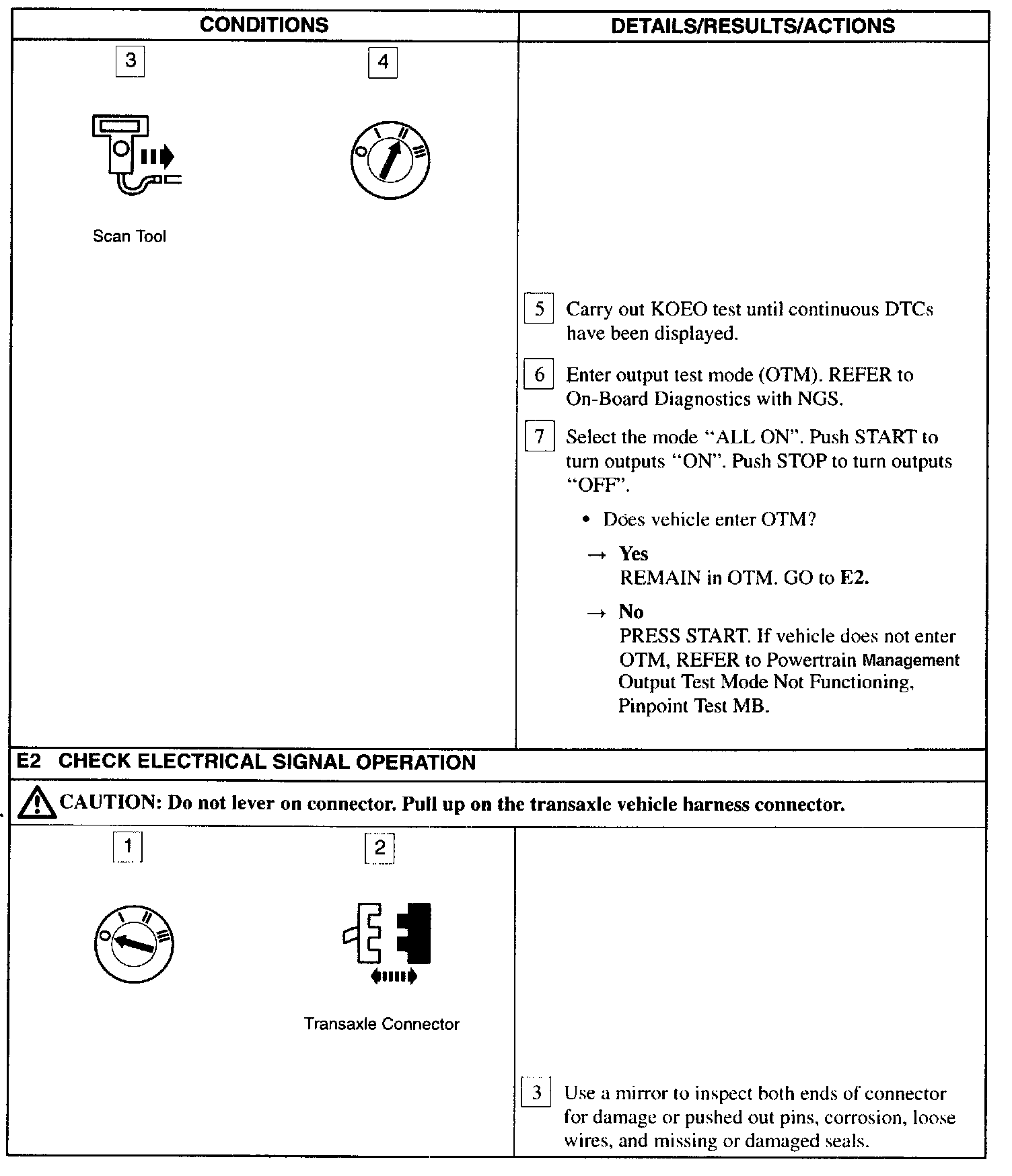

E1 - E2

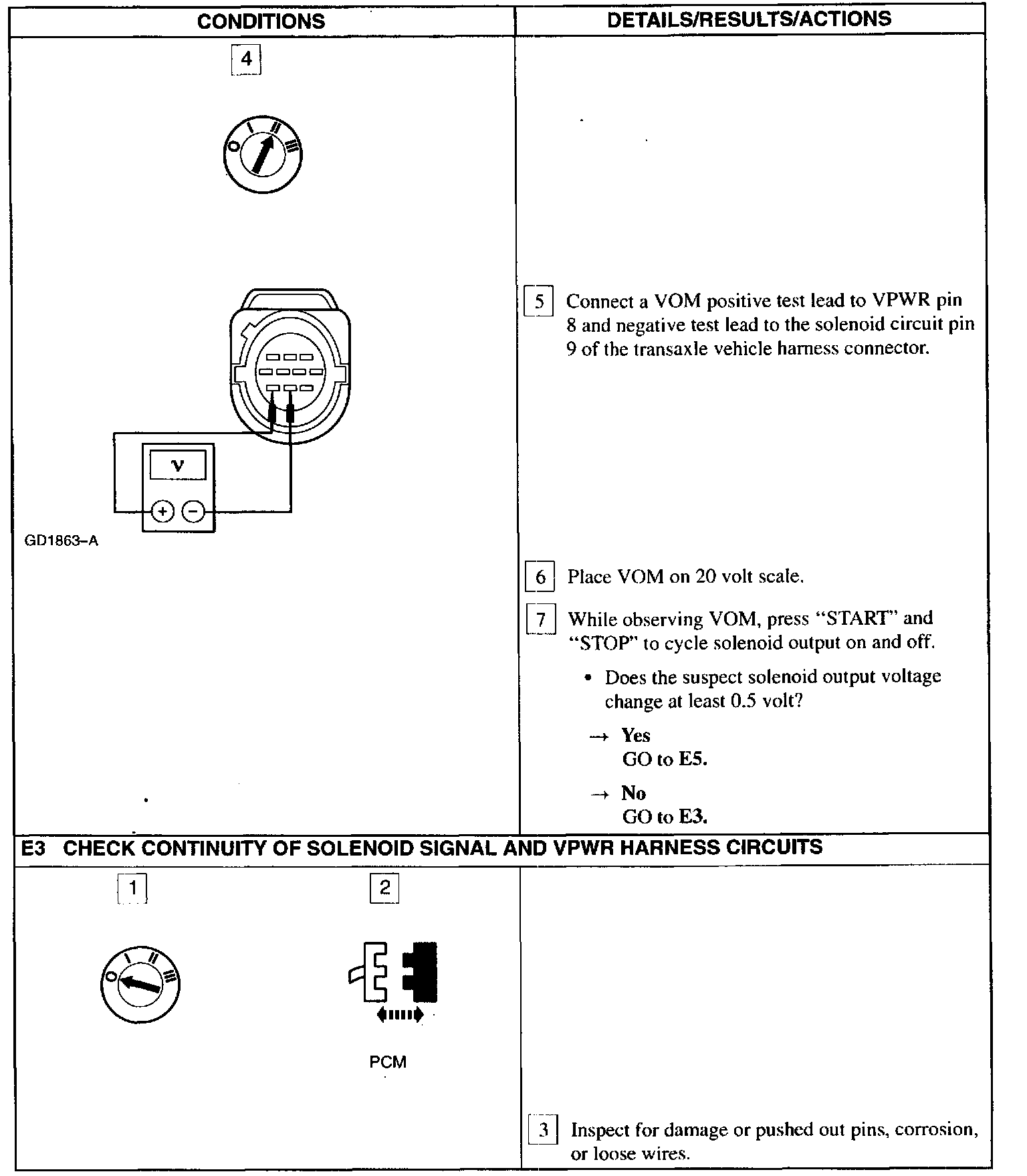

E2 - E3

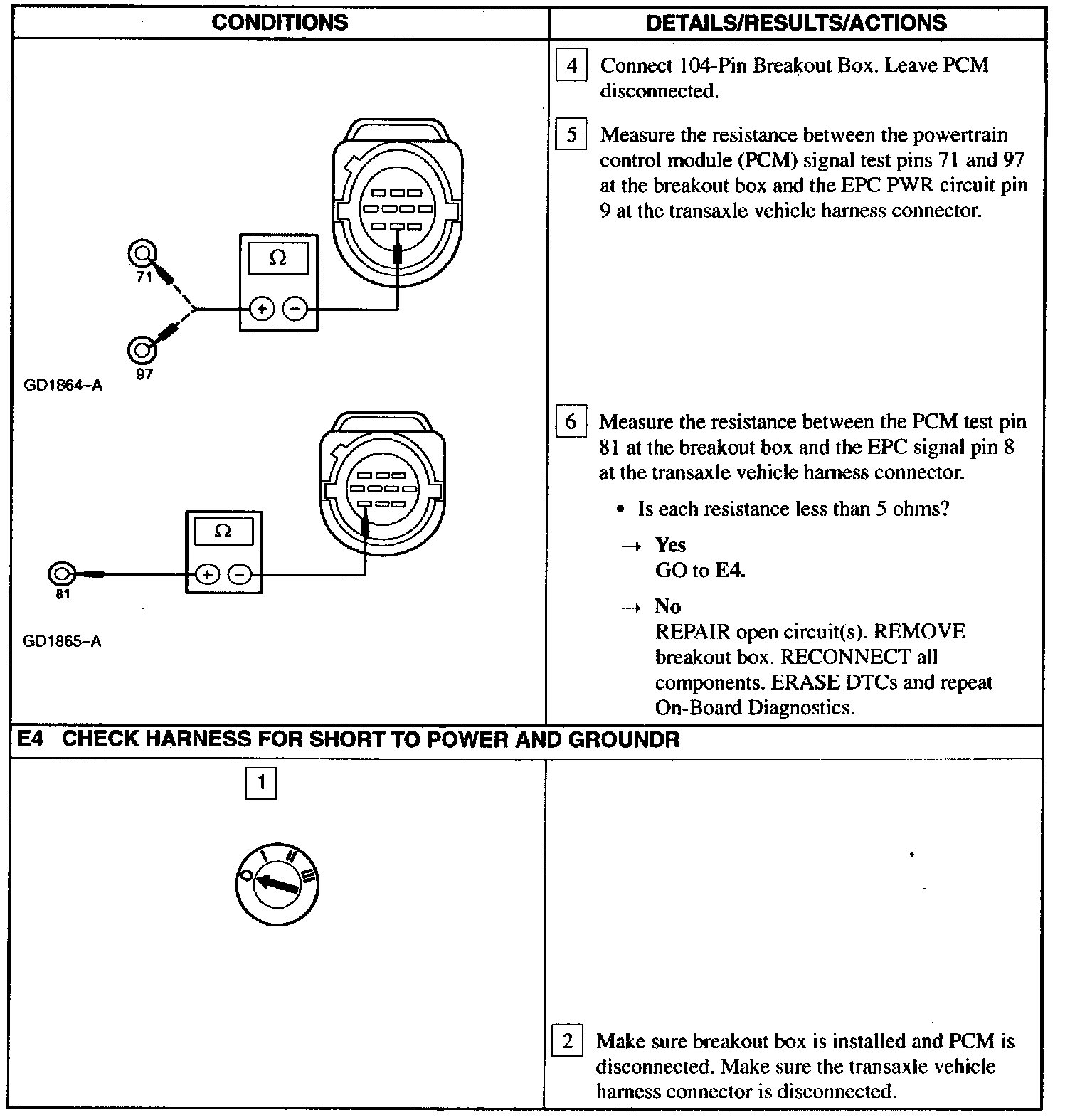

E3 - E4





E4 - E5

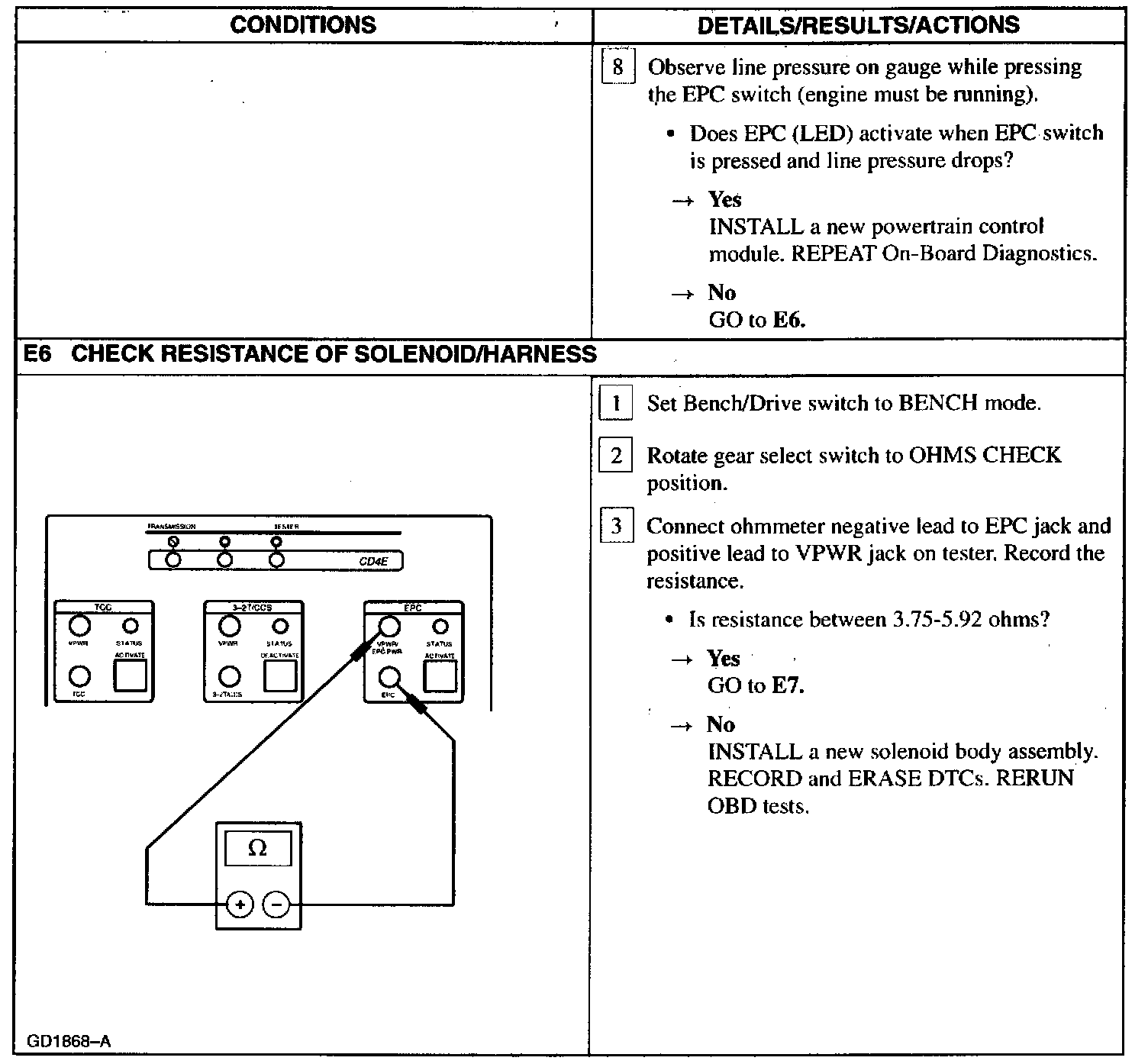

E5 - E6

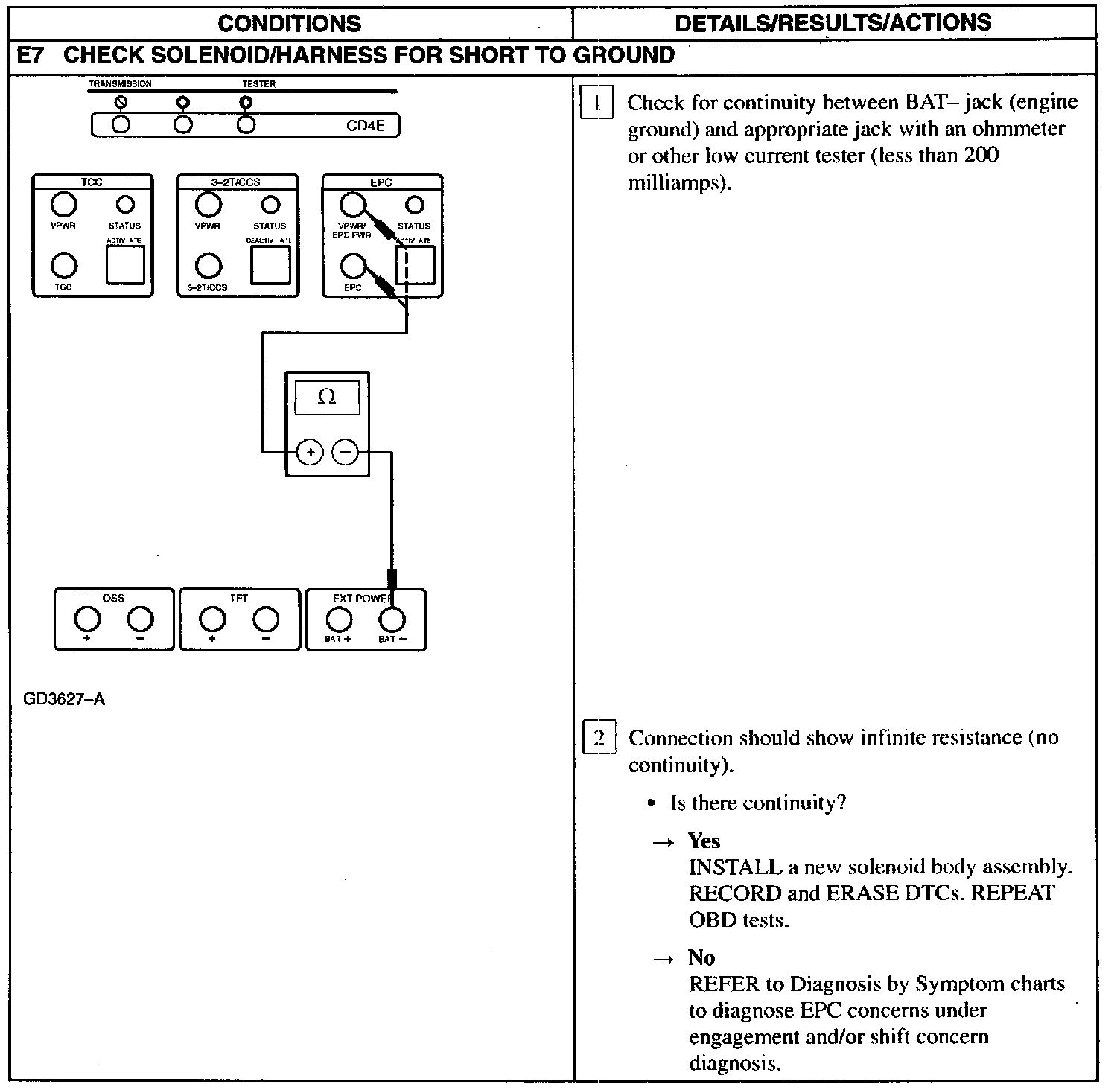

E7
