Test A: Shift Solenoids

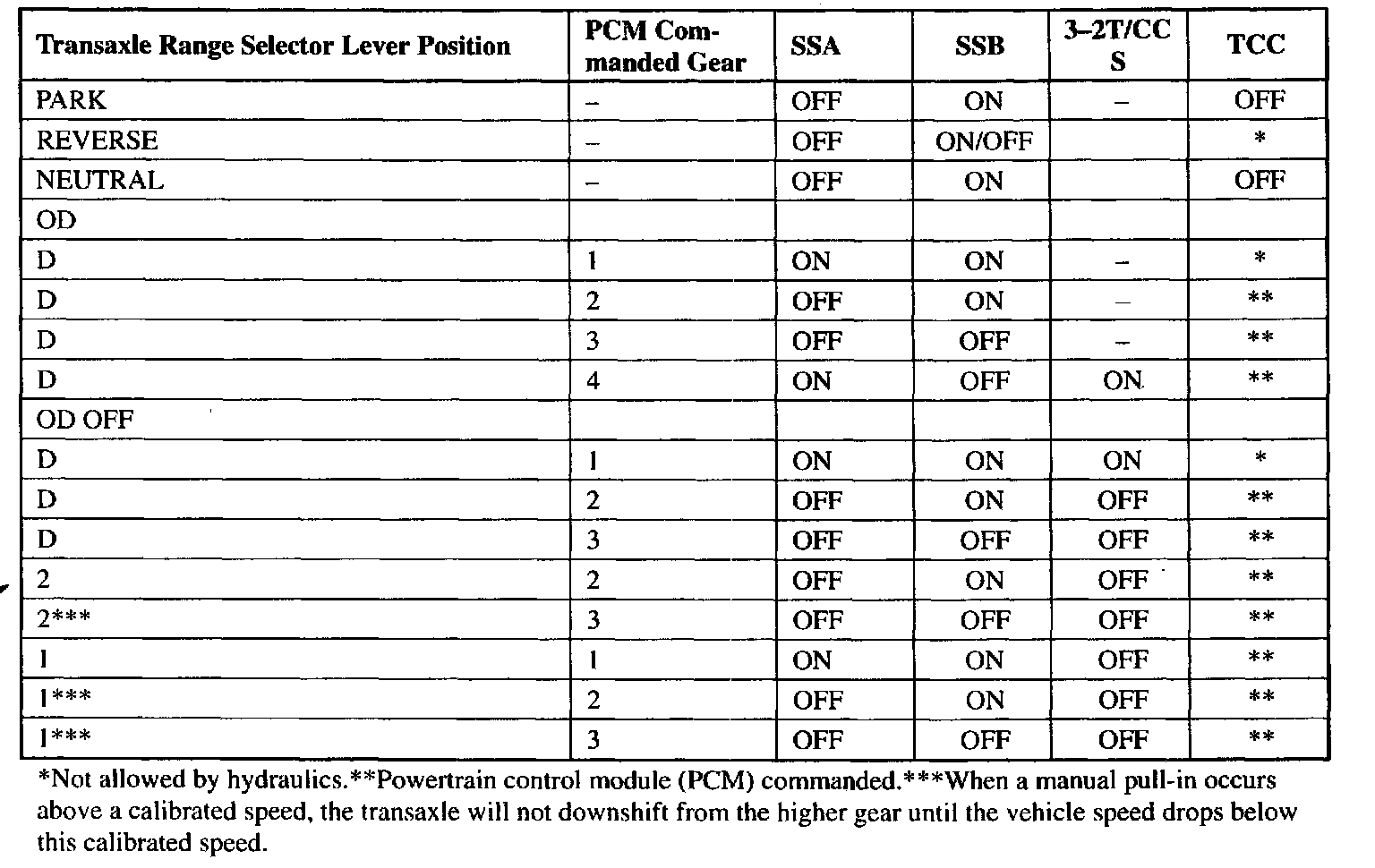

Solenoid Operation Chart-CD4E

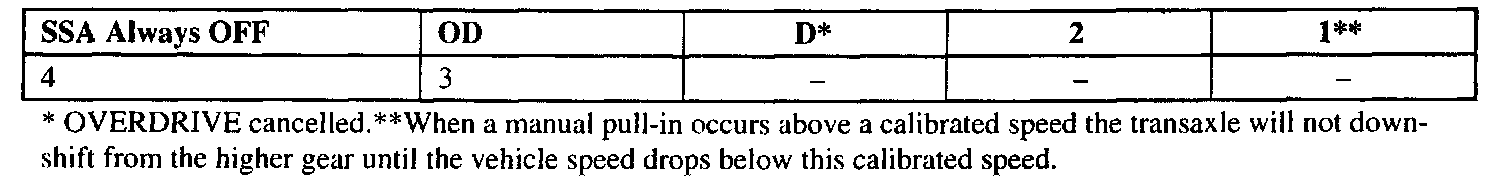

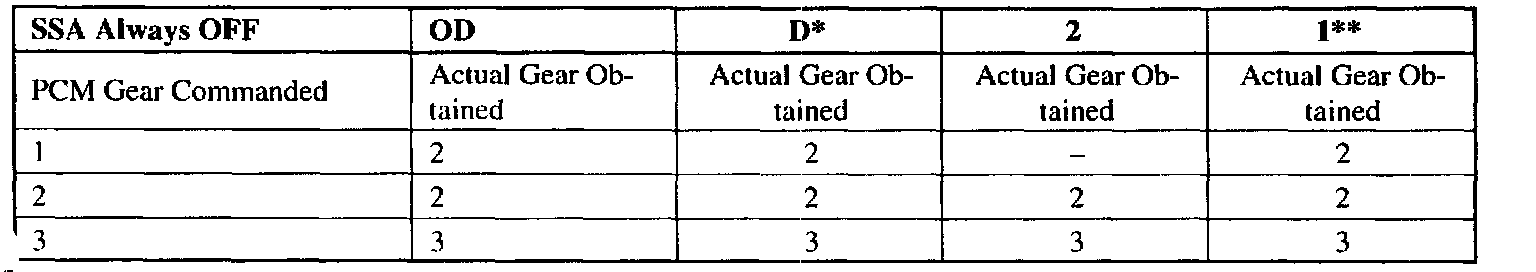

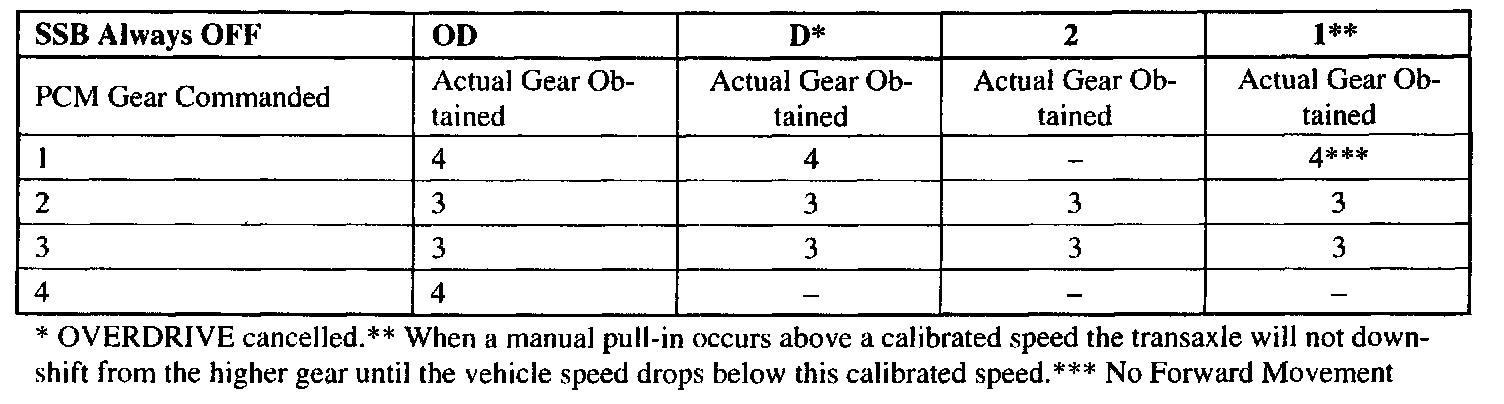

Shift Solenoid Failure Mode Chart "Always OFF"











Failed OFF due to PCM and/or vehicle wiring concerns, and/or solenoid electrically stuck off, and/or hydraulically or mechanically stuck off.

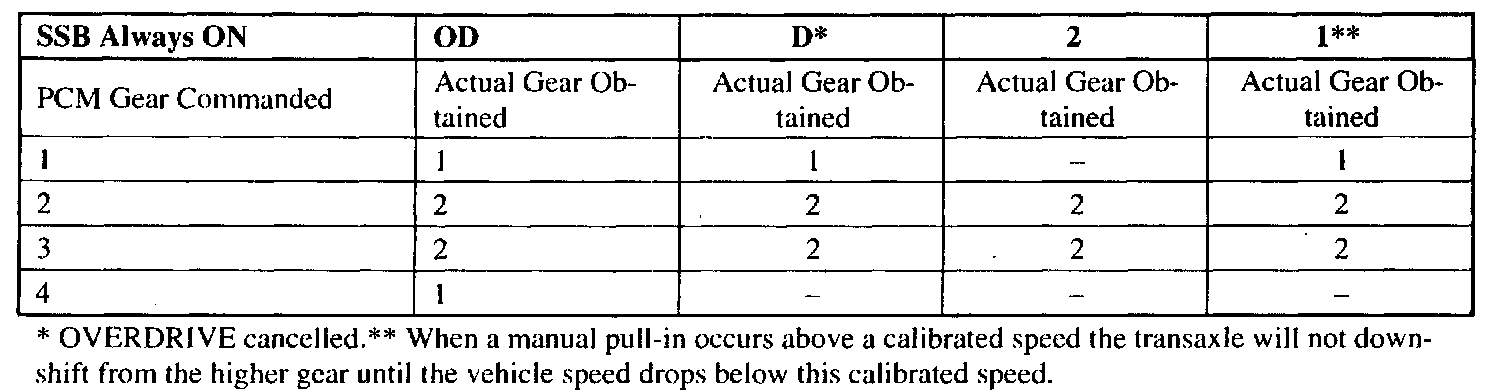

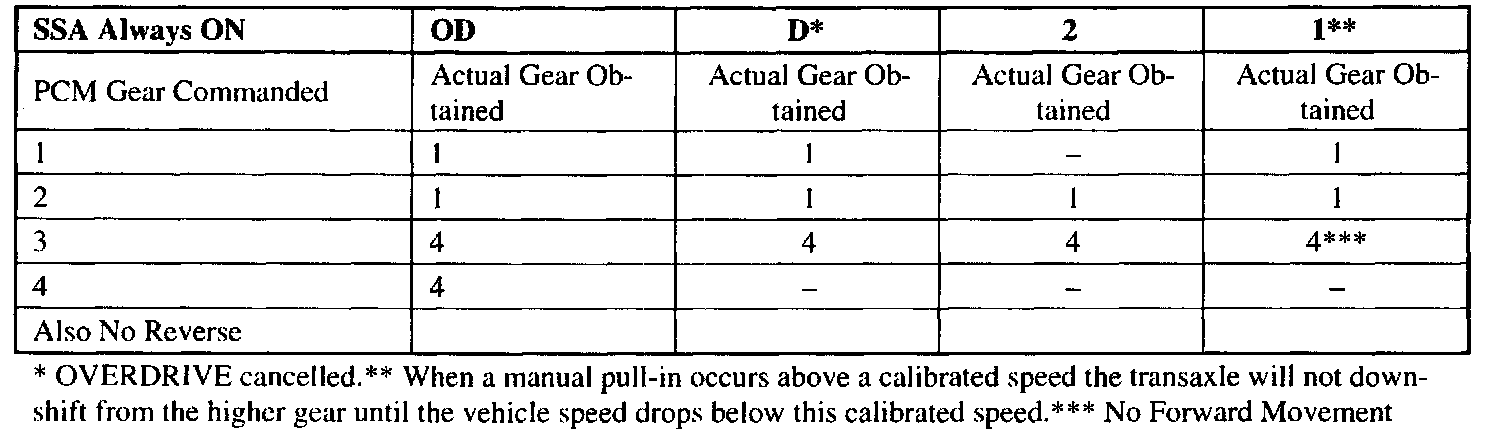

Shift Solenoid Failure Mode Chart "Always ON"








Failed ON due to PCM and/or vehicle wiring concerns, and/or solenoid electrically stuck on, and/or hydraulically or mechanically stuck on.

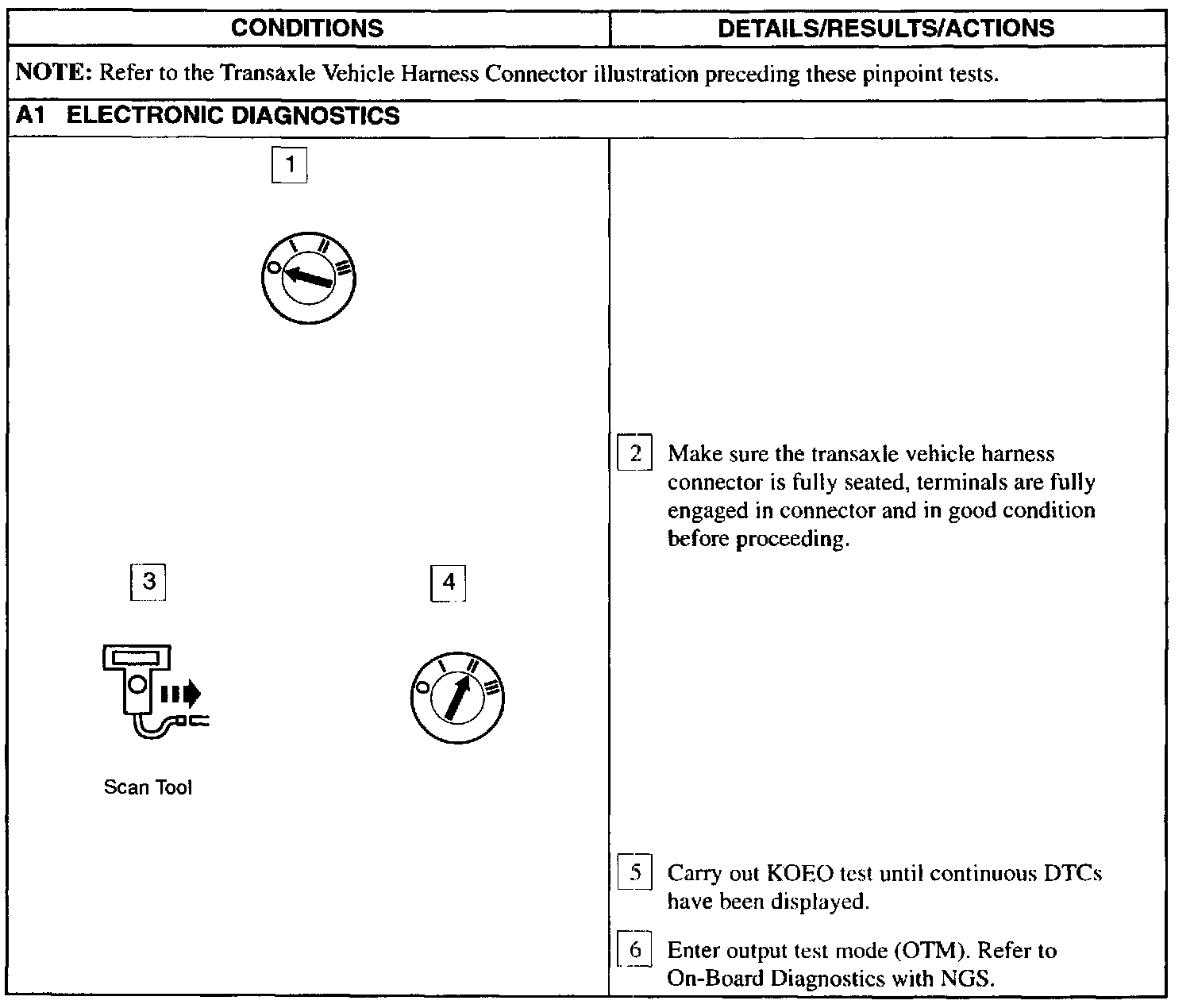

A1

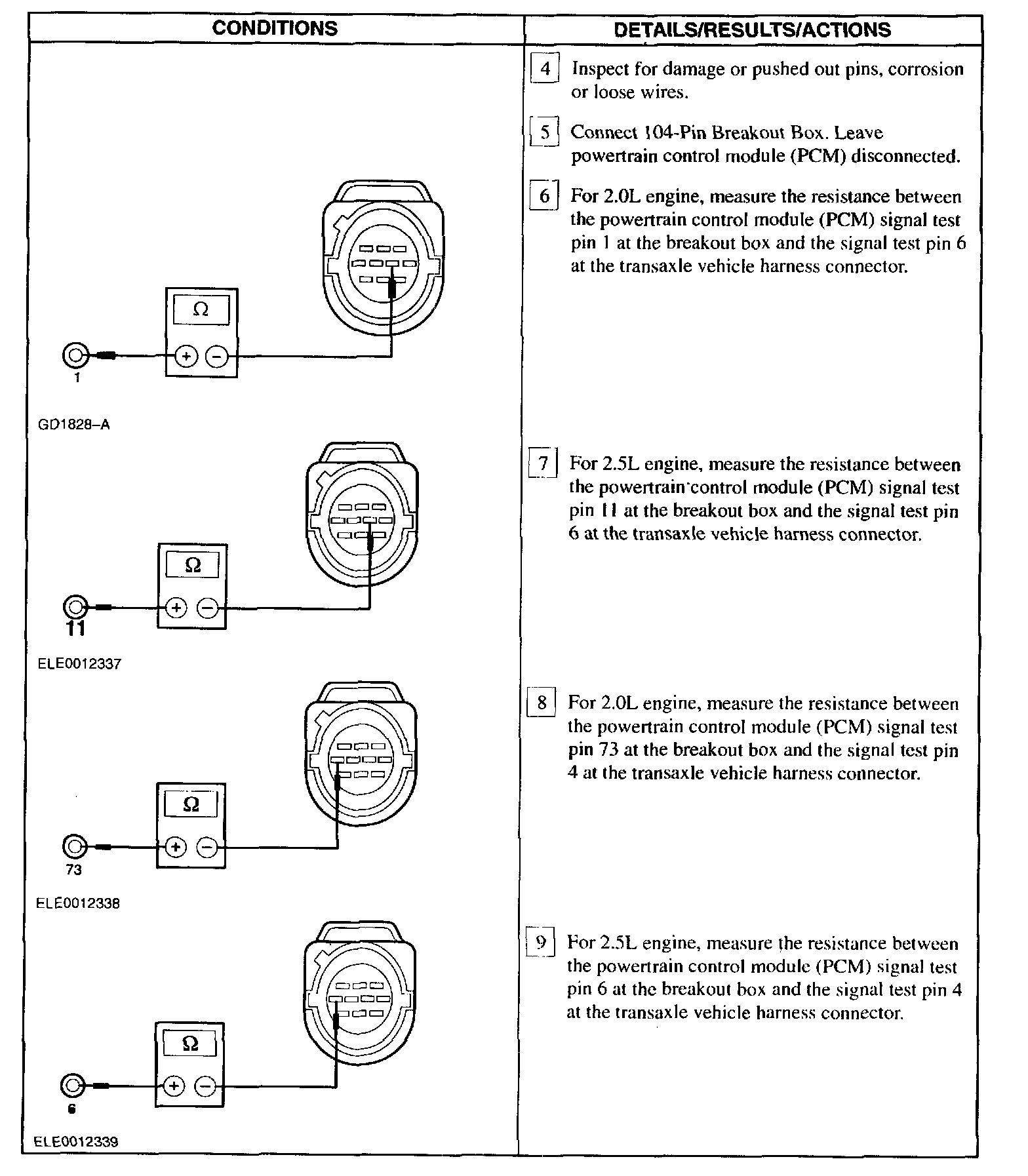

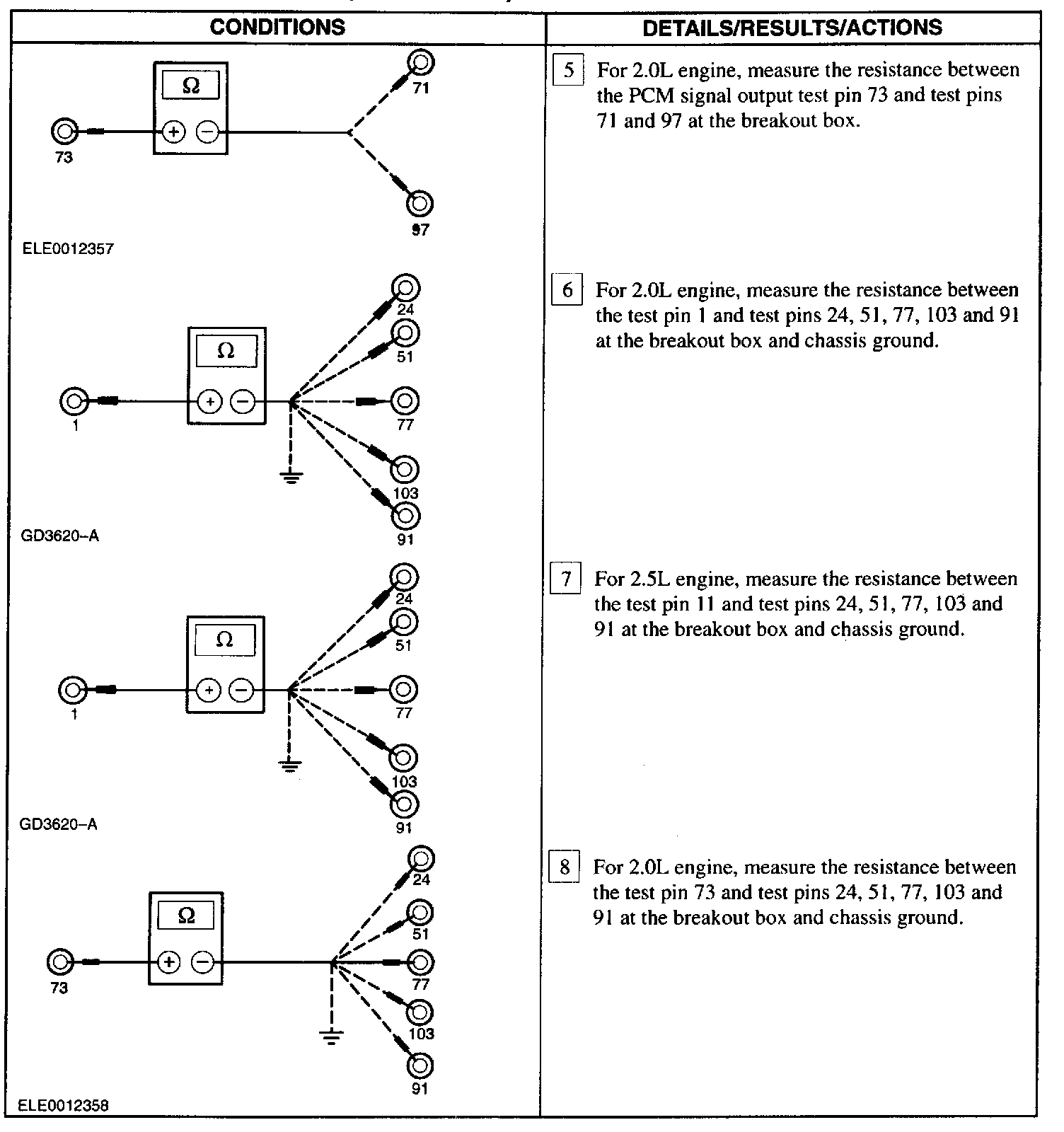

A1 - A2

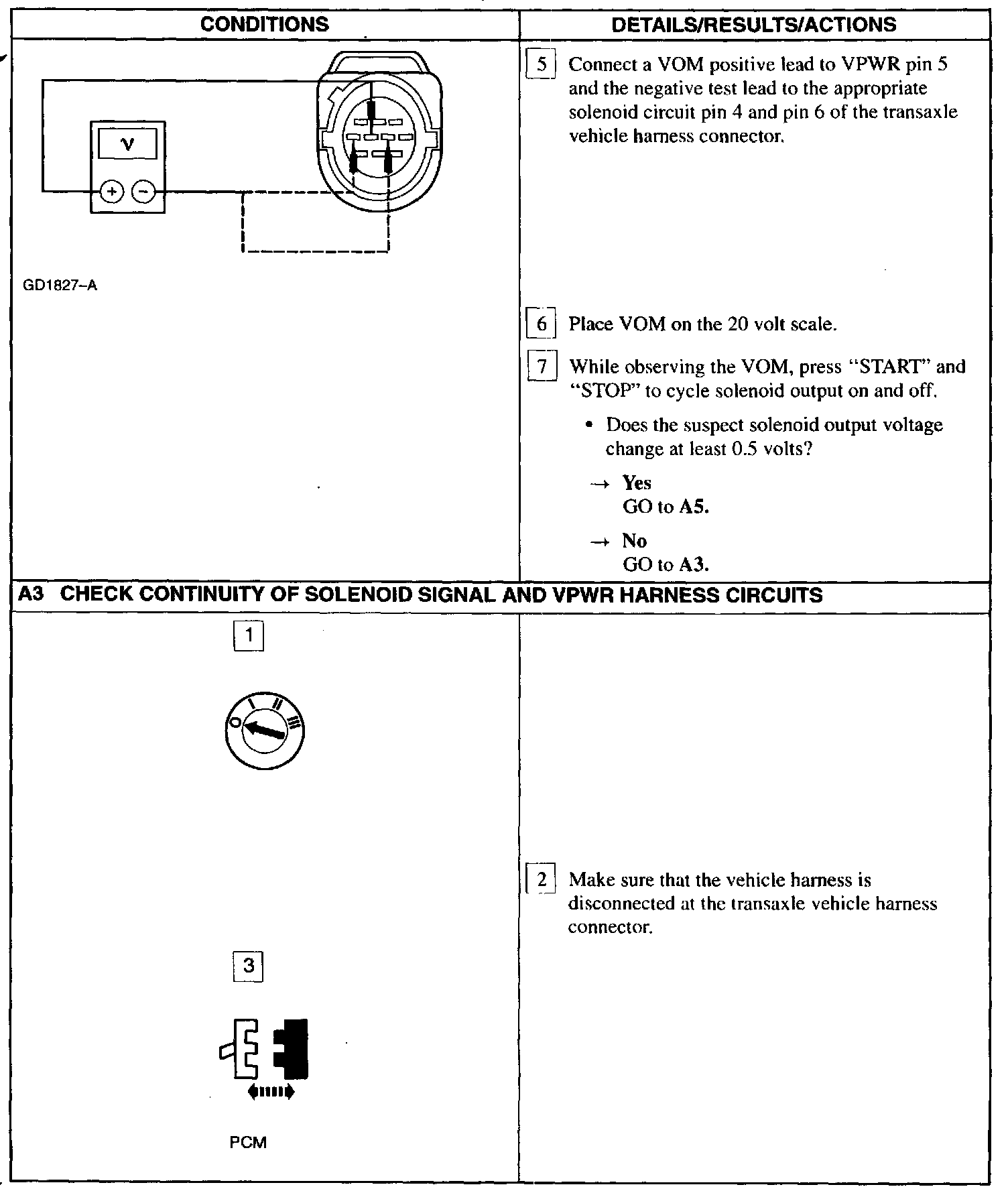

A2 - A3

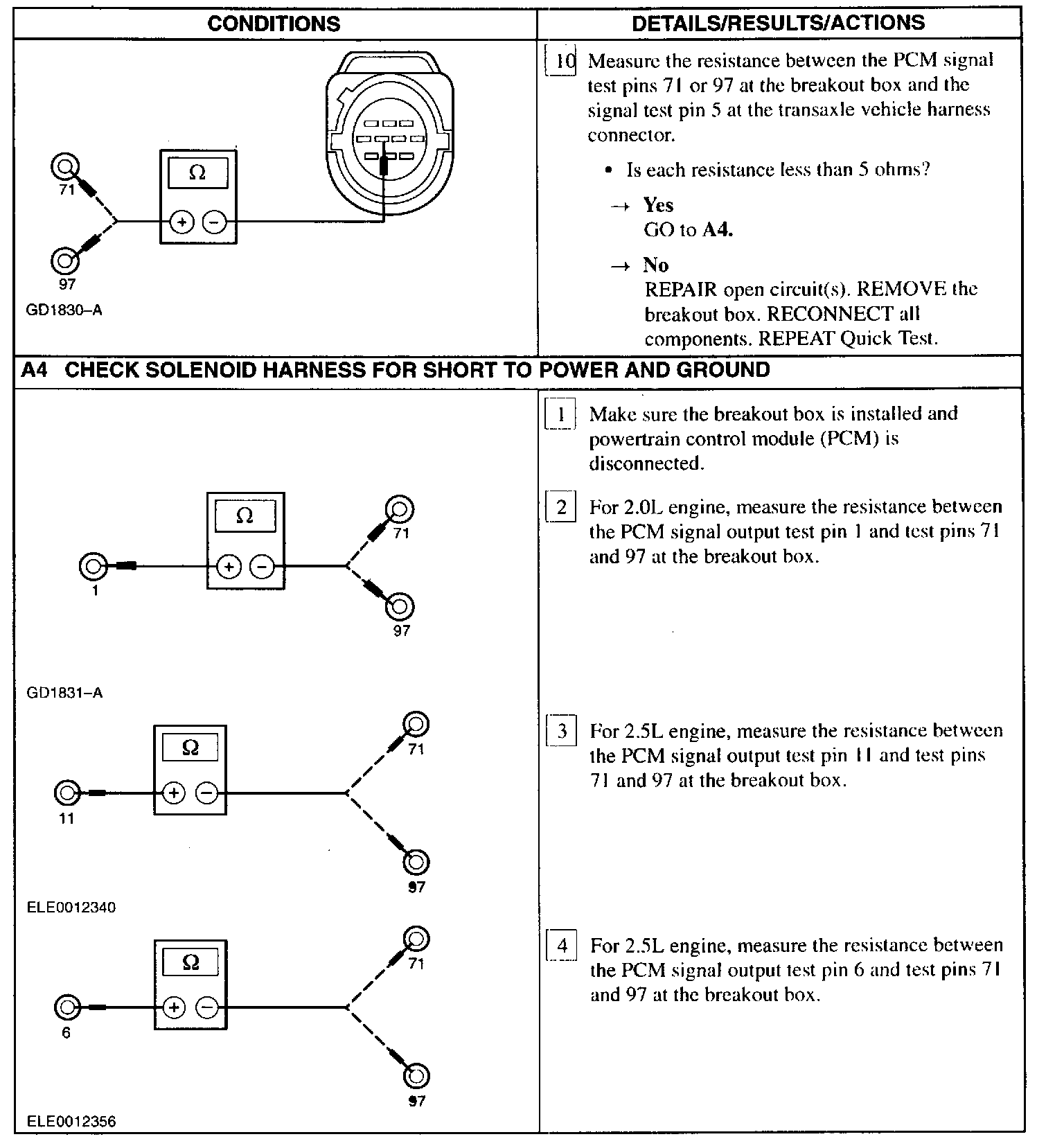

A3





A3 - A4





A4





A4 - A6

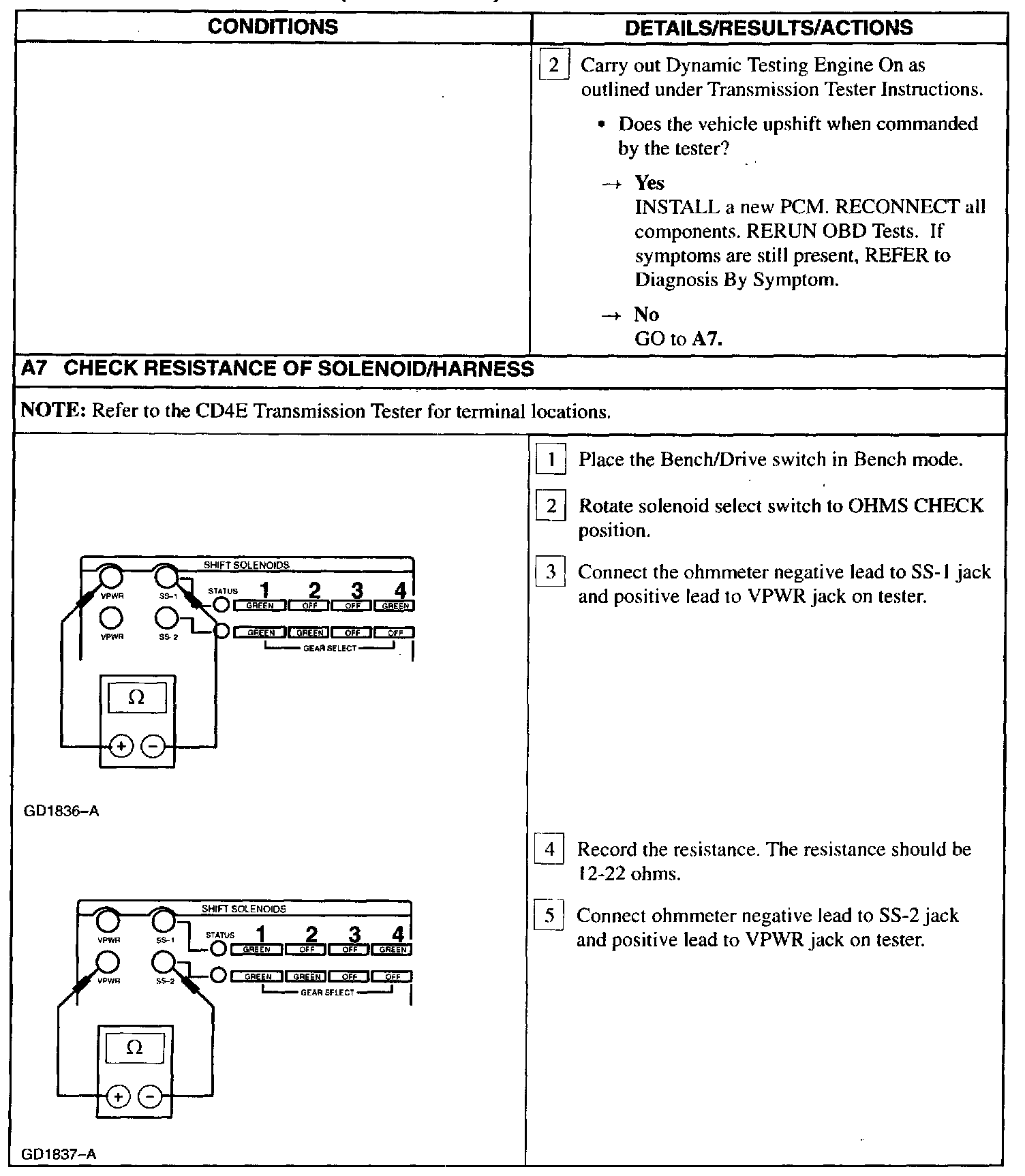

A6 - A7

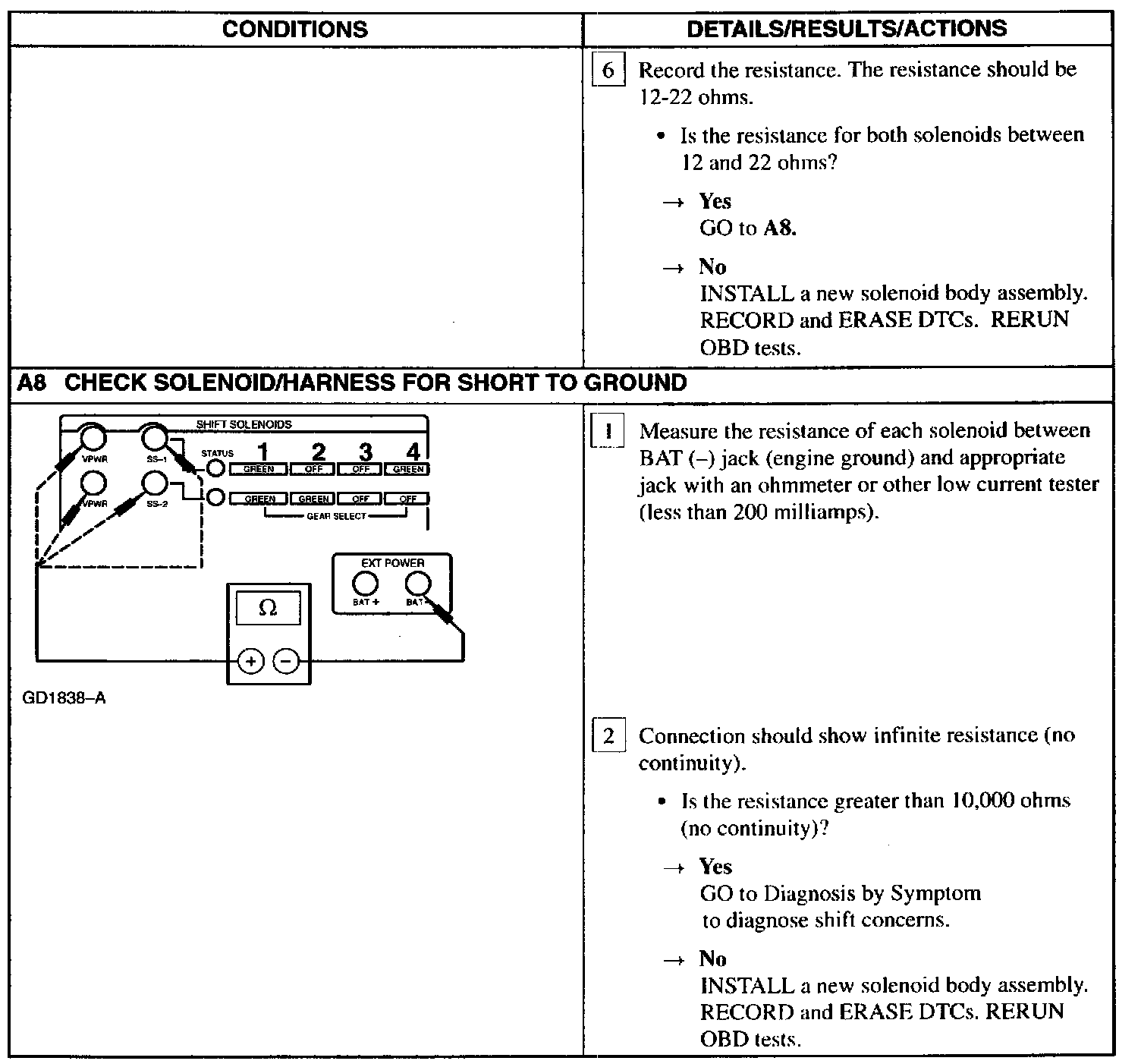

A7 - A8
