Diagnostic Trouble Code Chart
Diagnostic Trouble Code Chart

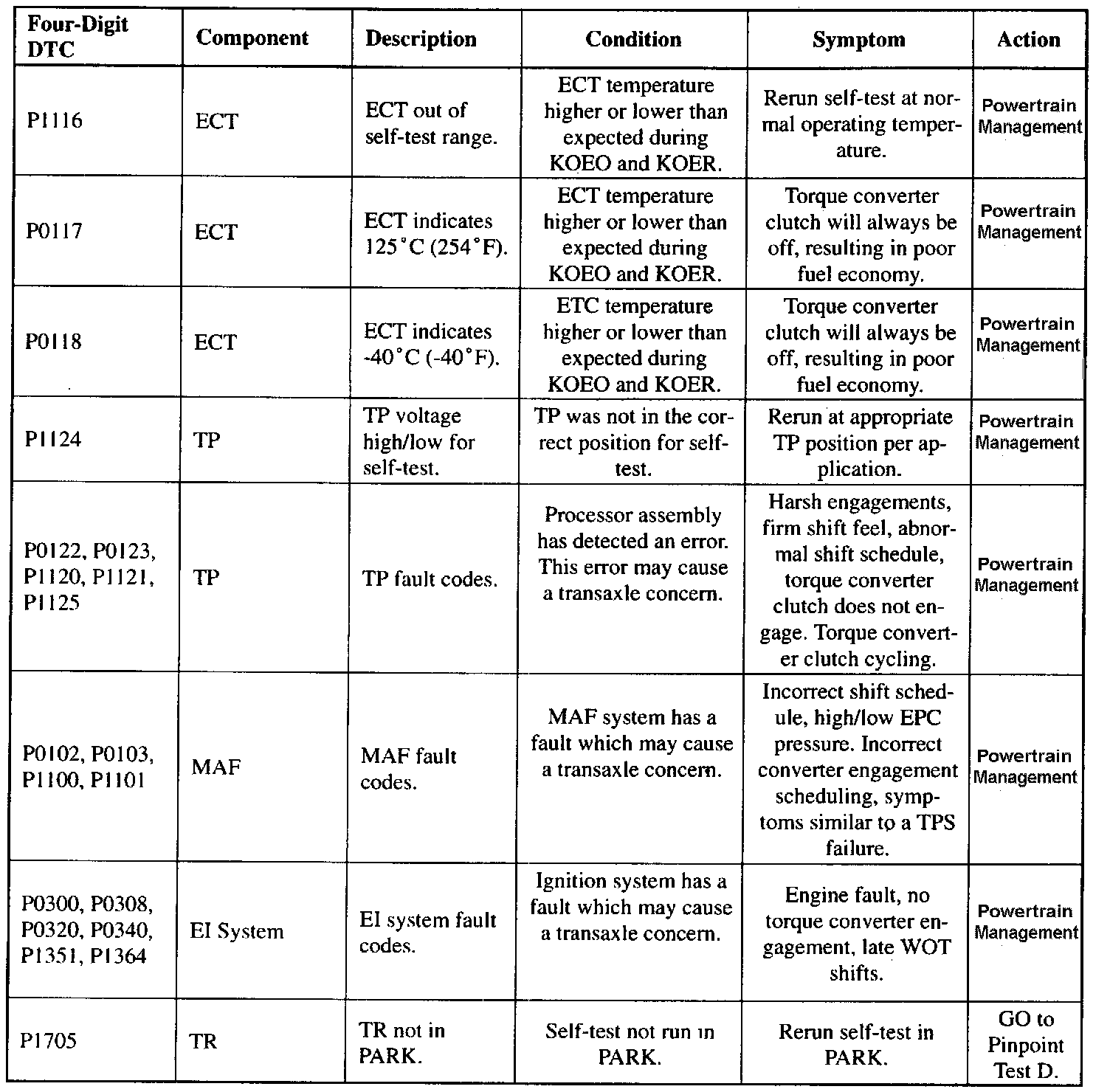

P0116-P1705:
1 of 7

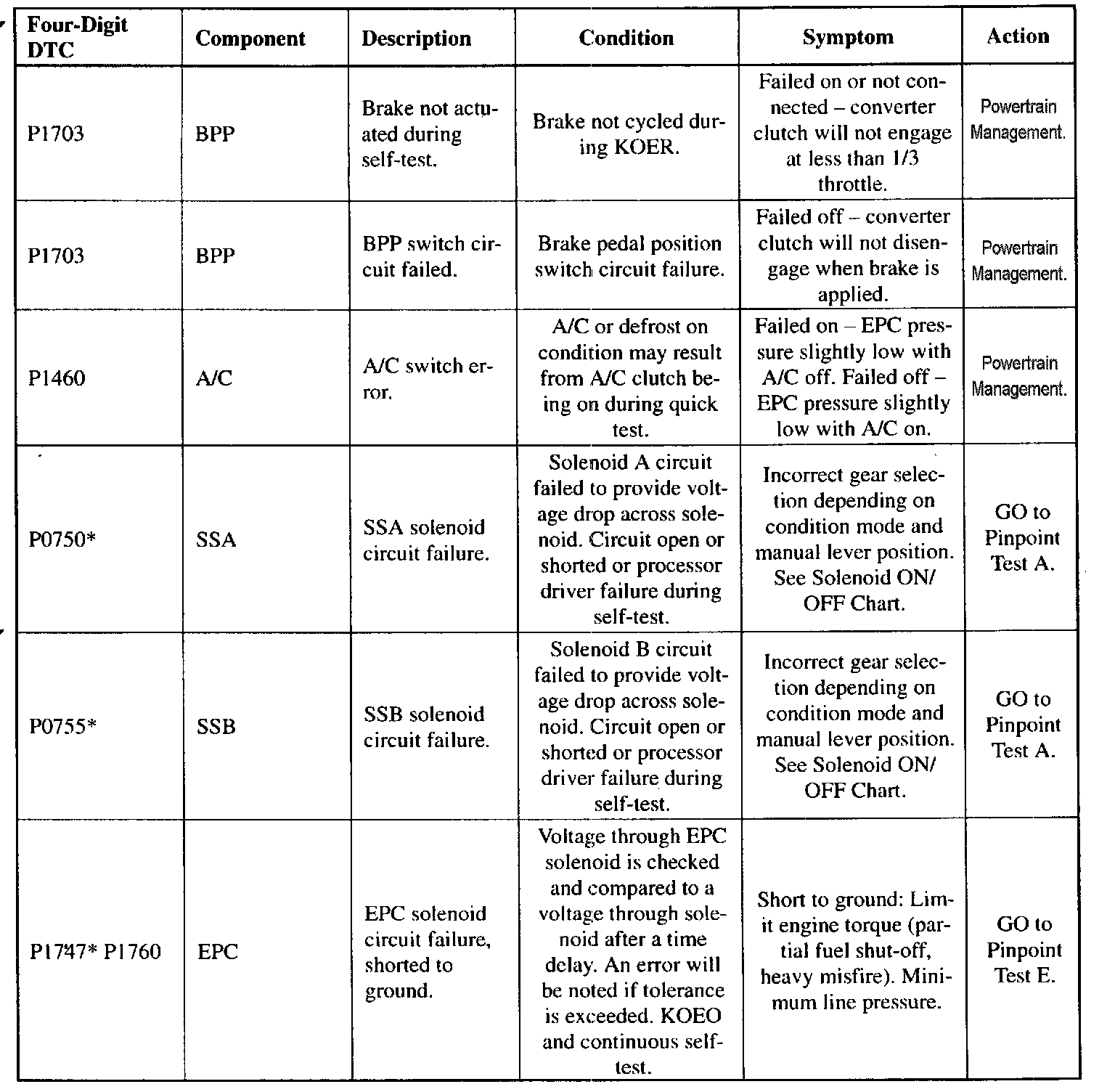

P0750-P1760:
2 of 7

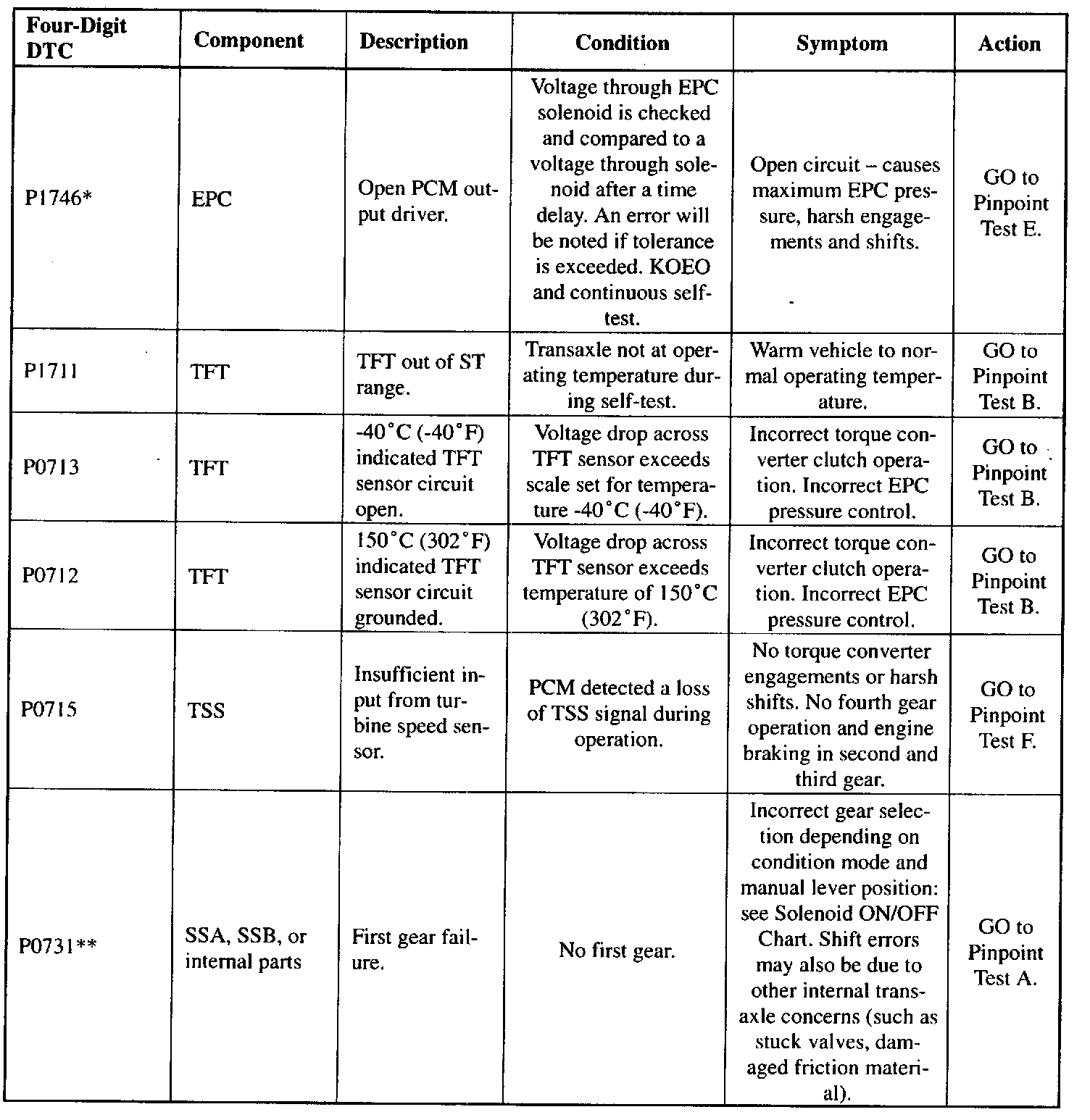

P0712-P1746:
3 of 7

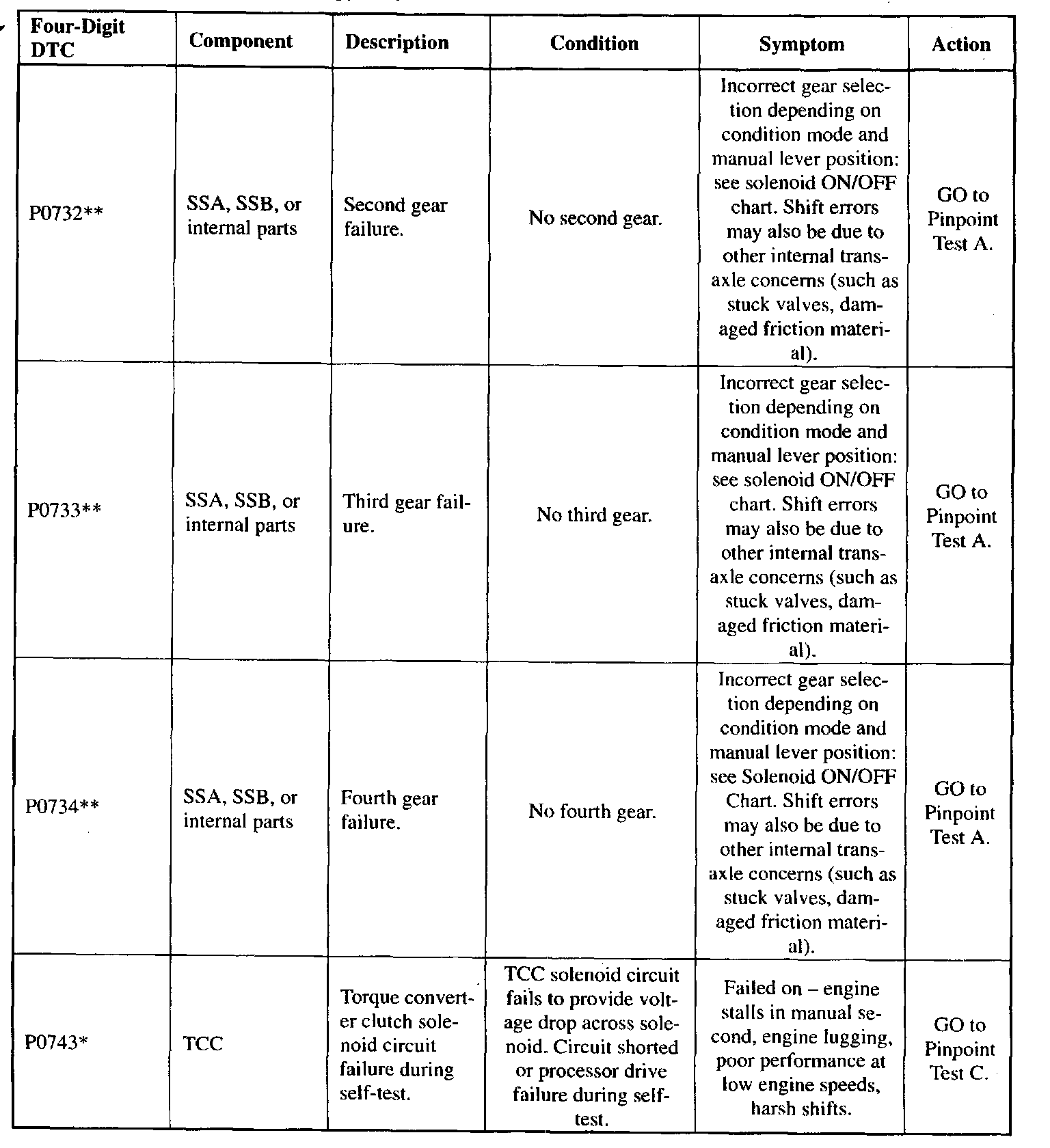

P0732-P0743:
4 of 7

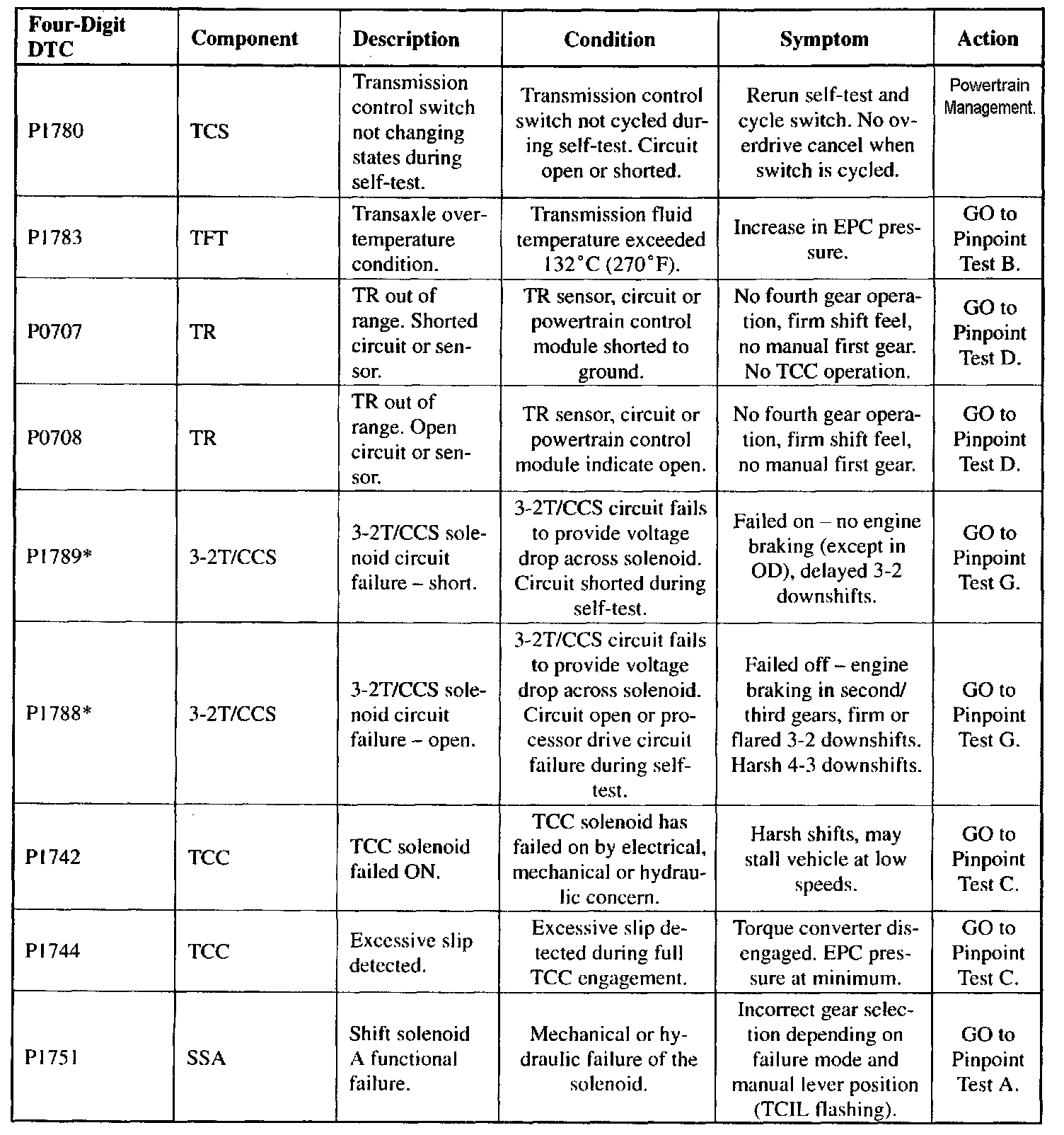

P0707-P1789:
5 of 7

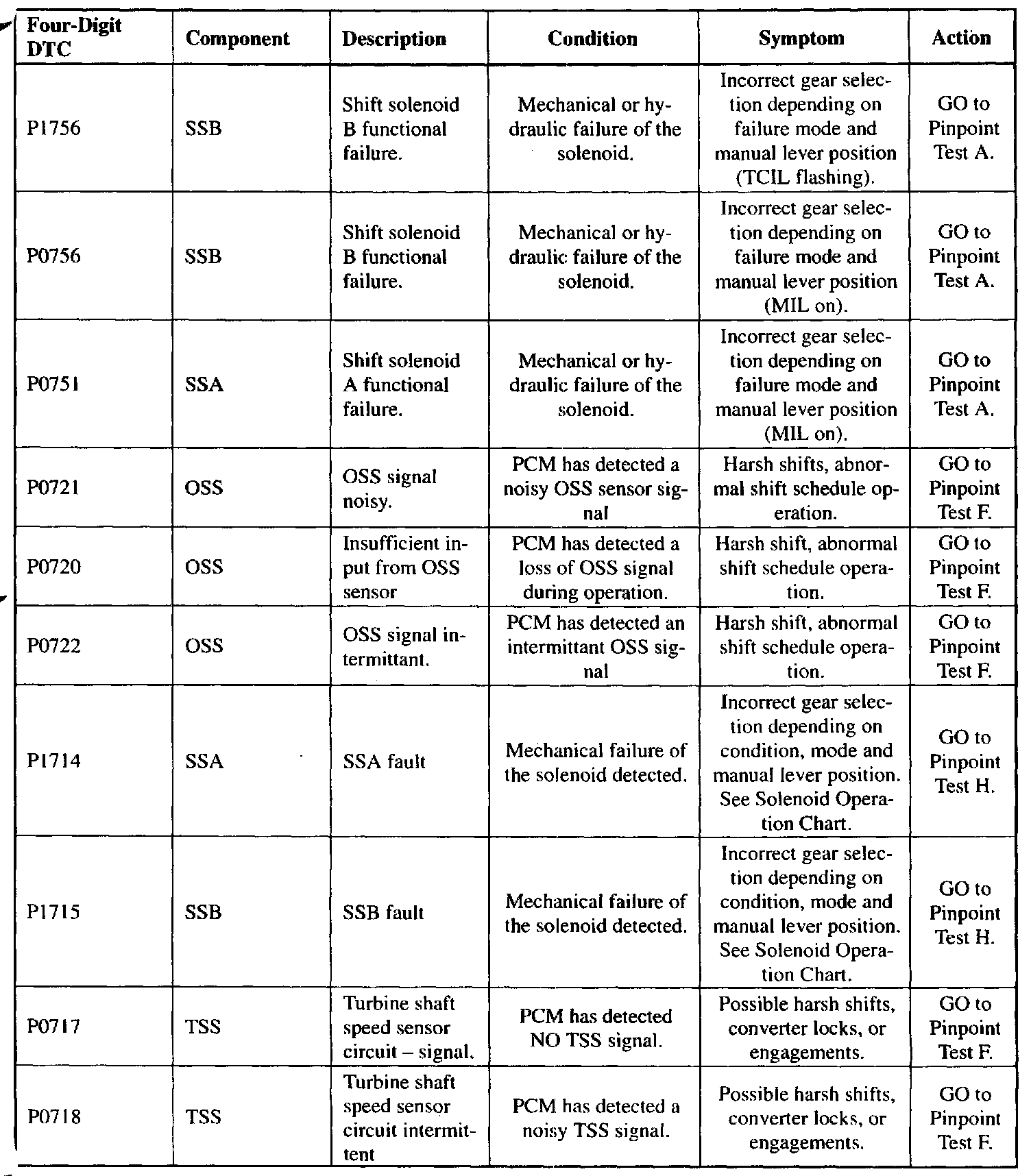

P0717-P1756:
6 of 7

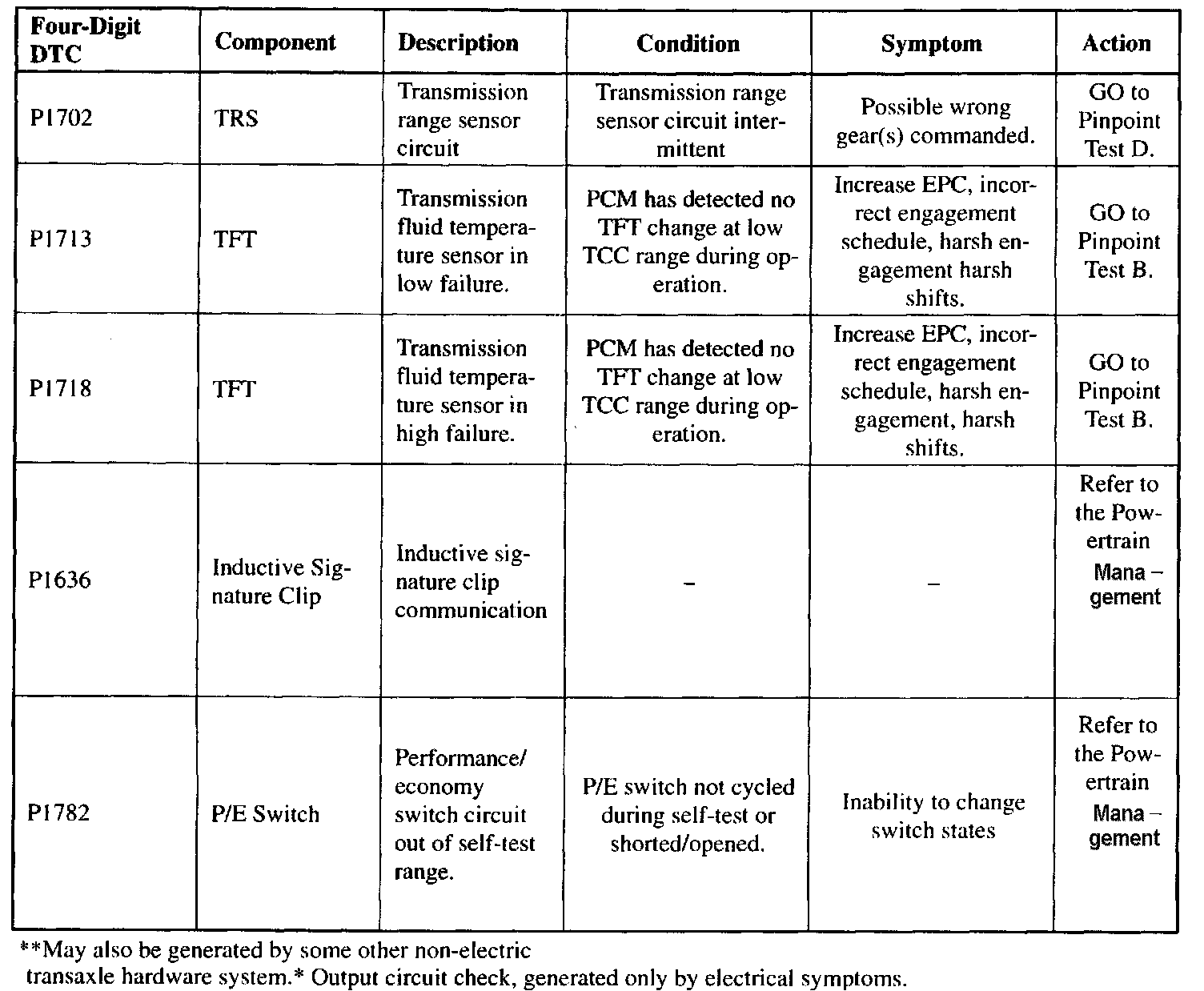

P1702-P1782:
7 of 7
