Torque Converter Turbine Torque Check

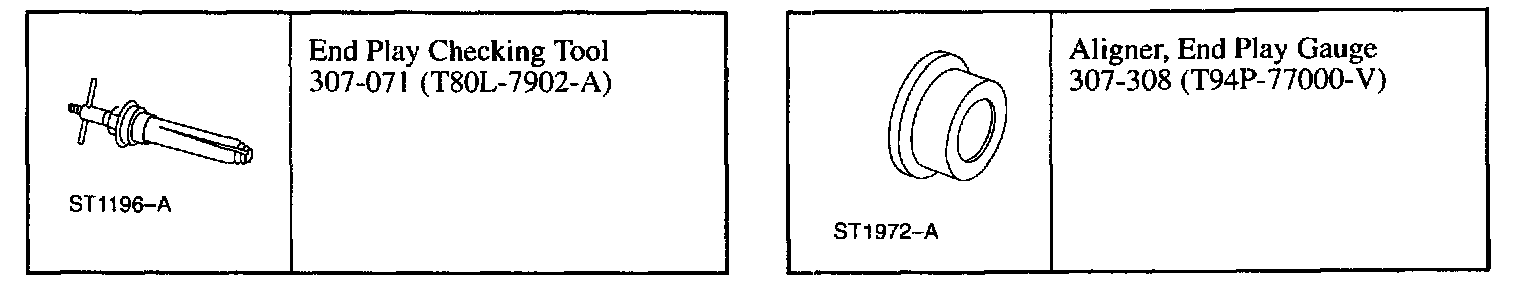

Special Tools:

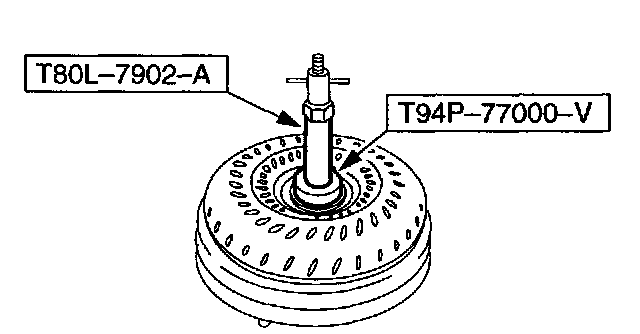

1. Install special tools into the turbine splines in the torque converter.

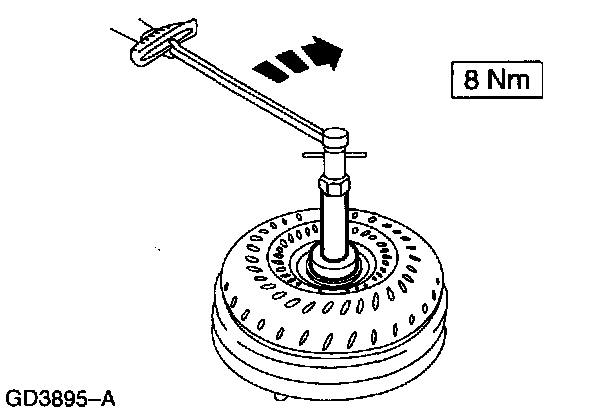

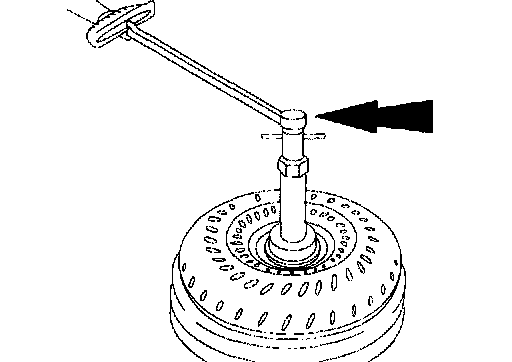

2. Attach a torque wrench and determine the torque required to turn the turbine.





3. If the torque exceeds, install a new torque converter.
