Torque Converter Leak Check

Special Tools:

Check
1. Clean the outside surface of the torque converter.

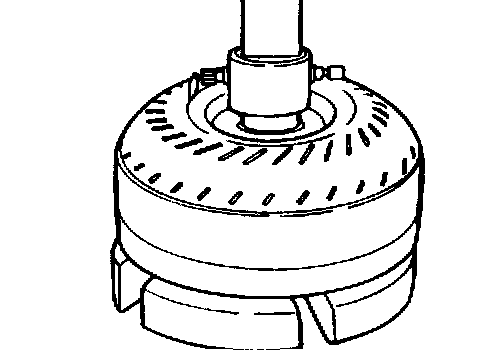

2. Install the special tool (014-R1075) into converter hub.

3. WARNING: ALWAYS FOLLOW PROPER SAFETY PROCEDURES WHILE USING PRESS. FAILURE TO FOLLOW THESE INSTRUCTIONS WILL RESULT IN PERSONAL INJURY.





Install torque converter with installed special tool (014-R1075) into press.

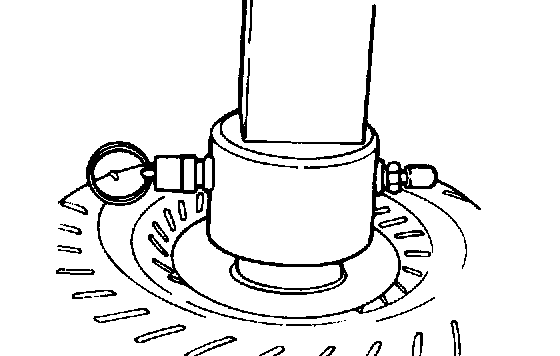

- Secure press. Apply enough force from press to seal tool into torque converter.

4. NOTE: Use clean dry shop air.

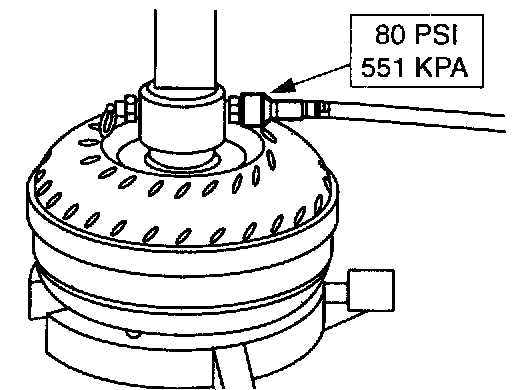

Apply air pressure to valve on special tool (014-R1075).
5. With air pressure applied to valve, inspect for leaks at converter hub, seams and studs. A soap bubble solution may be applied around those areas to aid in diagnosis. If leaks are present, install a new converter.





6. Remove air hose. Release pressure. Remove the converter. Remove the special tool (014-R1075).
