Torque Converter Insert Check

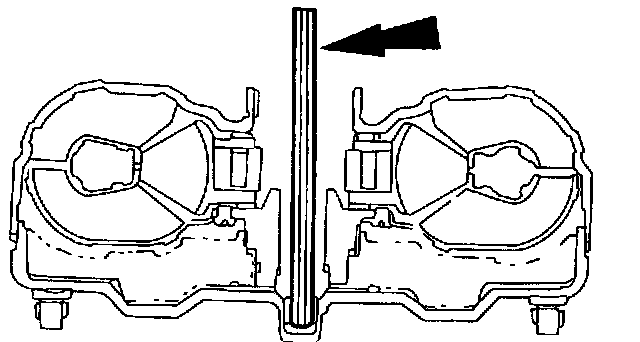

1. Install the oil pump drive shaft into the torque converter.

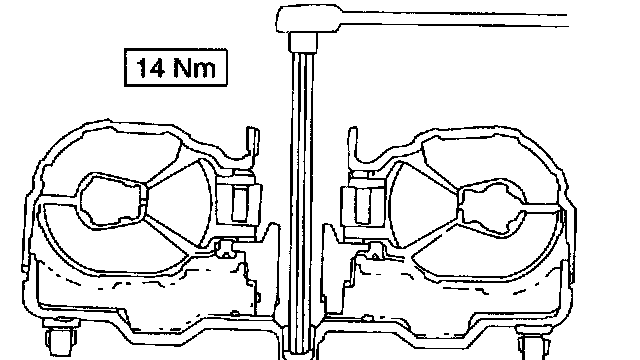

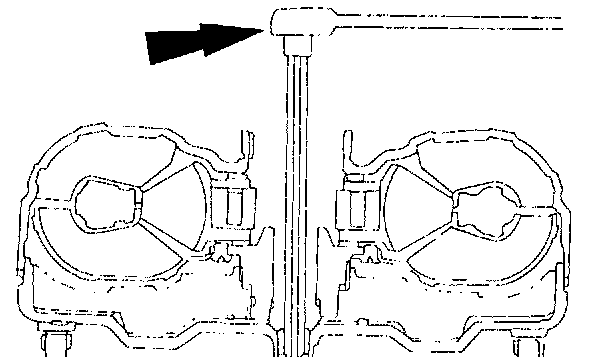

2. Install a torque wrench with a 5/16 Allen head socket attached on the oil pump drive shaft.





3. Verify that the insert can hold torque.
4. If the insert cannot hold the specified torque, install a new torque converter.
