Connector Locations





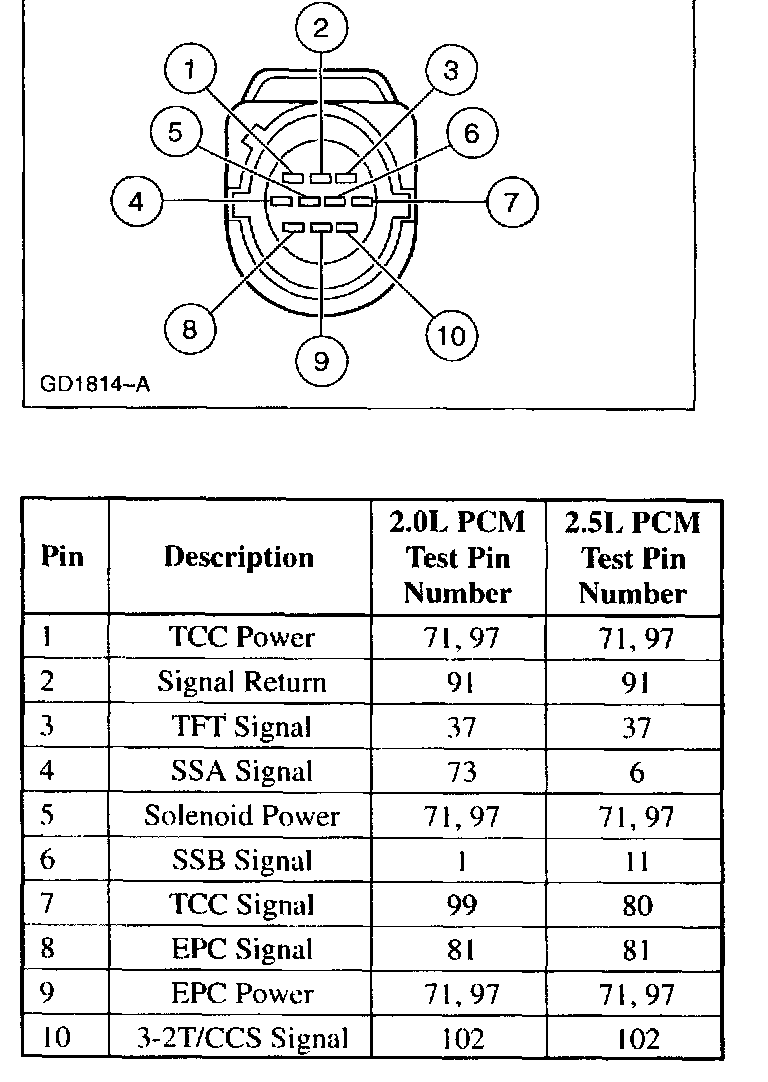

Transaxle Vehicle Harness Connector

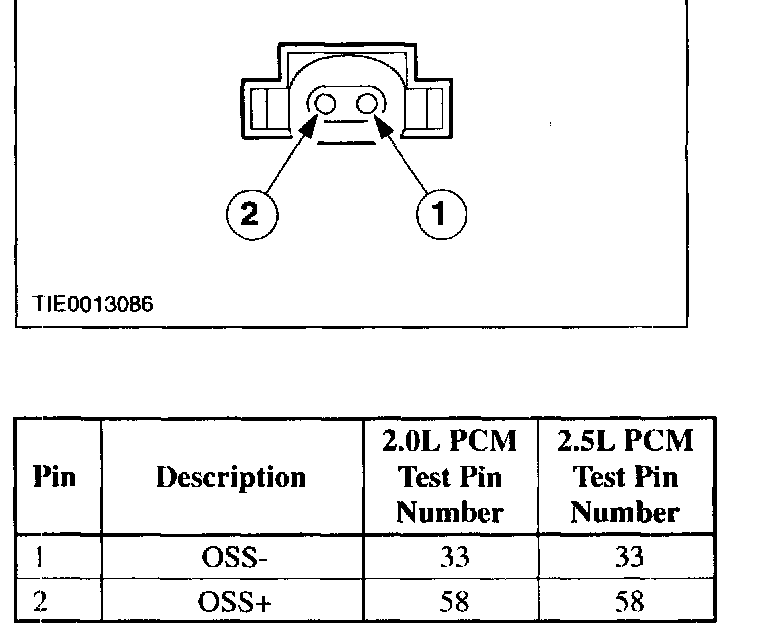

Output Shaft Speed (OSS) Sensor Connector

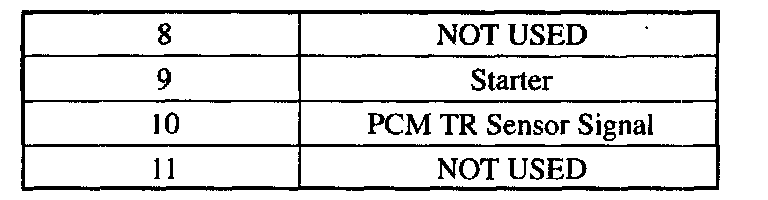

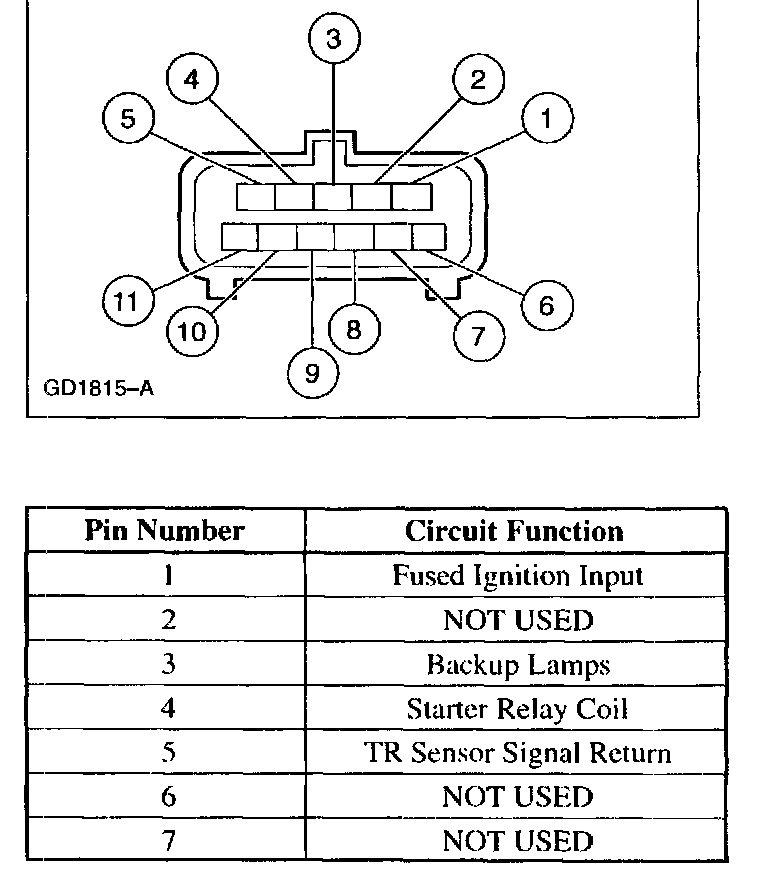

Transmission Range (TR) Sensor Connector

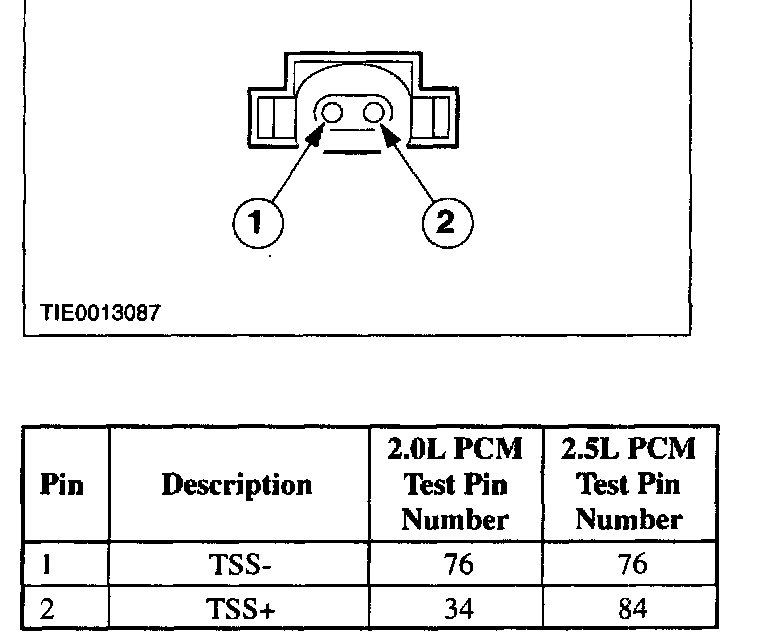

Turbine Shaft Speed (TSS) Sensor Connector
