Rear

Removal
1. Raise and support the vehicle.

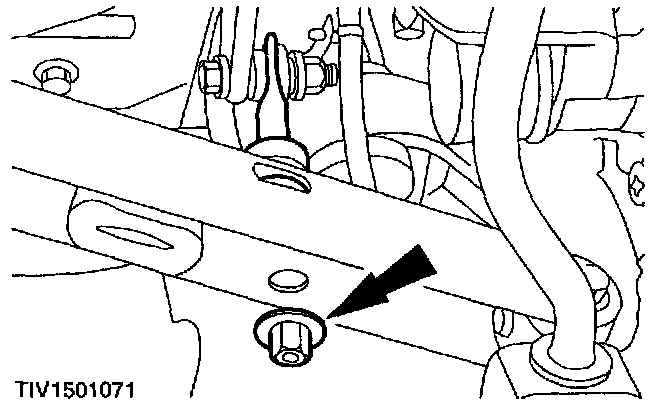

2. Detach the stabilizer bar connecting links and bushings from the front lower arms (one each side).

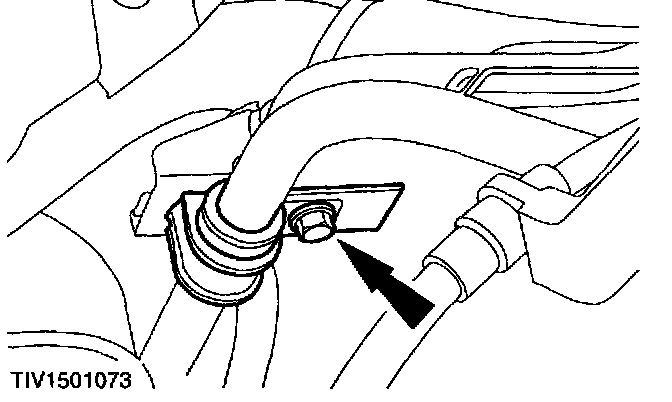

3. Remove the stabilizer bar clamps (one each side).





4. Detach the right-hand tie-bar from the wheel spindle.

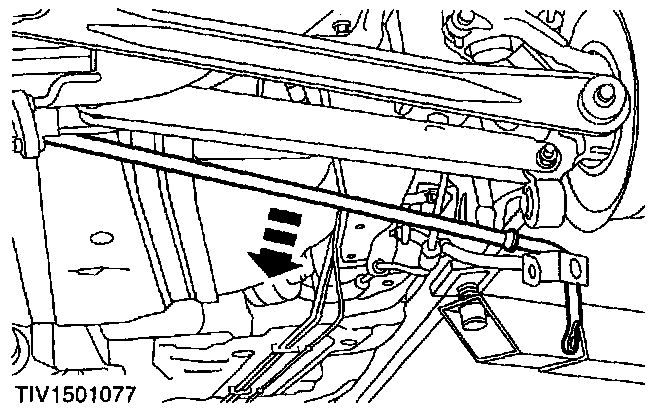

5. Remove the stabilizer bar.

Installation

NOTE: The final tightening of the rear suspension components must be carried out with the vehicle on its wheels.

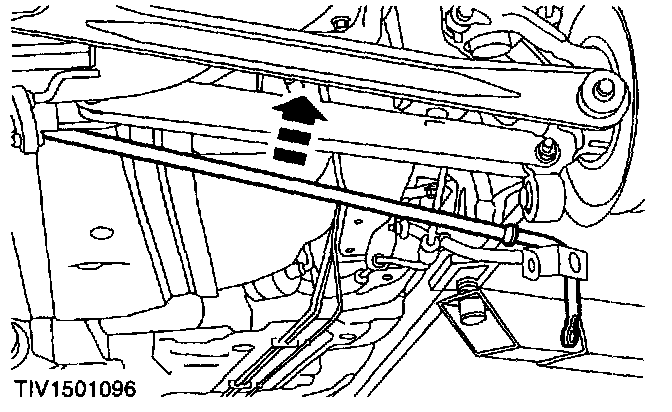

1. Install the stabilizer bar.

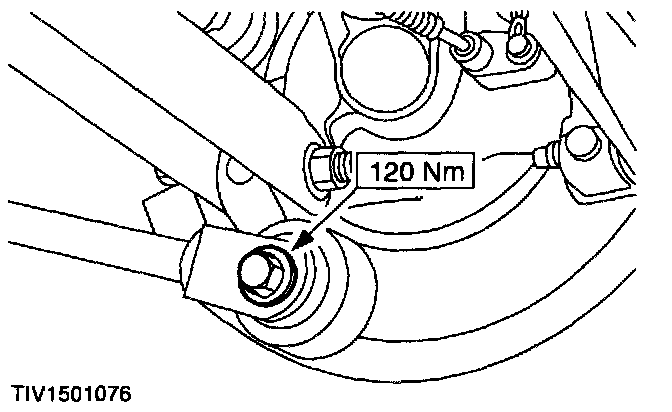

2. Install the right-hand tie-bar to the wheel spindle.





3. Attach the stabilizer bar to the crossmember (one each side).

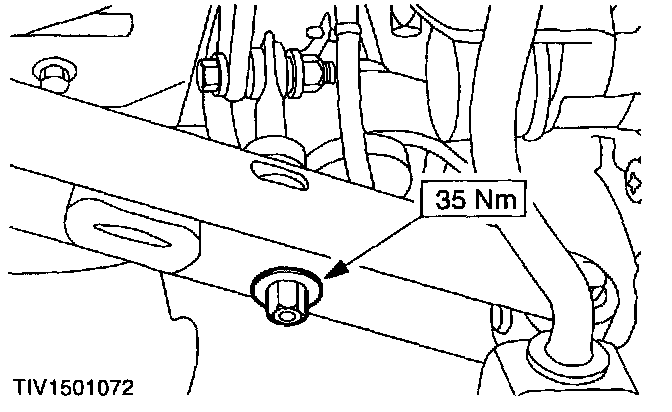

4. Attach the stabilizer bar connecting links to the front lower arms (one each side).
