Home >> Mercury >> 2000 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Testing and Inspection >> Pinpoint Tests >> Test D: No Power In Start

Test D: No Power In Start

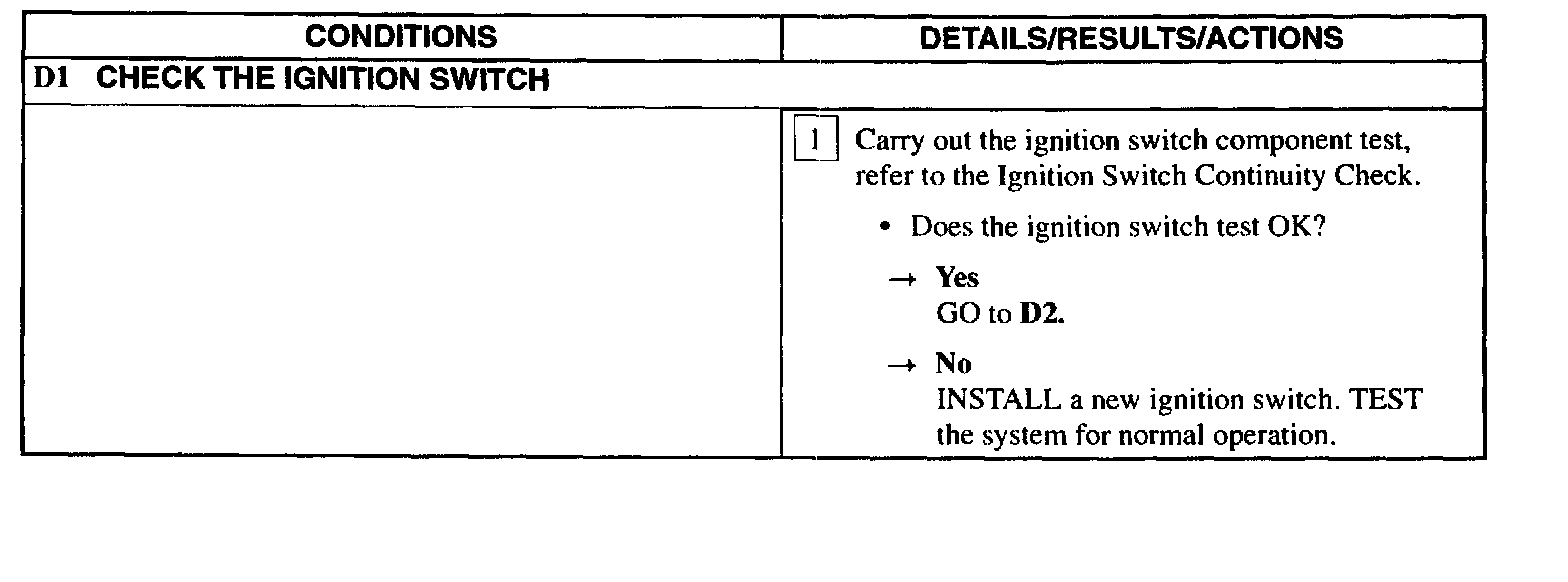

D1:

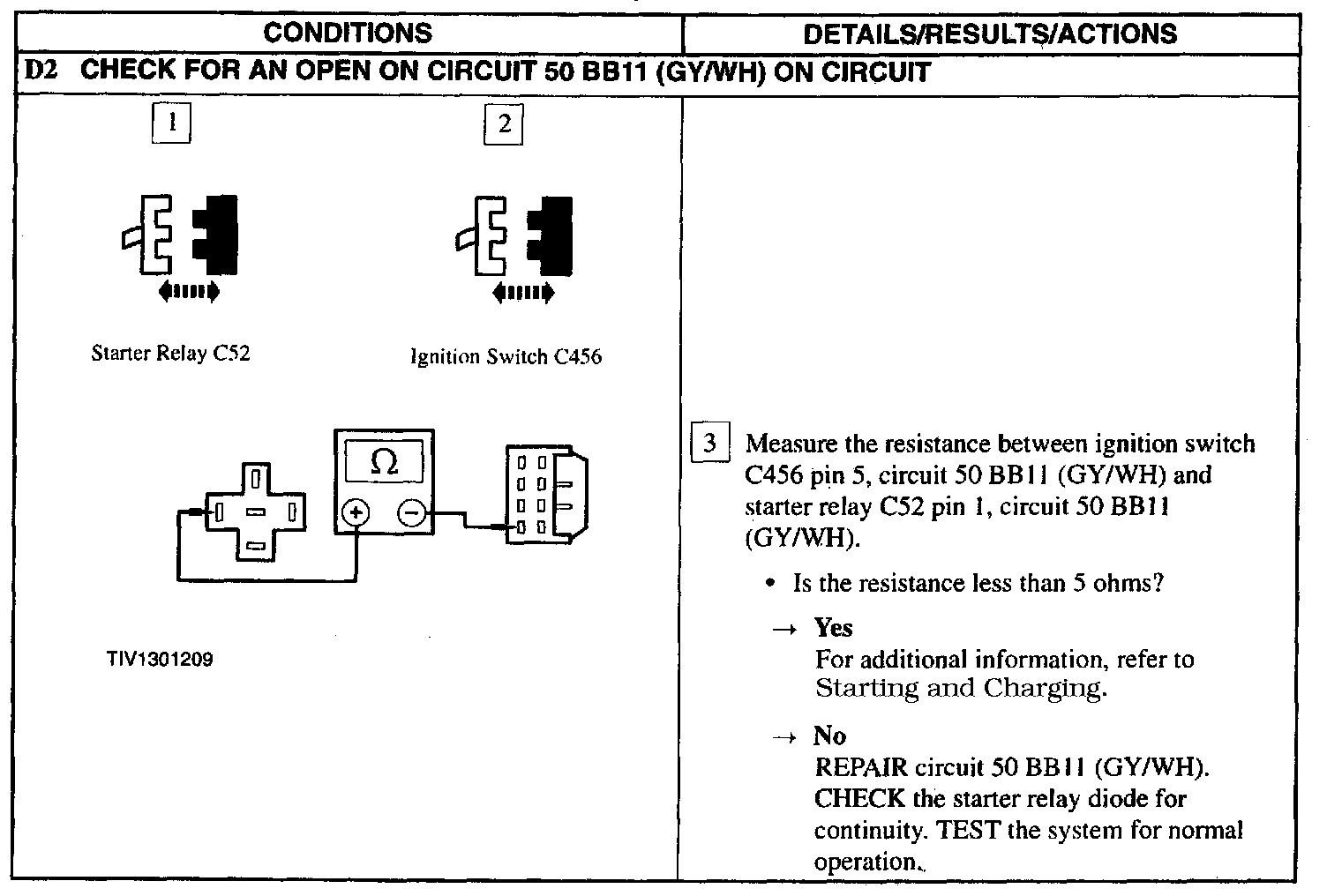

D2:





PINPOINT TEST D: NO POWER IN START
