Home >> Mercury >> 2000 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Testing and Inspection >> Pinpoint Tests >> Test B: No Power In ACC

Test B: No Power In ACC

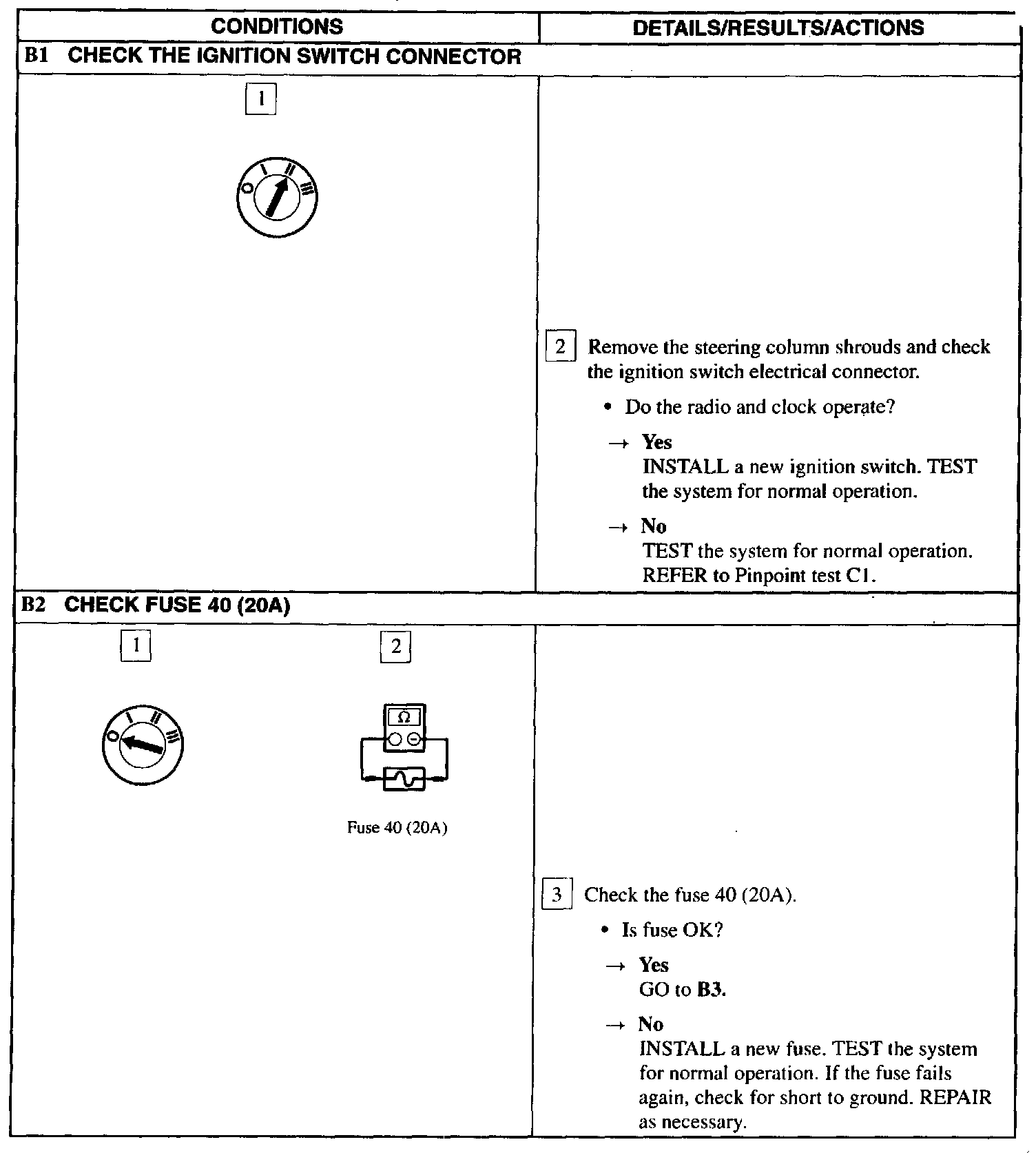

B1-B2:

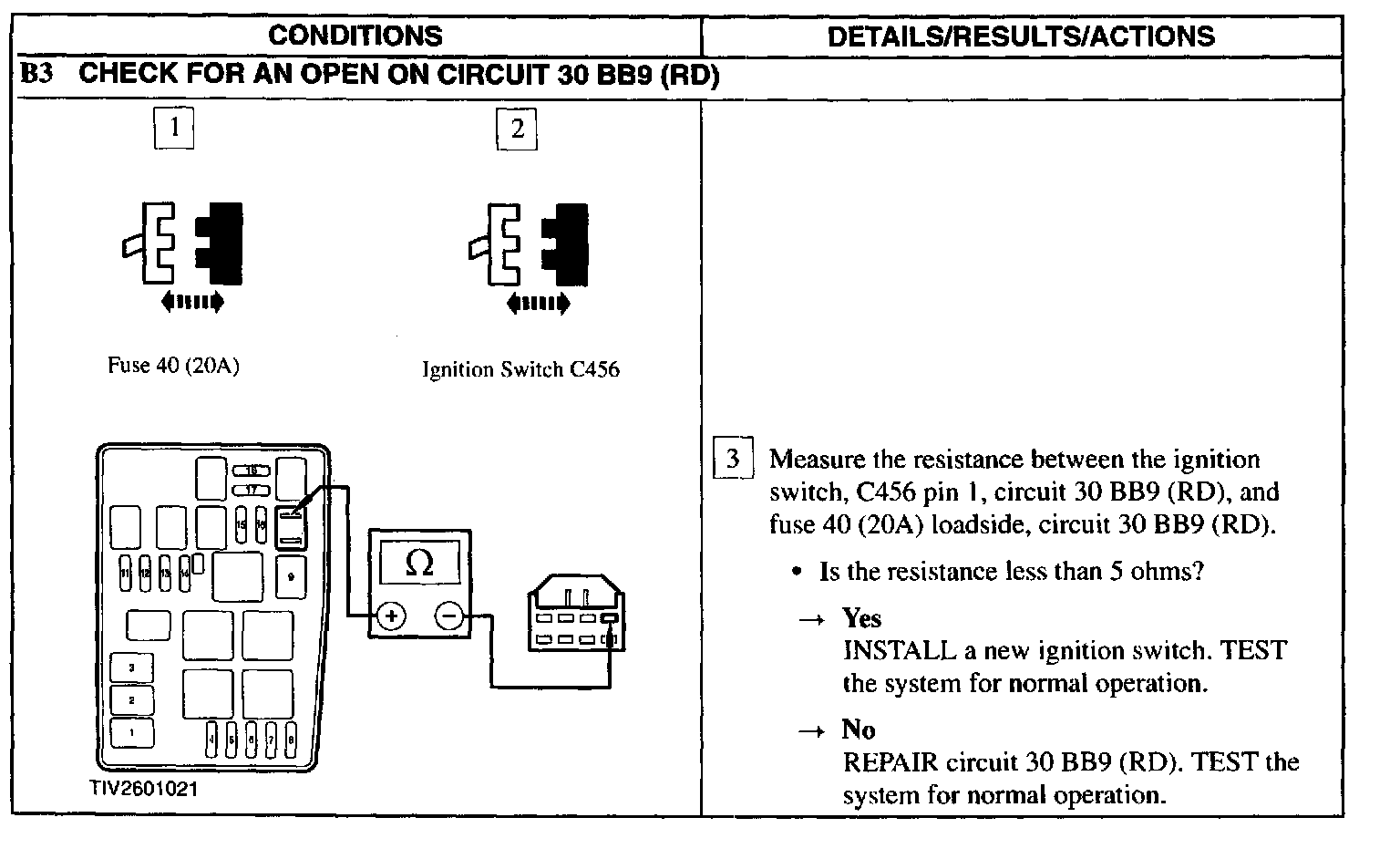

B3:





PINPOINT TEST B: NO POWER IN ACC
