Home >> Mercury >> 2000 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Testing and Inspection >> Pinpoint Tests >> Test B: Engine Cranks Slowly

Test B: Engine Cranks Slowly

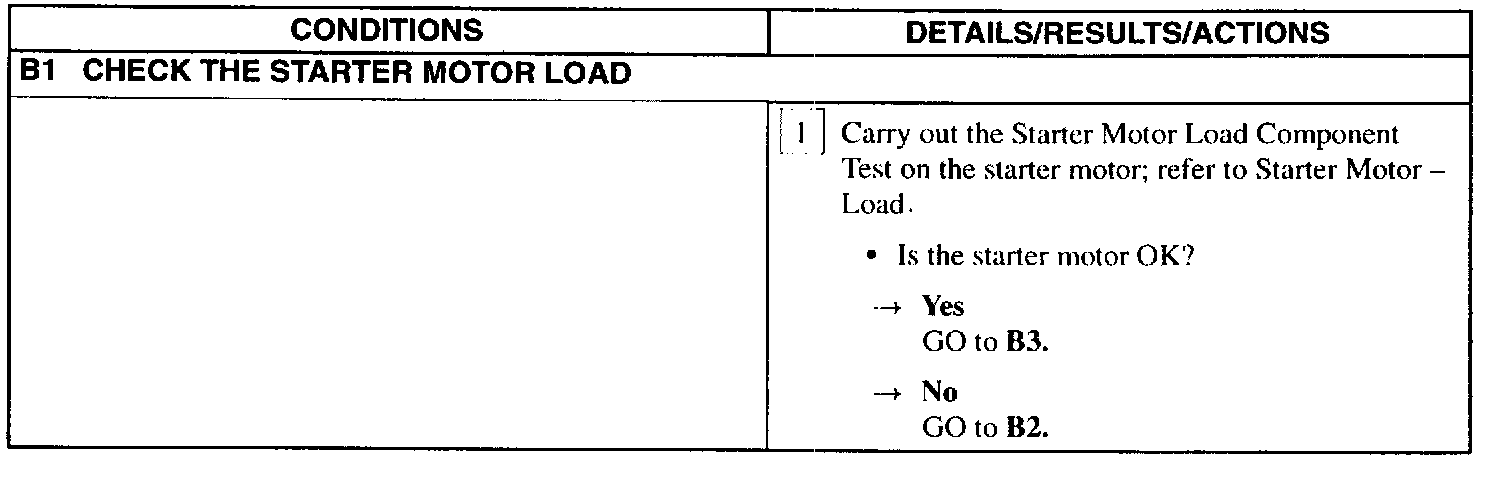

B1:

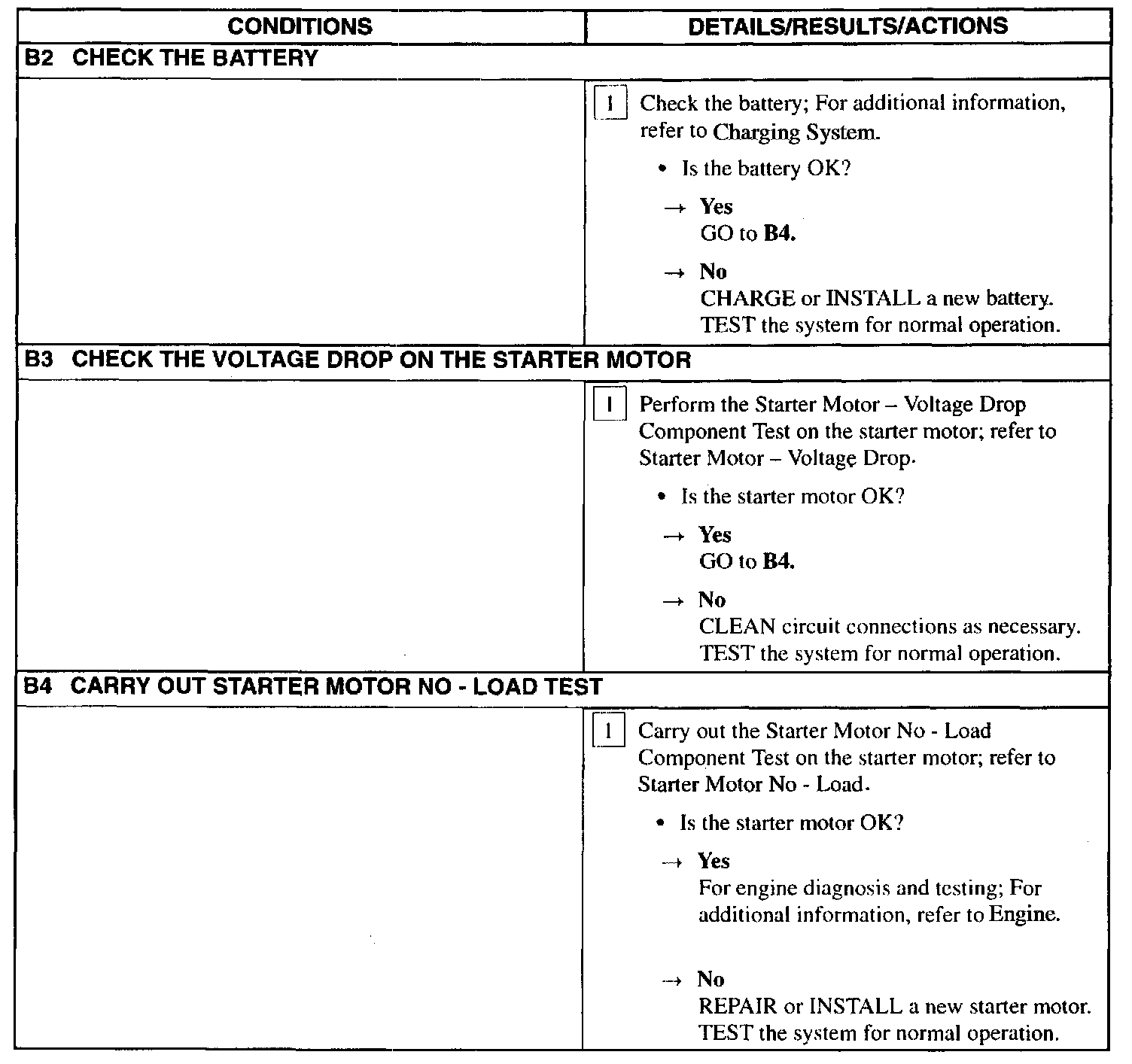

B2 - B4:
