Home >> Mercury >> 2000 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Testing and Inspection >> Pinpoint Tests >> Test A: Engine Does Not Crank Or The Relay Clicks

Test A: Engine Does Not Crank Or The Relay Clicks

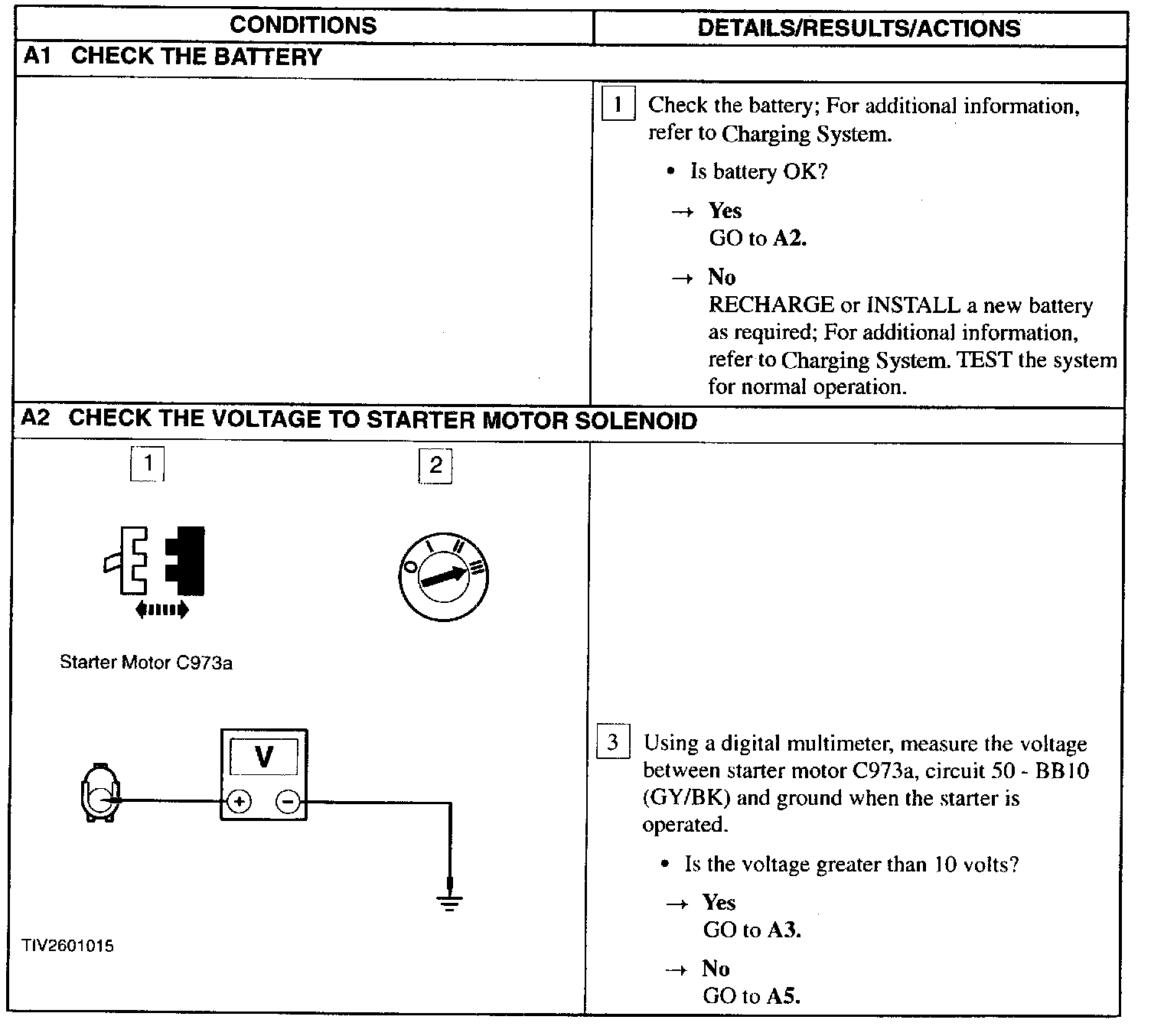

A1 - A2:

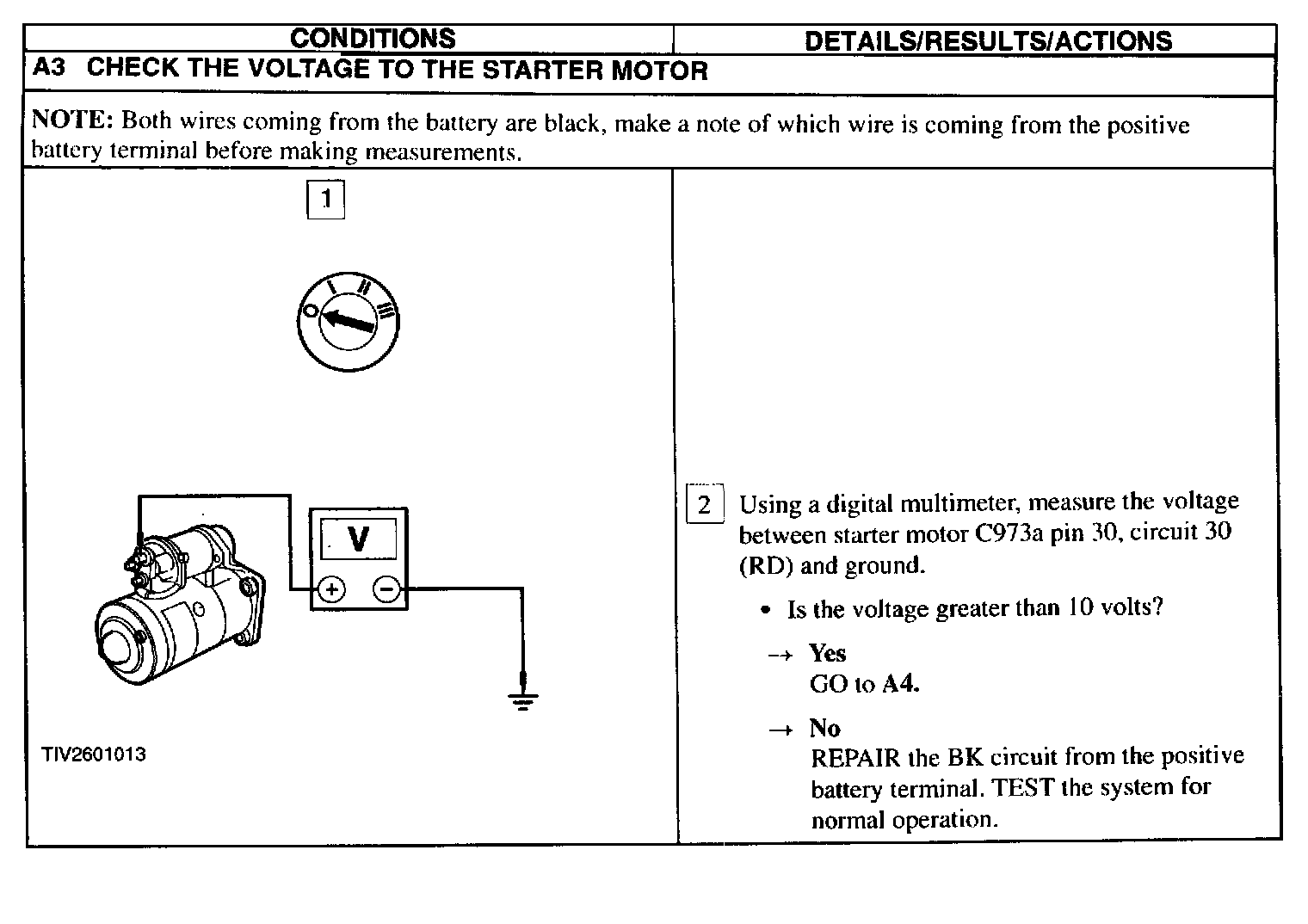

A3:






A4 - A6:

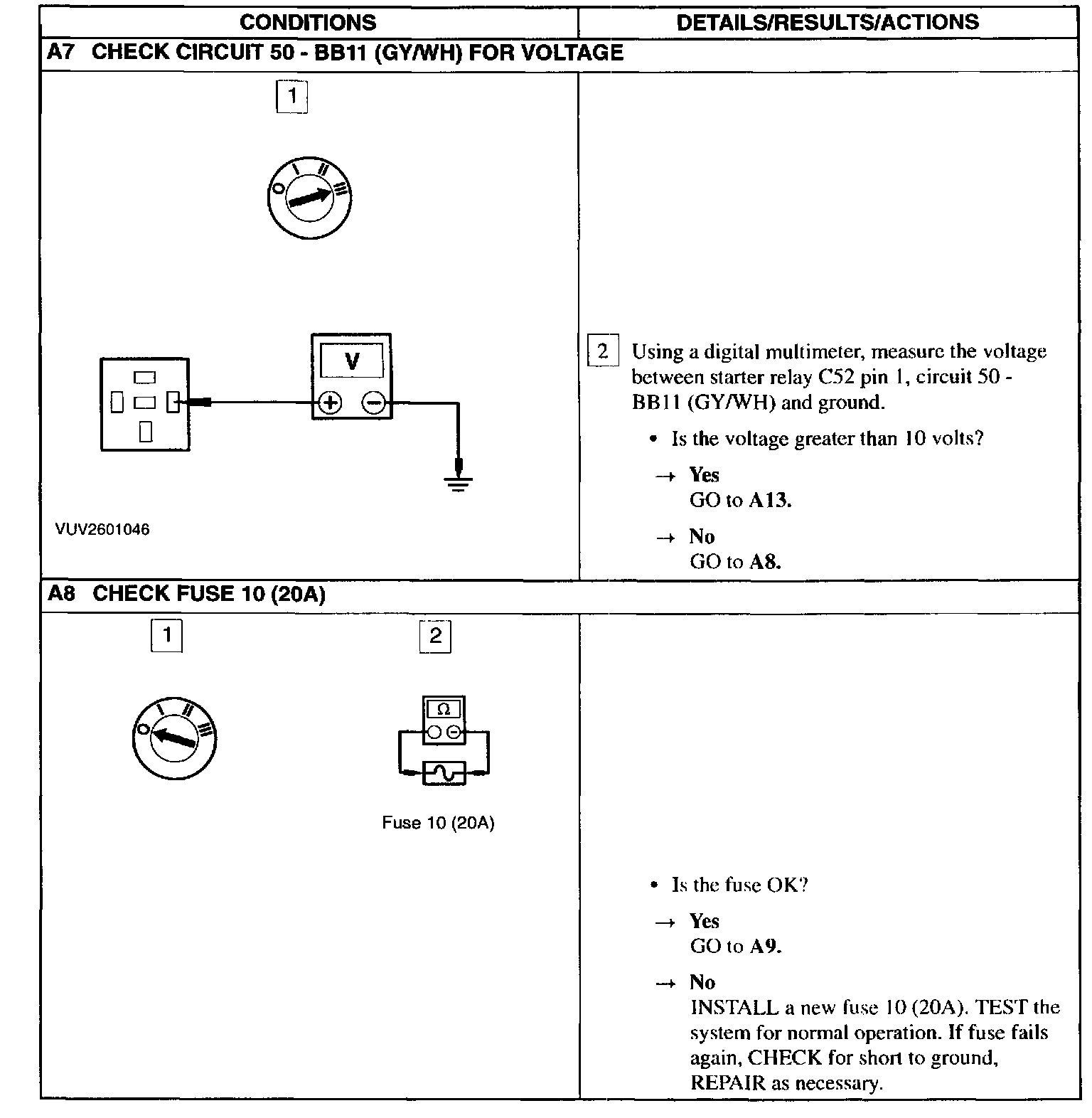

A7 - A8:

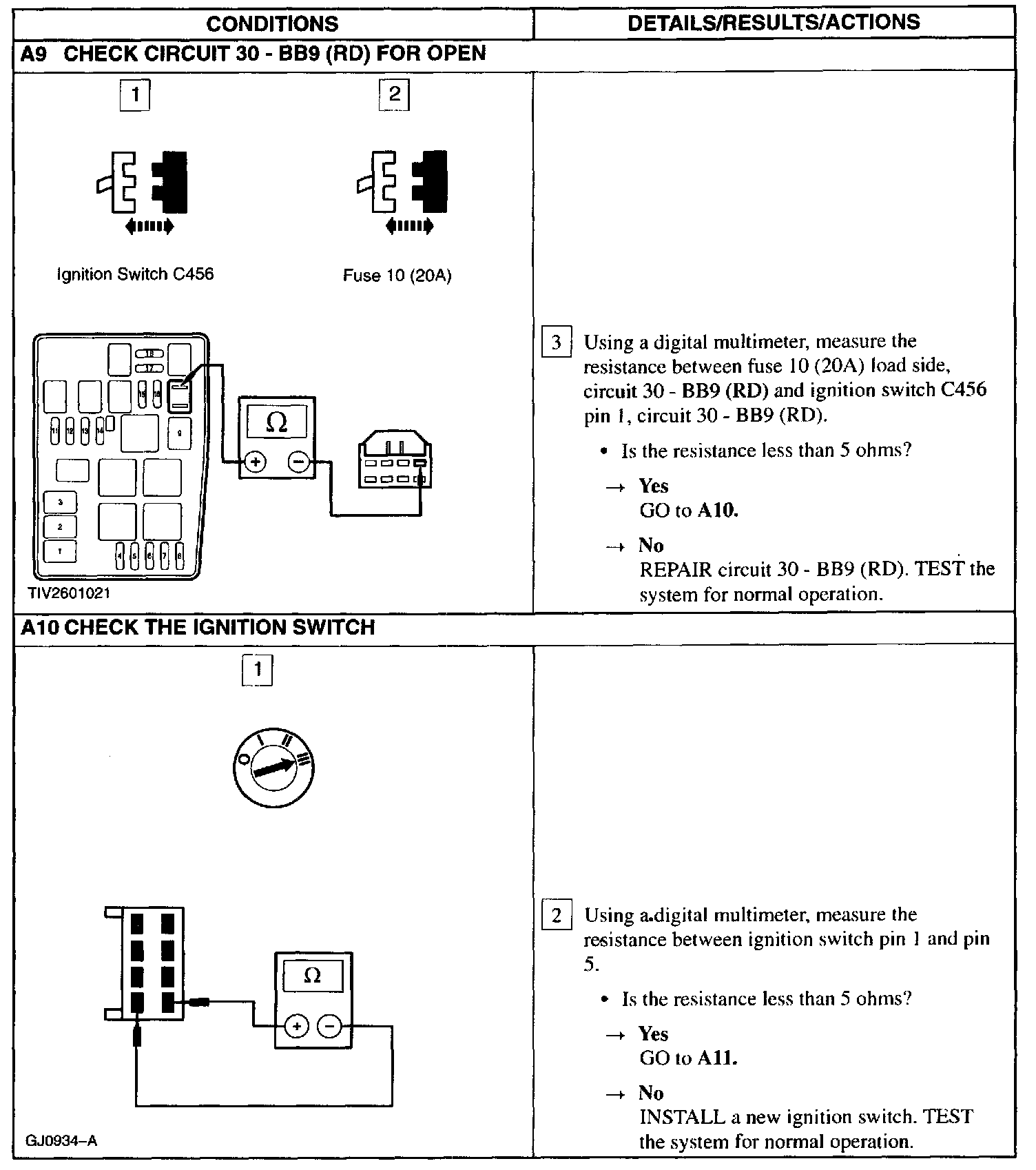

A9 - A10:






A11 - A12:

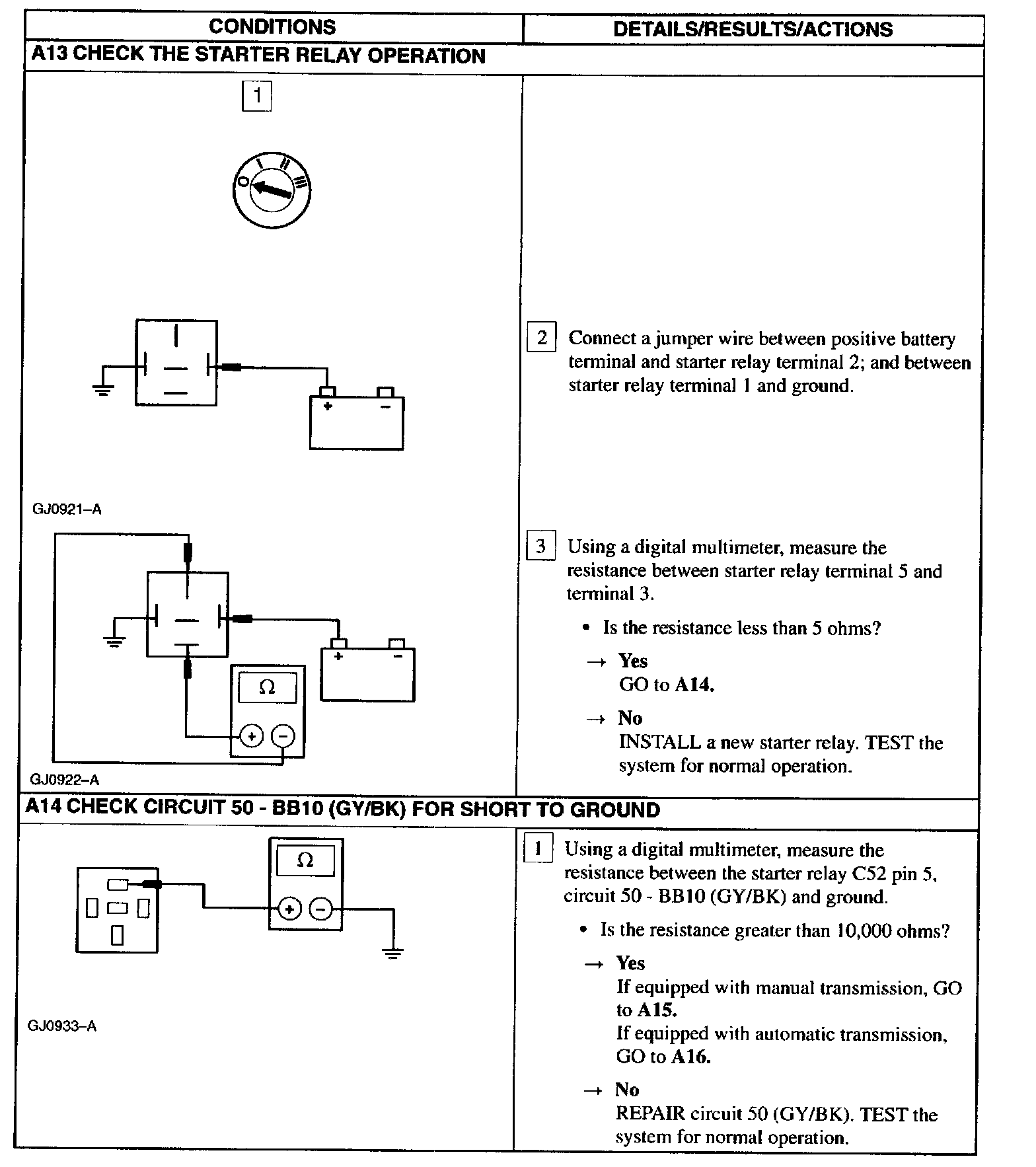

A13 - A14:






A15 - A16:






A17 - A19:

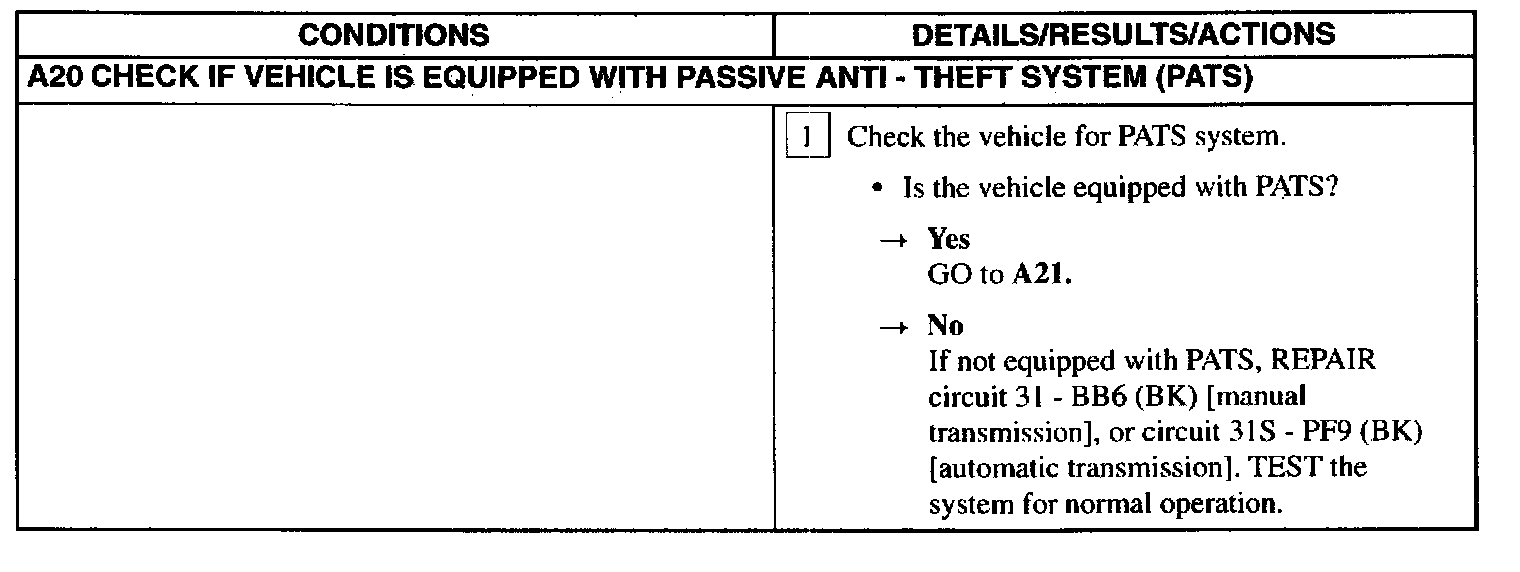

A20:

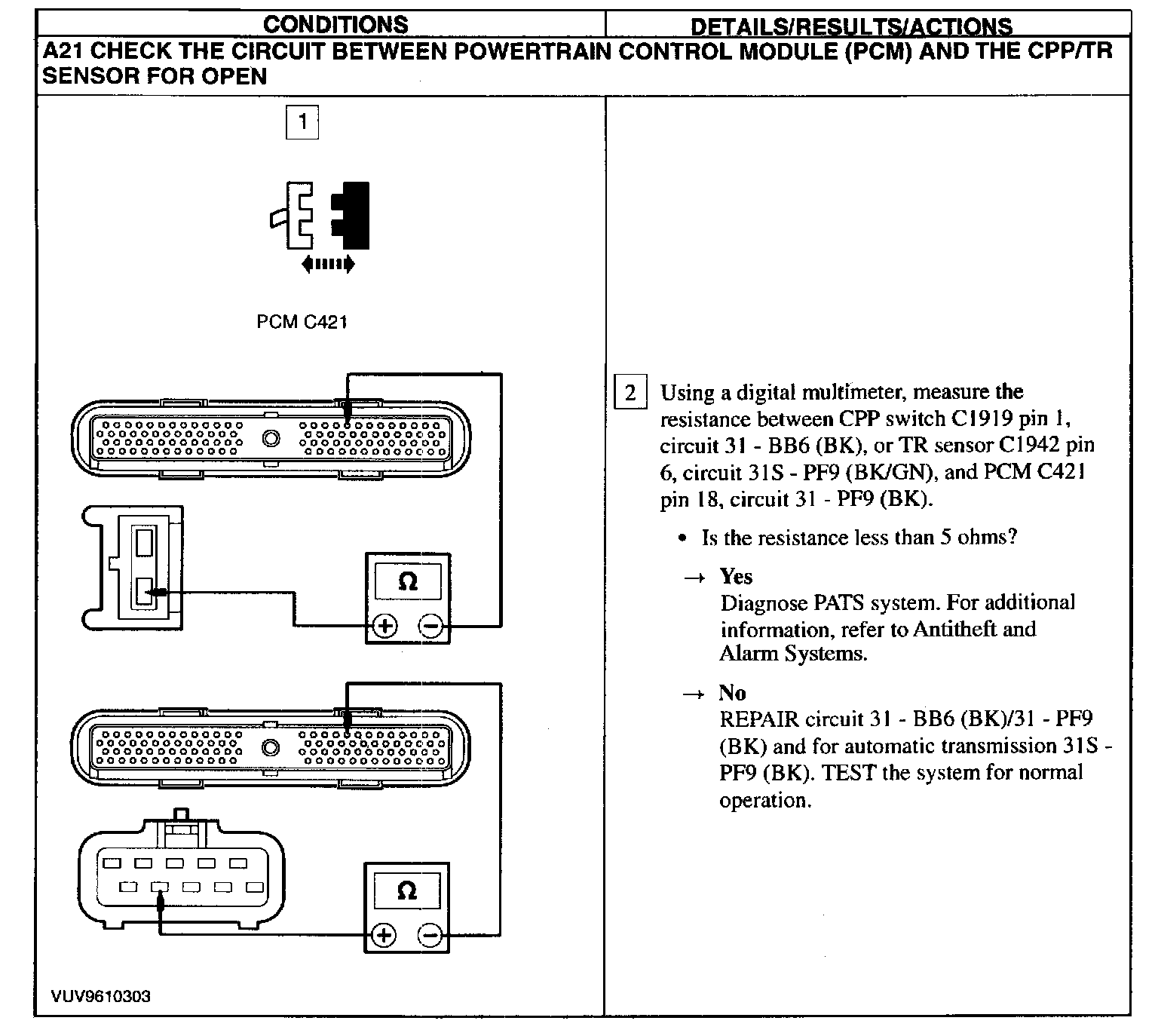

A21:

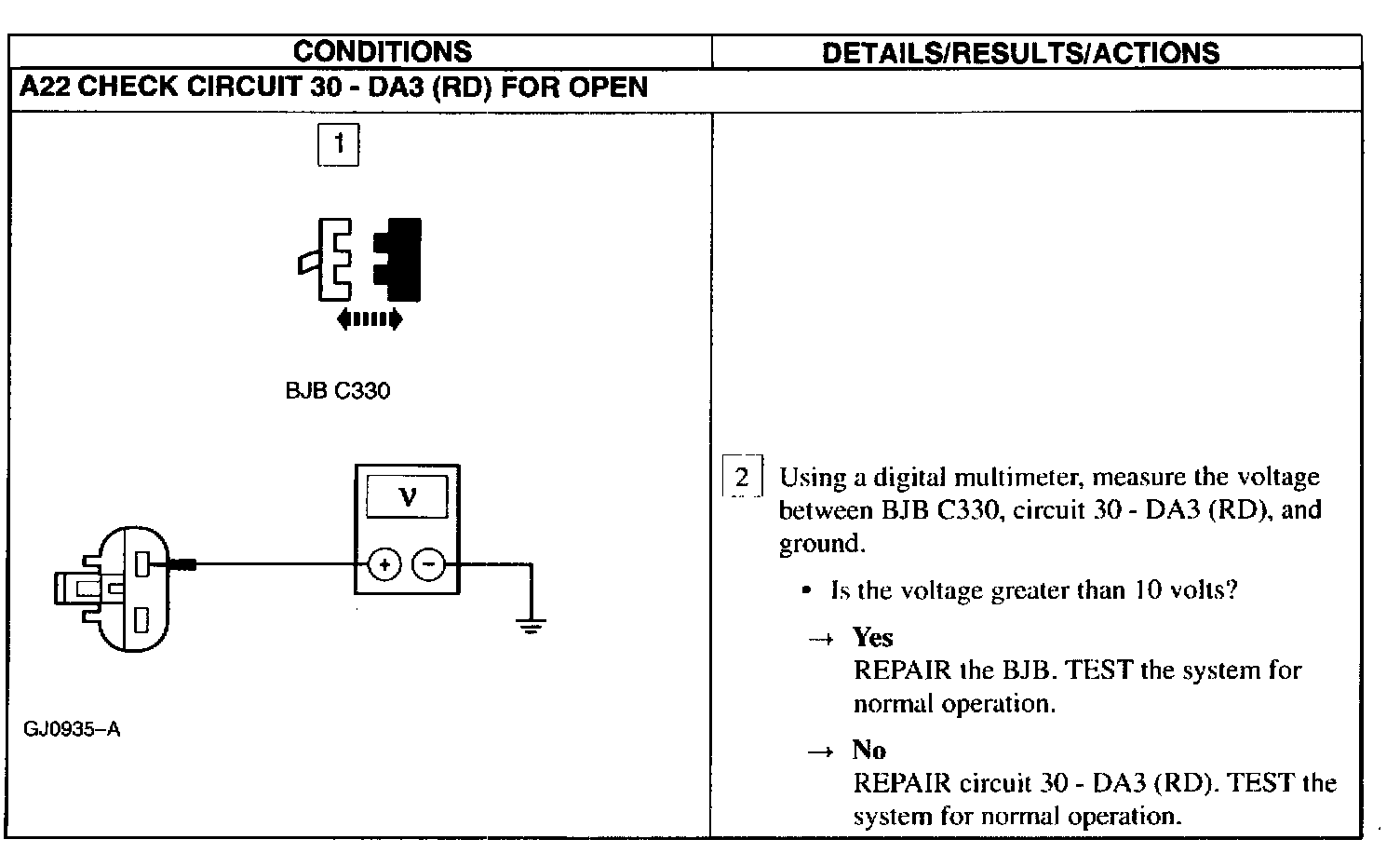

A22:

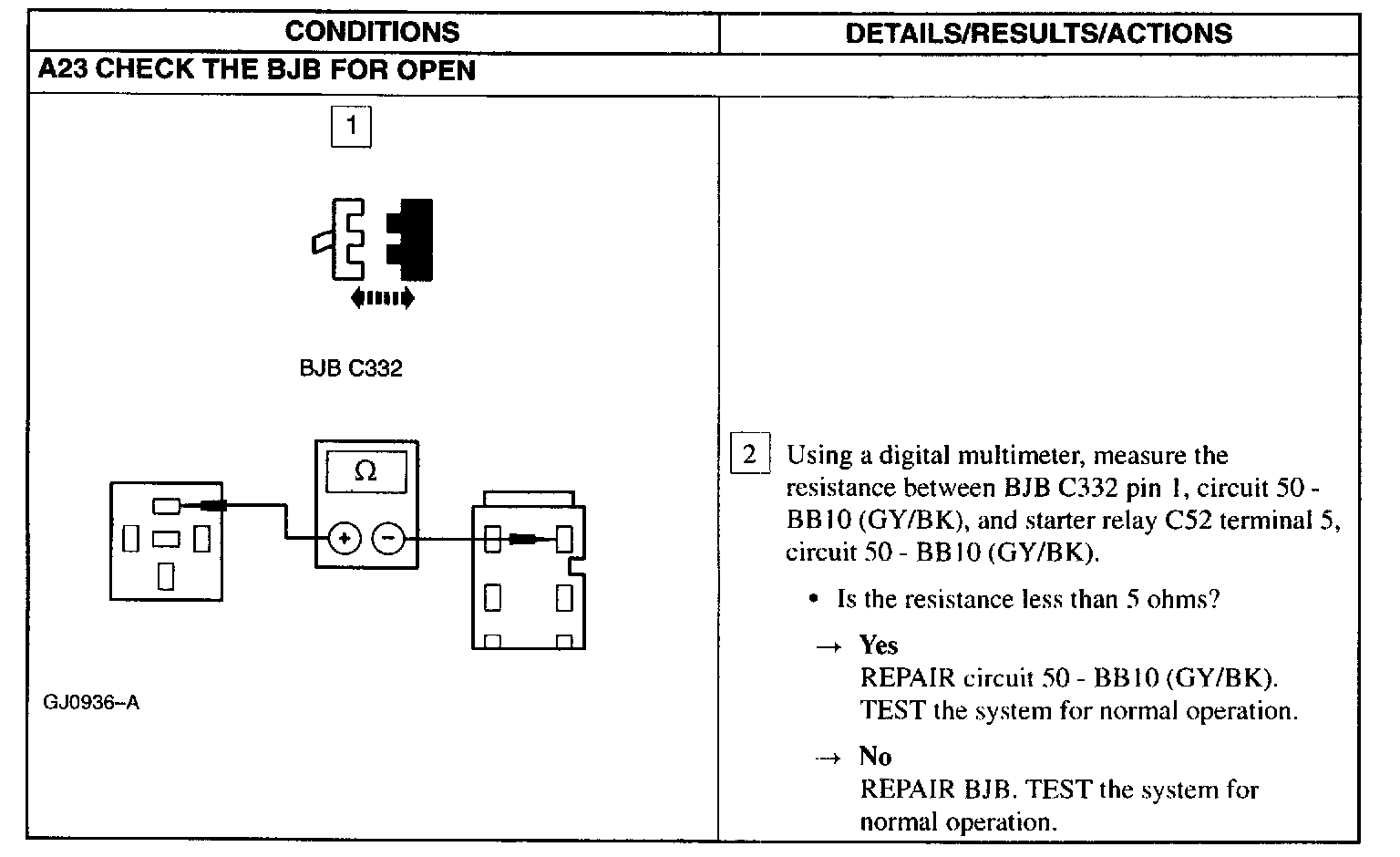

A23:
