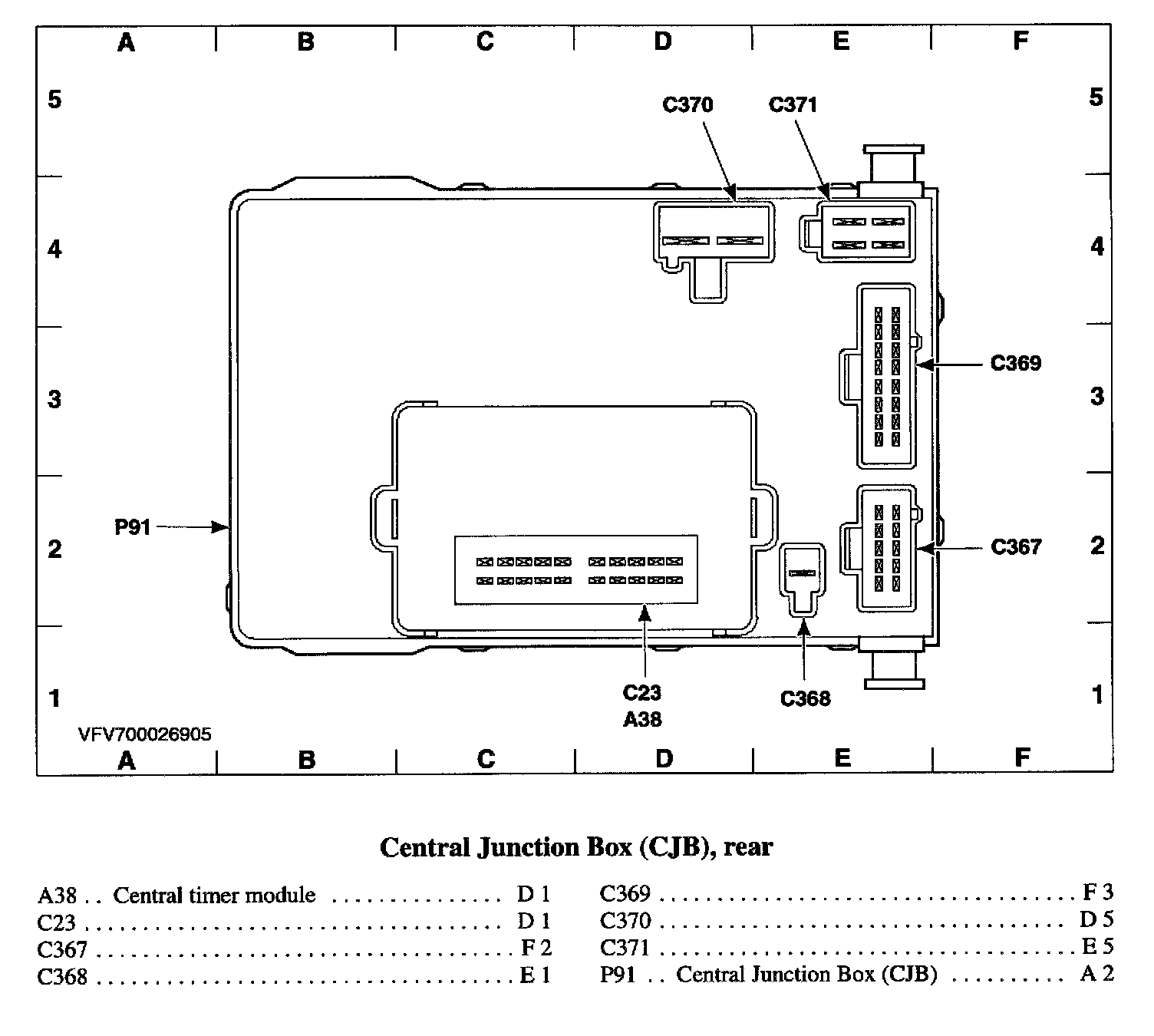

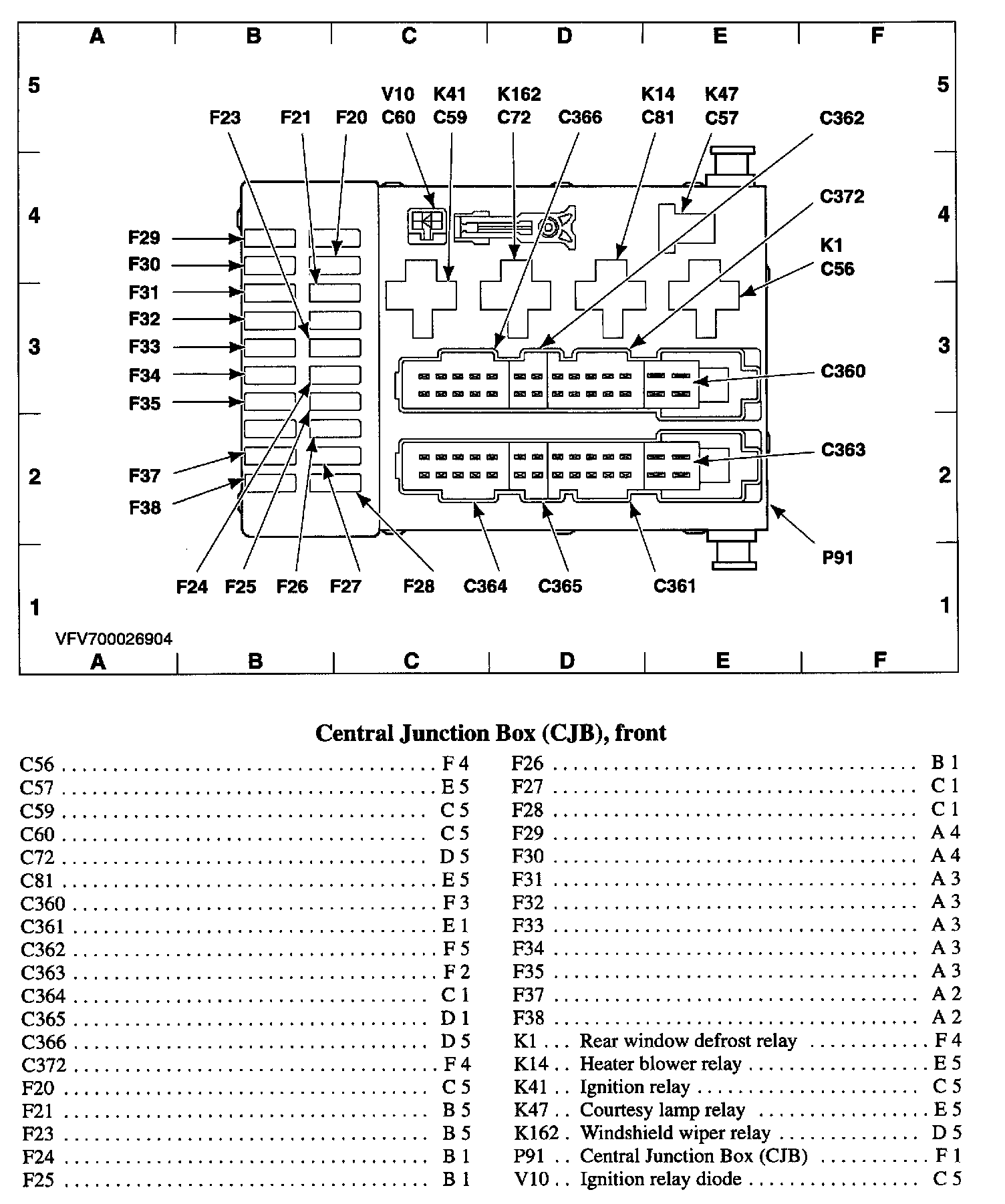

Central Junction Box










The Central Junction Box (CJB) is located under the dash panel, on the LH side.
