Test D: Charging System Warning Indicator Is Inoperative
Test D: Charging System Warning Indicator Is Inoperative

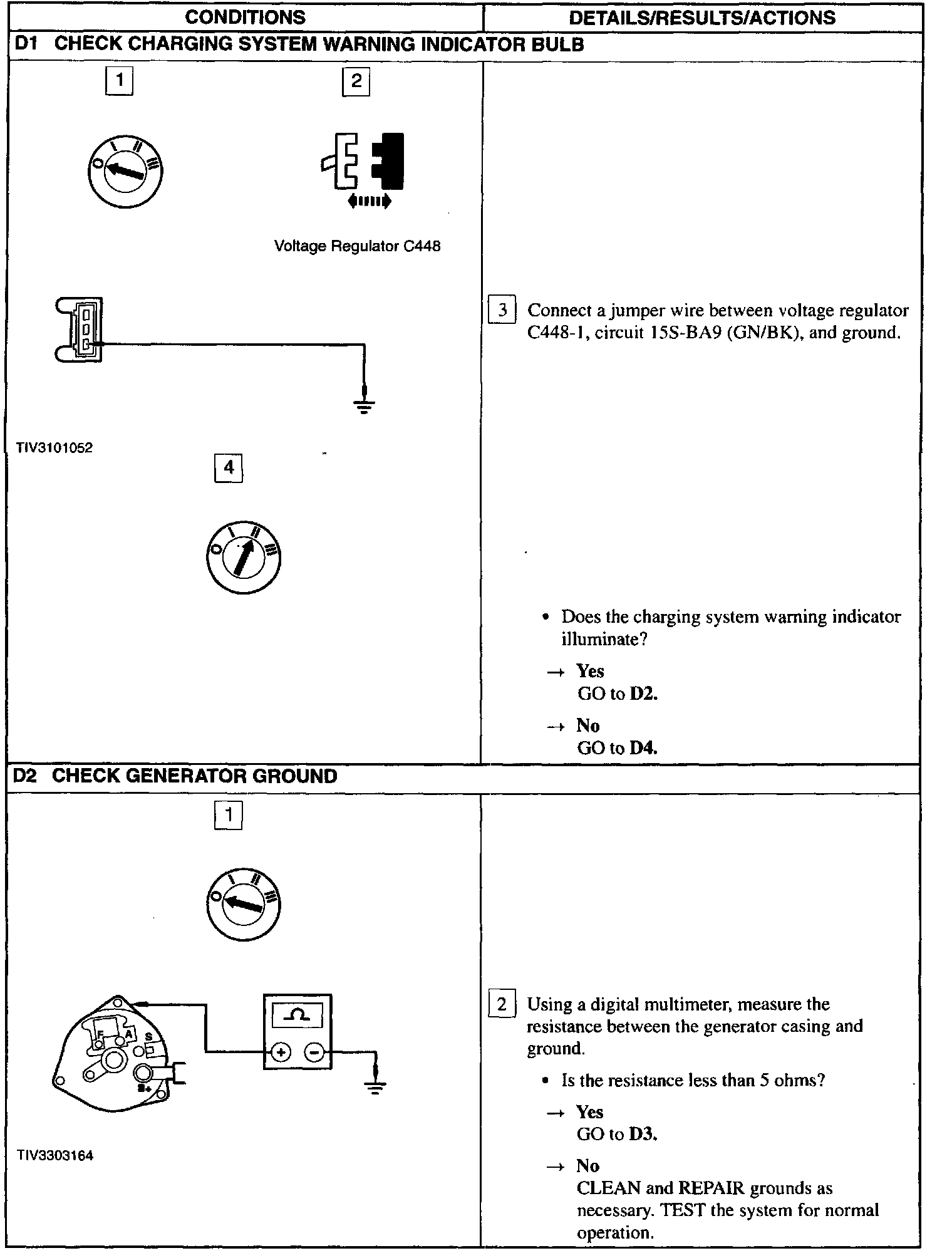

D1 - D2:

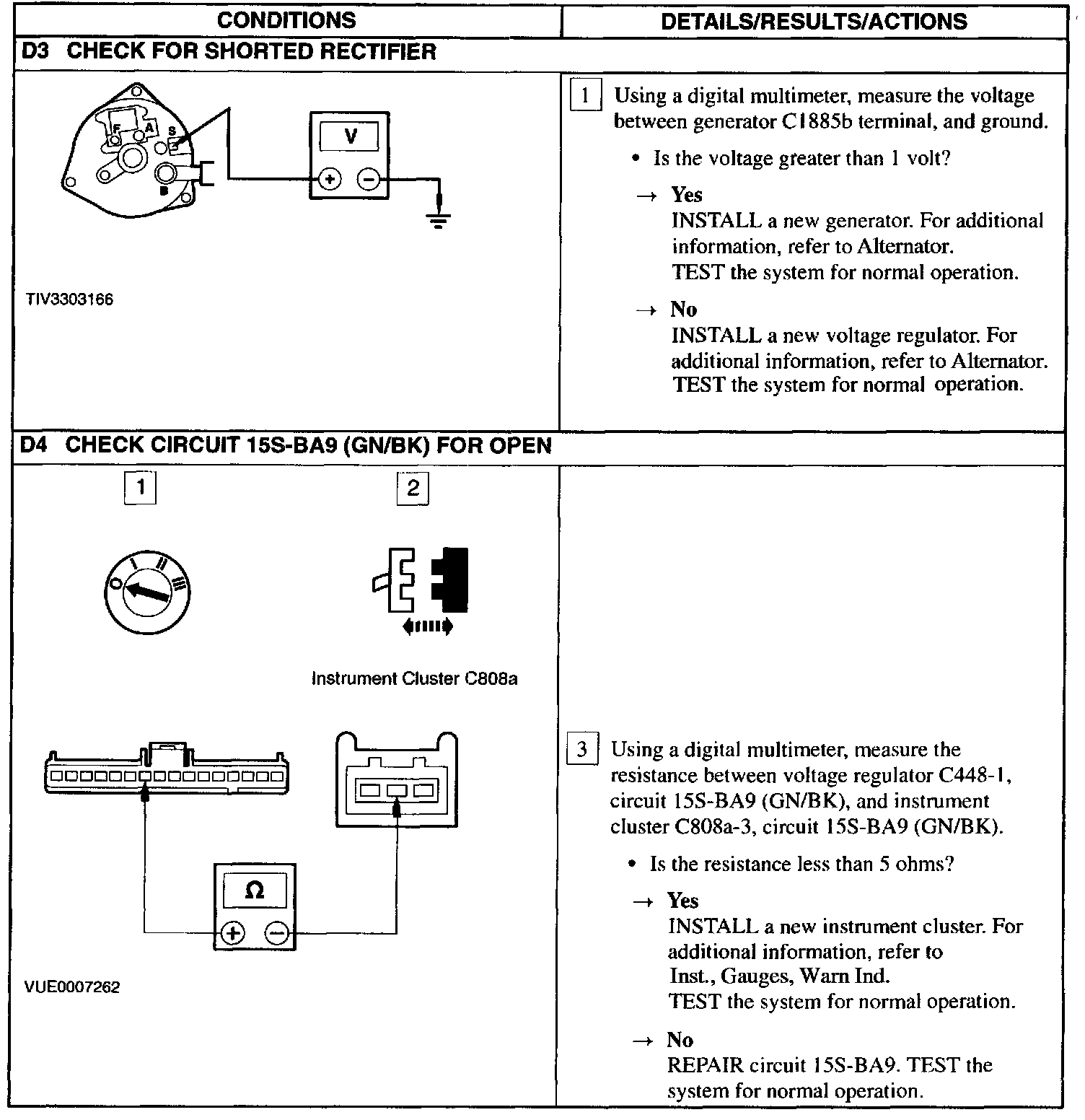

D3 - D4:
