Alternator Pulley / Clutch: Service and Repair

REMOVAL
1. Remove the generator. For additional information, refer to the procedure: Generator.

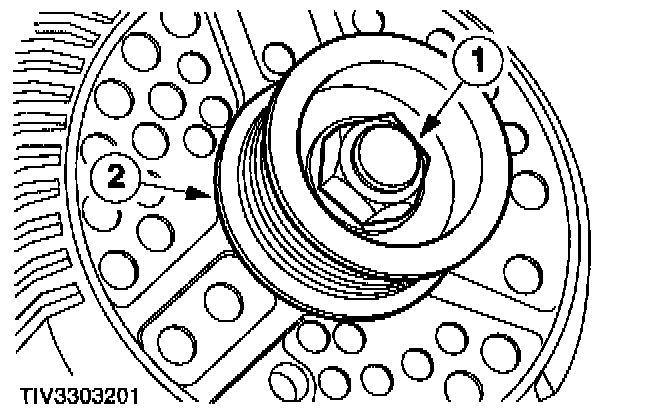

2. Remove the generator pulley.
1 Remove the nut.
2 Remove the pulley.

INSTALLATION







1. To install, reverse the removal procedure.
2. Install the generator. For additional information, refer to the procedure: Generator.
