Home >> Mercury >> 2000 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications

System Specifications

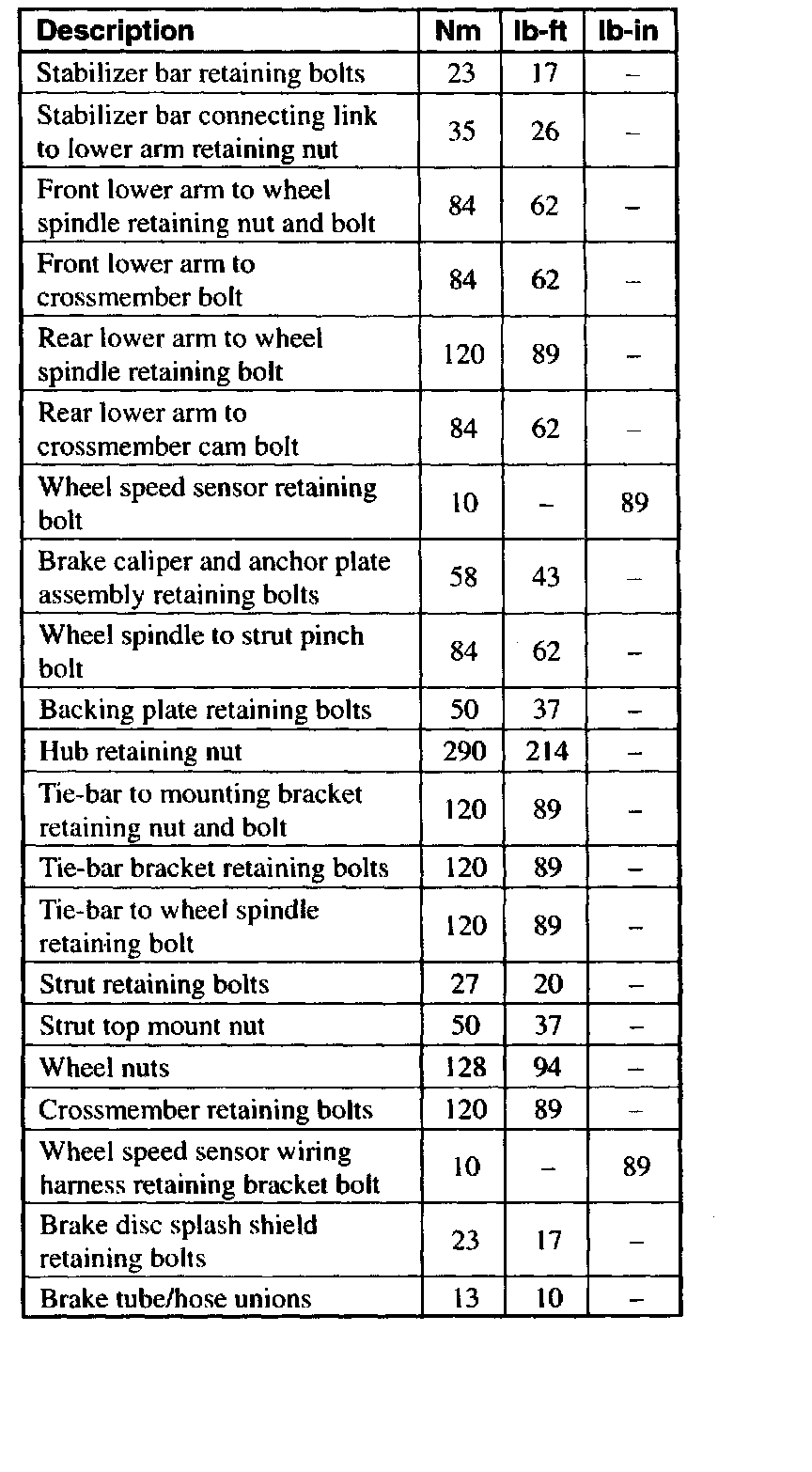

Front Suspension Tightening Specifications

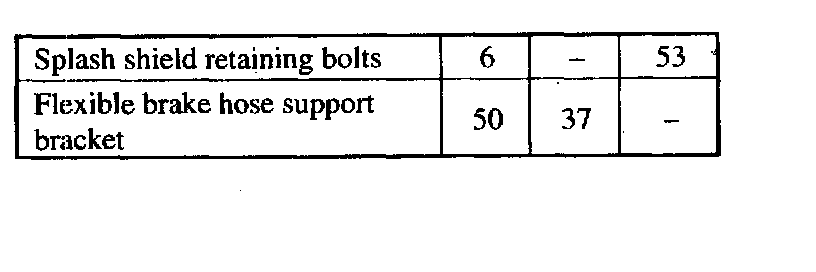

Rear Suspension Tightening Specifications

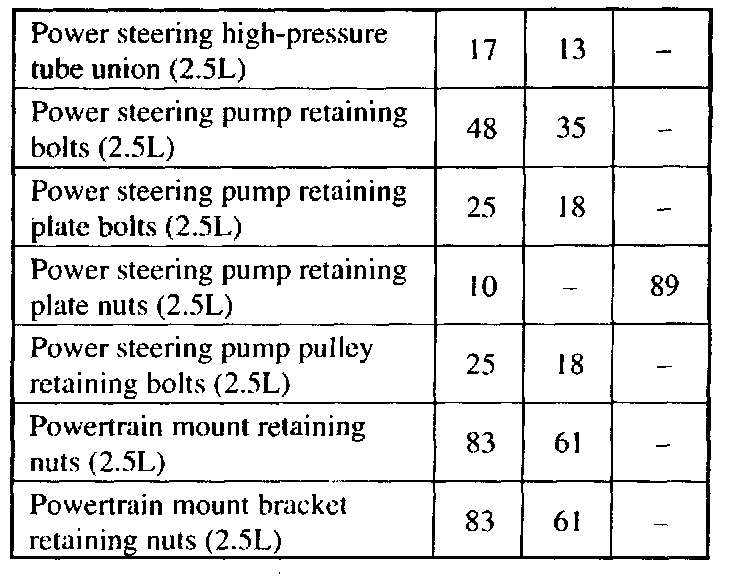

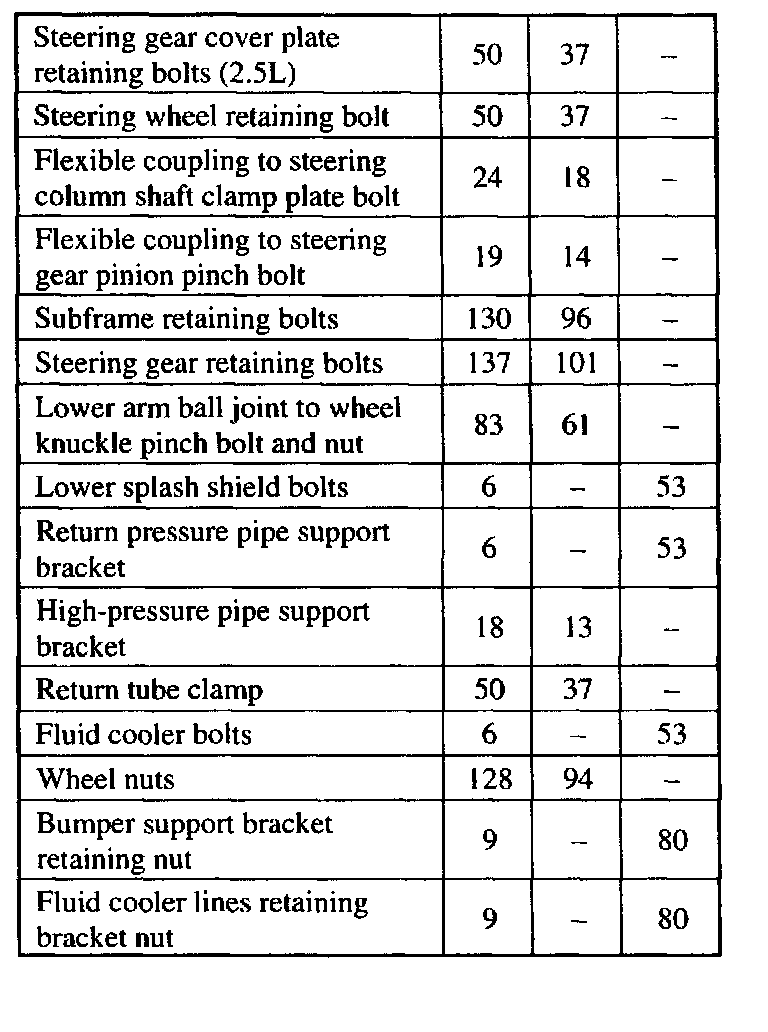

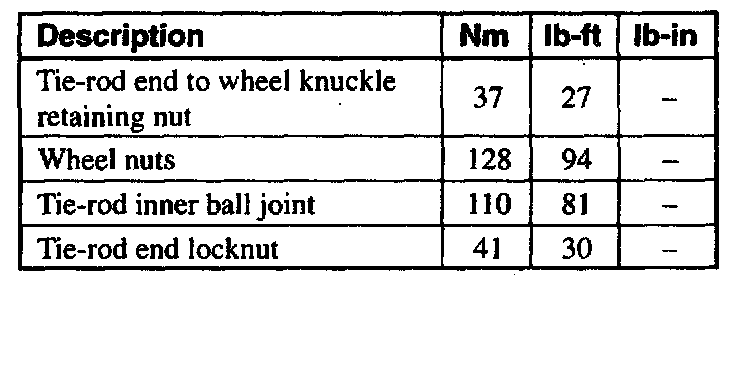

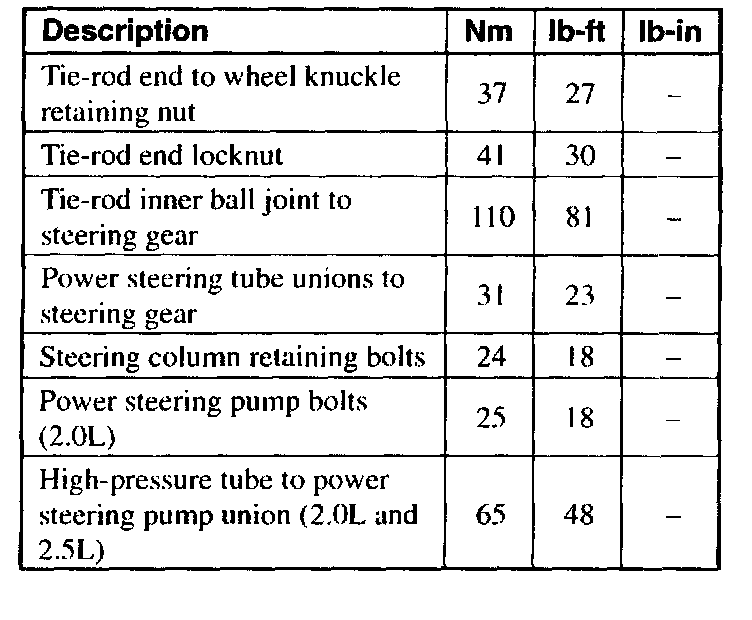

Steering Tightening Specifications

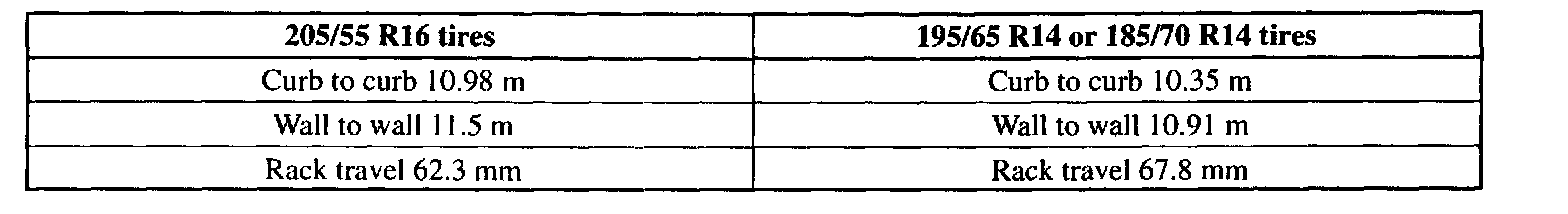

Steering General Specifications

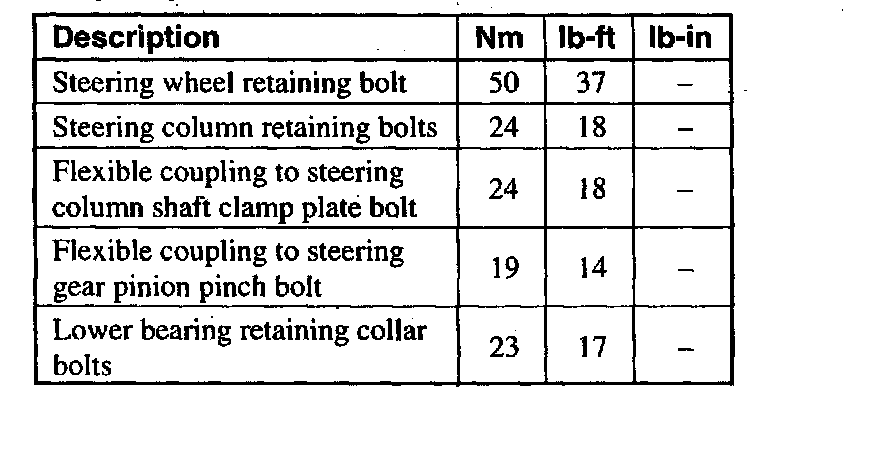

Steering Column Tightening Specifications
