Alignment

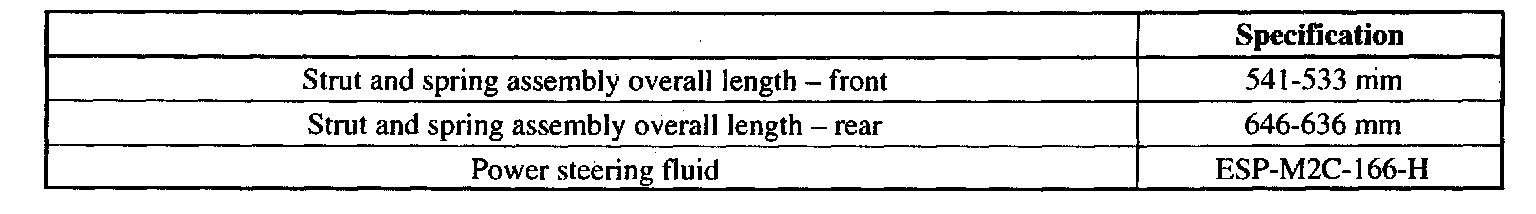

Front Strut And Spring Assembly Overall Length -- 541-533 mm
Rear Strut And Spring Assembly Overall Length -- 646-636 mm

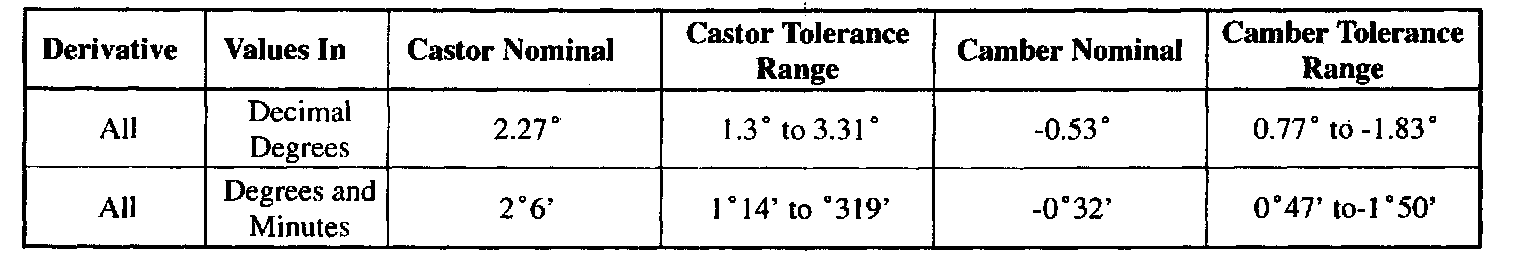

Front Wheel Alignment - Caster and Camber

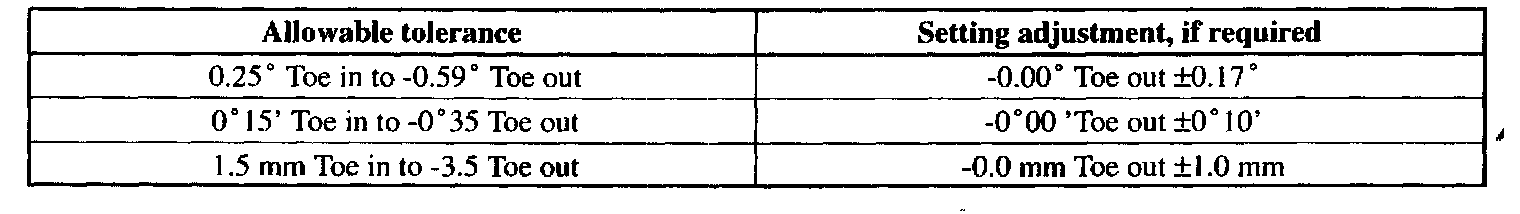

Front Wheel Alignment - Toe Setting - All Variants





Rear Wheel Alignment - Camber





Rear Wheel Alignment - Toe Setting - All Variants
