Air Flow Meter/Sensor: Service and Repair

REMOVAL

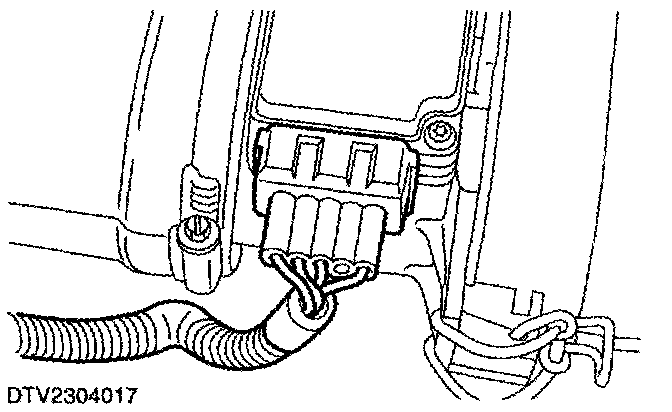

1. Disconnect the mass air flow sensor electrical connector.

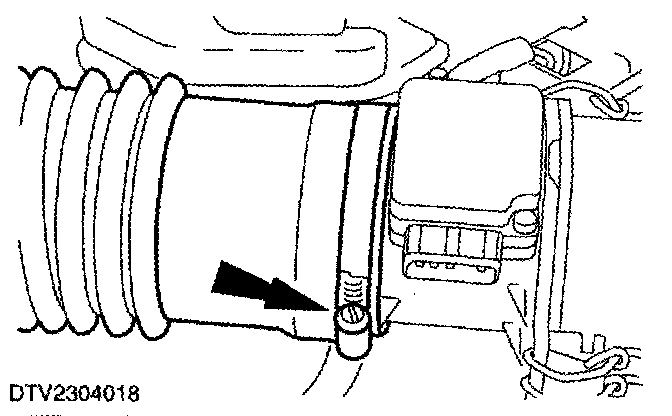

2. Disconnect the air cleaner outlet tube from the mass air flow sensor.

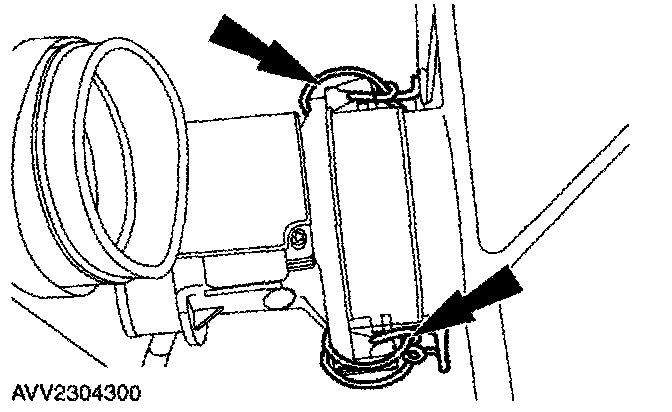

3. Remove the mass air flow sensor.

INSTALLATION
1. To install, reverse the removal procedure.
