Headlamp Switch: Description and Operation

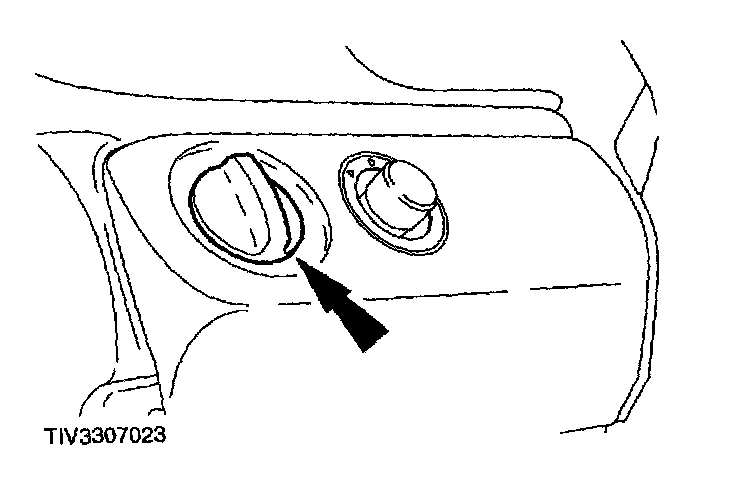

Headlamp Switch







A warning chime will sound continuously when the driver door is open and the vehicle lights are on. This warning is provided whether the key is in, or out of the ignition and will cease when the lights are switched off.

Lamp Switch
The lamp switch has four settings:
^ Off.
^ Both side lamps.
^ Headlamps.
^ Fog lamps.

When the lamp switch is set to 'side lamps', a voltage is supplied to the front and rear side lamps, as well as to the license plate lamp. The side lights for the left and right-hand sides are fused separately. The fuses are located in the CJB in the left-hand side footwell.

When the switch is set to 'headlamps', the fog lamps can be switched on by pulling the switch knob.
