Blower Motor Switch: Service and Repair

REMOVAL
1. Remove the radio chassis. For additional information, refer to Radio, Stereo, and Compact Disc.
2. Remove the floor console. For additional information, refer to Console.







3. Remove the control opening finish panel.
- Remove the four screws.
- Disconnect the headlamp dimmer switch electrical connector.
- Remove the panel.







4. Detach the climate control assembly.
- Remove the screws.

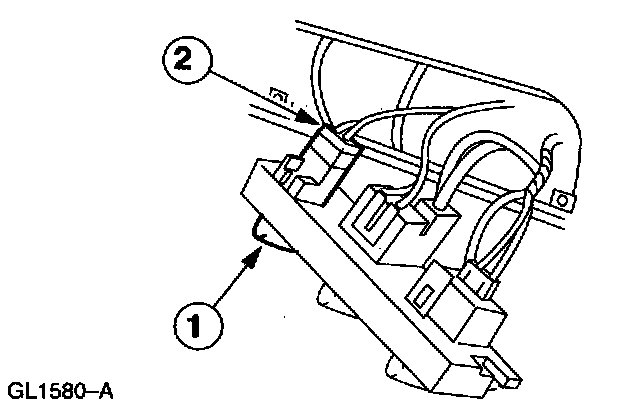

5. Remove the blower motor switch.
- Disconnect the electrical connector.
- Remove the control knob.

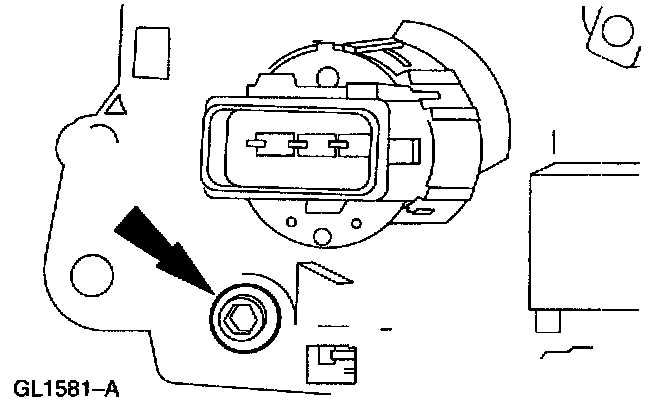

6. Remove the blower motor switch.
- Remove the retaining screw.

INSTALLATION
1. To install, reverse the removal procedure.
