Sensor, Front

Removal

All Vehicles

1. Loosen the wheel nuts.
2. Raise and support the vehicle.
3. Remove the wheel.

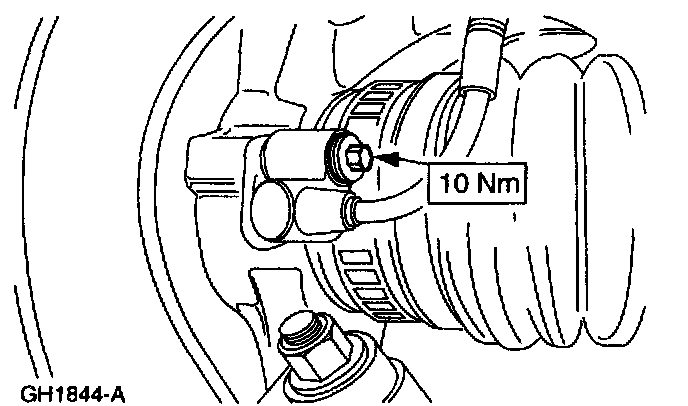

4. Remove the wheel speed sensor.

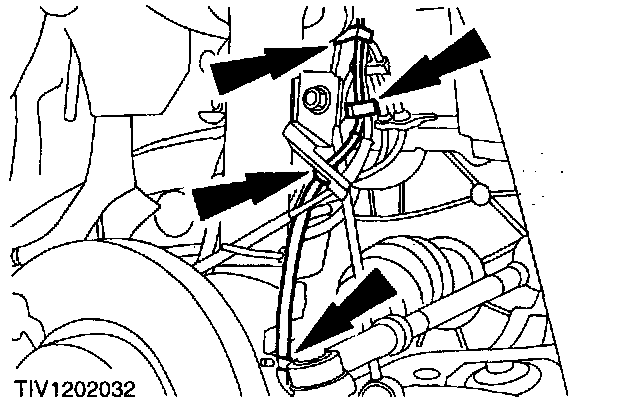

5. Detach the wheel speed sensor harness wiring from the support bracket and clips.

Vehicles with 2.5L engine

6. Remove the lower splash shield.

Vehicles with 2.0L engine

7. Remove the lower splash shield.

All Vehicles

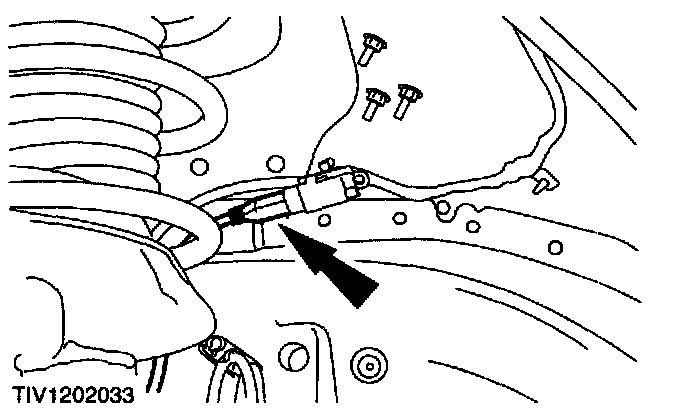

8. Disconnect the wheel speed sensor electrical connector.

Installation

All Vehicles

1. To install, reverse the removal procedure.

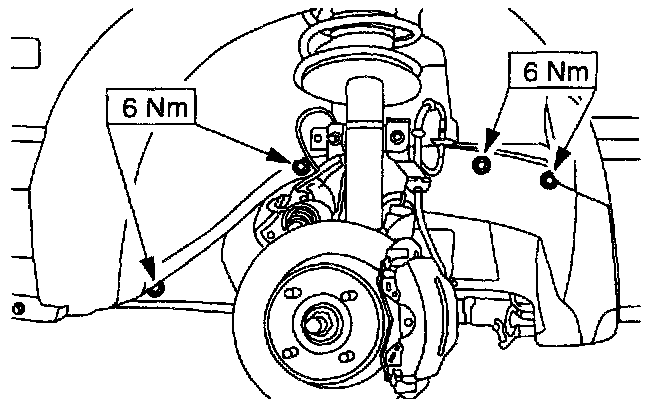

Vehicles with 2.0L engine

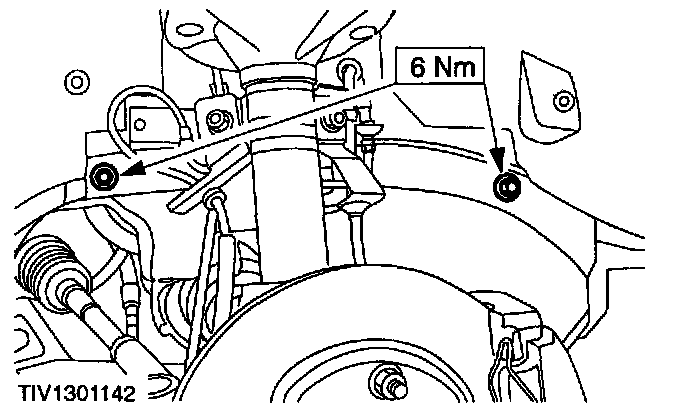

Vehicles with 2.5L engine

All Vehicles
