Power Seat Switch: Service and Repair

REMOVAL
1. Remove the front seat.







2. Disconnect the wiring harness.
1 Detach the harness from the three retaining clips on the seat base.
2 Disconnect the electrical connectors.







3. Remove the outer seat base trim.
1 Remove the retaining screws.
2 Release the front and rear retaining clips.

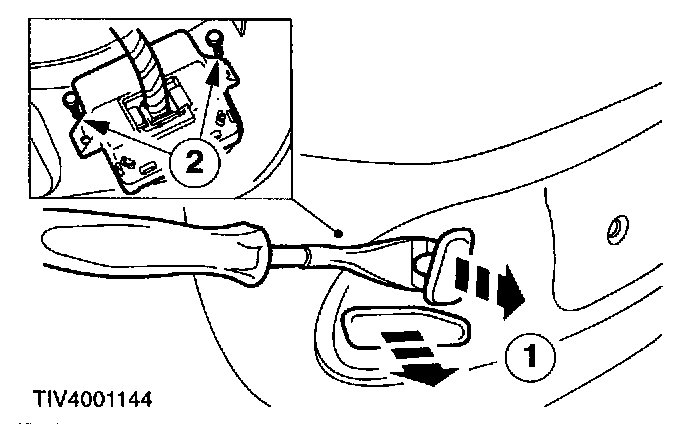

4. Remove the electric seat control switch.
1 Use a trim tool to lever off the control knobs.
2 Remove the two retaining screws.

INSTALLATION
1. To install, reverse the removal procedure.
