Rear Safety Belt Retractor

REMOVAL
1. Remove the rear seat side bolster.
2. Remove the C-pillar trim panel.

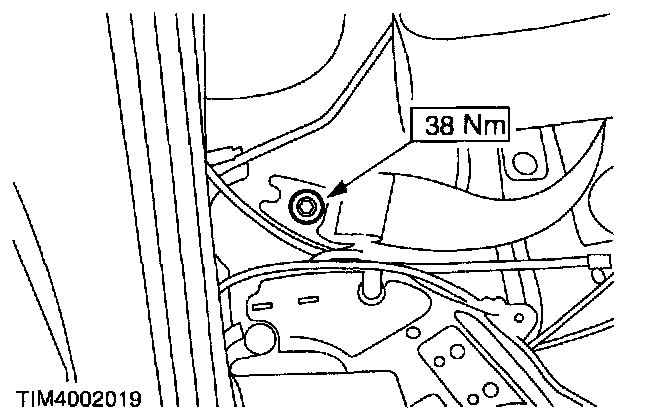

3. Detach the lower safety belt anchor.
^ Remove the Torx retaining bolt.

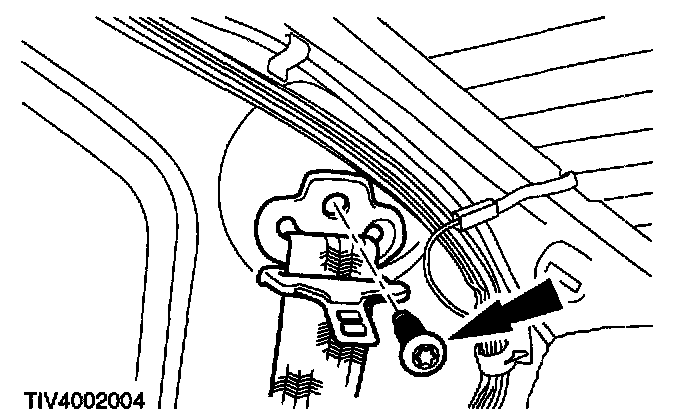

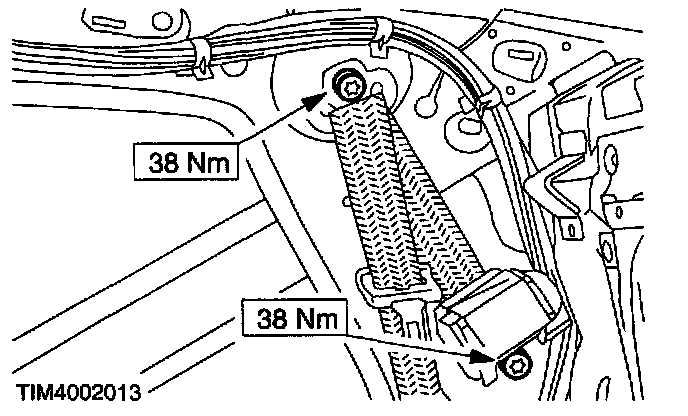

4. Detach the upper safety belt anchor.

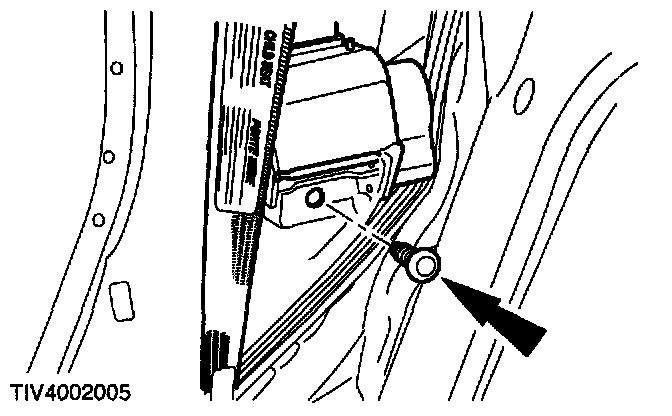

5. Remove the safety belt assembly.
^ Remove the Torx retaining bolt.

INSTALLATION












1. To install, reverse the removal procedure.
