Front Safety Belt Retractor

REMOVAL
1. Move the seat fully forward.

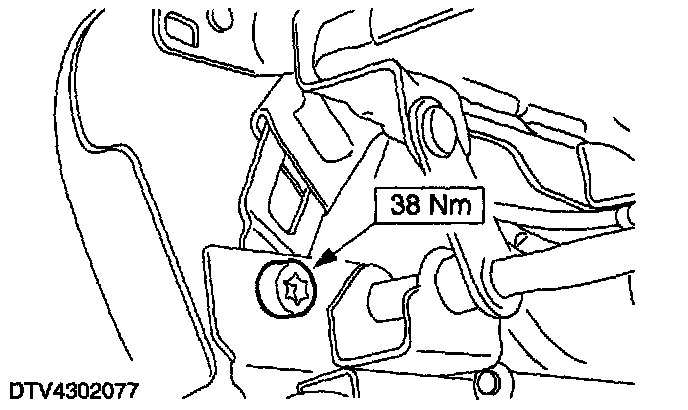

2. Remove the Torx retaining bolt.
3. Detach the safety belt from the front seat.
4. Remove the B-pillar trim.

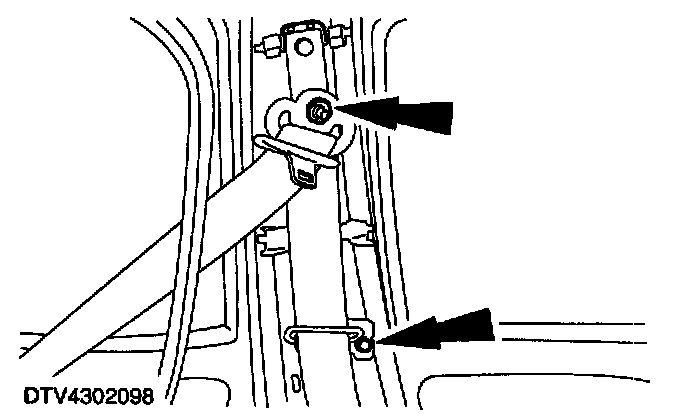

5. Detach the safety belt from the B-pillar.
^ Detach the upper safety belt anchor.
^ Detach the waist loop guide.

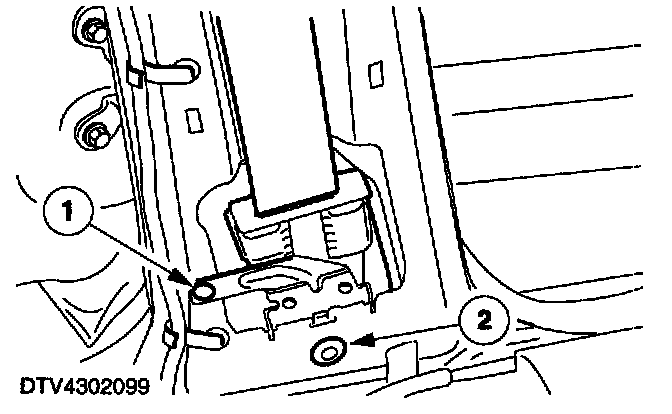

6. Remove the retractor.
1 Remove the retaining screw.
2 Remove the Torx bolt.

INSTALLATION

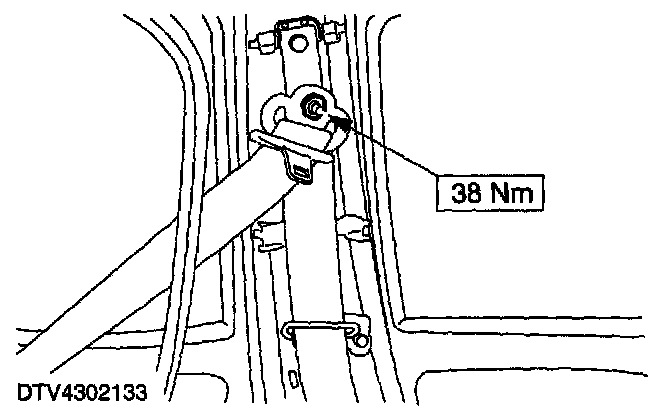

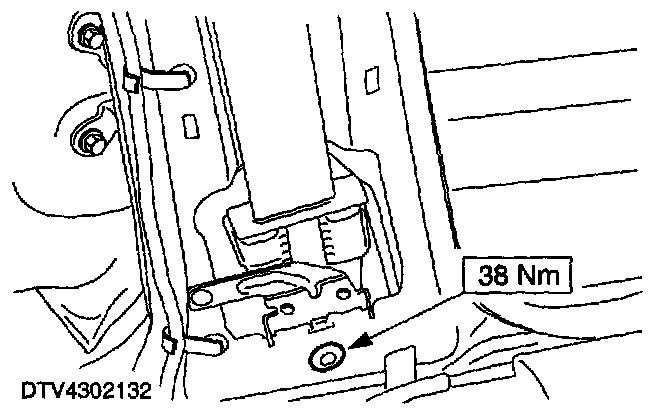

1. To install, reverse the removal procedure.
