Active Occupant Restraint System

WARNING:
^ ALL SAFETY BELT BUCKLE ASSEMBLIES INCLUDING RETRACTORS, BUCKLES, FRONT SAFETY BELT BUCKLE SUPPORT ASSEMBLIES (SLIDE BAR), IF EQUIPPED, CHILD SAFETY SEAT TETHER BRACKETS, IF EQUIPPED AND ATTACHING HARDWARE SHOULD BE INSPECTED AFTER ANY COLLISION. NEW SAFETY BELT ASSEMBLIES SHOULD BE INSTALLED UNLESS A QUALIFIED TECHNICIAN FINDS THE ASSEMBLIES SHOW NO DAMAGE AND OPERATE CORRECTLY. NEW SAFETY BELT ASSEMBLIES SHOULD ALSO BE INSTALLED WHERE THE SAFETY BELT ASSEMBLIES NOT IN USE AT THE TIME OF THE COLLISION, ARE INSPECTED AND DAMAGED OR INCORRECT OPERATION IS NOTED. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
^ AFTER ANY COLLISION, THE SAFETY BELT ASSEMBLIES AT ALL OUTBOARD SEATING POSITIONS WHICH ARE EQUIPPED WITH AUTOMATIC LOCKING RETRACTORS (ALR), (DRIVER SAFETY BELT NOT EQUIPPED WITH ALR) MUST BE CHECKED BY A QUALIFIED TECHNICIAN TO MAKE SURE THEY FUNCTION CORRECTLY IN ADDITION TO ANY OTHER SAFETY BELT SYSTEM CHECKS THAT ARE CARRIED OUT. FAILURE TO FOLLOW THIS INSTRUCTION MAY RESULT IN PERSONAL INJURY.
^ A NEW SAFETY BELT AND RETRACTOR ASSEMBLY MUST BE INSTALLED IF THE SAFETY BELT ASSEMBLY "TELL TALE LABEL" (LOCATED ON THE LAP BELT PORTION OF THE SAFETY BELT WEBBING AT THE OUTBOARD SIDE OF THE LOWER SAFETY BELT ANCHOR), IS ACTIVATED AND THE WARNING TEXT ON THE LABEL IS VISIBLE. FAILURE TO FOLLOW THIS INSTRUCTION, MAY RESULT IN PERSONAL INJURY.
^ ALL VEHICLES FACTORY EQUIPPED WITH OPTIONAL PASSENGER AIR BAG MODULE, HAVE A WARNING STICKER ATTACHED TO THE INSTRUMENT PANEL, PROHIBITING THE USE OF REAR FACING CHILD SEATS IN THE FRONT PASSENGER SEAT. FAILURE TO FOLLOW THIS INSTRUCTION MAY RESULT IN PERSONAL INJURY TO THE SEAT OCCUPANT.

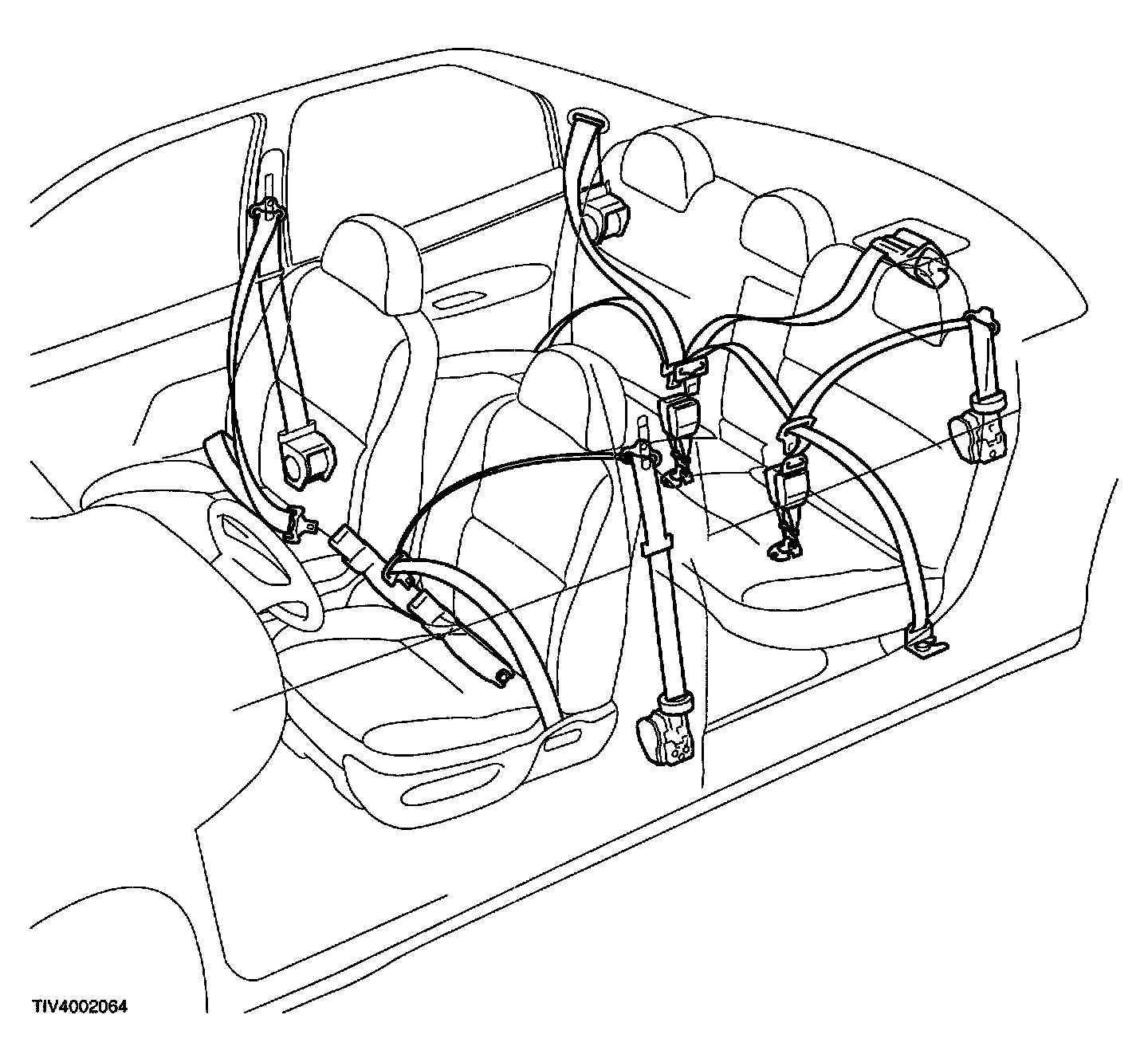

This Vehicle is equipped with five inertia reel, three point lap and diagonal safety belts, one in each seat position, including the center rear seat position.

The center rear safety belt retractor is housed within the rear parcel shelf. The safety belt webbing is secured to the floor pan by a conventional buckle on the left-hand side. This allows the safety belt webbing to be detached from the floor to allow unrestricted access when the rear seats are folded down.

The safety belts in the front seat positions incorporate an energy management feature which is designed to further reduce occupant injury in the event of a full frontal impact of similar severity to that required to deploy the air bag(s). The safety belt webbing is designed to pay out some safety belt webbing in a controlled manner, this design helps reduce the safety belt webbing force acting on the occupants chest.

Each of the safety belts in the passenger seat positions, with the exception of the center rear safety belt are equipped with Automatic Locking Retractors (ALR). The ALR function of the safety belt allows the safety belt webbing to be tailored to a child seat. Only forward facing child seats are permitted in the front seat when a passenger air bag is fitted. For additional information refer to the owner guide.
