Home >> Mercury >> 2000 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Pinpoint Tests >> Test E: LFC 29/DTC C1414- Incorrect Vehicle Identification Code

Test E: LFC 29/DTC C1414- Incorrect Vehicle Identification Code

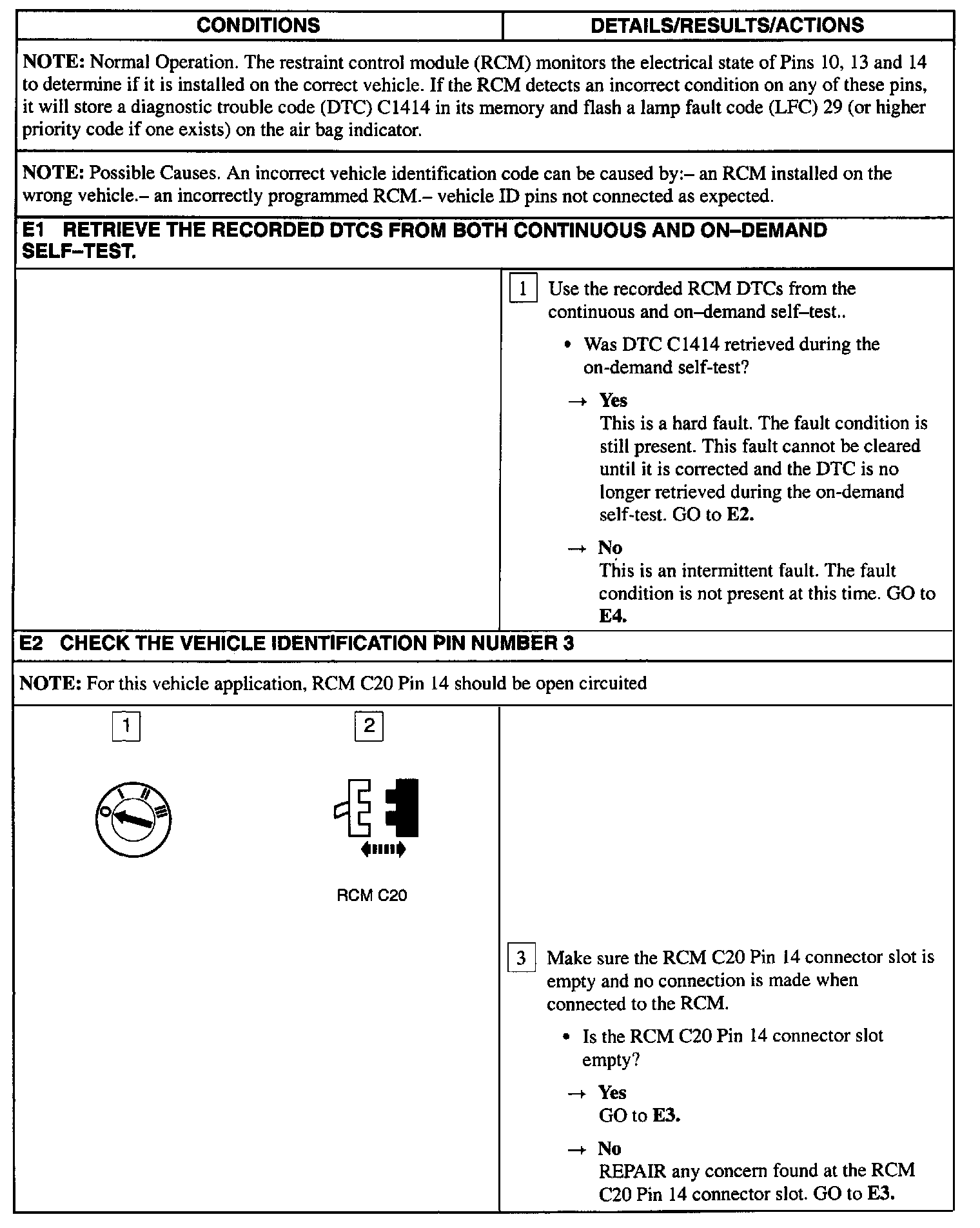

E1 - E2:

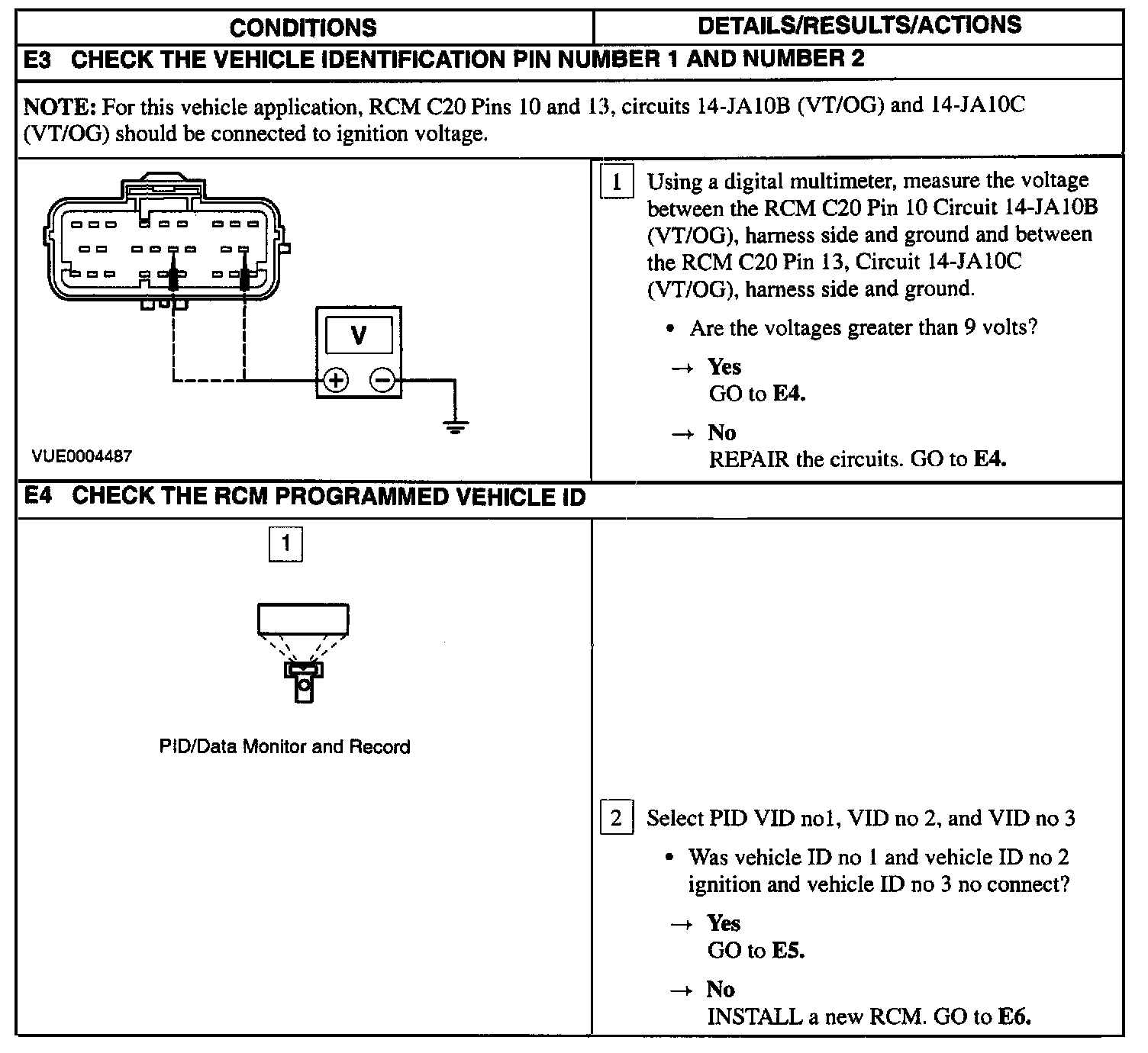

E3 - E4:

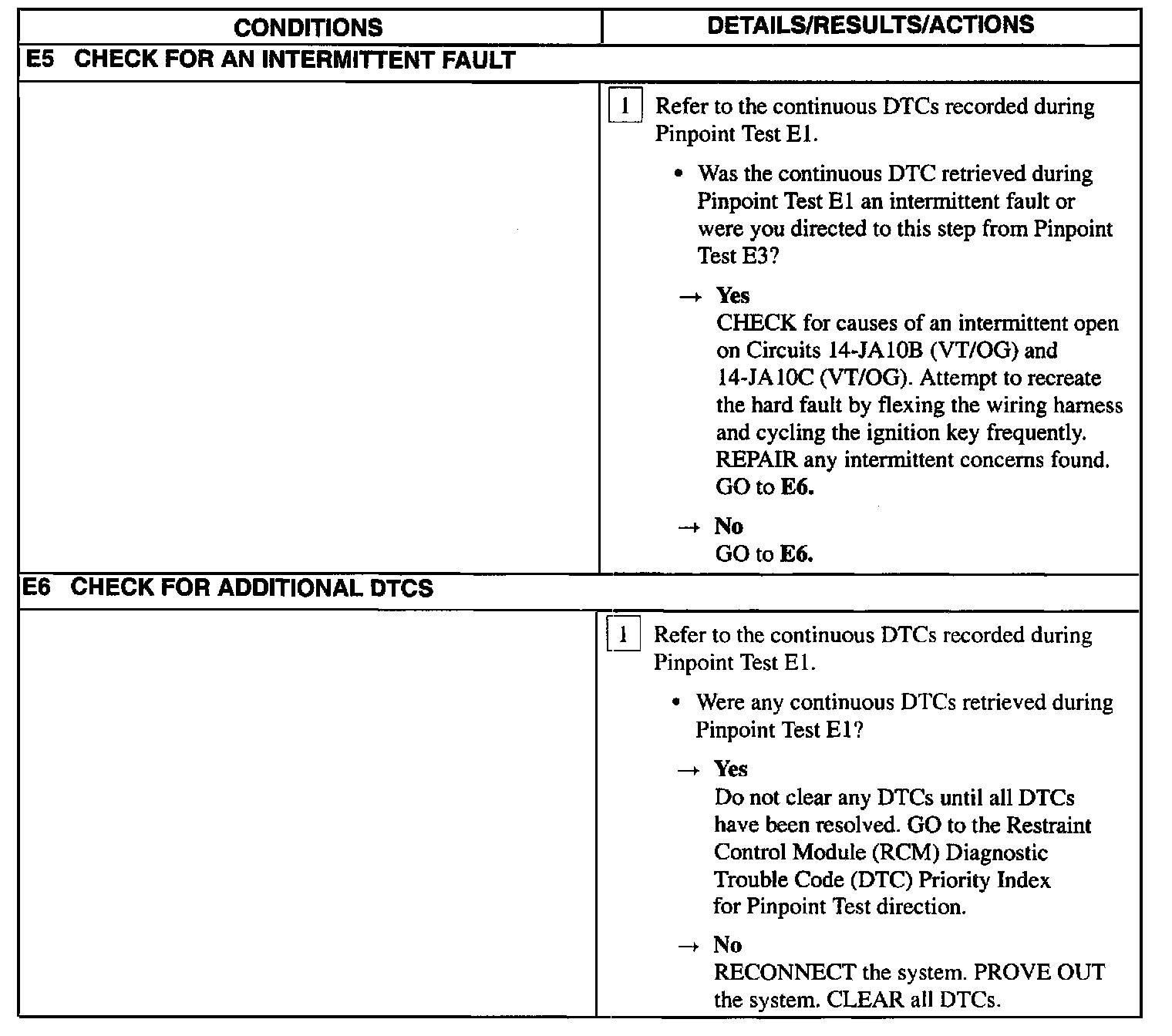

E5 - E6:
