Message Center Module

REMOVAL
1. Disconnect battery ground cable.

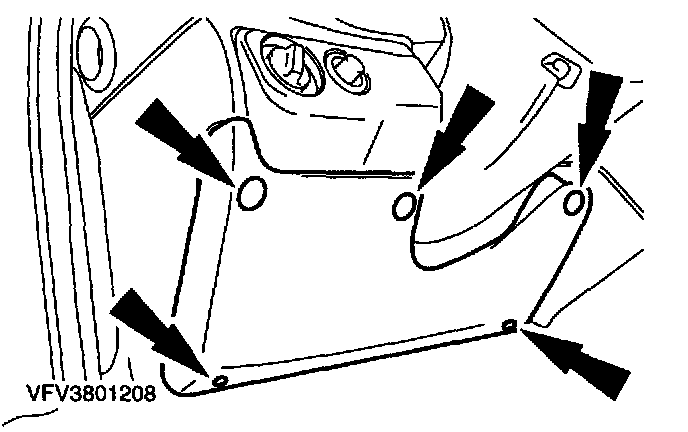

2. Loosen bolts on footwell cover.

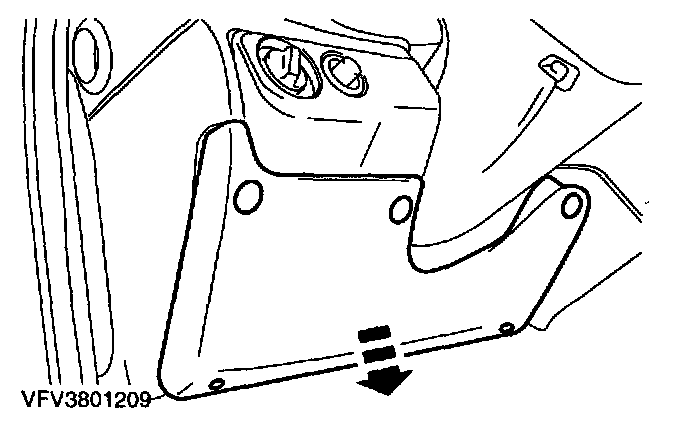

3. Remove footwell cover.

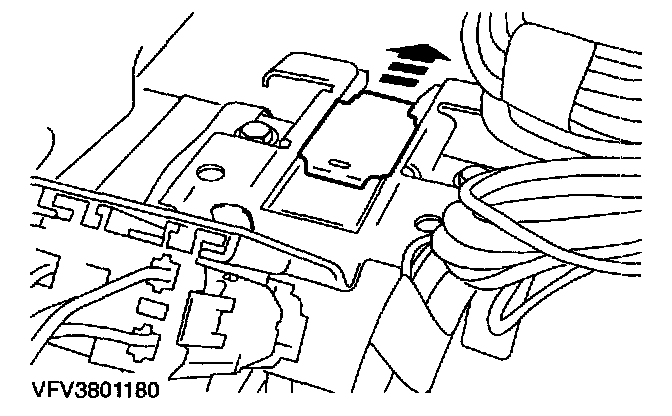

4. Push the instrument cluster module upwards out of the mounting.

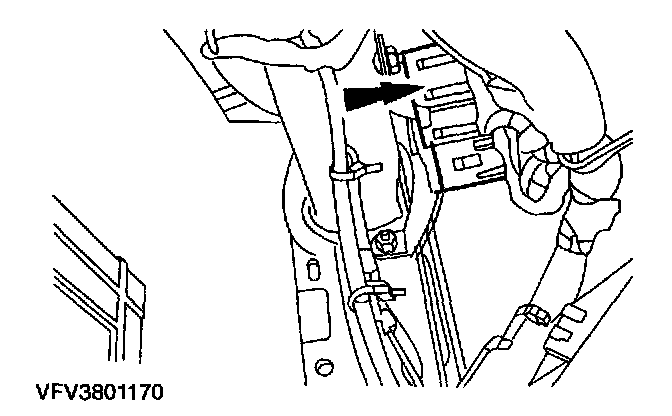

5. Disconnect the electrical connector from the module.







6. Remove the metal clip from the mounting.

INSTALLATION
1. To install, reverse the removal procedure.
