Central Timer Module

DETAILED DIAGRAMS

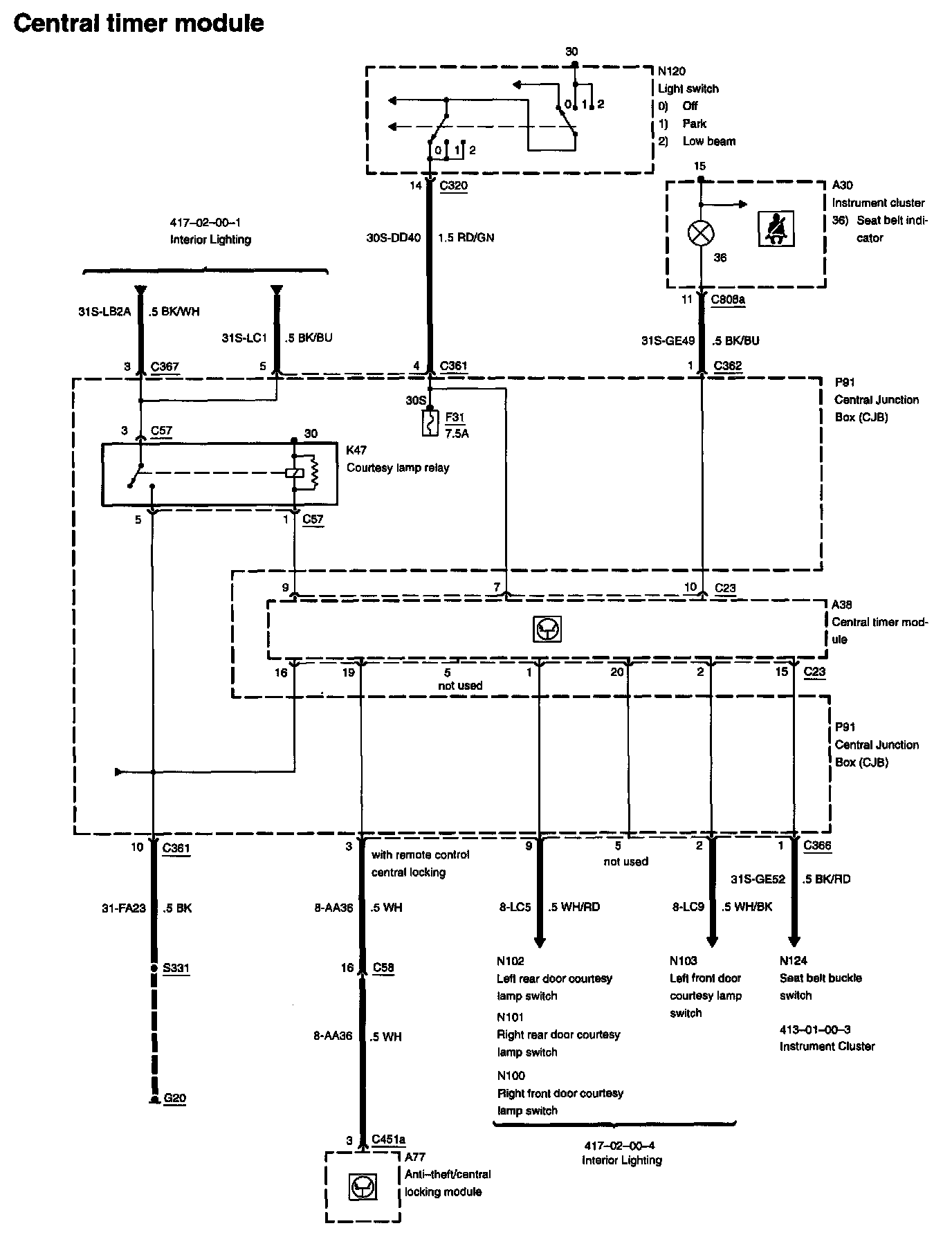

Diagram 419-10-00-1:

Anti-Theft/Central Locking Module
Central Junction Box
Central Timer Module
Courtesy Lamp Relay
Fuse F31
Instrument Cluster
Light Switch
Seat Belt Indicator

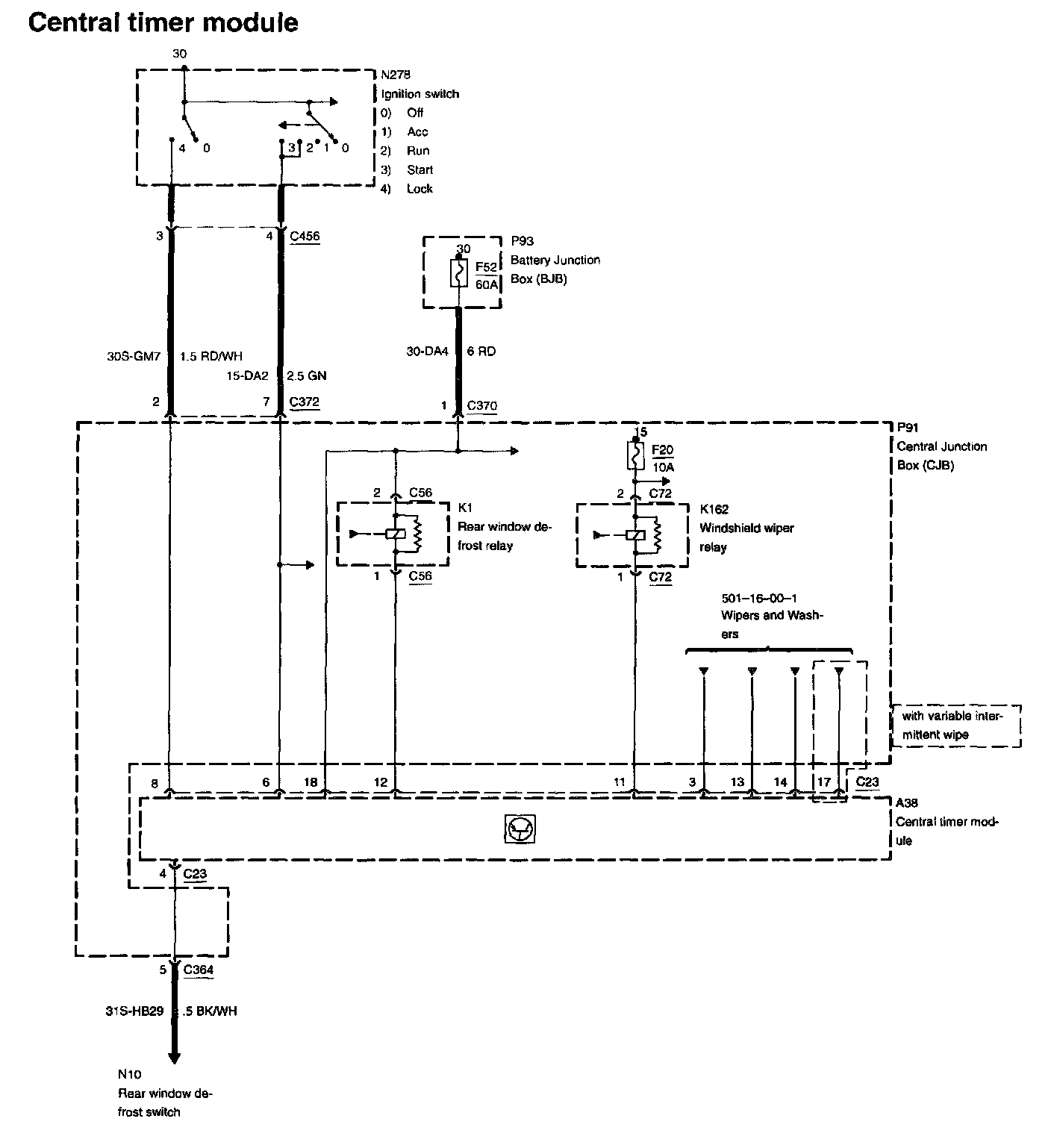

Diagram 419-10-00-2:

Battery Junction Box
Central Junction Box
Central Timer Module
Fuse F20
Fuse F52
Ignition Switch
Rear Window Defrost Relay
Windshield Wiper Relay


RELATED DIAGRAMS

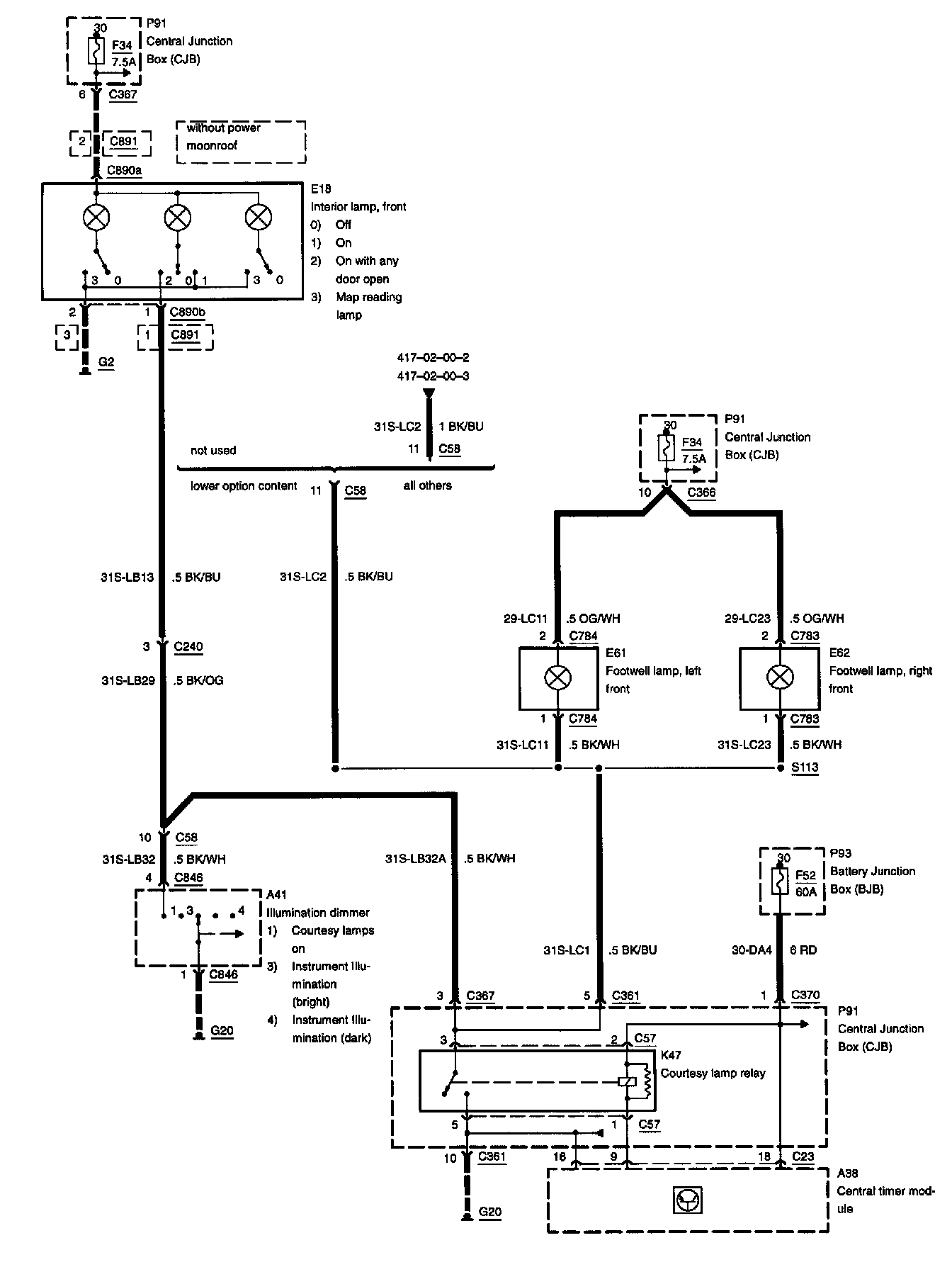

Diagram 417-02-00-1:

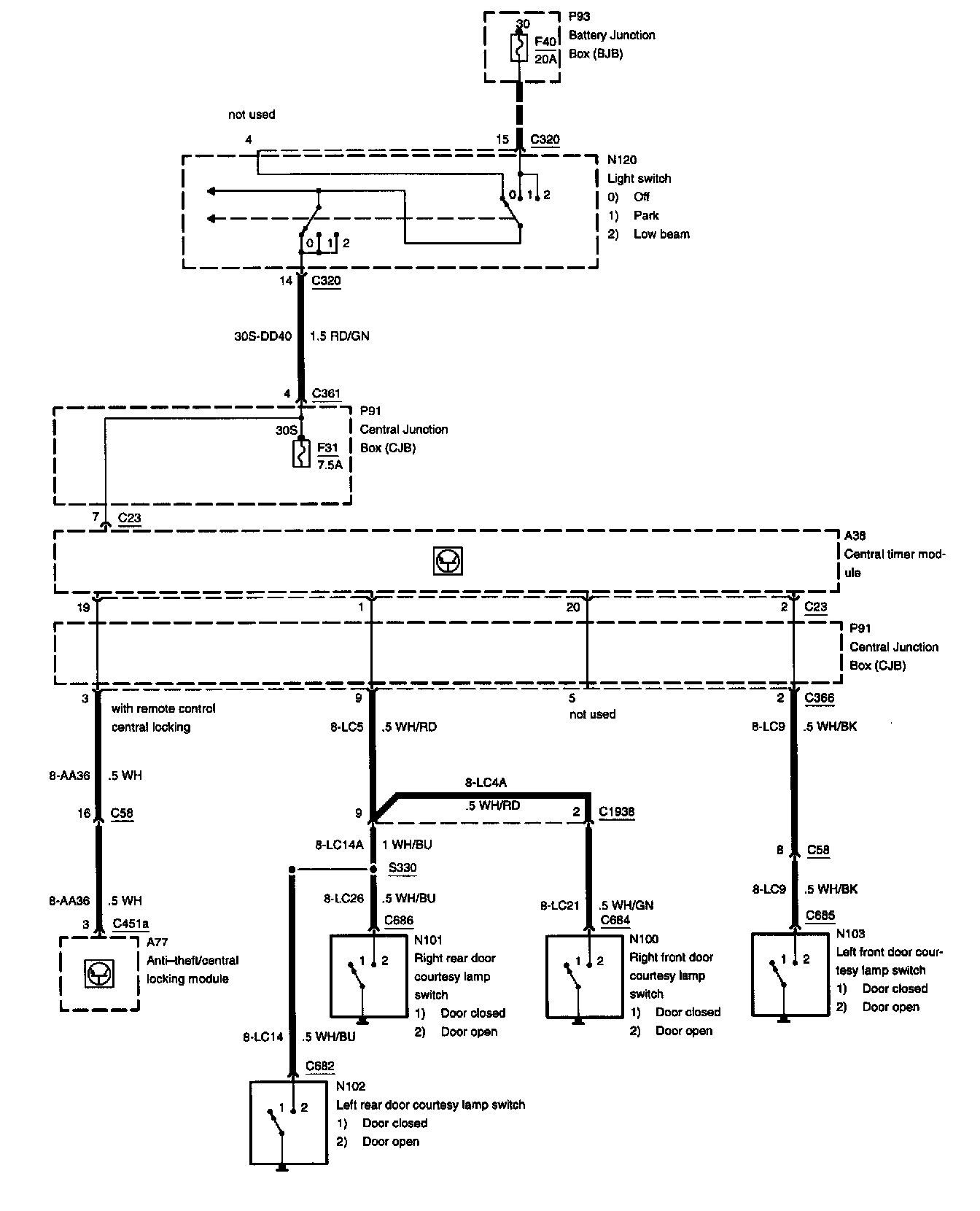

Diagram 417-02-00-4:

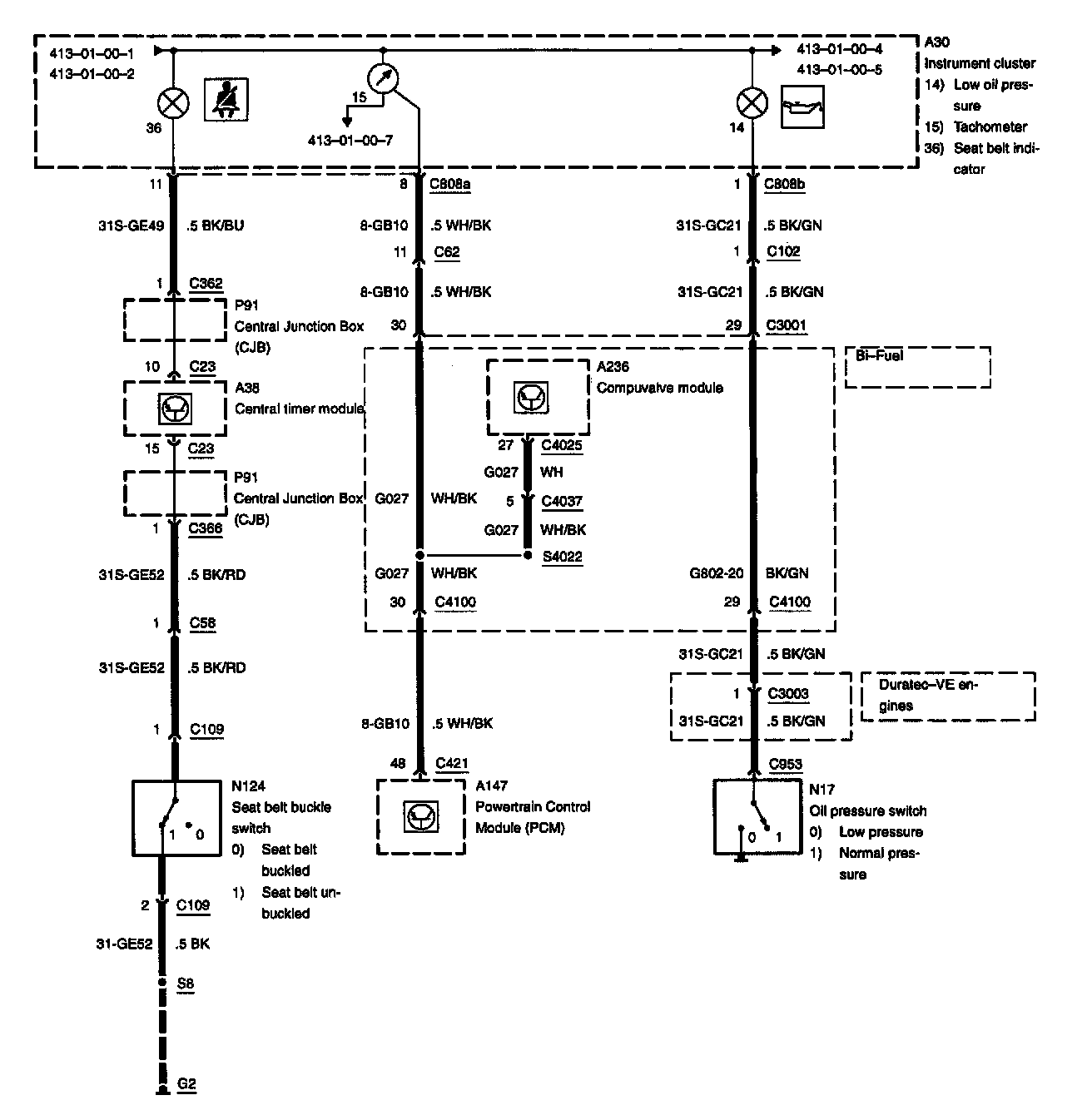

Diagram 413-01-00-3:

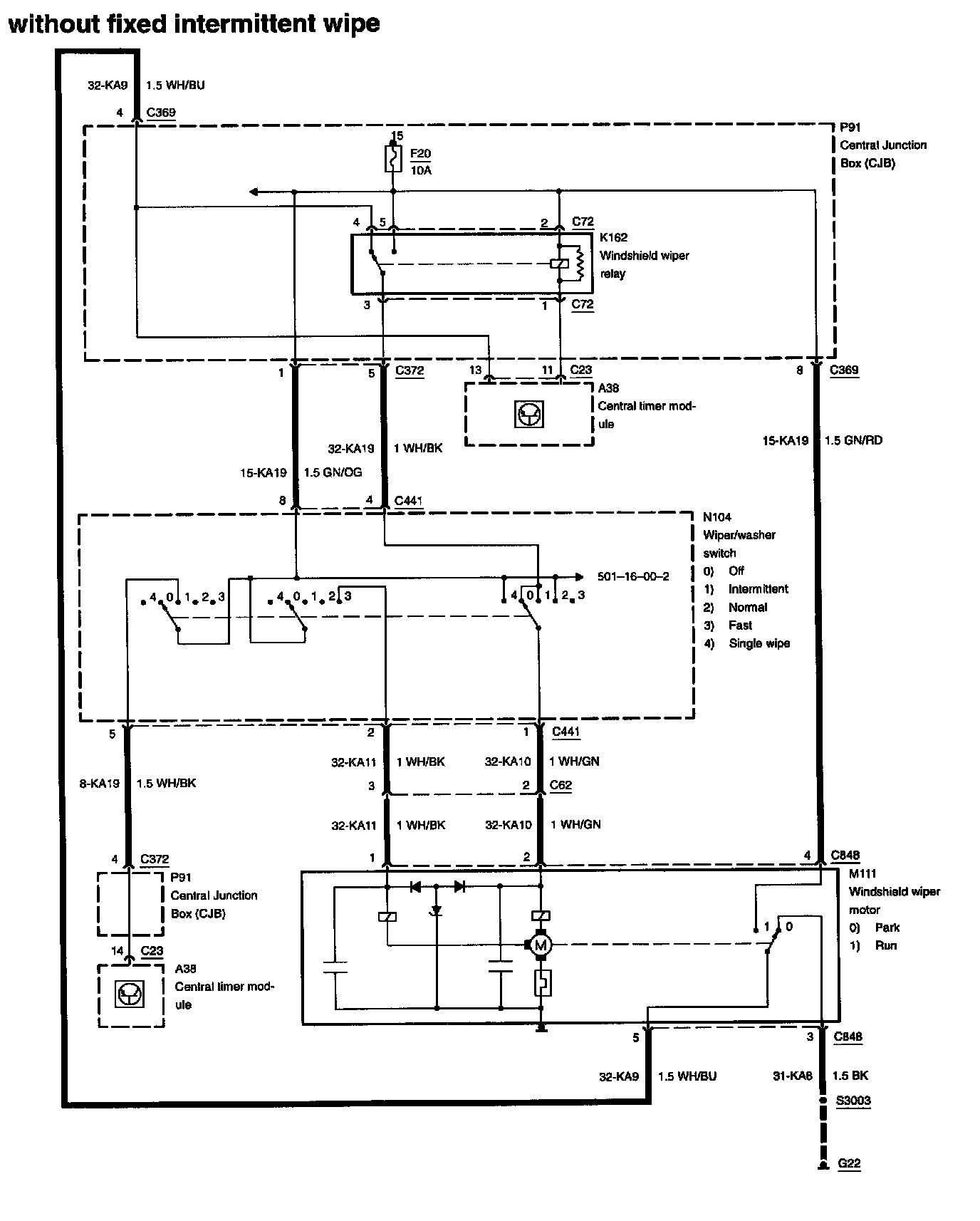

Diagram 501-16-00-1:
