Coil Pack

REMOVAL

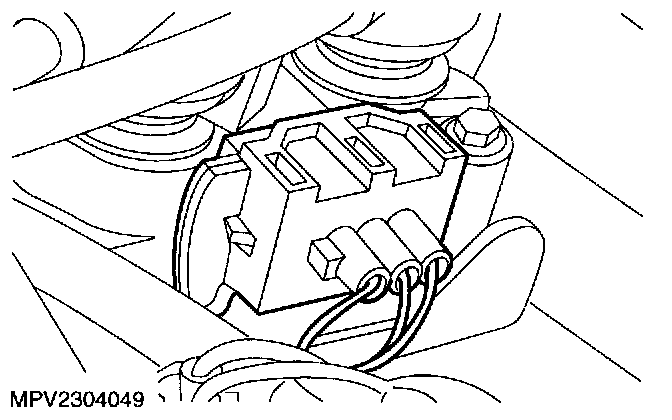

1. Disconnect the ignition coil electrical connector.







2. Disconnect the spark plug wires from the ignition coil.

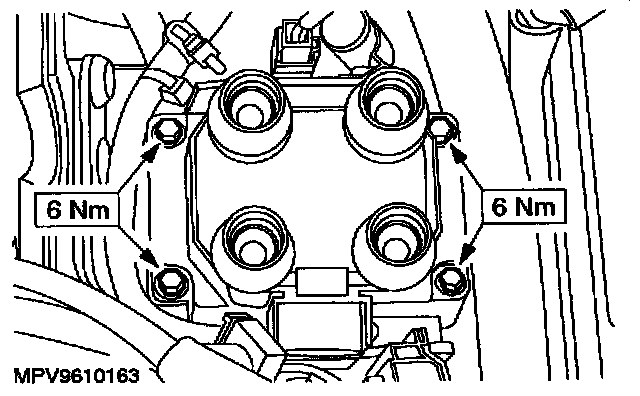

3. Remove the ignition coil bolts.

INSTALLATION







1. To install, reverse the removal procedure.
