Coil Bracket

REMOVAL
1. Remove the air cleaner.
2. Remove the ignition coil.







3. Remove the cable tie which retains the the ignition coil wiring harness to the ignition coil bracket.

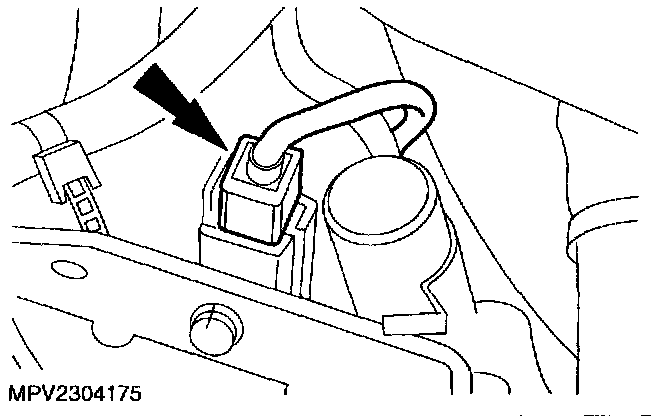

4. Disconnect the radio suppressor electrical connector.

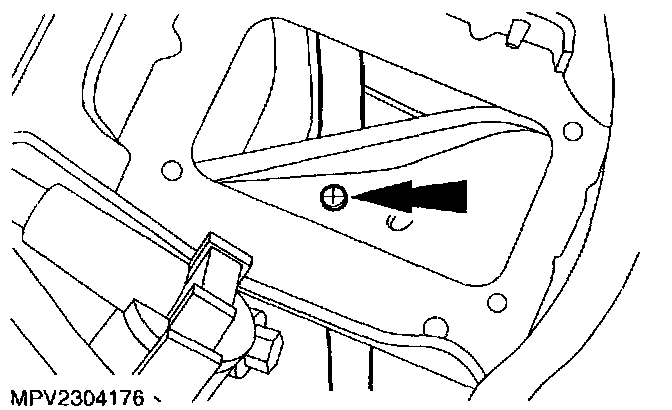

5. Disconnect the engine coolant temperature sensor wiring harness from the ignition coil bracket.

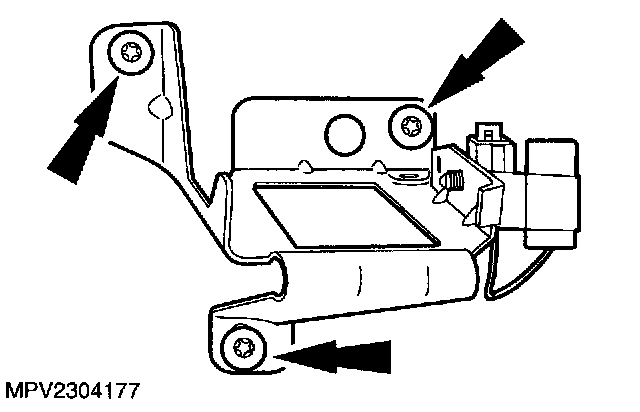

6. Remove the ignition coil bracket bolts and the ignition coil bracket.

INSTALLATION

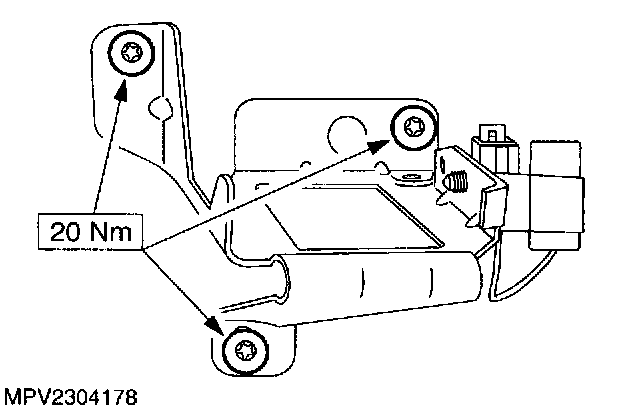

1. To install, reverse the removal procedure.
