EGR Tube: Service and Repair

REMOVAL
1. Remove the idle air control valve. For additional information, refer to Computers and Control Systems.

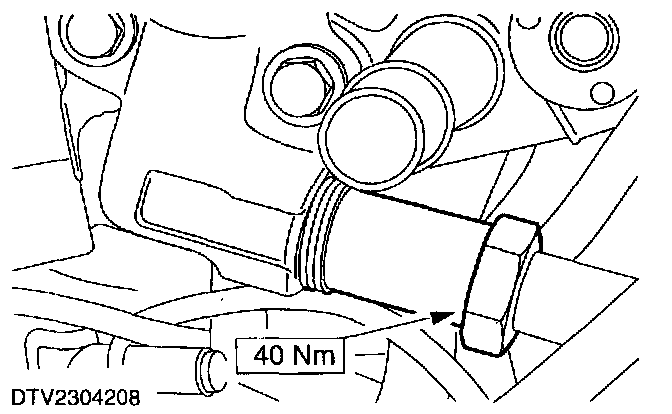

2. Disconnect the tube from the exhaust gas recirculation valve.
3. Disconnect the differential pressure feedback EGR sensor hoses from the EGR tube.
4. Raise and support the vehicle. For additional information, refer to Maintenance/Service and Repair.
5. Remove the engine splash shield.

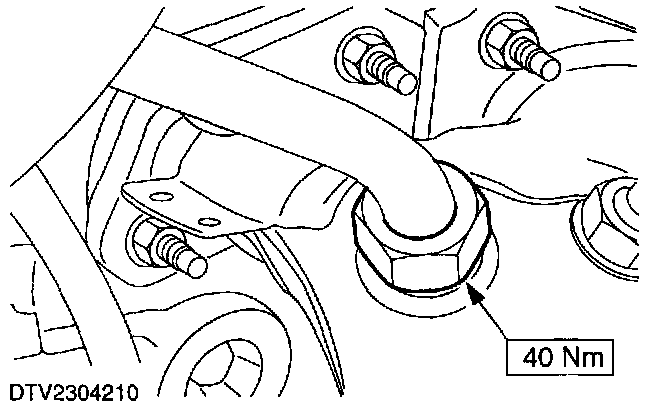

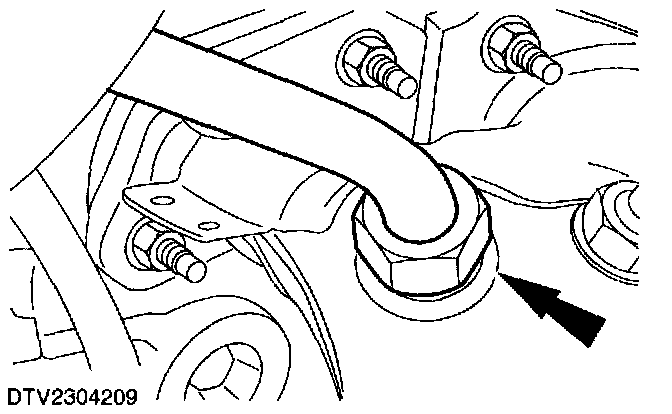

6. Disconnect the exhaust gas recirculation valve tube and remove it.

INSTALLATION












1. To install, reverse the removal procedure.
