EGR Electronic Vacuum Regulator Solenoid: Service and Repair

REMOVAL

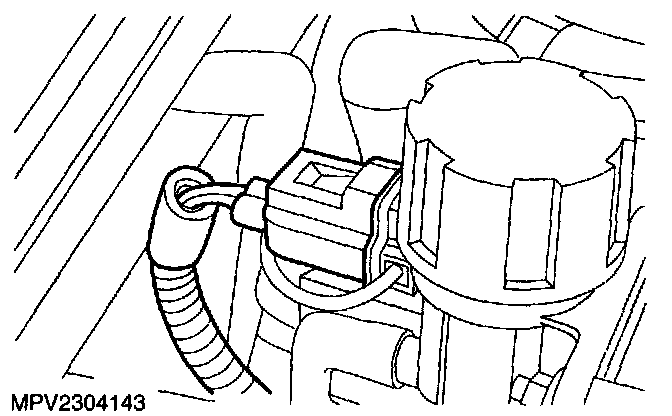

1. Disconnect the EGR vacuum regulator valve electrical connector.

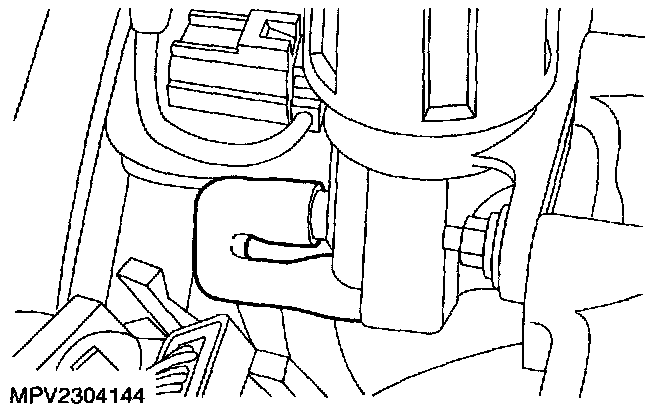

2. Disconnect the vacuum hose connector from the EVR valve.

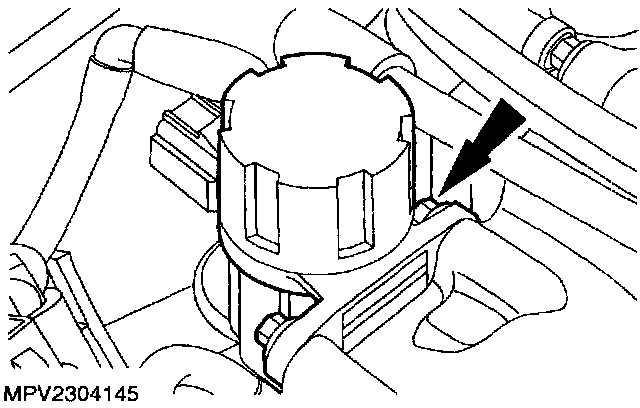

3. Remove the EVR valve bolts and remove the EVR valve.

INSTALLATION







1. To install, reverse the removal procedure.
