Test H: No Module/Network Communication-SCP Network
Test H: No Module/Network Communication-SCP Network

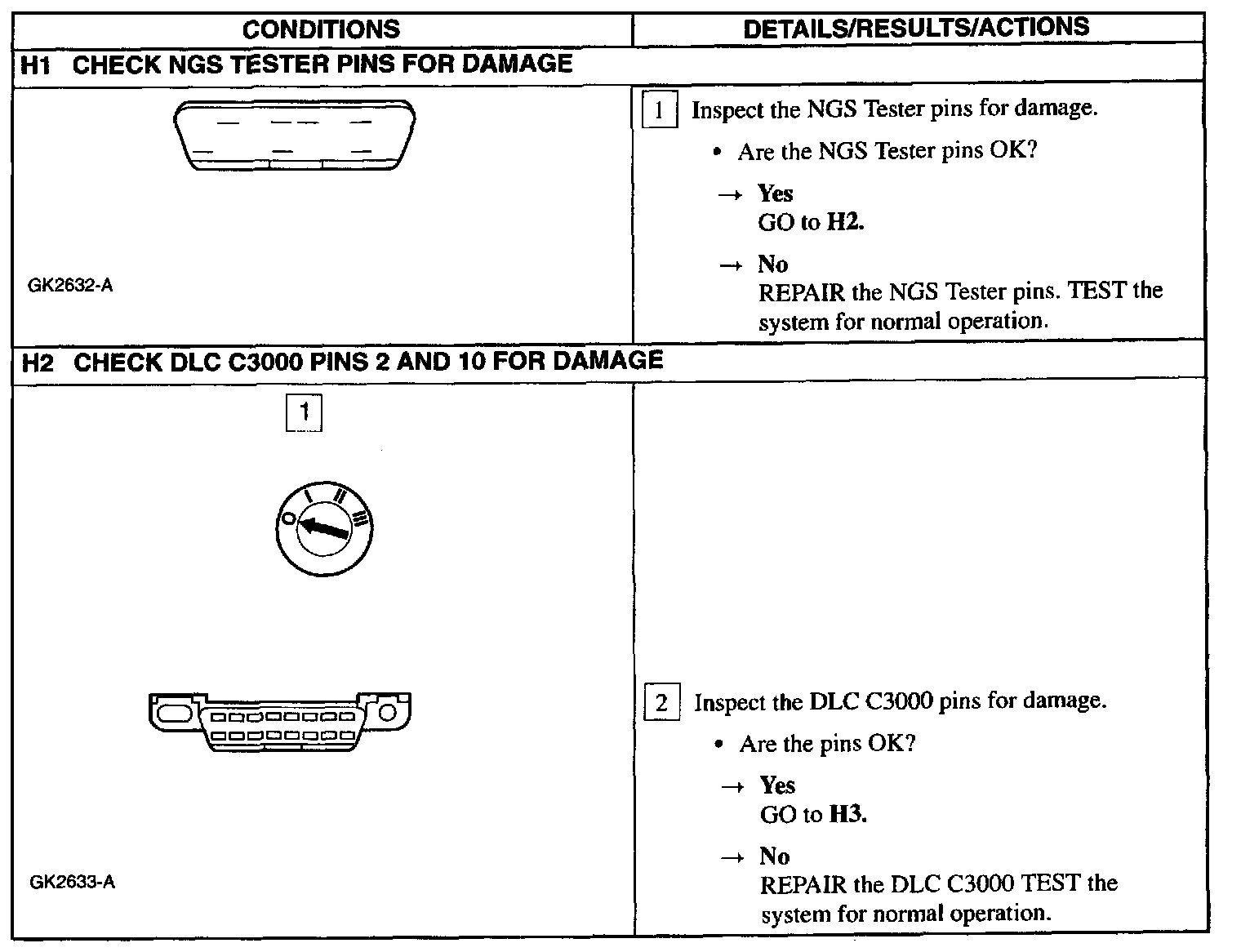

H1 - H2:

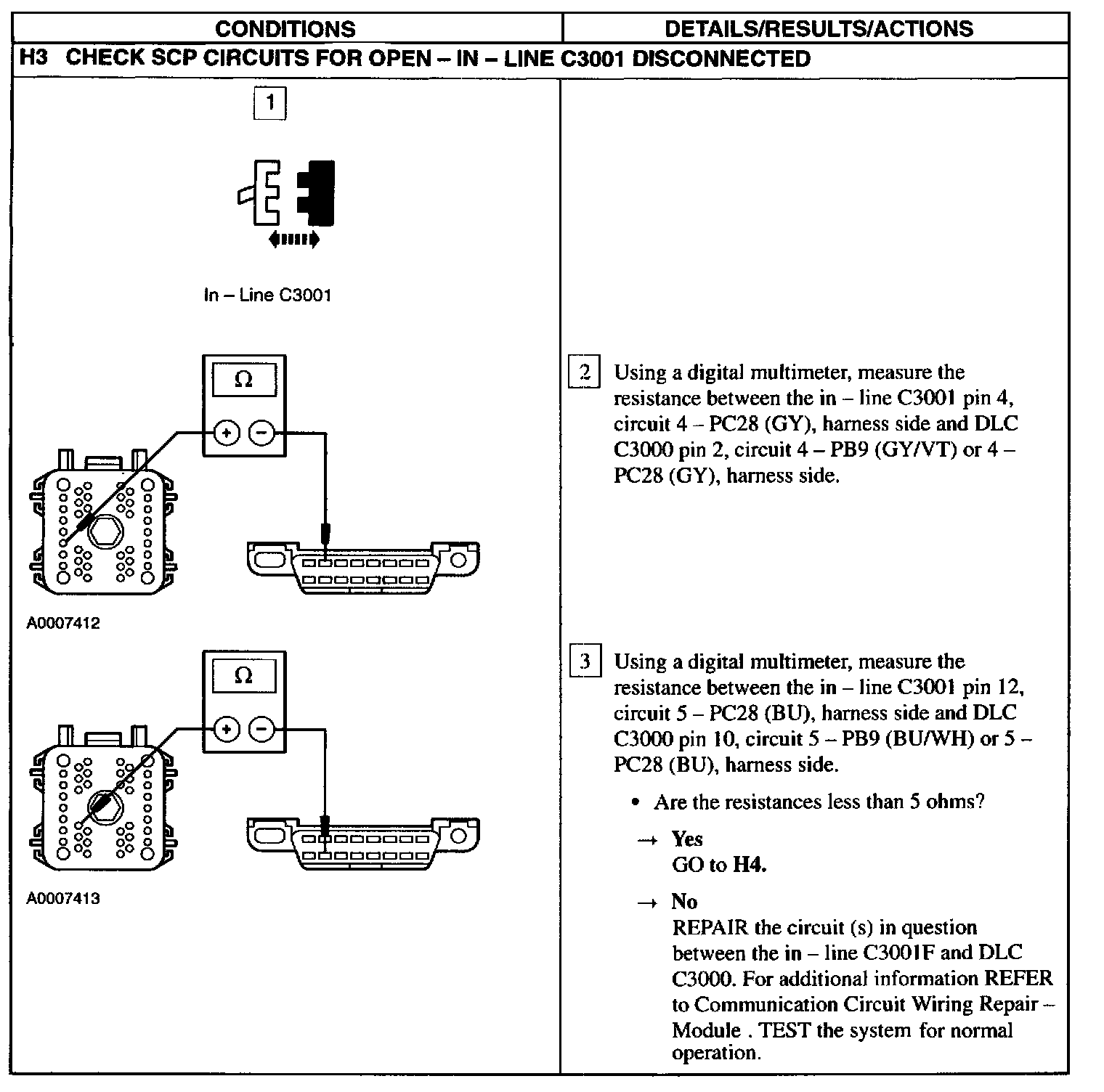

H3:
H4:

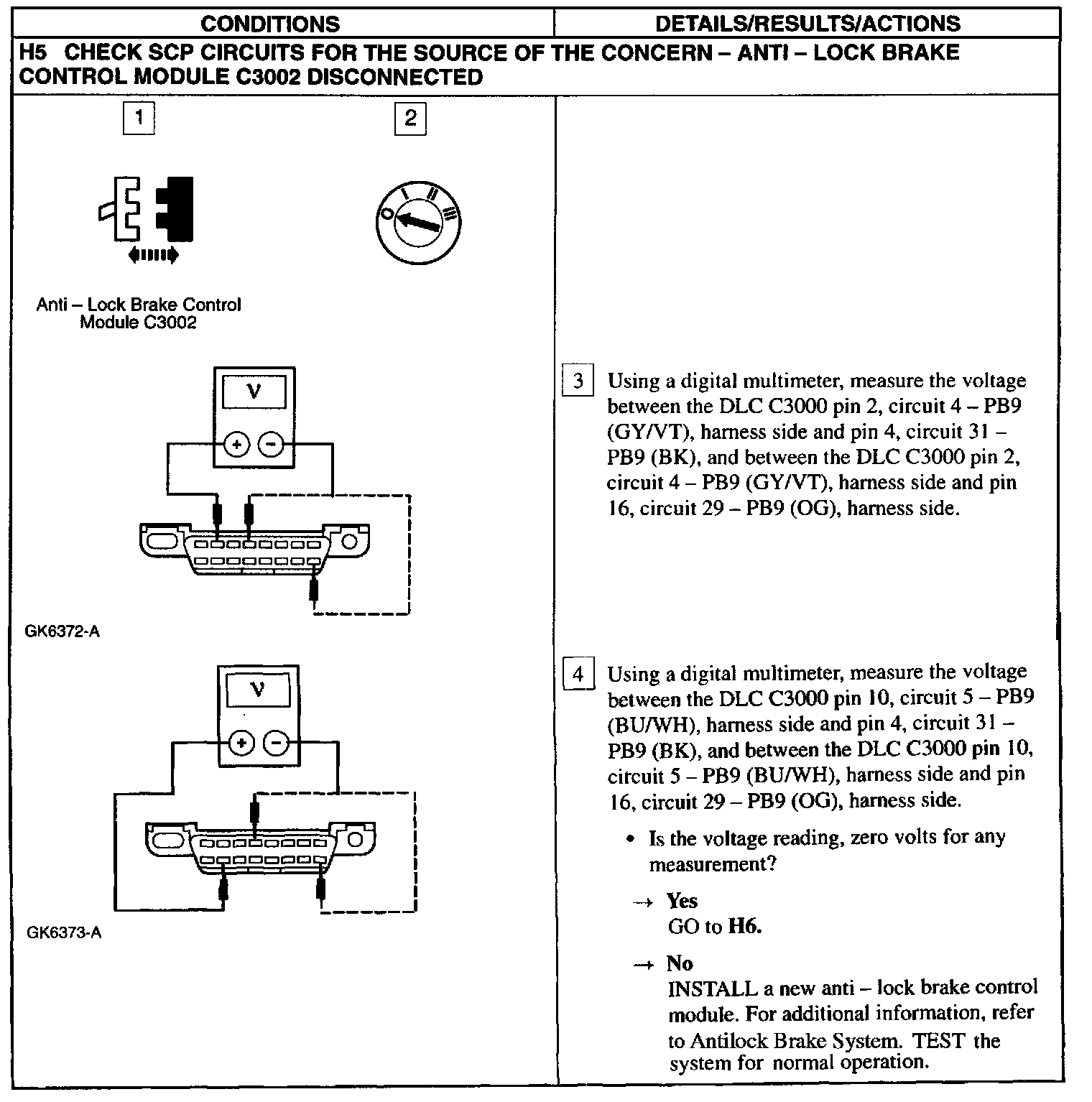

H5:

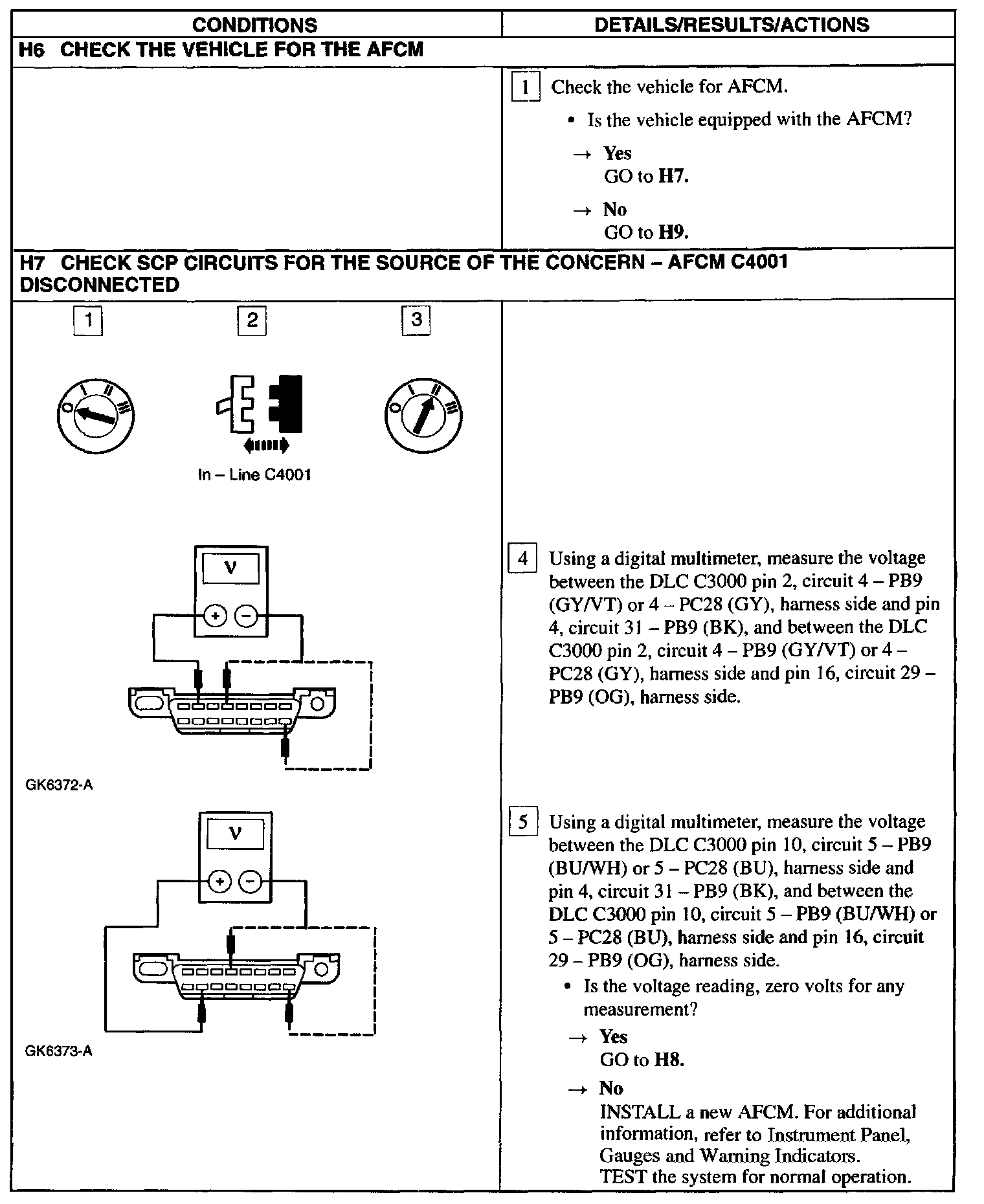

H6 - H7:

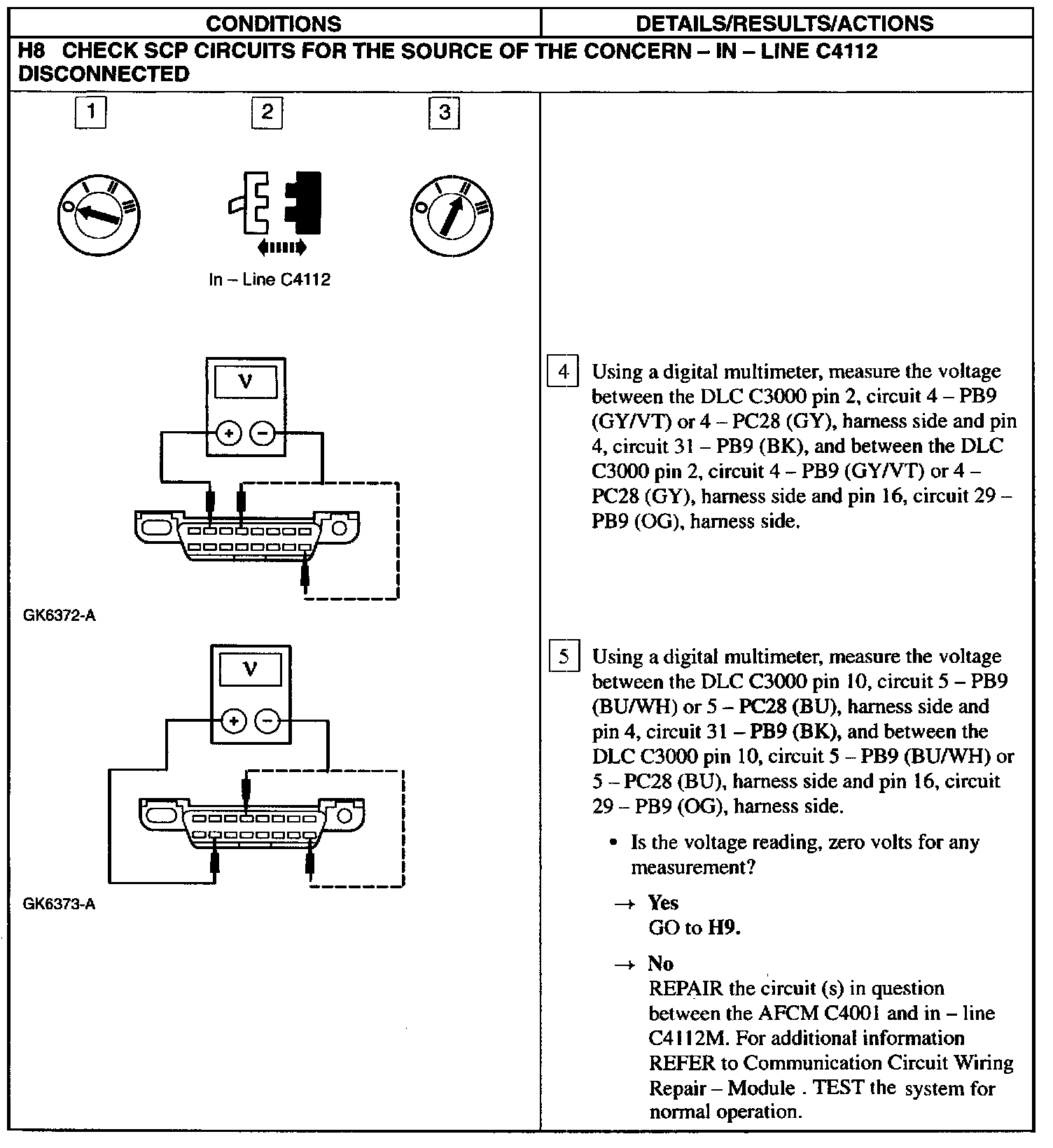

H8:

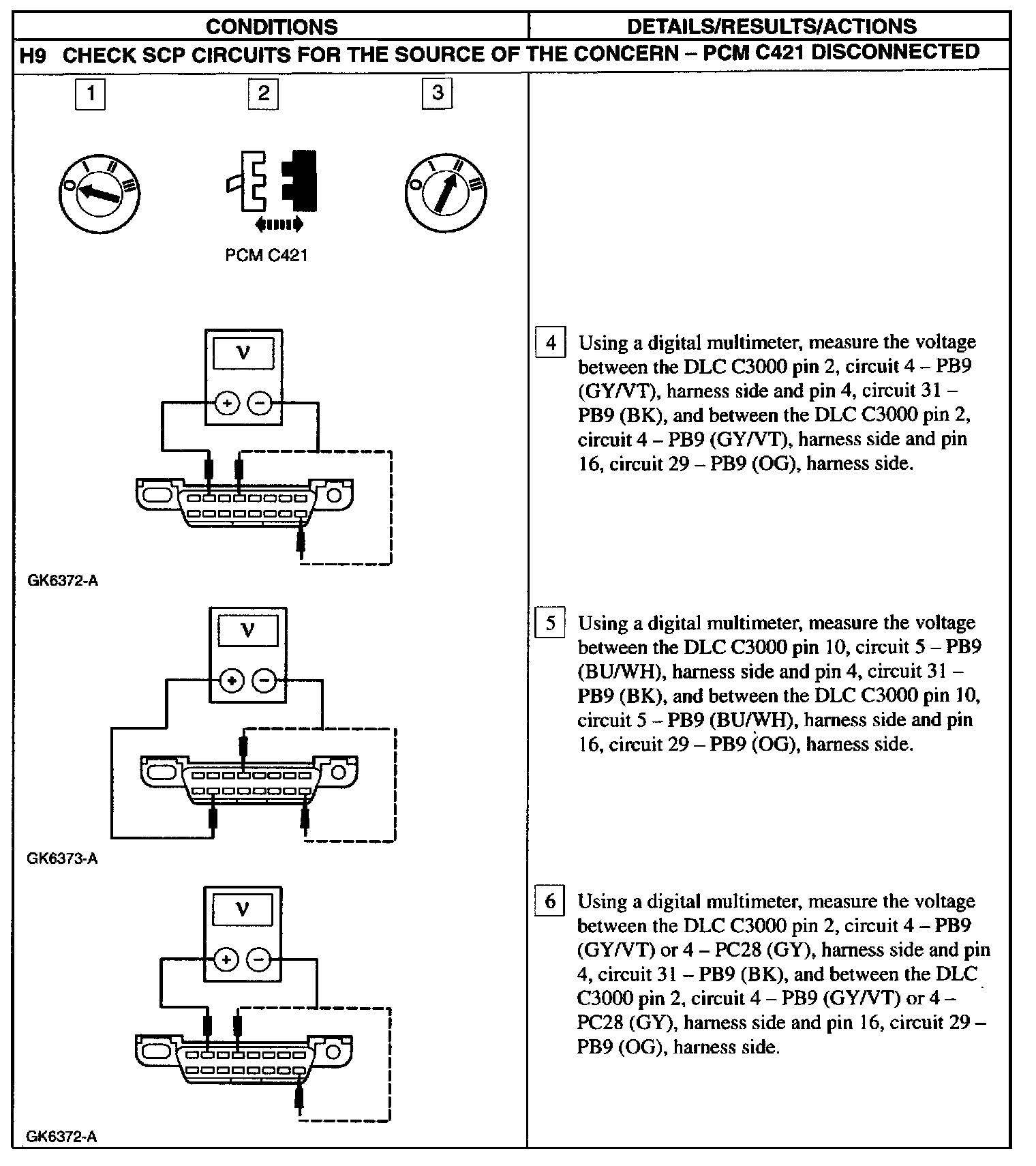

H9 (Part 1 Of 2):

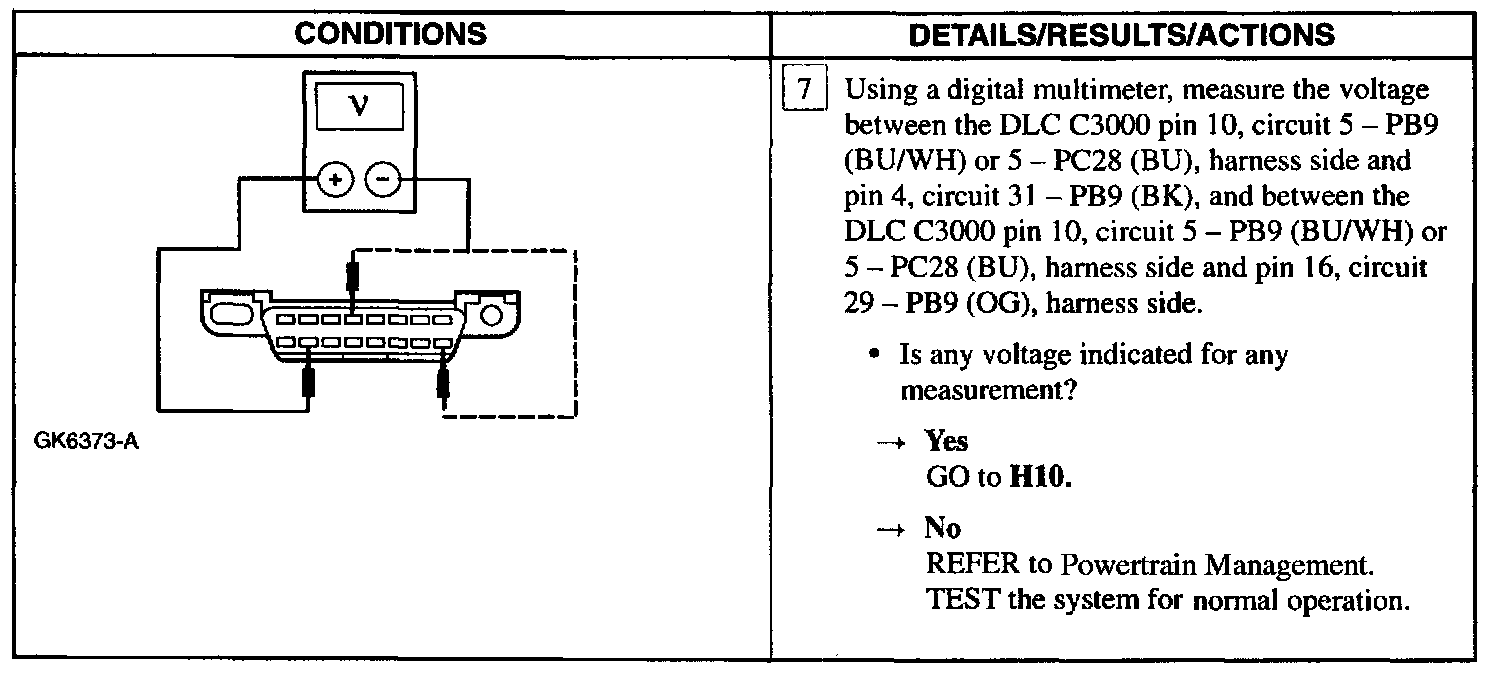

H9 (Part 2 Of 2):

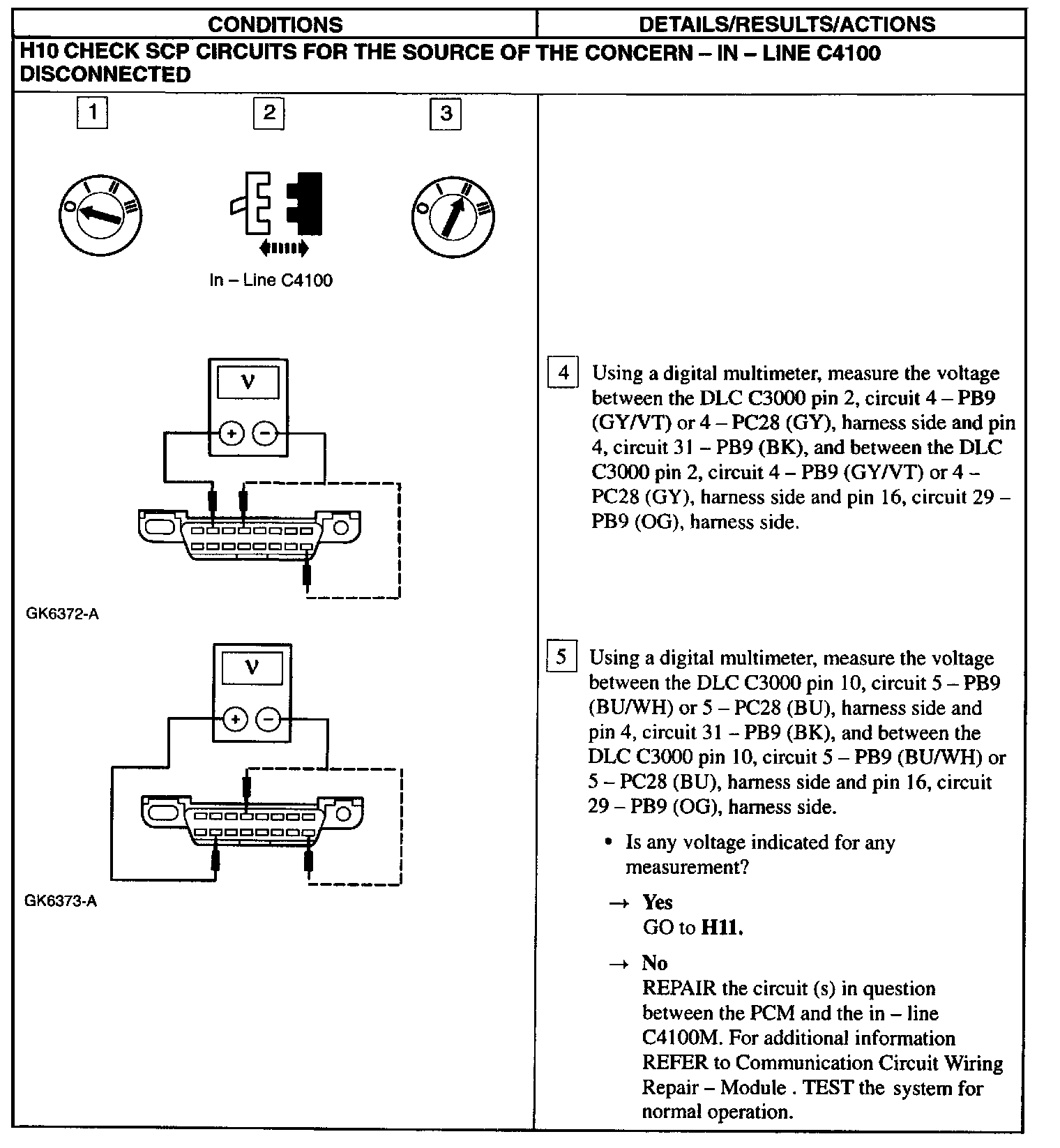

H10:

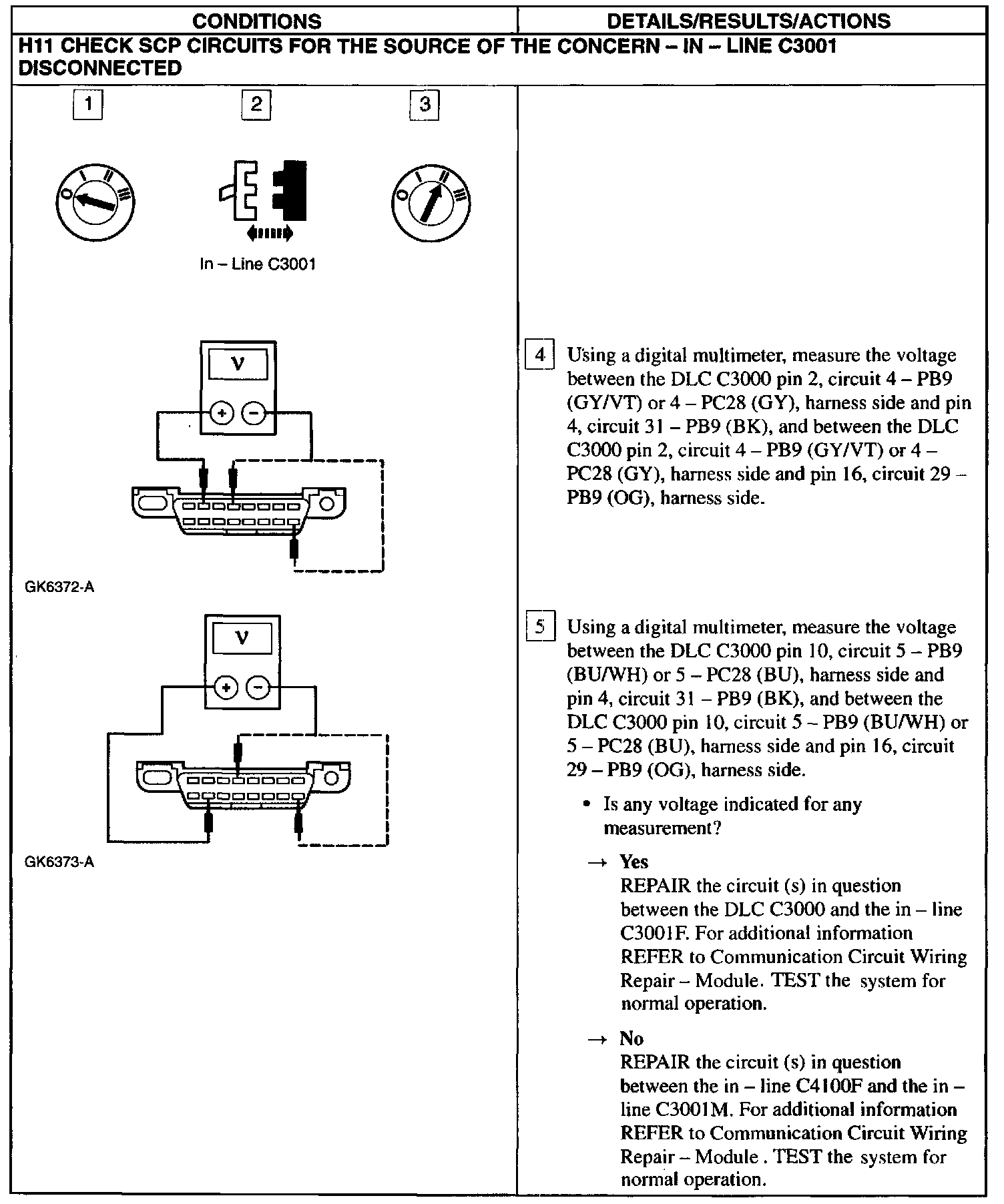

H11:
