Test L: One Turn Signal/Hazard Lamp Is Never/Always on

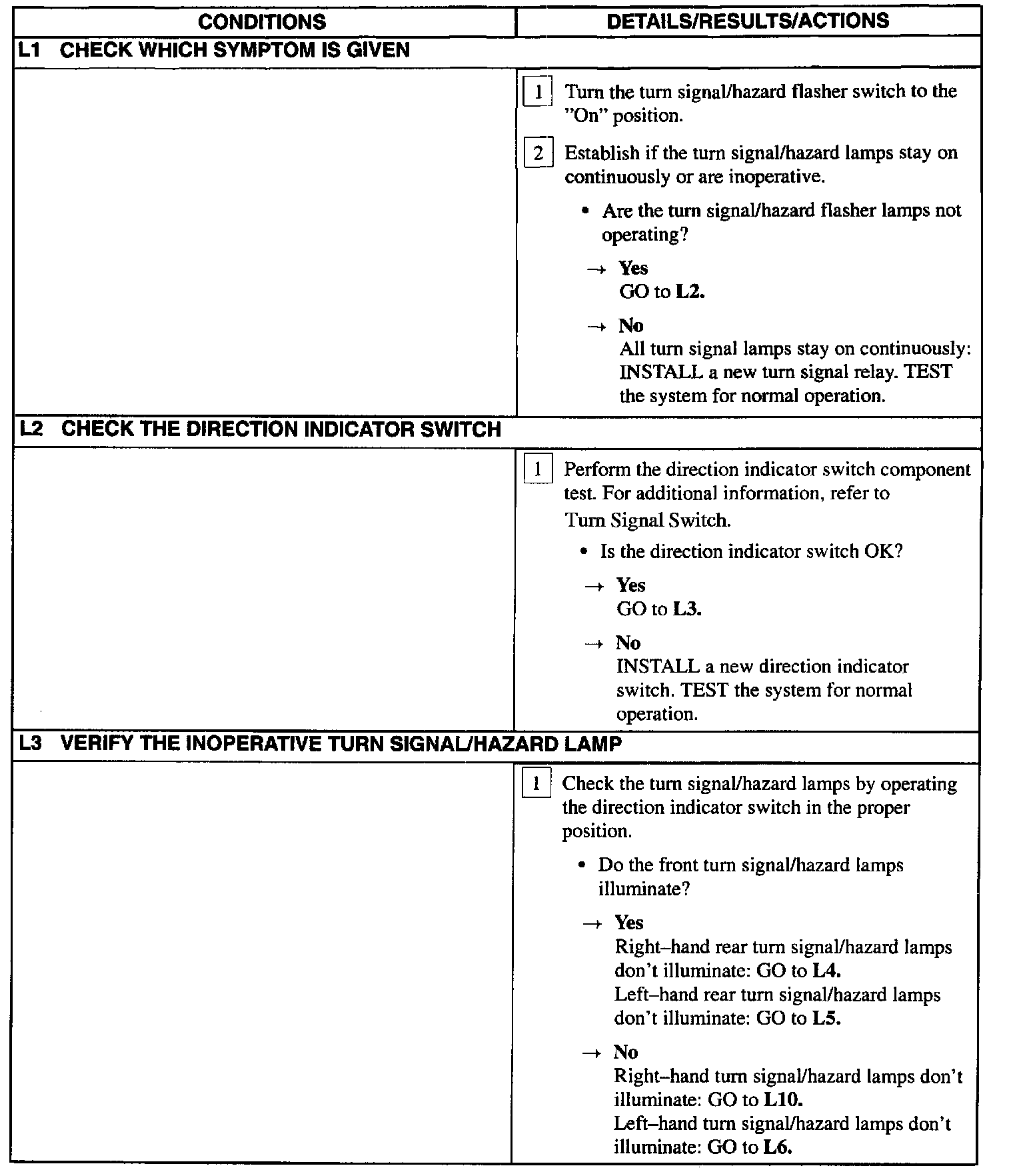

L1 - L3:






L4:

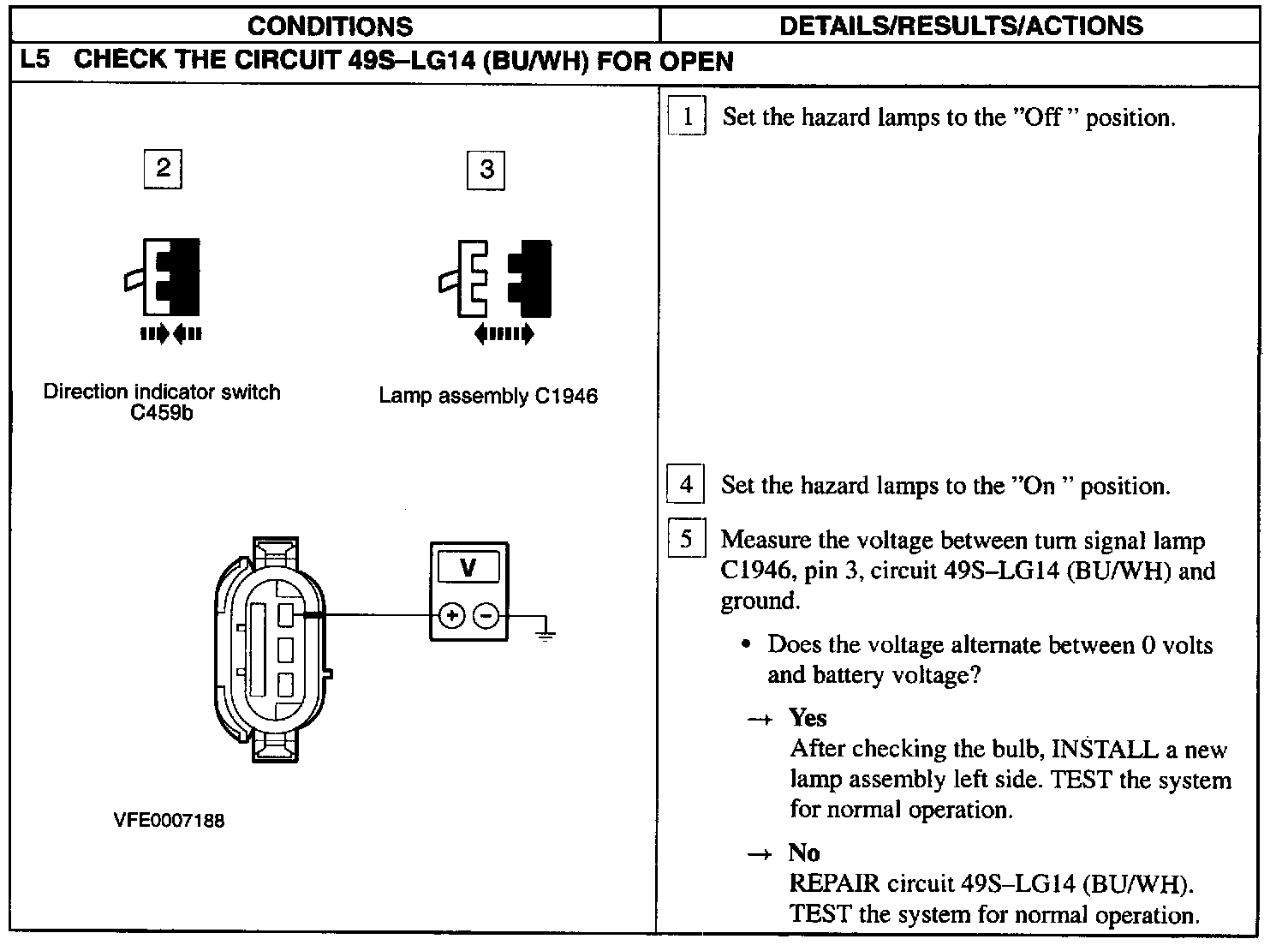

L5:

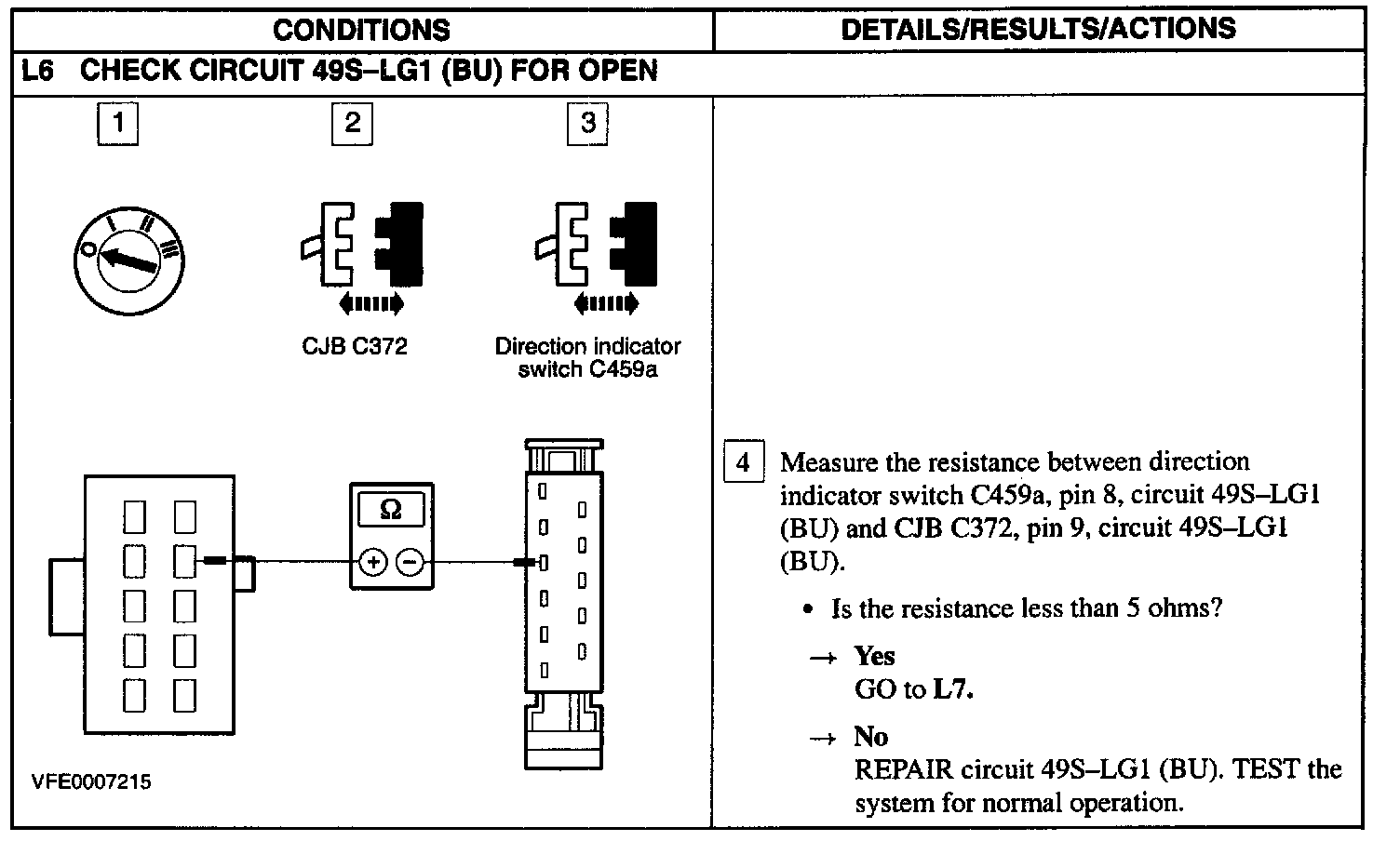

L6:

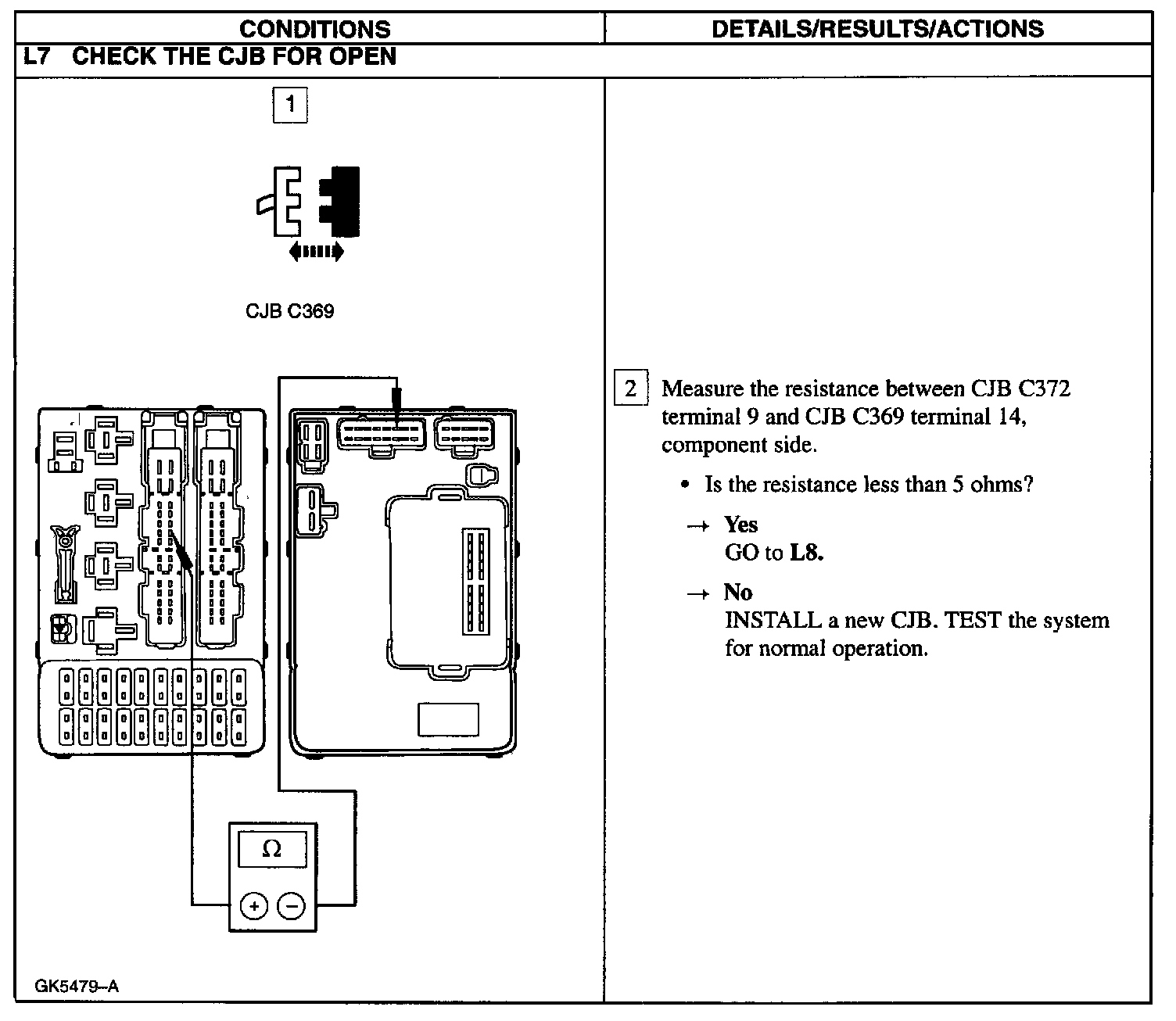

L7:

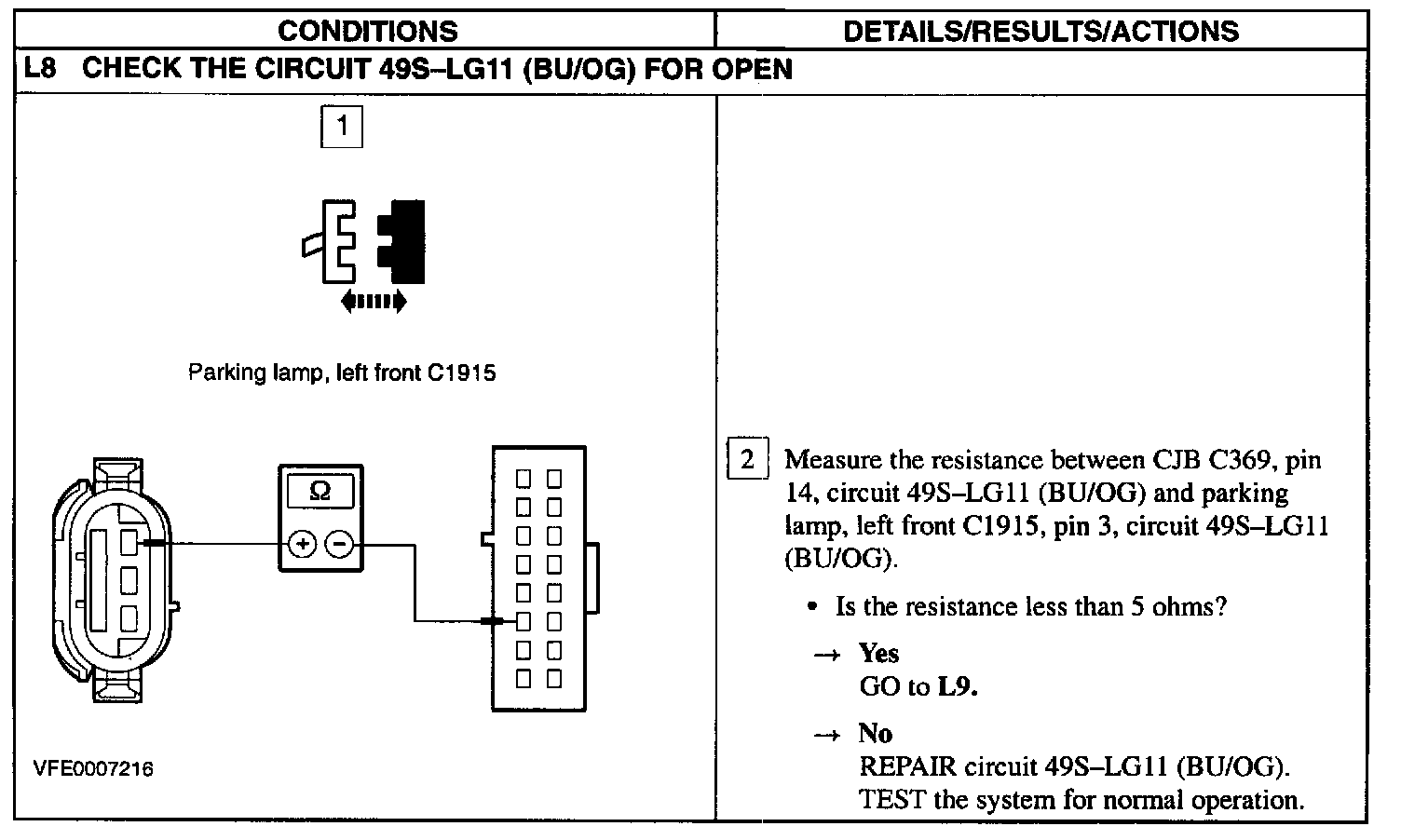

L8:

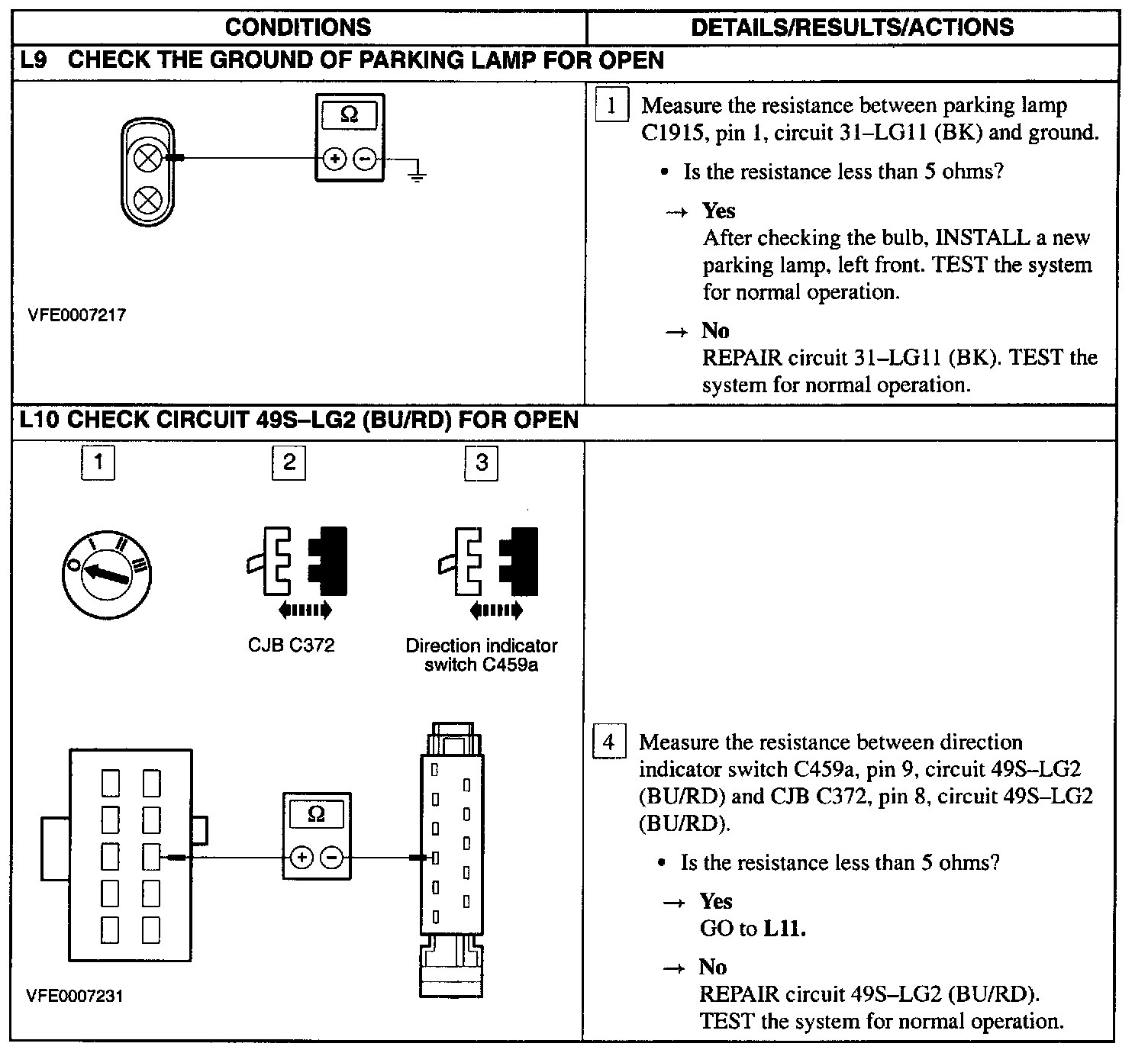

L9 - L10:

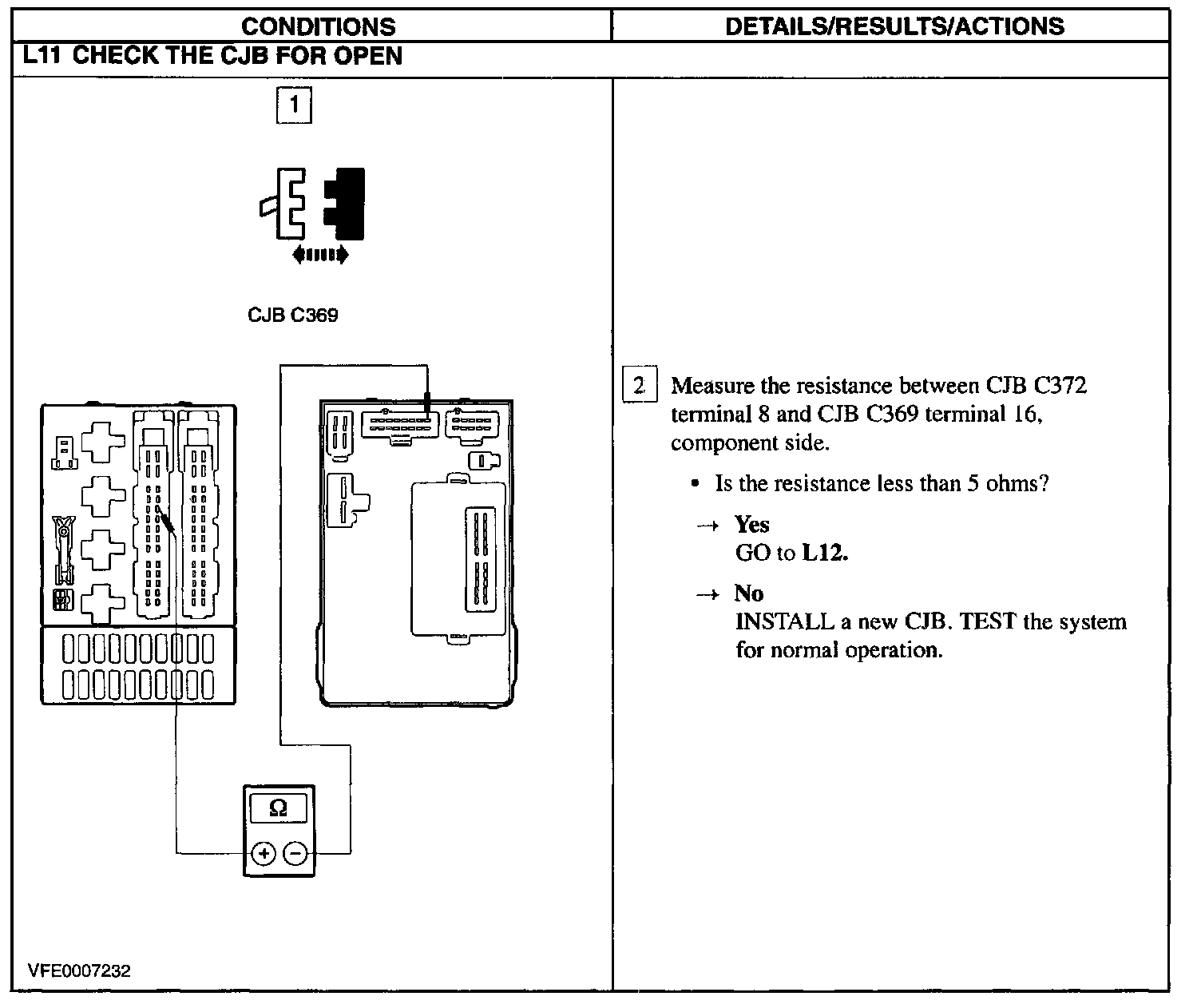

L11:

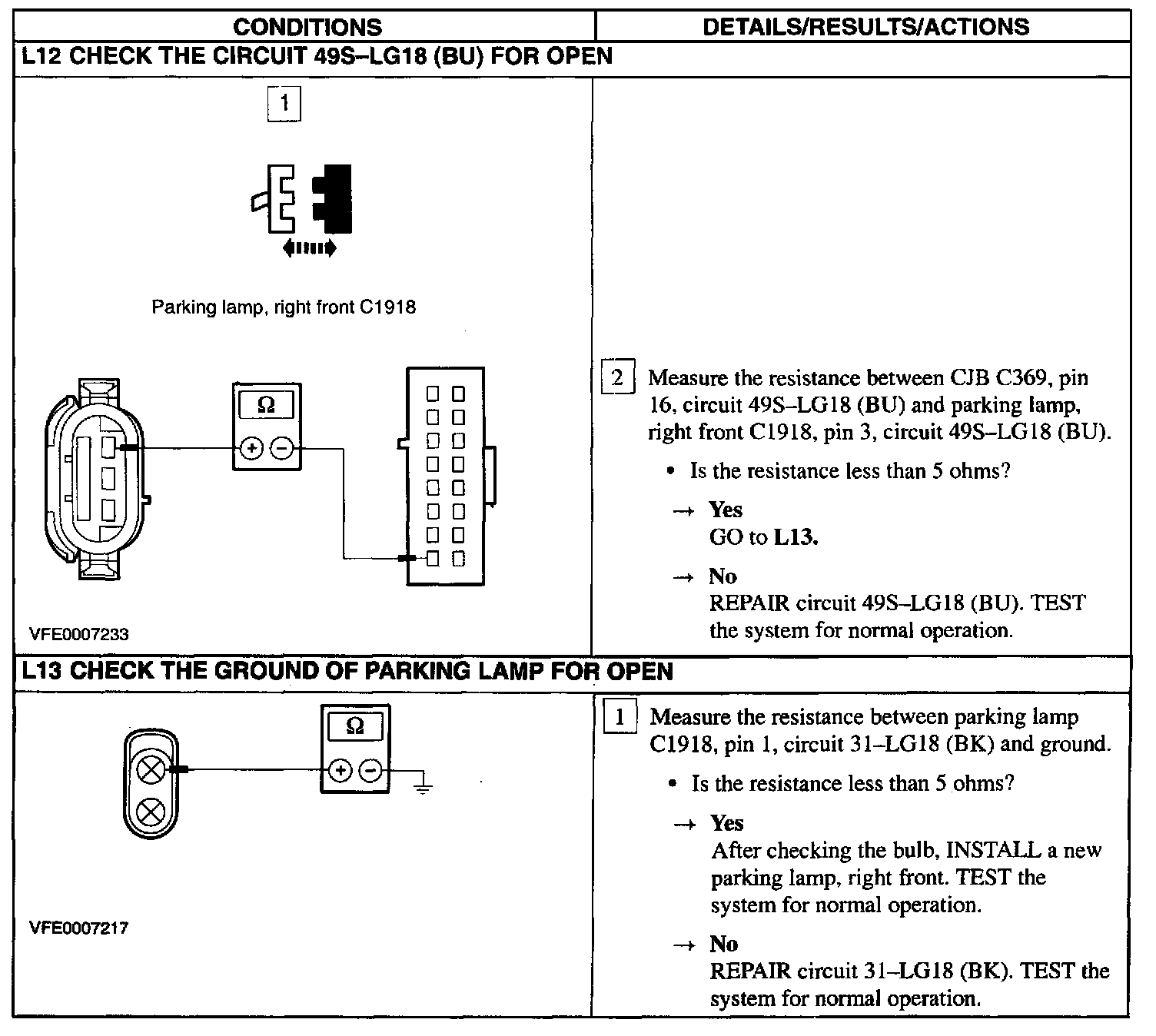

L12 - L13:
