Home >> Mercury >> 2000 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Lighting and Horns >> Parking Lamp >> Testing and Inspection >> Pinpoint Tests >> Test M: Parking, Rear Or License Plate Lamps Are Inoperative

Test M: Parking, Rear Or License Plate Lamps Are Inoperative

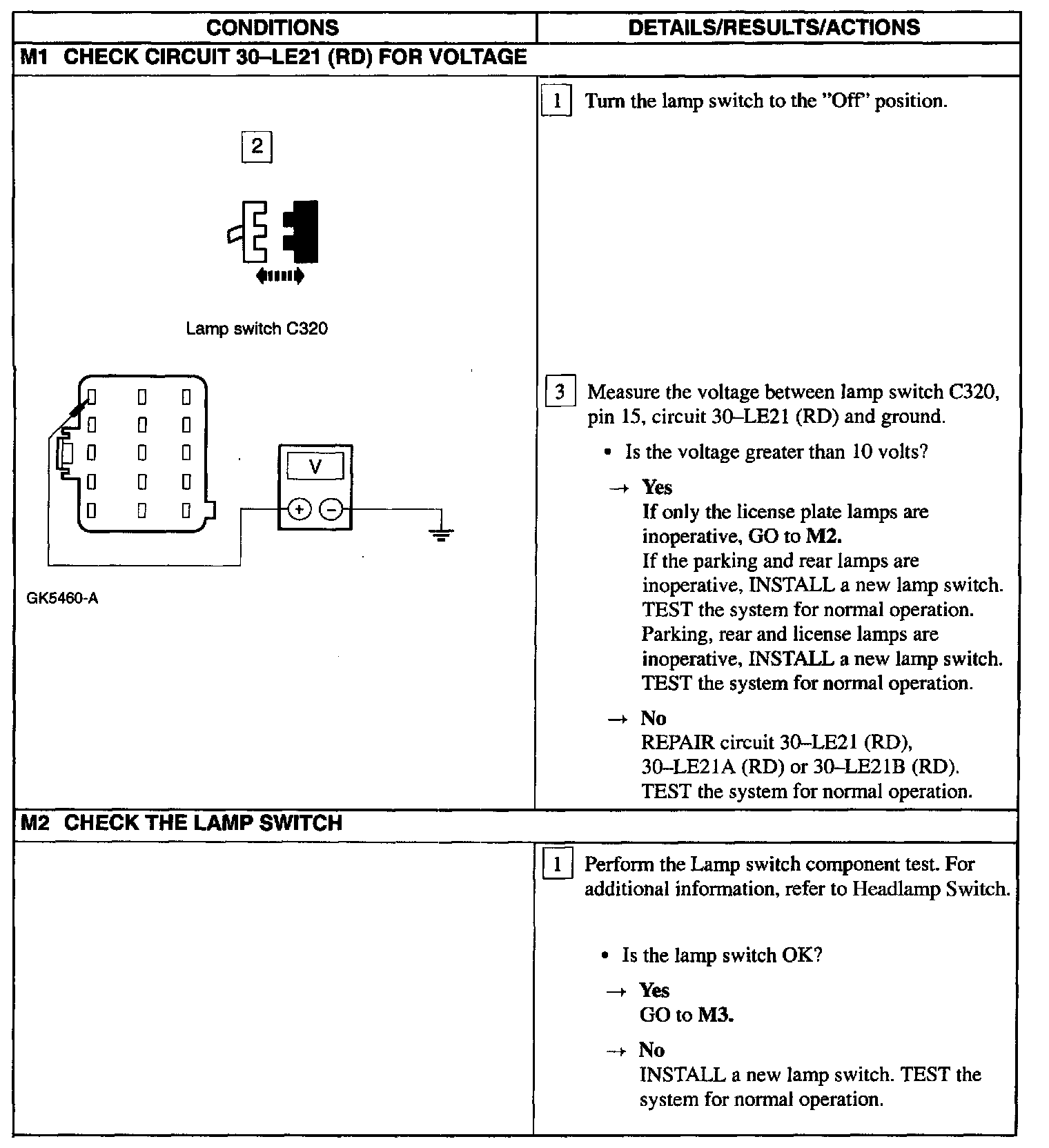

M1 - M2:

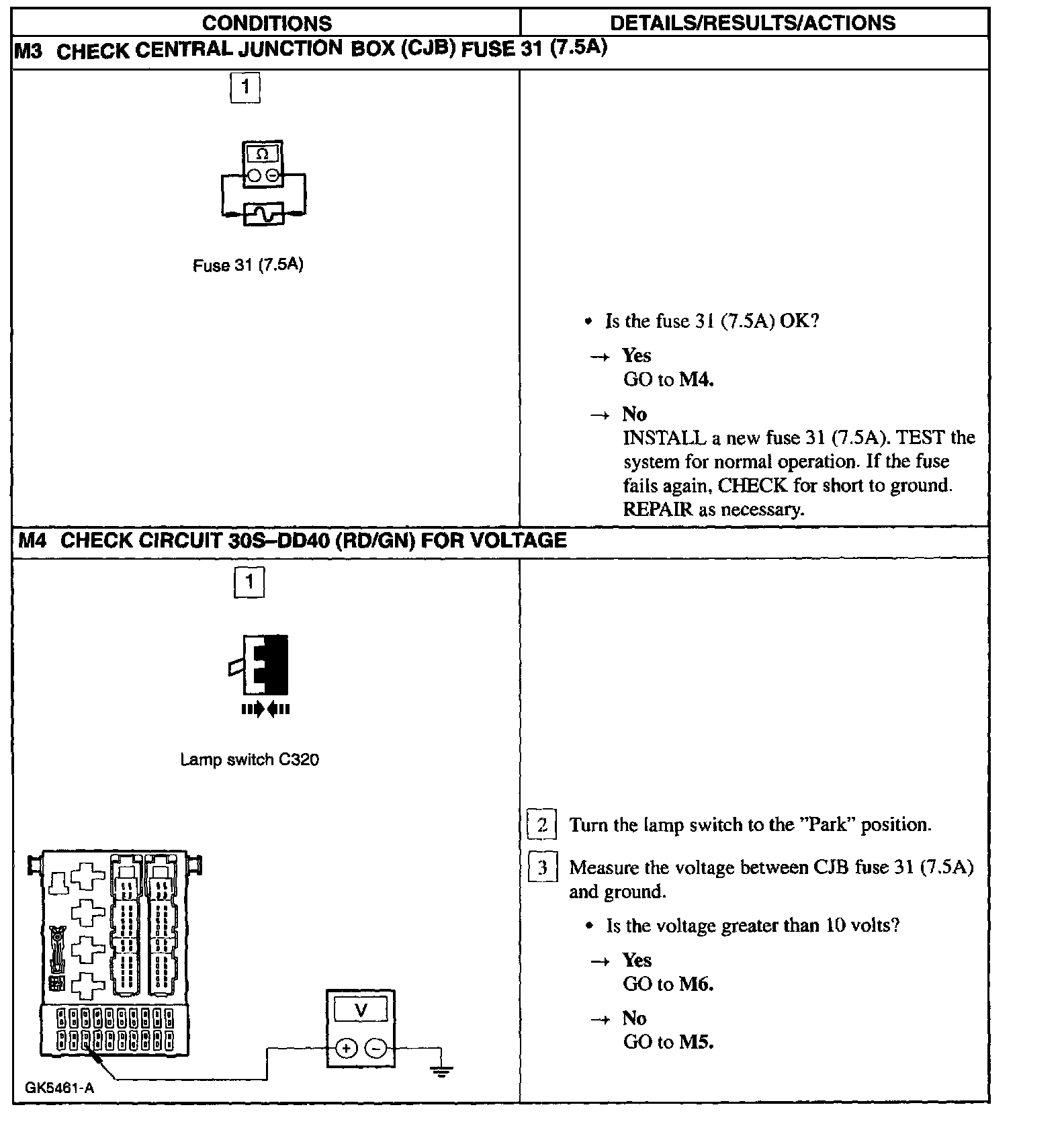

M3 - M4:

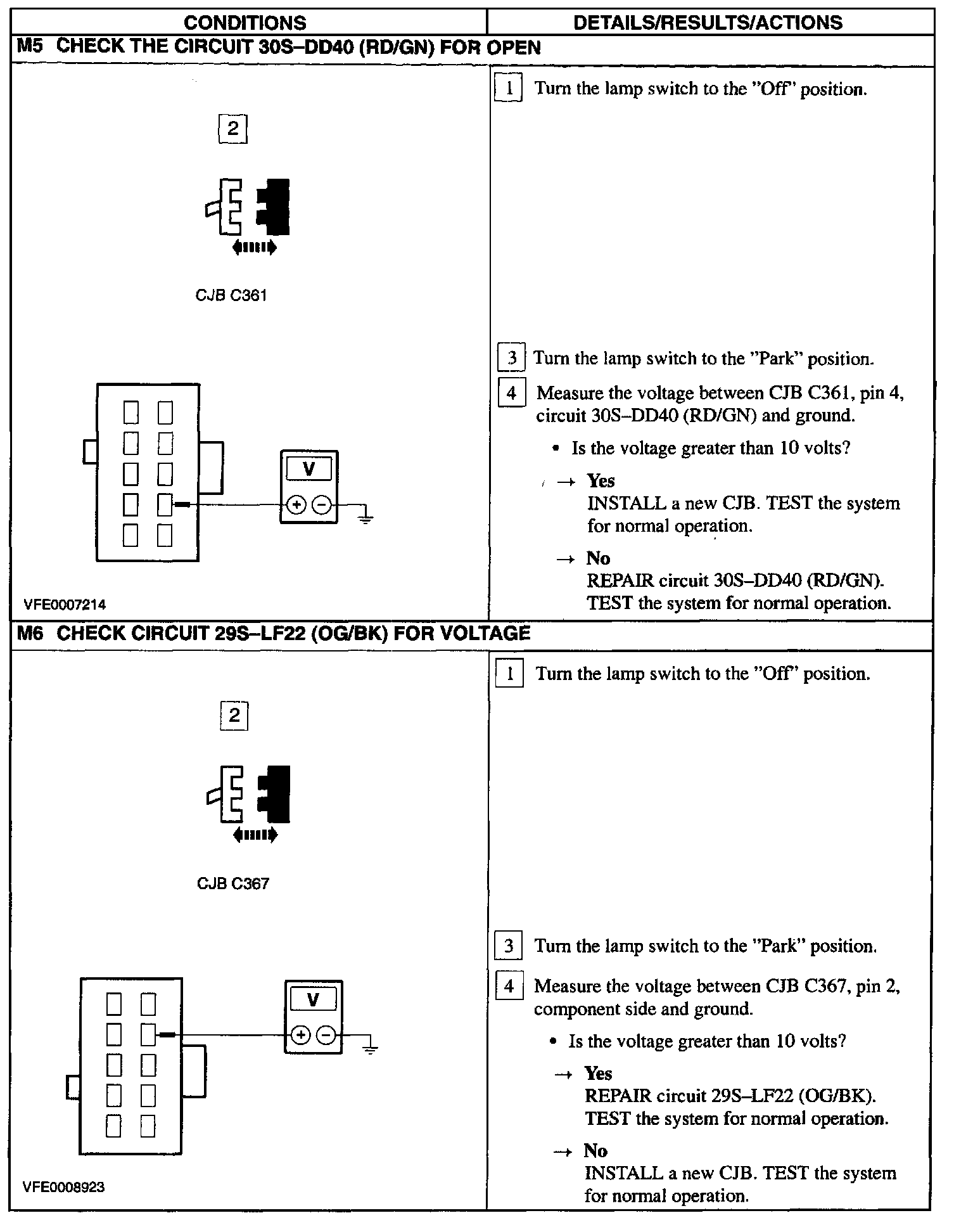

M5 - M6:
