Home >> Mercury >> 2000 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Lighting and Horns >> Horn >> Testing and Inspection >> Pinpoint Tests >> Tests AD: Horn Does Not Sound

Tests AD: Horn Does Not Sound

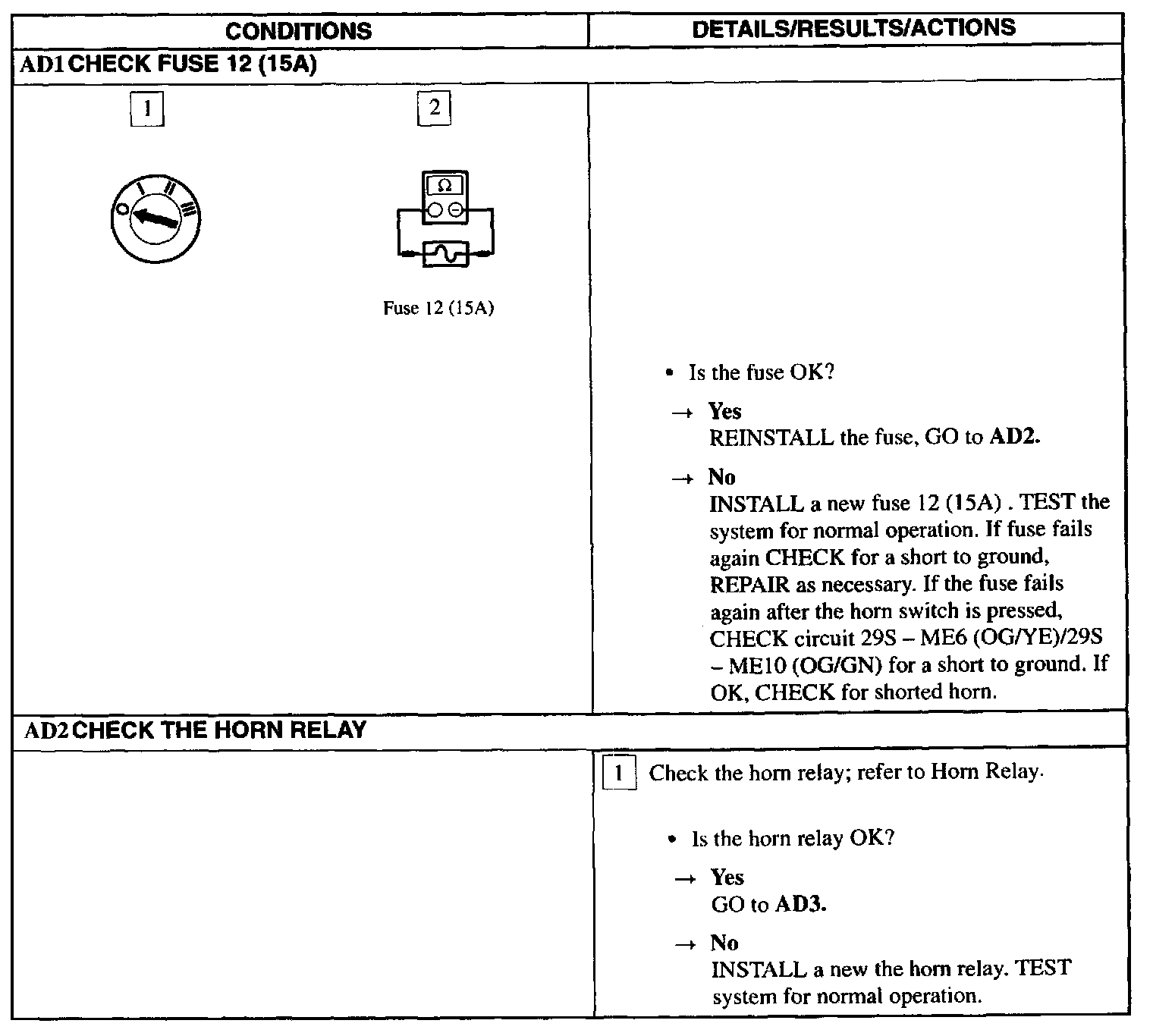

AD1 - AD2:

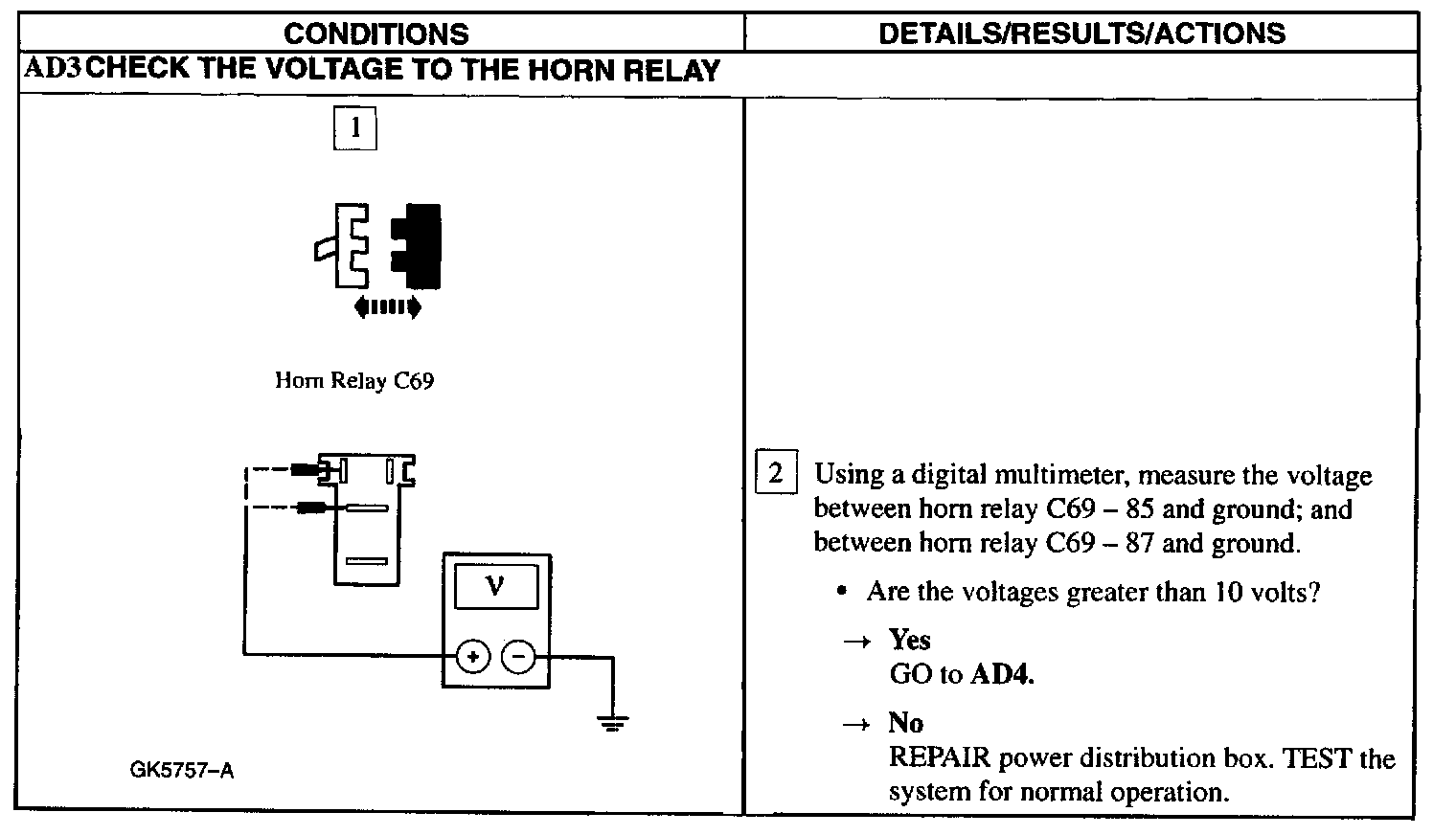

AD3:

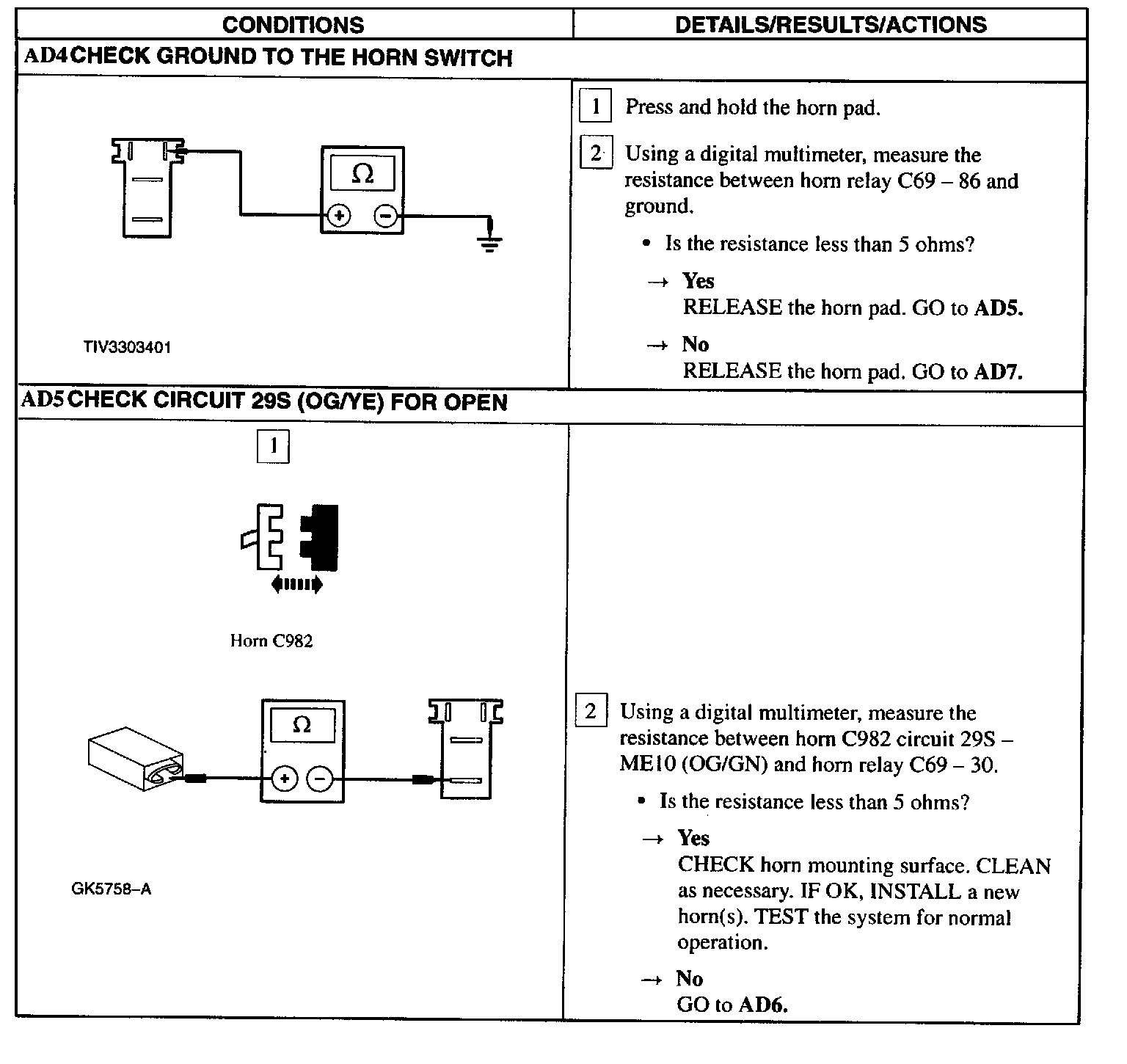

AD4 - AD5:

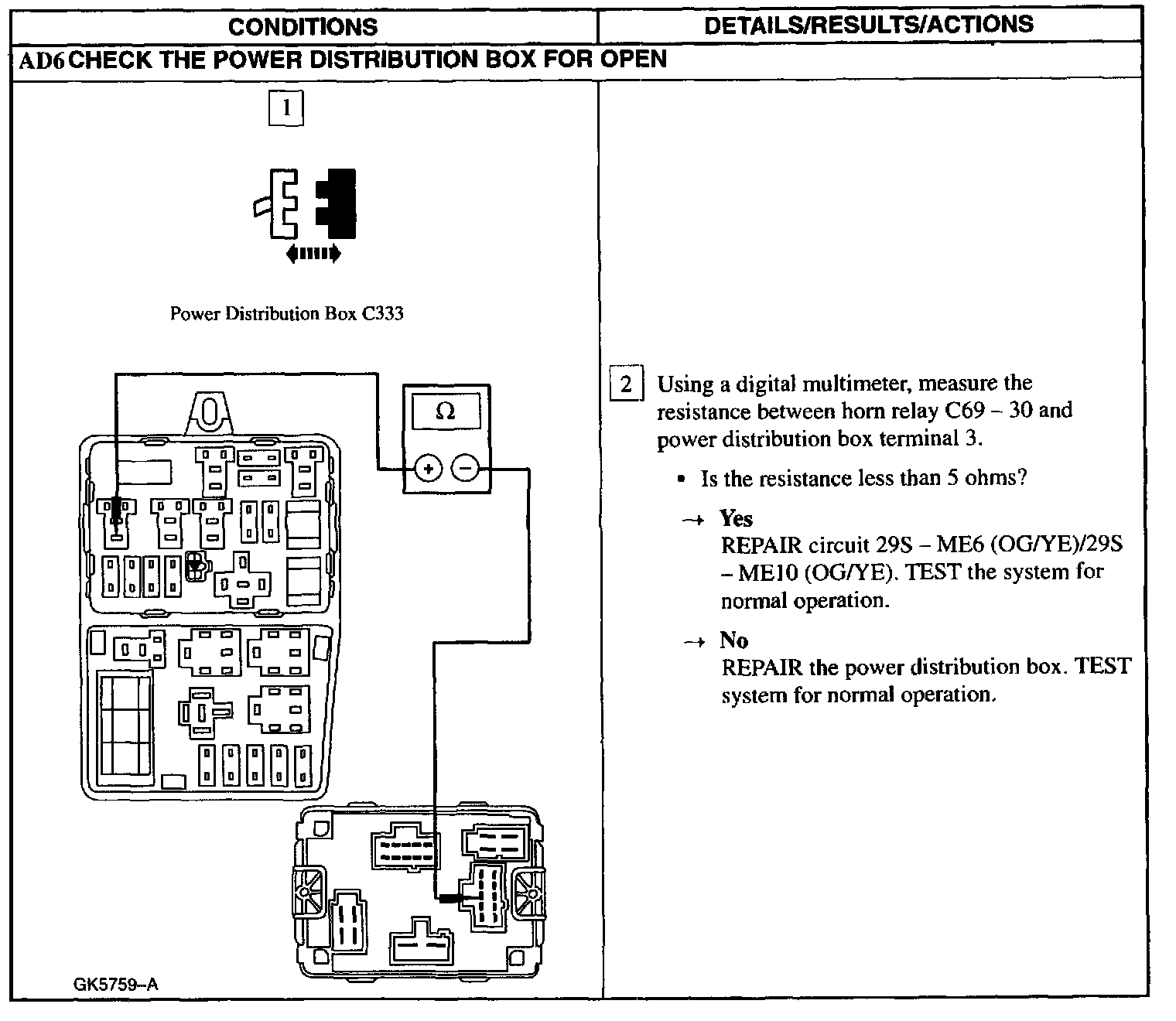

AD6:

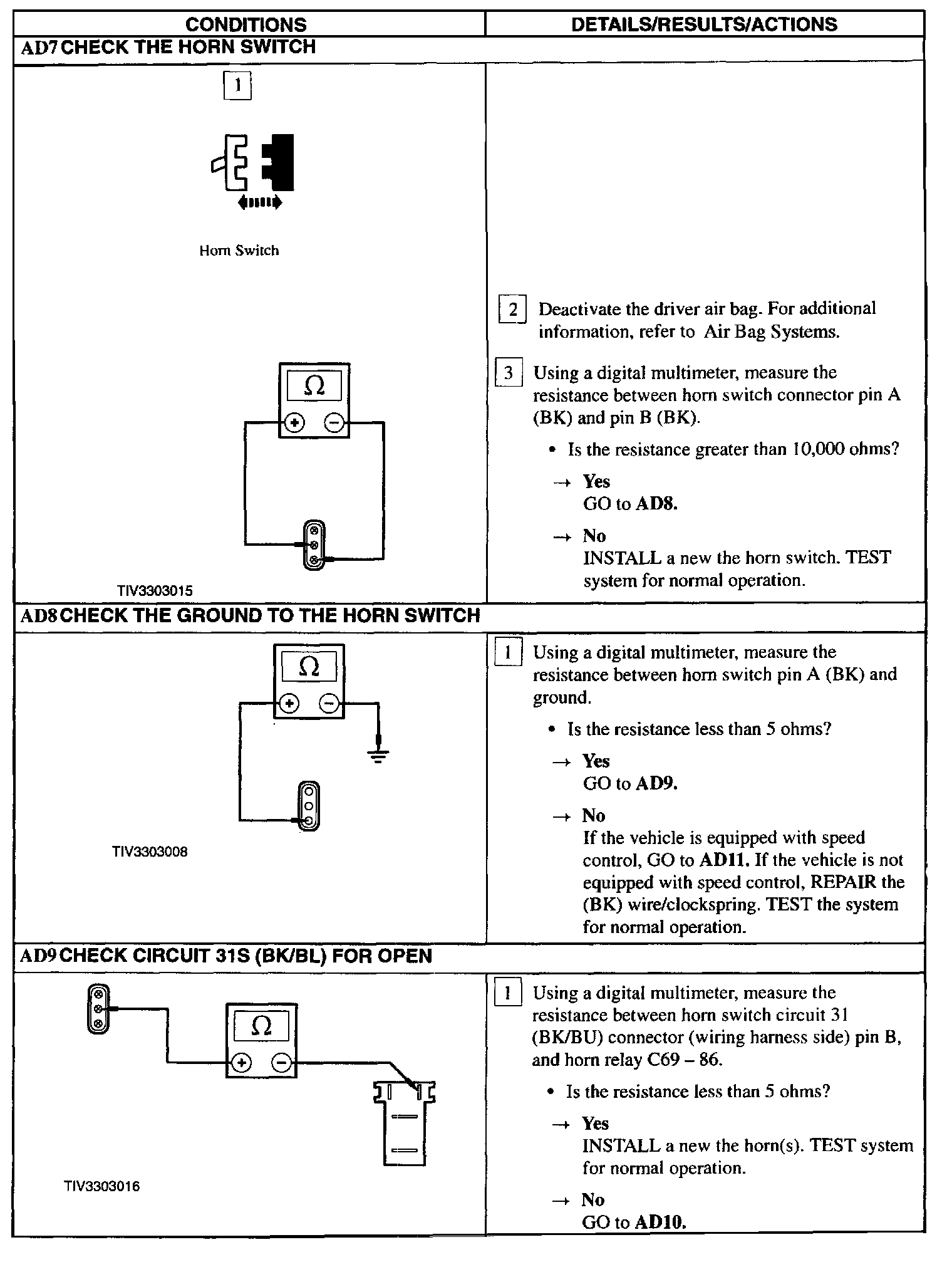

AD7 - AD9:

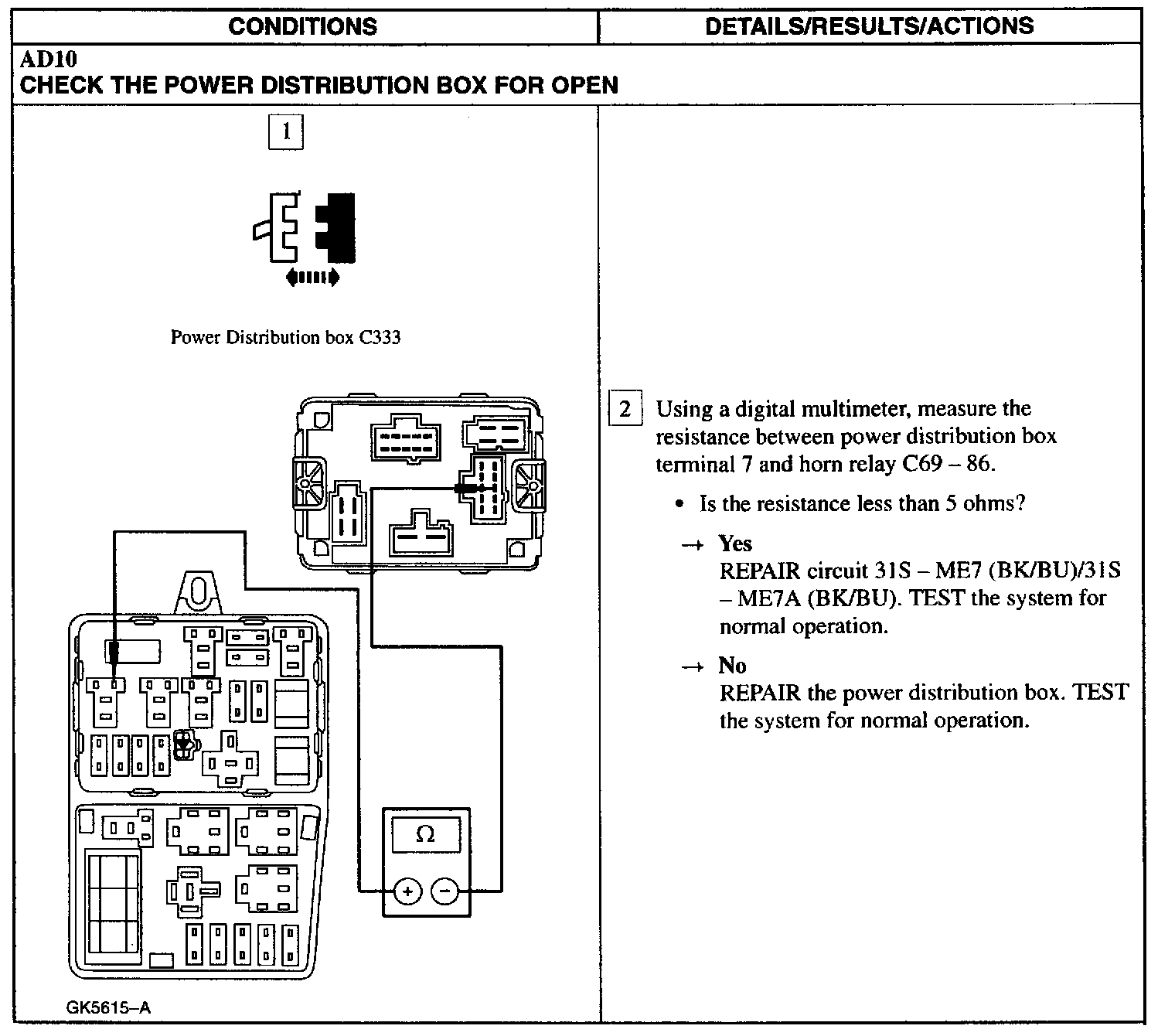

AD10:

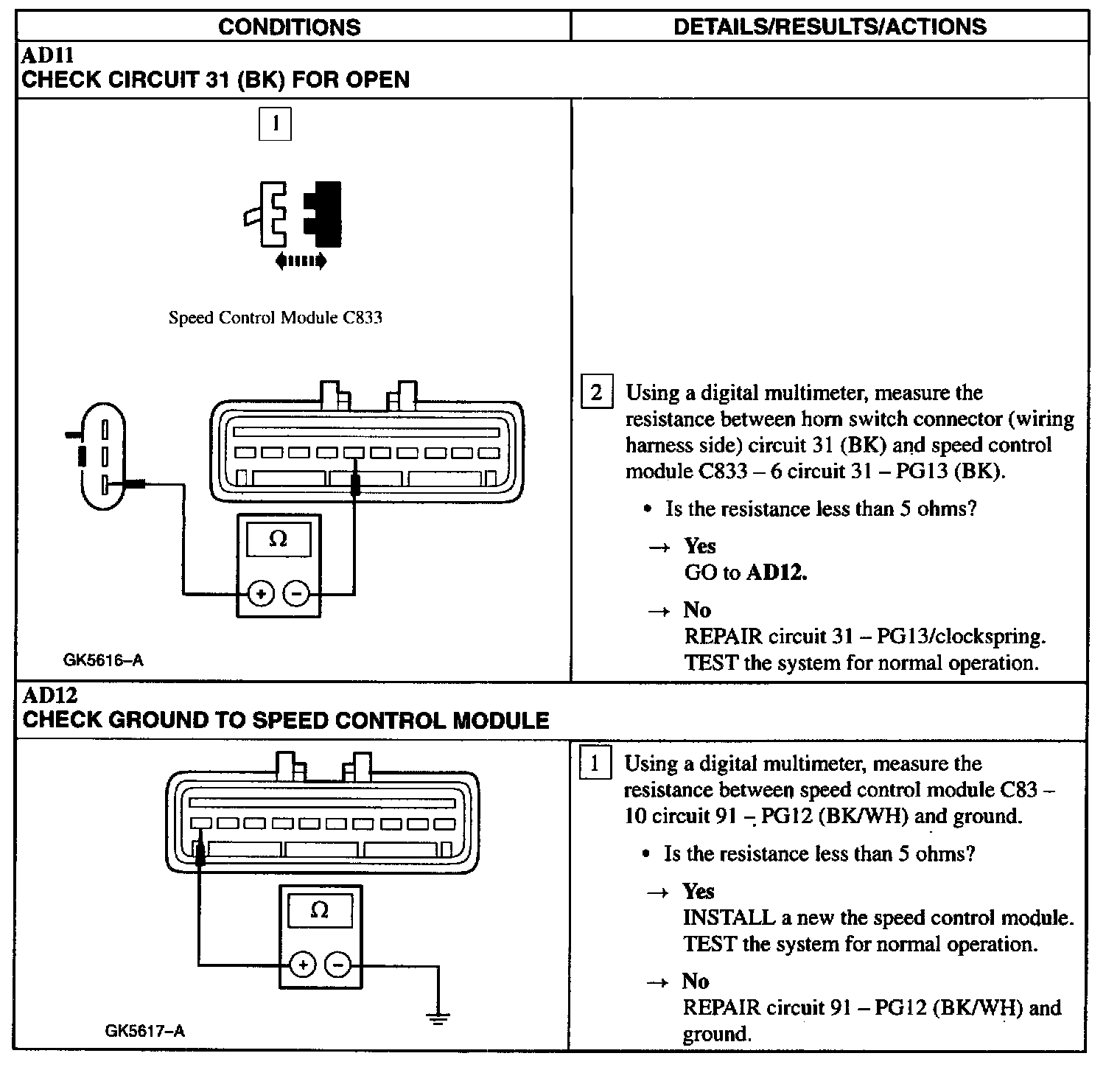

AD11 - AD12:
