Home >> Mercury >> 2000 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Lighting and Horns >> Horn >> Testing and Inspection >> Pinpoint Tests >> Tests AC: Horn Sounds Continuously

Tests AC: Horn Sounds Continuously

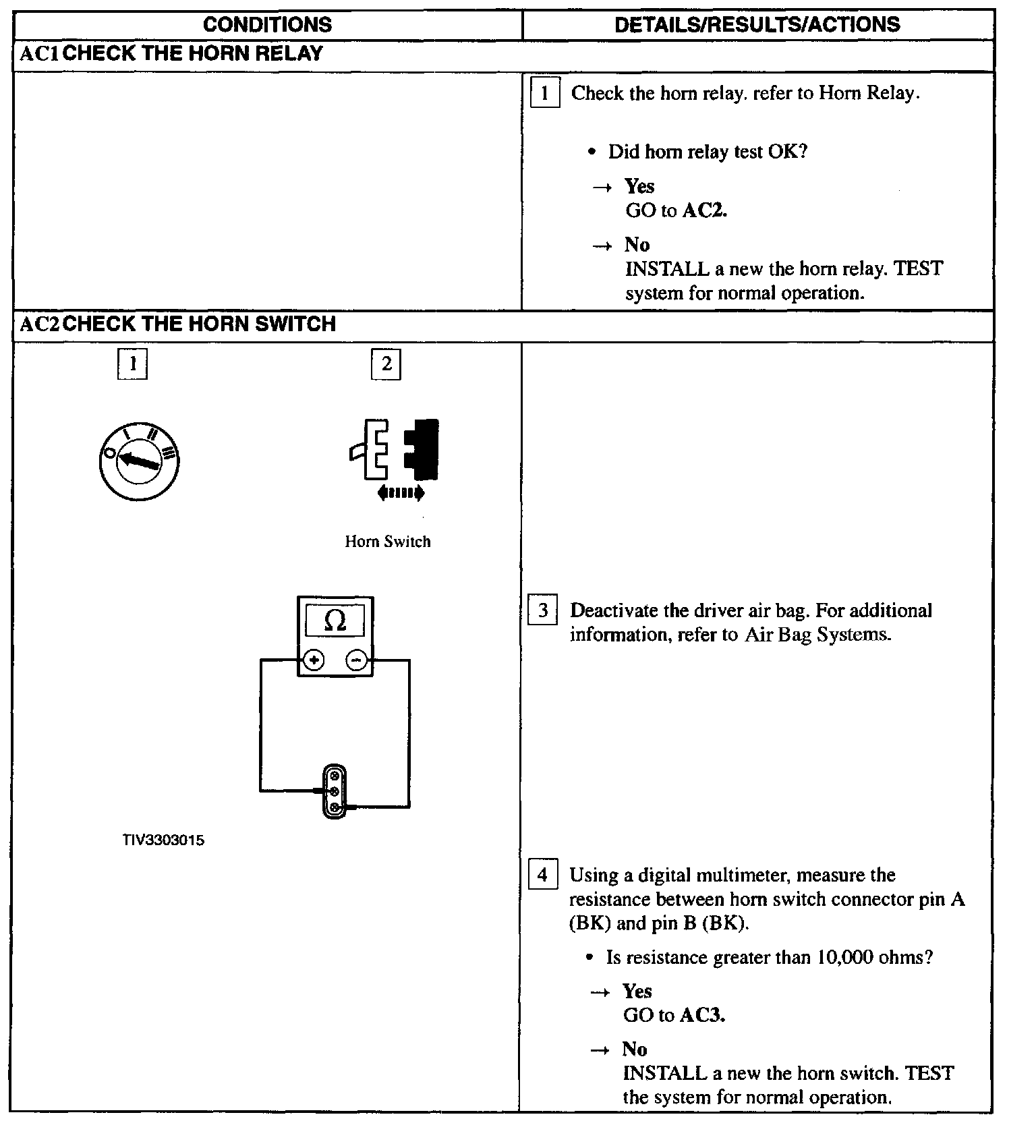

AC1 - AC2:

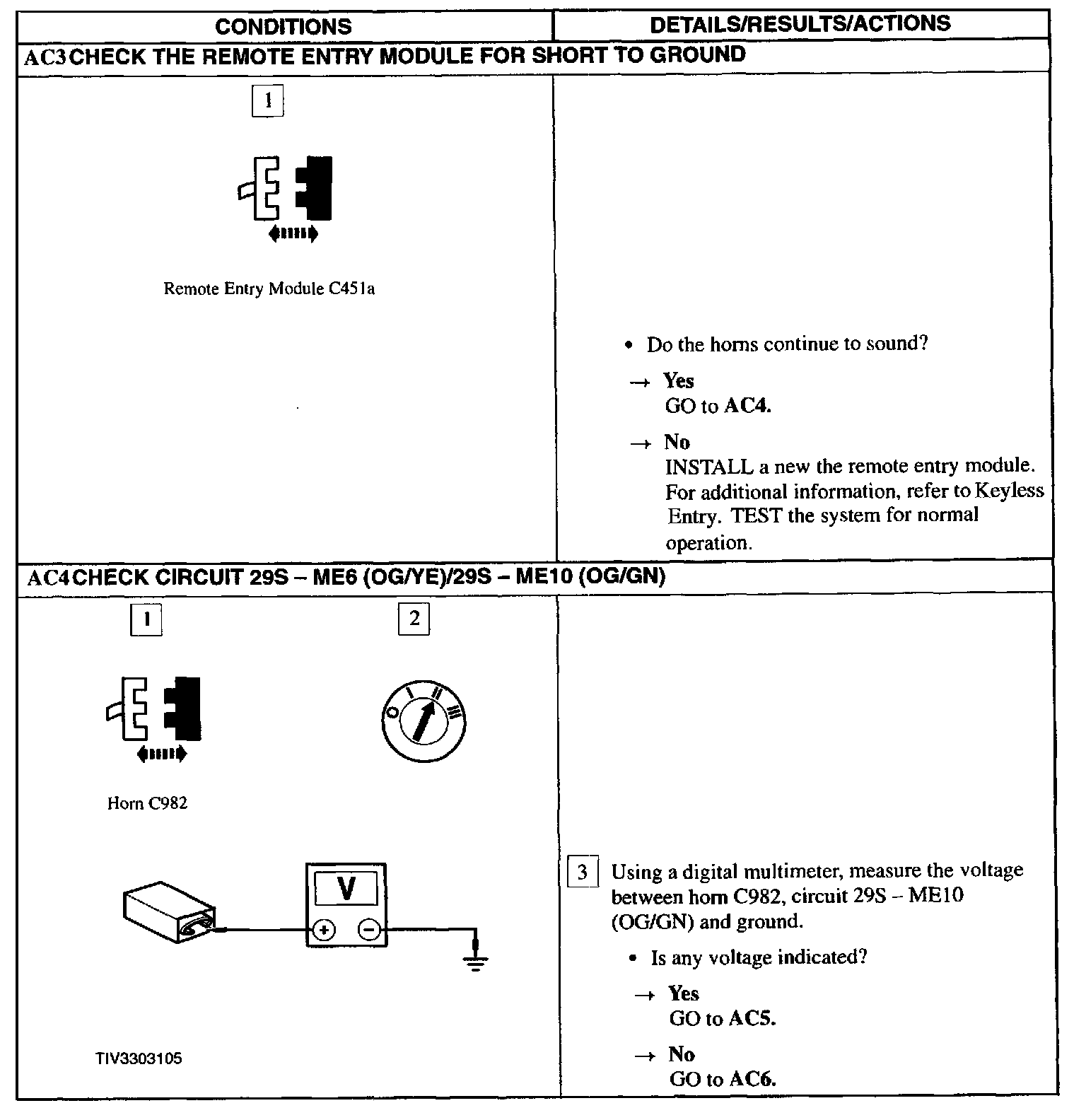

AC3 - AC4:

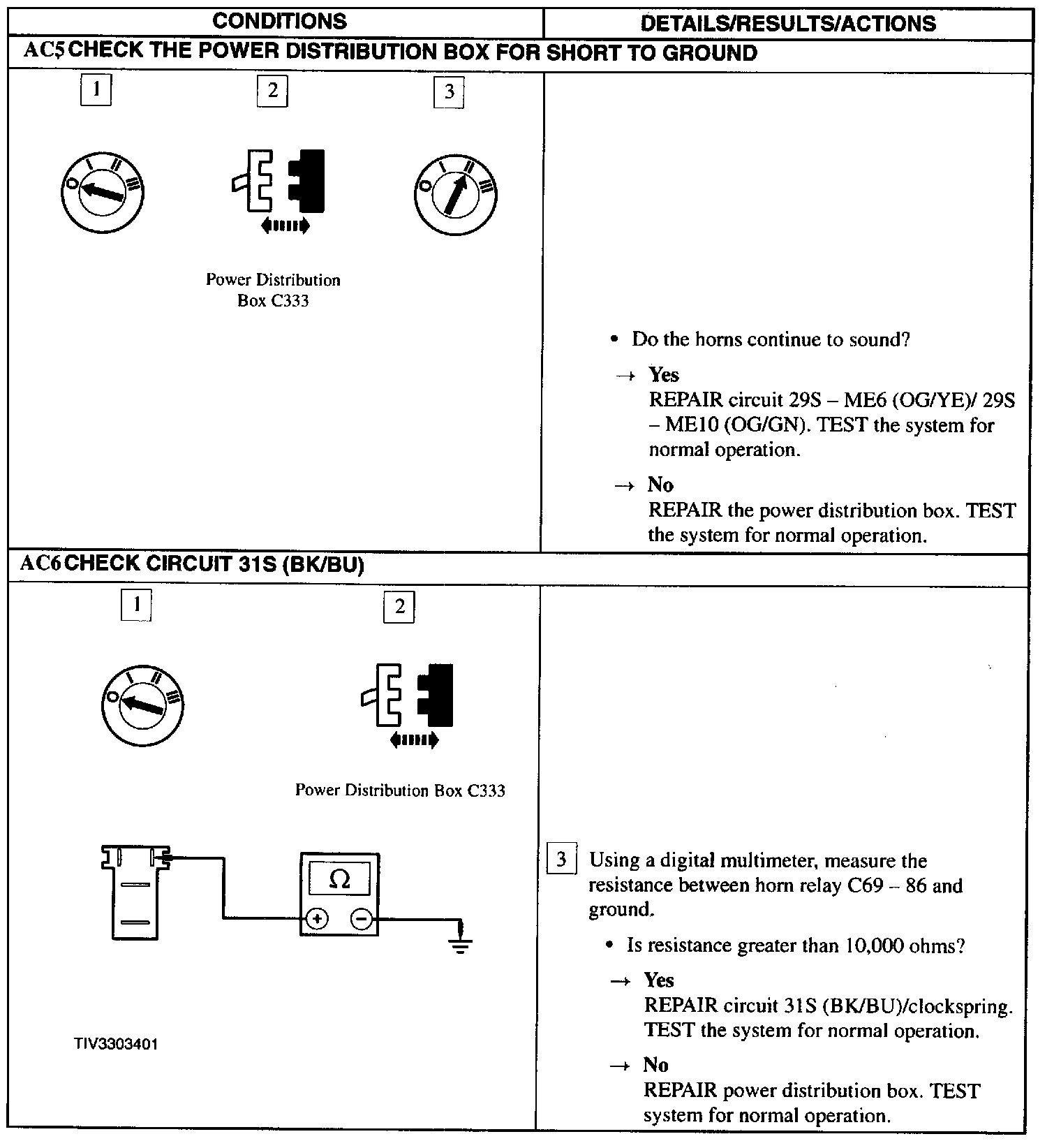

AC5 - AC6:
