Headlamp: Service and Repair

REMOVAL

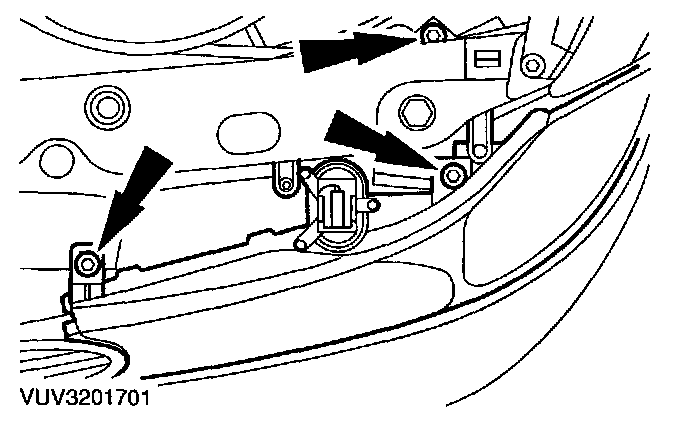

1. Remove the headlamp assembly.

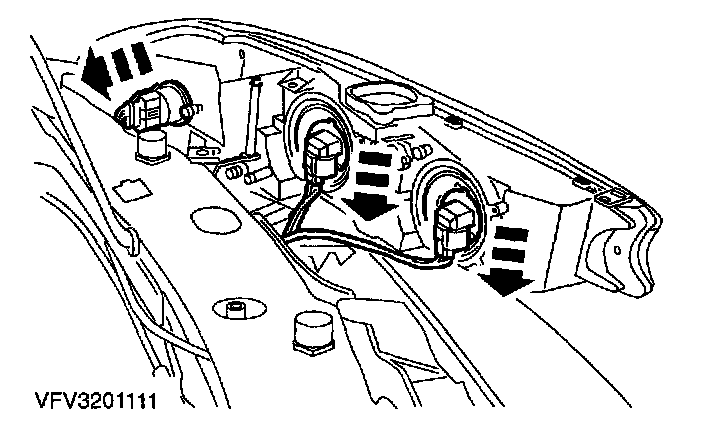

2. Disconnect the headlamp assembly electrical connectors.

INSTALLATION

NOTE: Position the headlamp assembly with the guide pin.

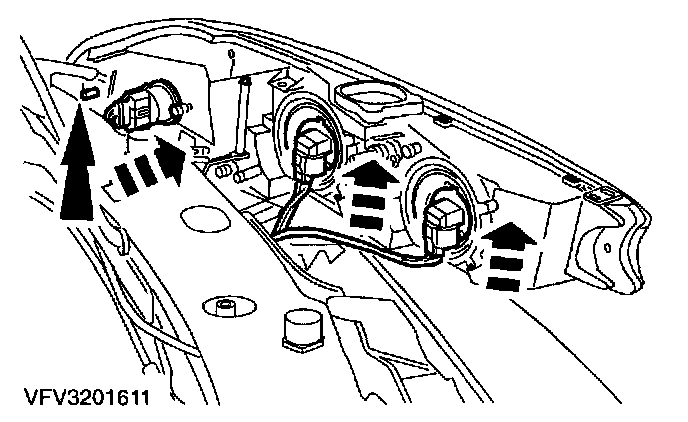

1. Reconnect the headlamp assembly electrical connectors and reposition the headlamp assembly.

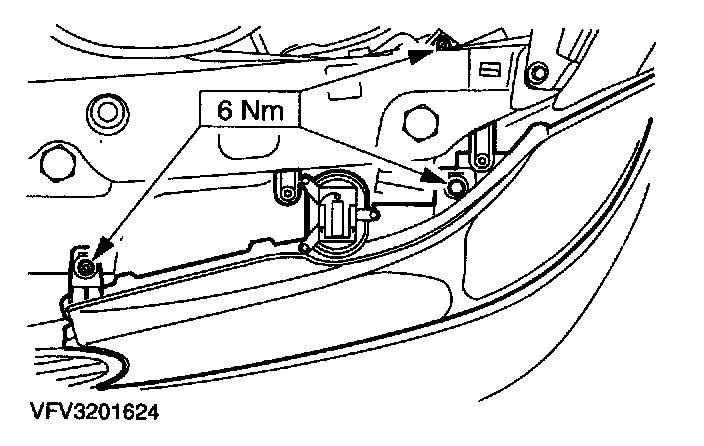

2. Install the headlamp assembly.
3. Check the headlamp adjustment. For additional information, refer to the procedure: Headlamp Adjustment.
