Home >> Mercury >> 2000 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Lighting and Horns >> Daytime Running Lamp >> Testing and Inspection >> Pinpoint Tests >> Test C: Daytime Running Lamps Are On With the Ignition Switch Off

Test C: Daytime Running Lamps Are On With the Ignition Switch Off

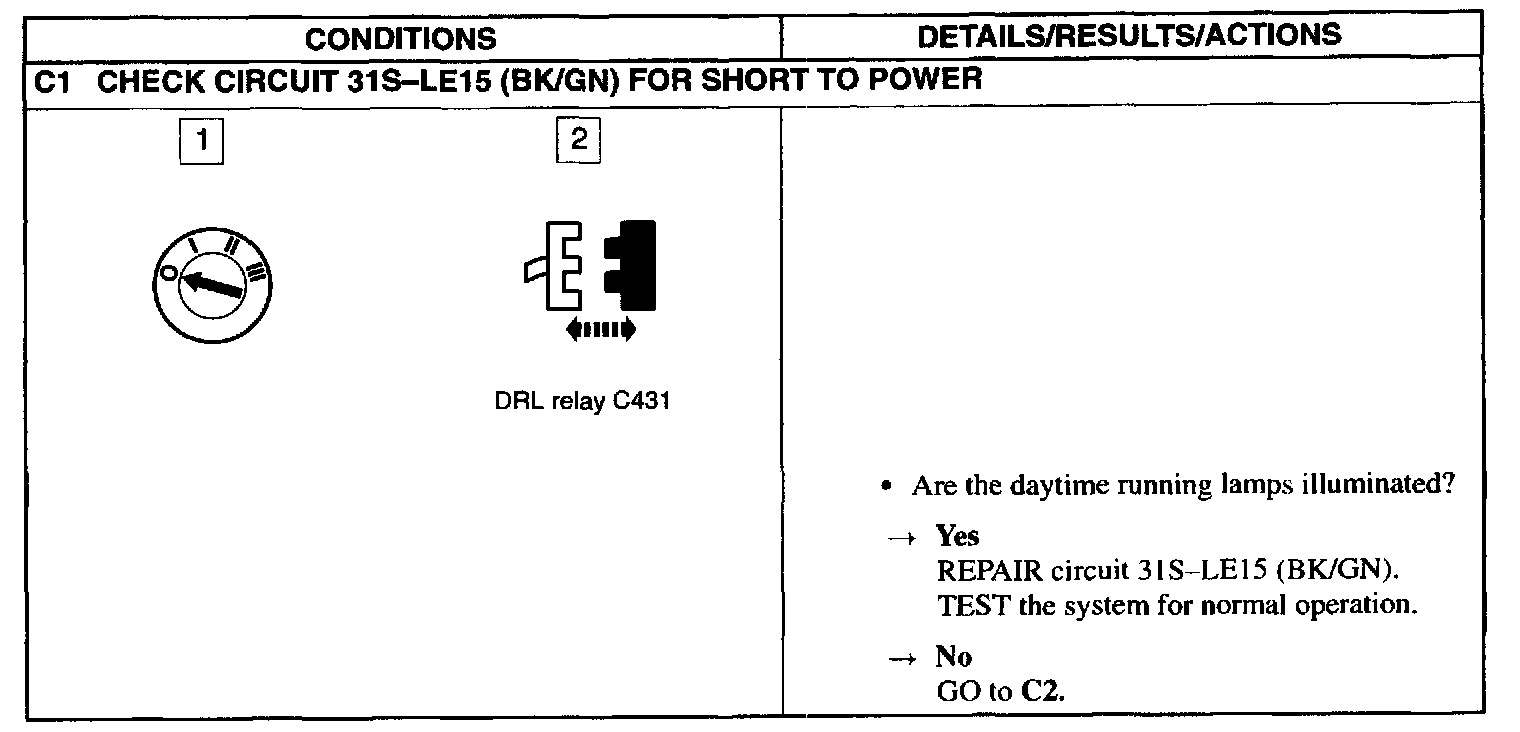

C1:

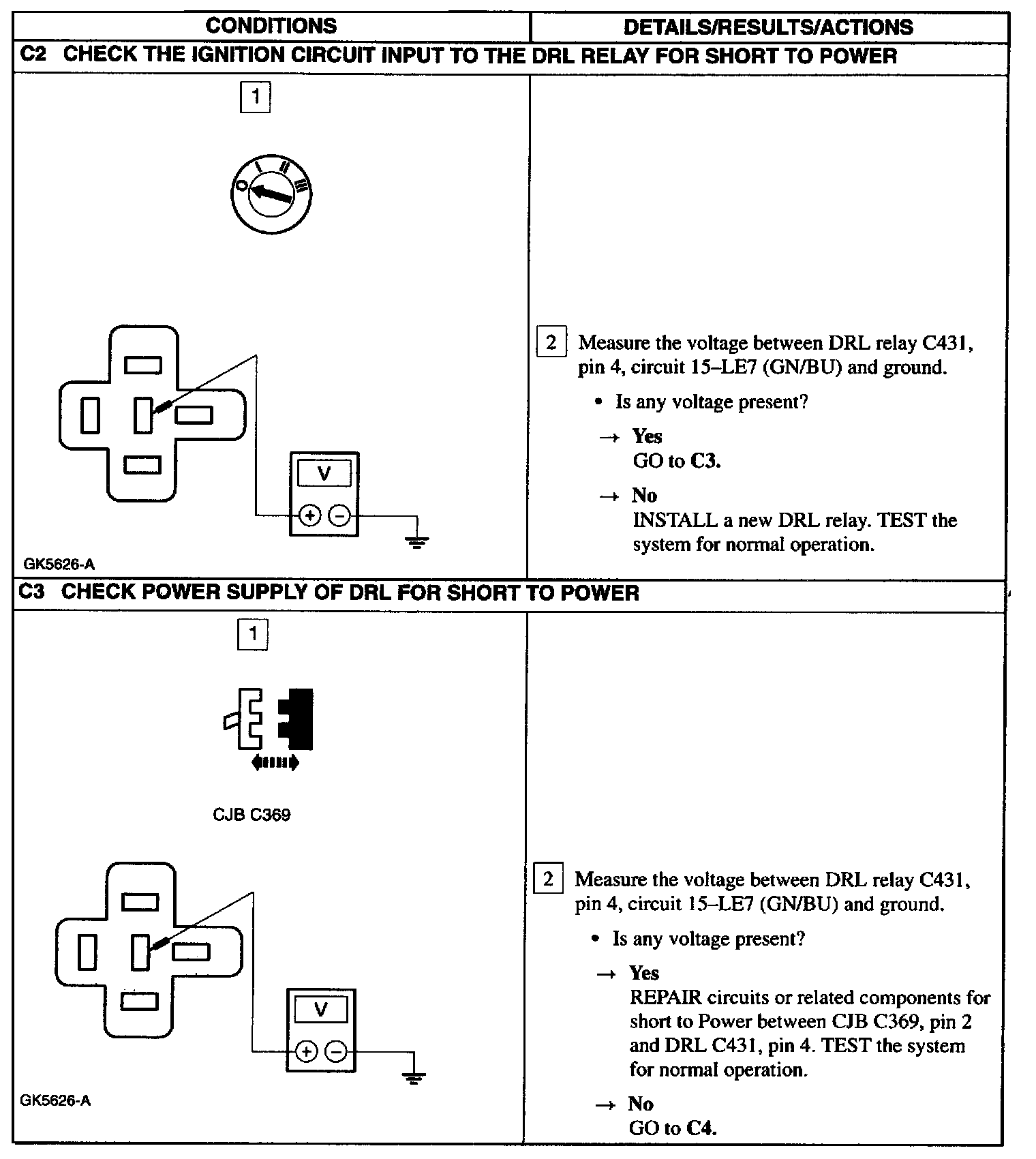

C2 - C3:

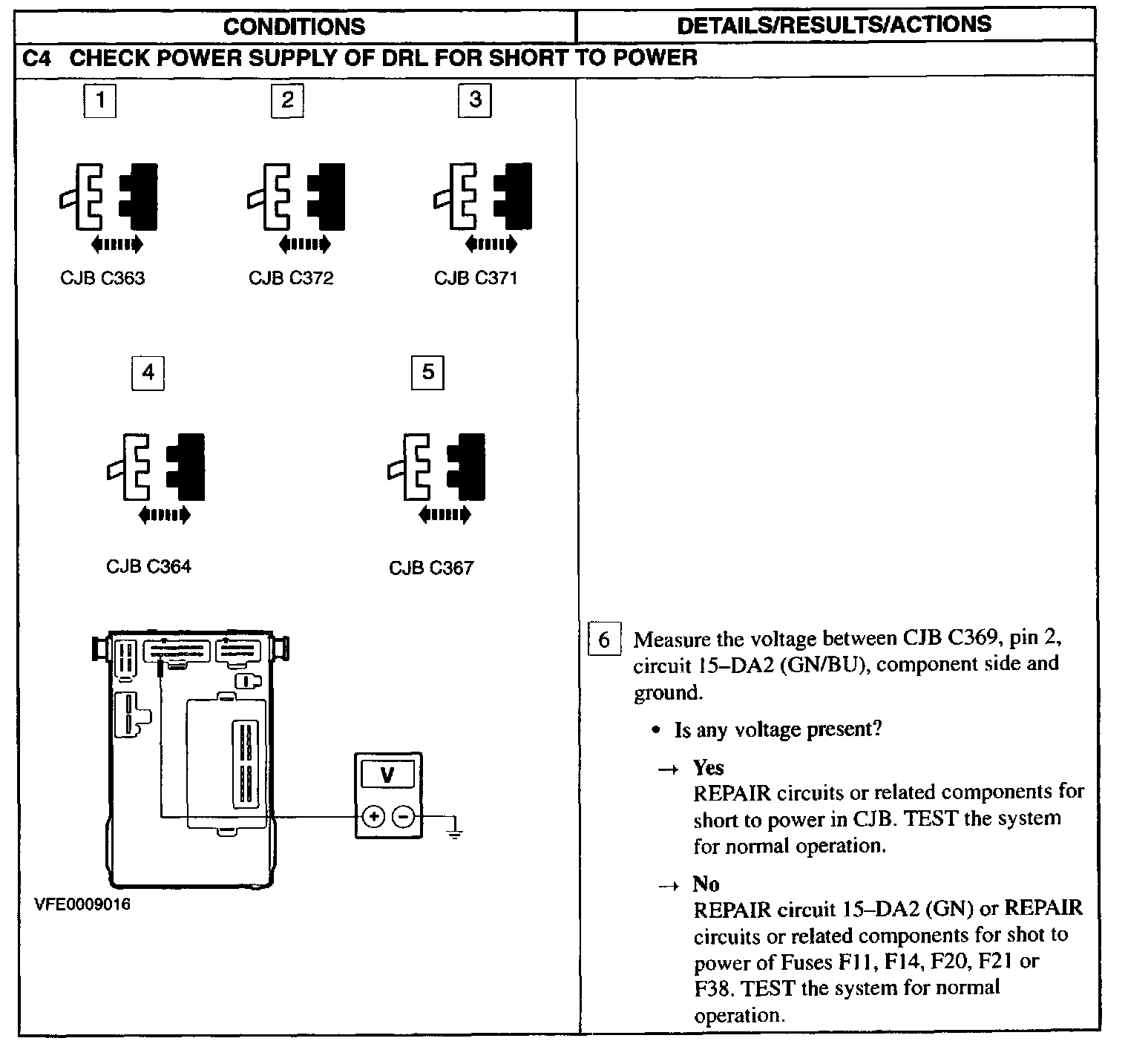

C4:
