Initial Inspection and Diagnostic Overview

1. Verify the customer concern by operating the DRL system.
2. Visually inspect the system for obvious signs of electrical damage.

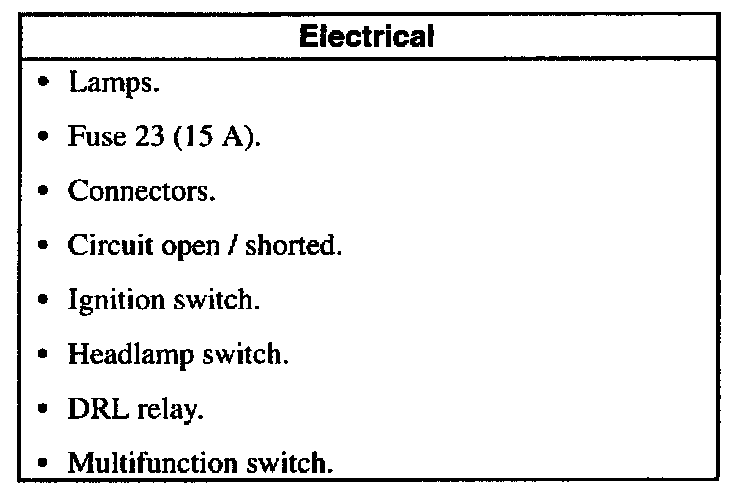

VISUAL INSPECTION CHART

3. If the concern is not visually evident, determine the symptom and proceed to the Symptom Chart. Symptom Related Diagnostic Procedures
