Home >> Mercury >> 2000 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Testing and Inspection >> Pinpoint Tests >> Test E: Illuminated Entry Inoperative Using Remote Transmitter

Test E: Illuminated Entry Inoperative Using Remote Transmitter

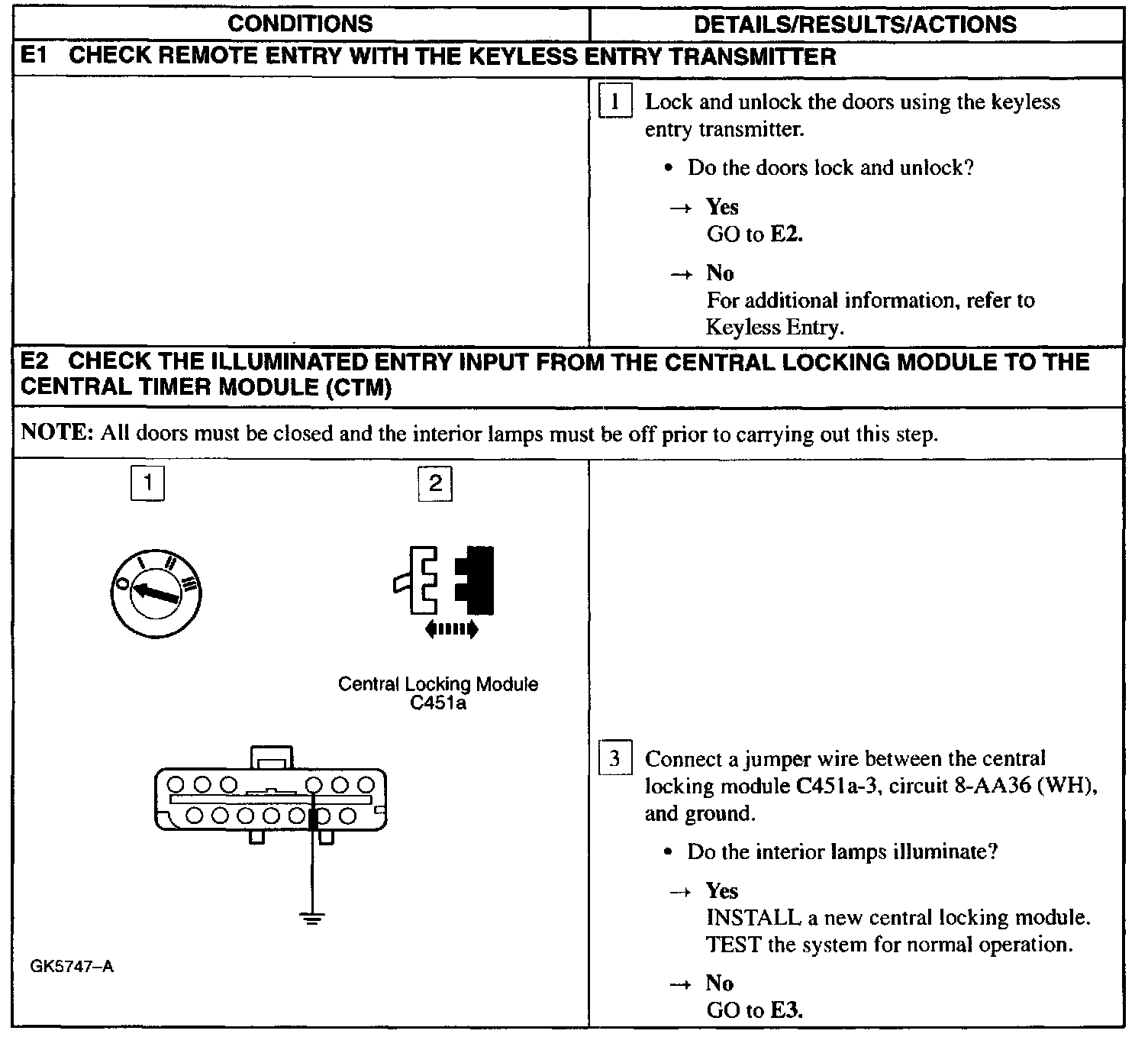

E1 - E2:



E3 - E4:
