Mystique L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Courtesy Lamp
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test C: Courtesy Lamps Stay On Continuously
Test C: Courtesy Lamps Stay On Continuously
C1 - C2:
C3 - C4:

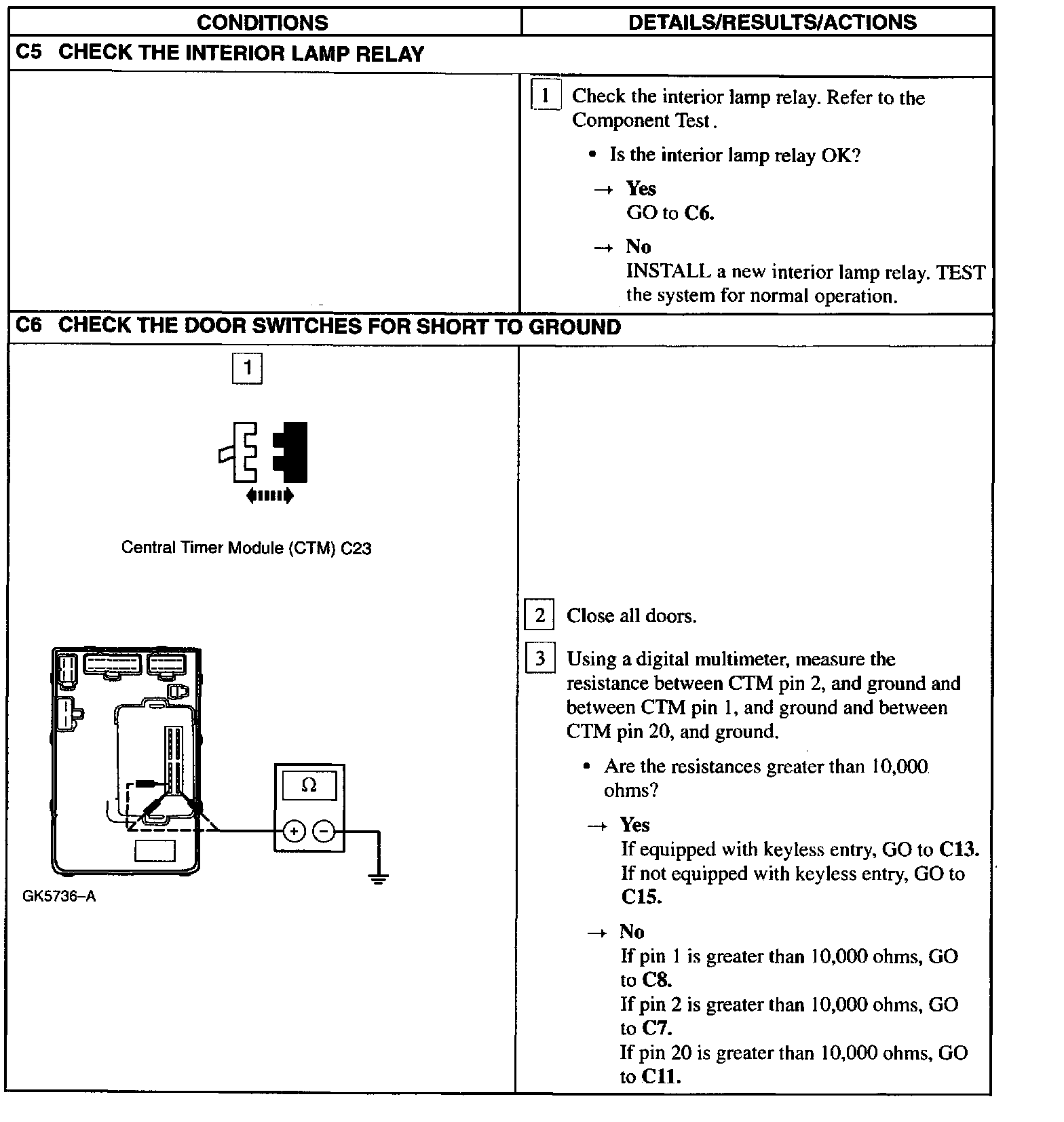

C5 - C6:

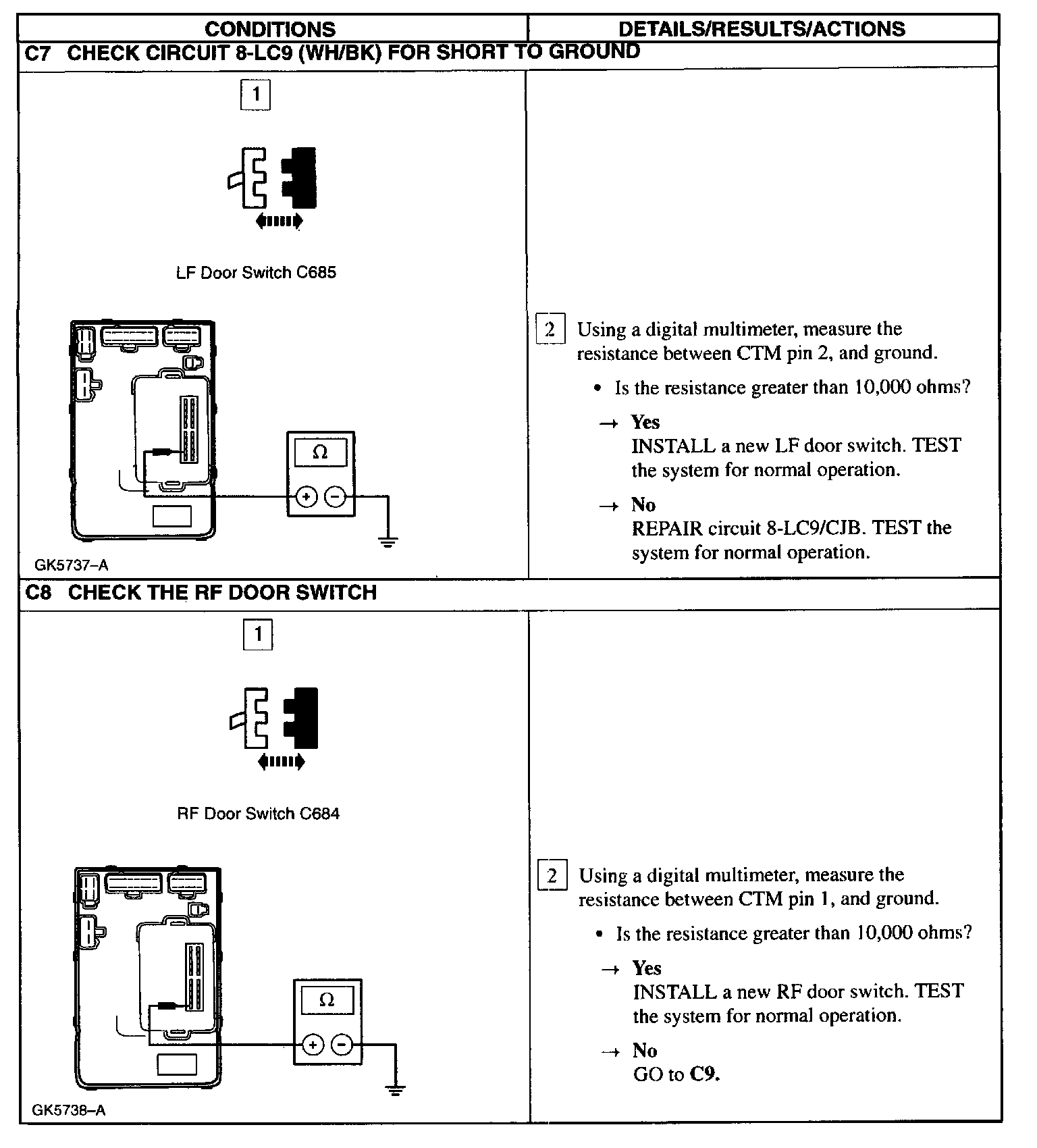

C7 - C8:

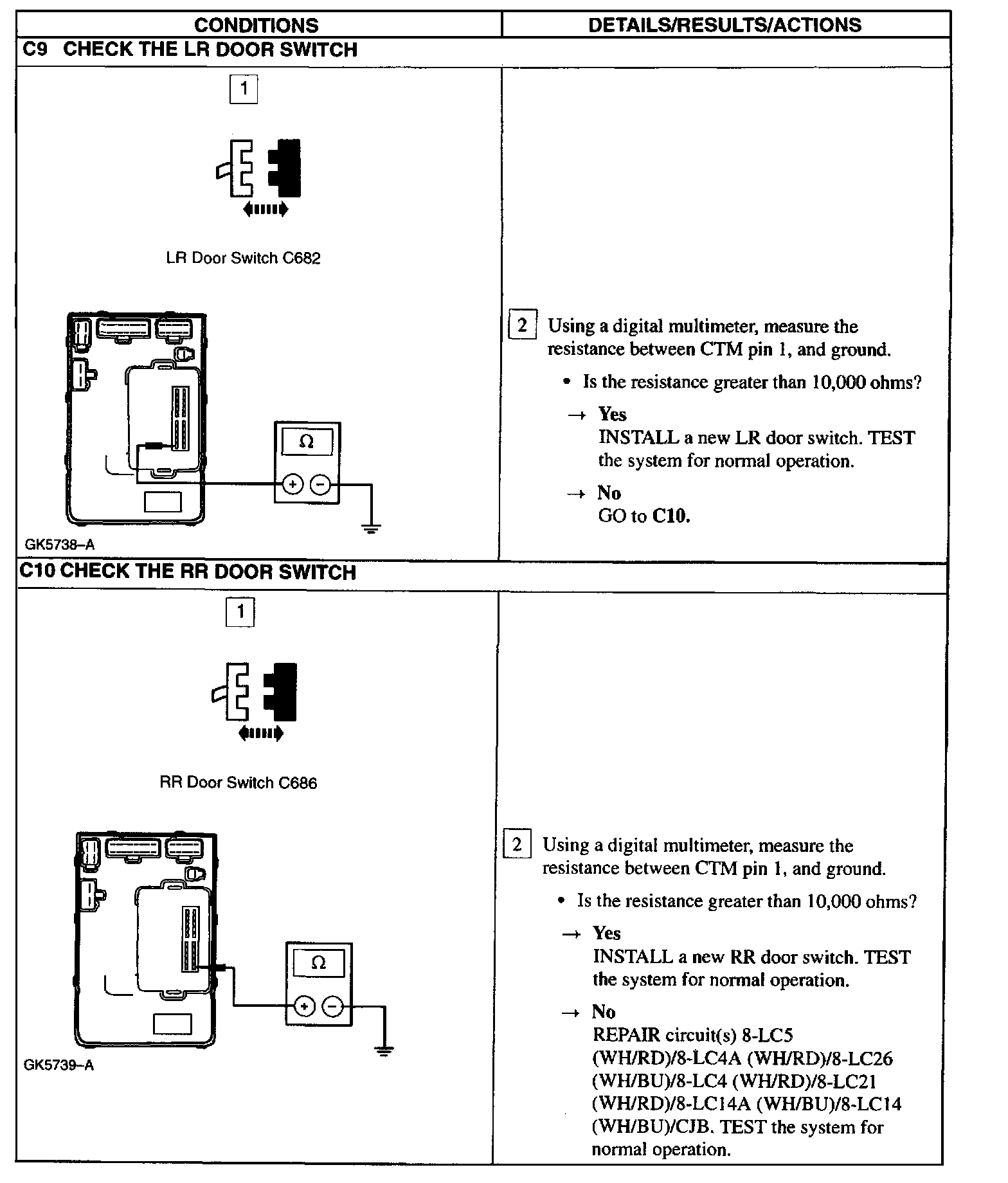

C9 - C10:

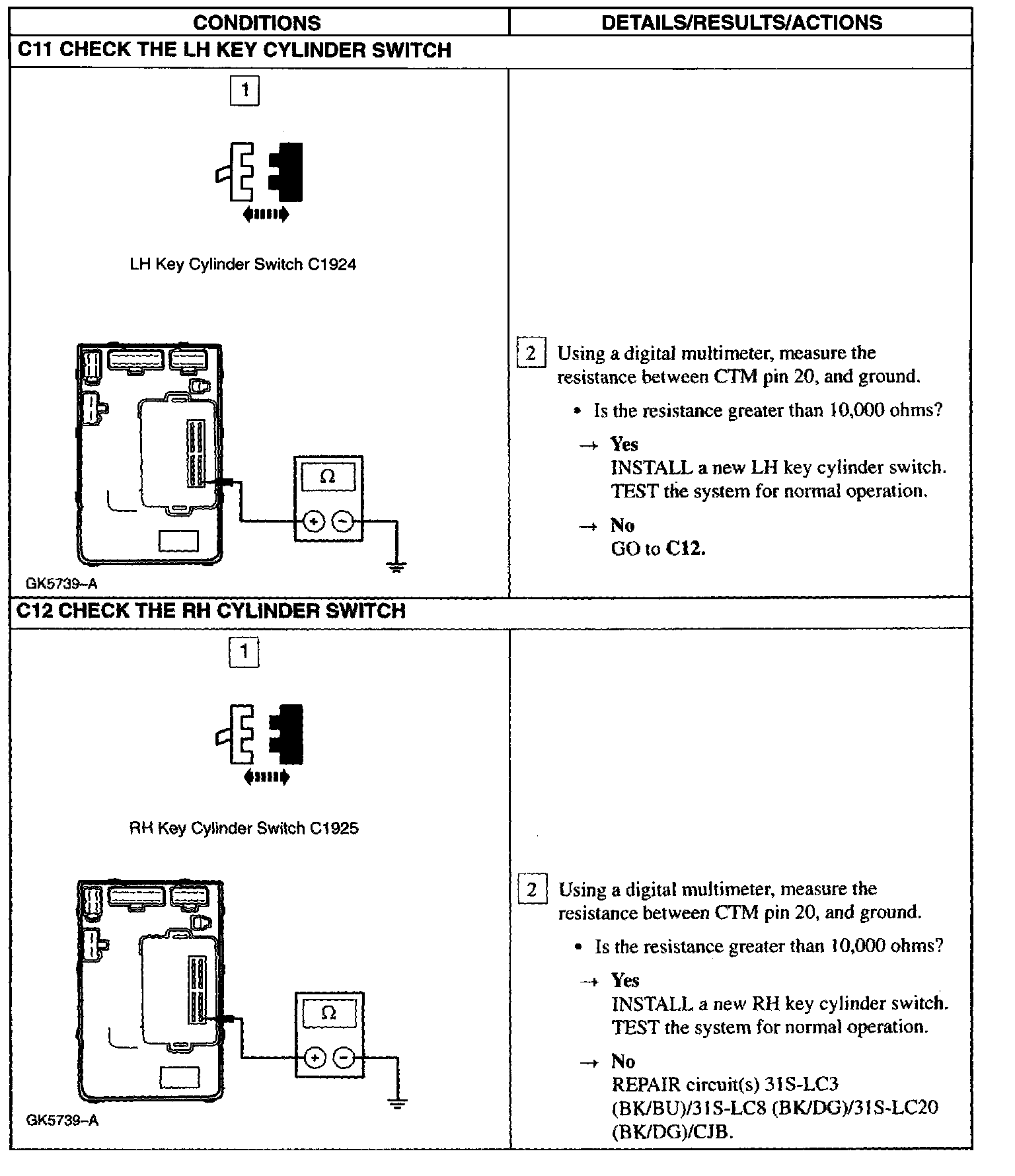

C11 - C12:

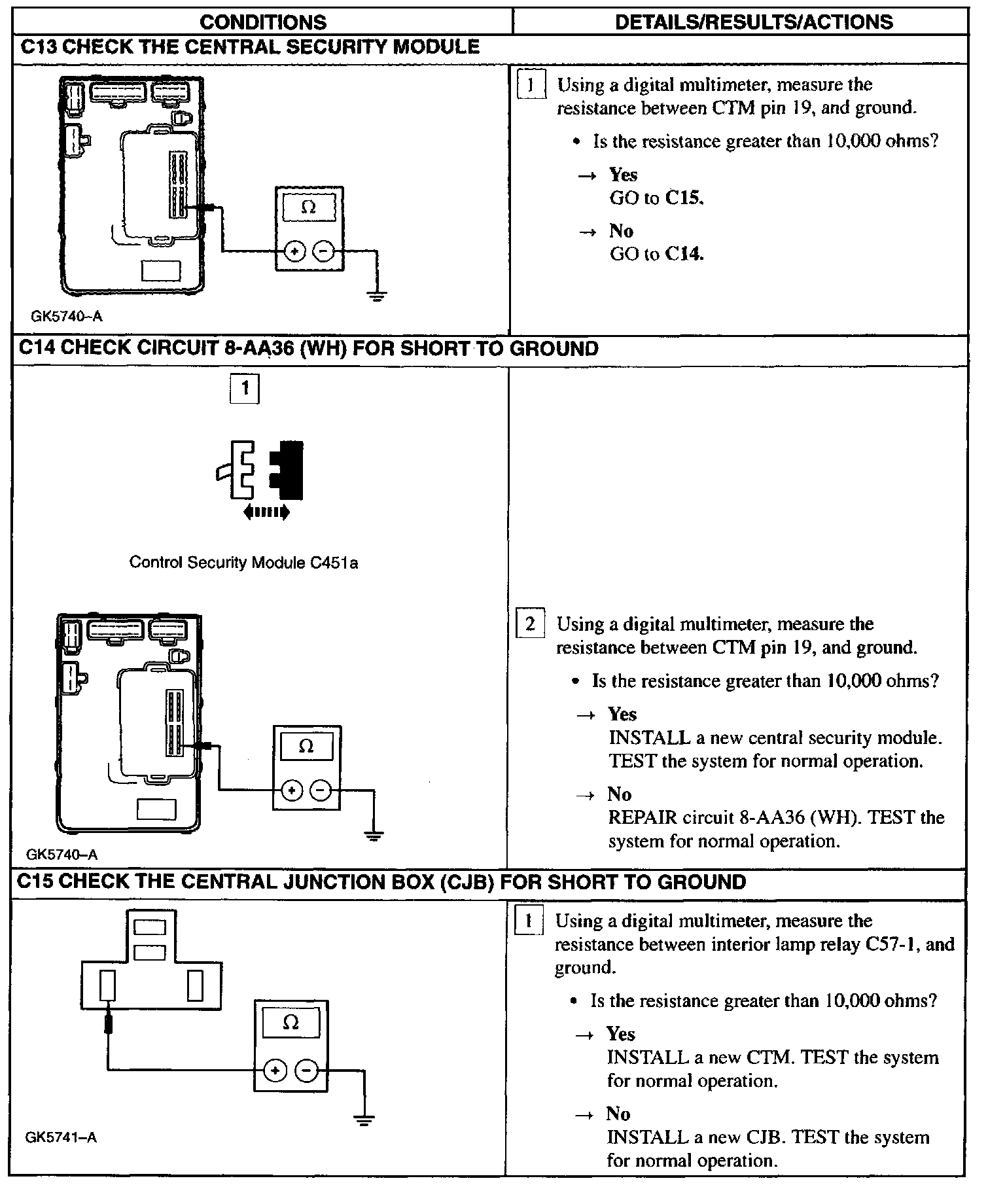

C13 - C15:
