Home >> Mercury >> 2000 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Testing and Inspection >> Pinpoint Tests >> Test B: An Individual Courtesy Lamp Is Inoperative

Test B: An Individual Courtesy Lamp Is Inoperative

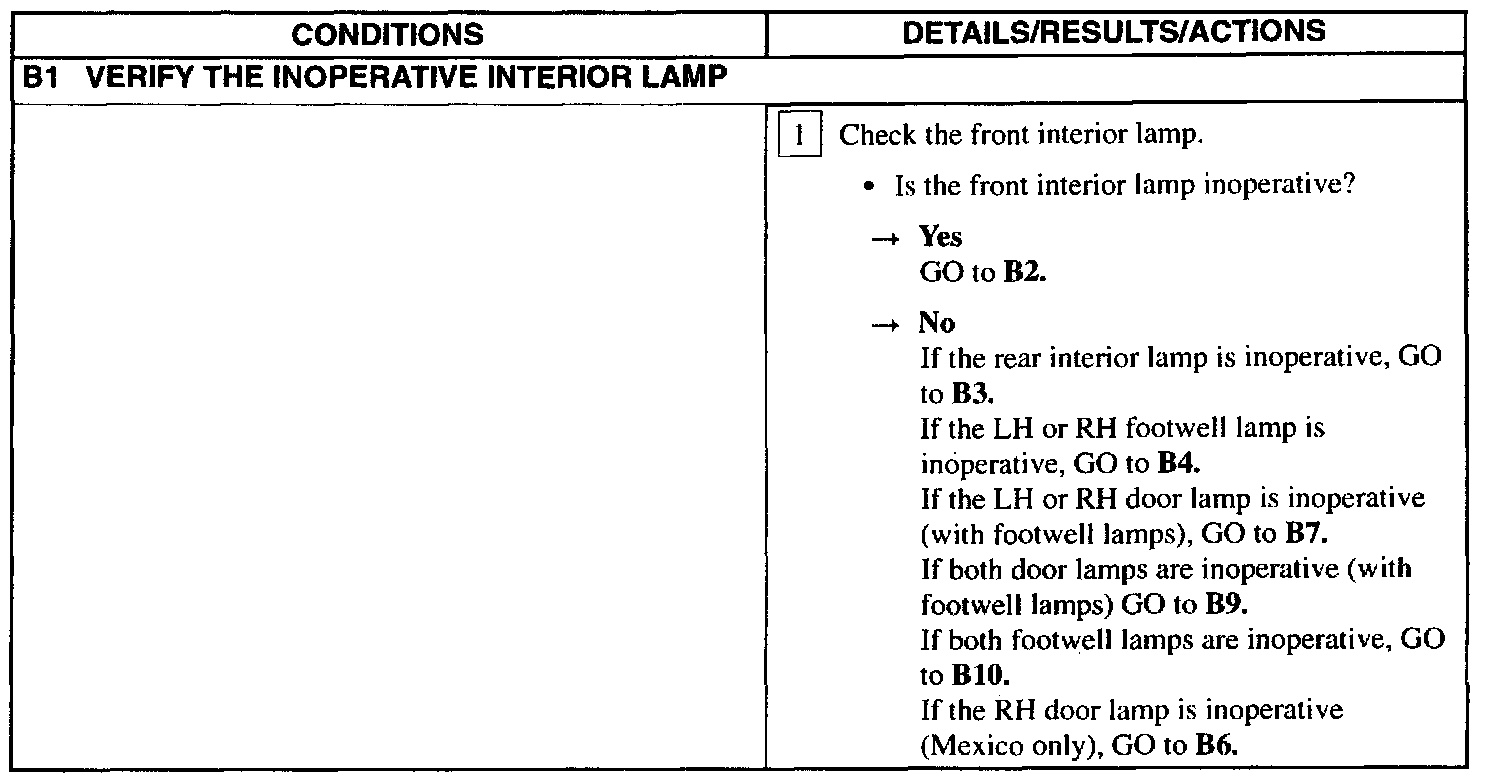

B1:

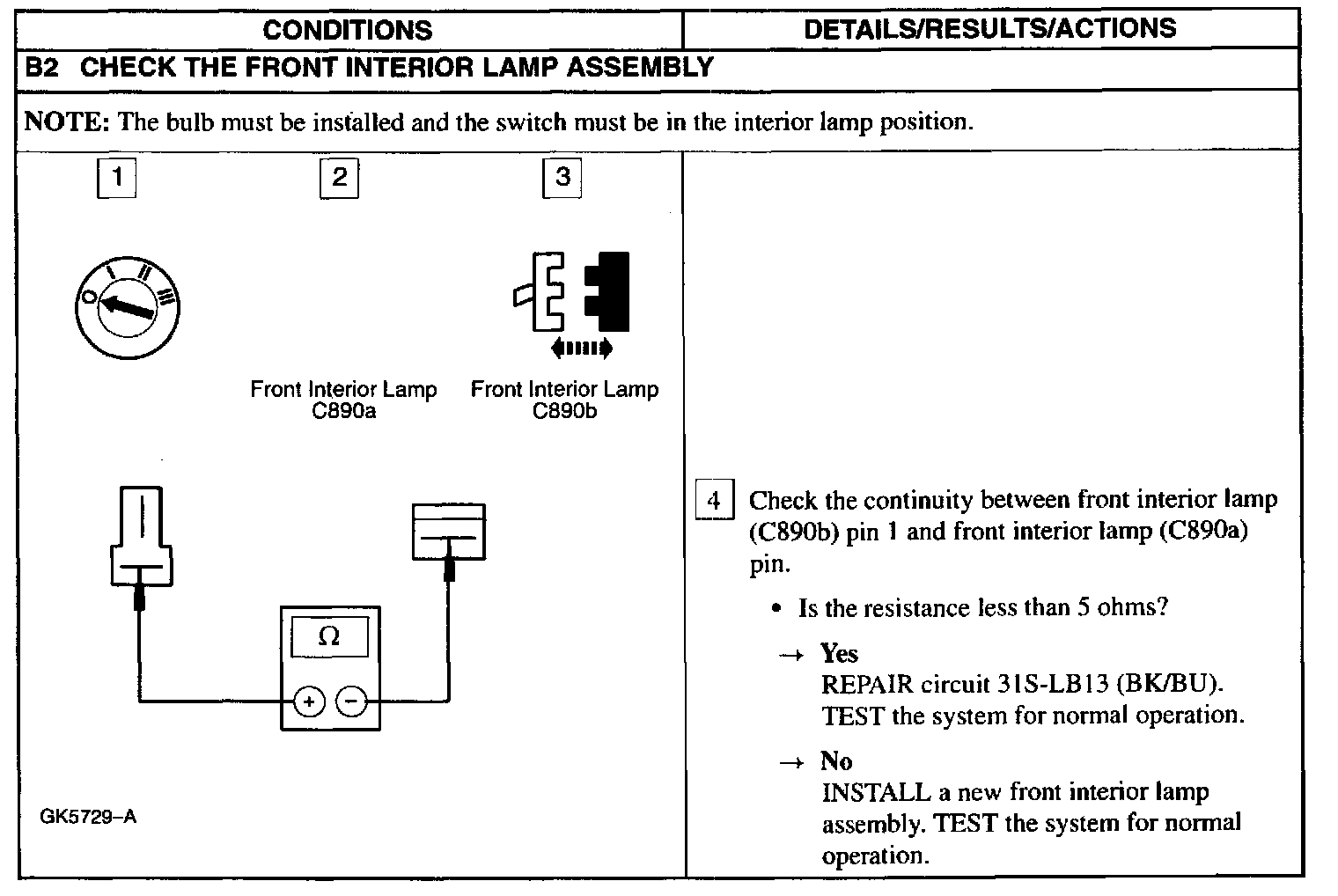

B2:

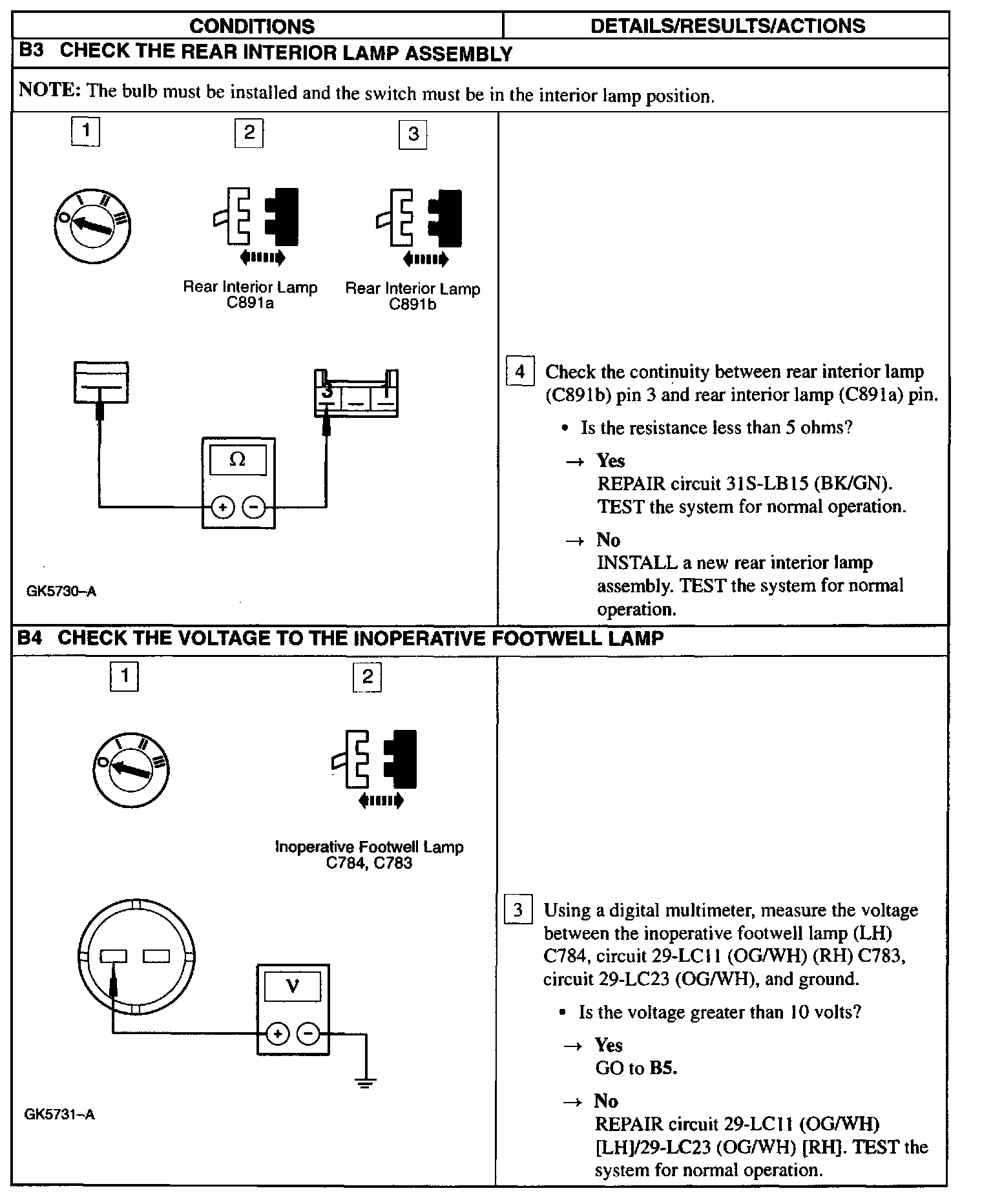

B3 - B4:

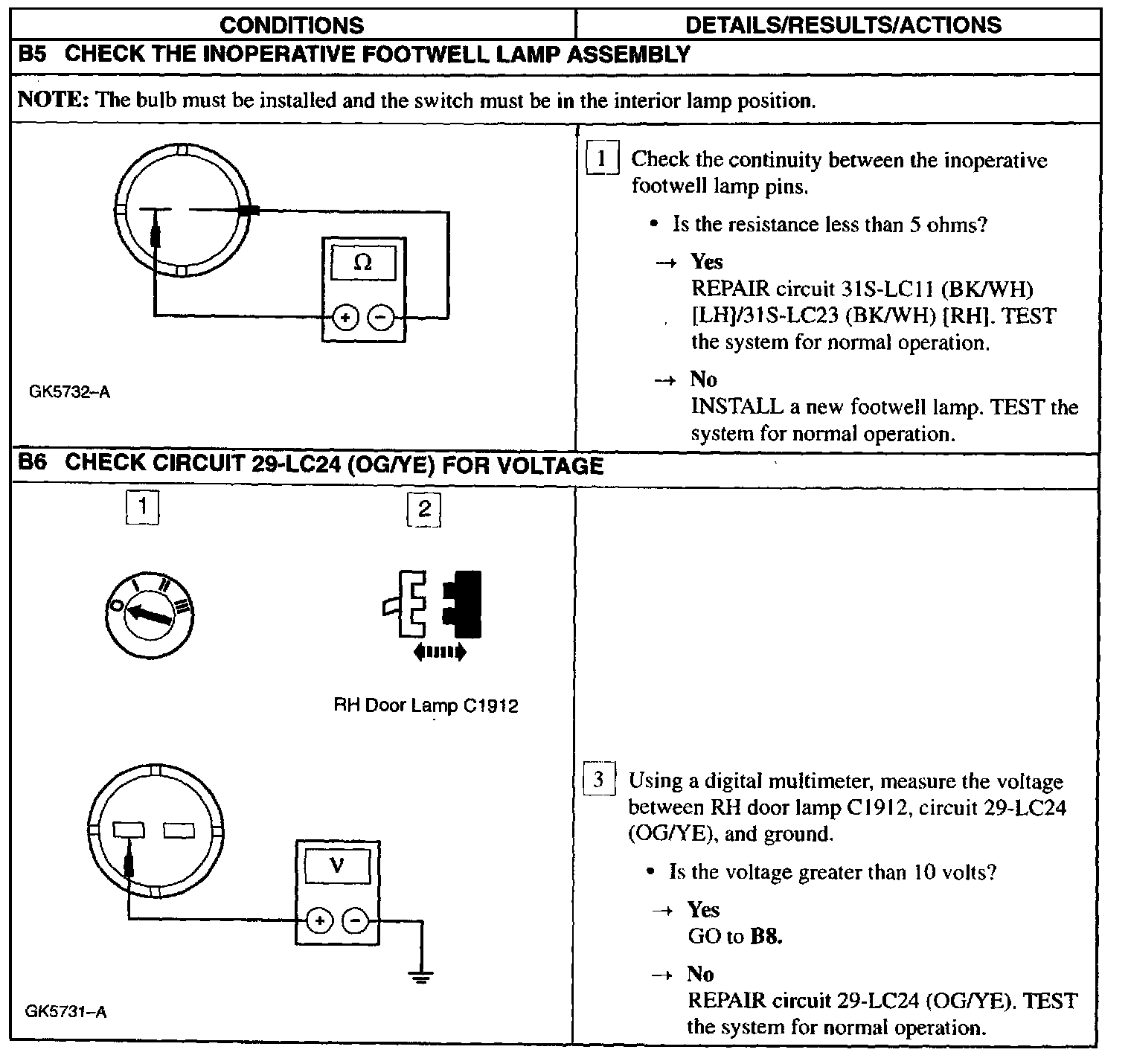

B5 - B6:

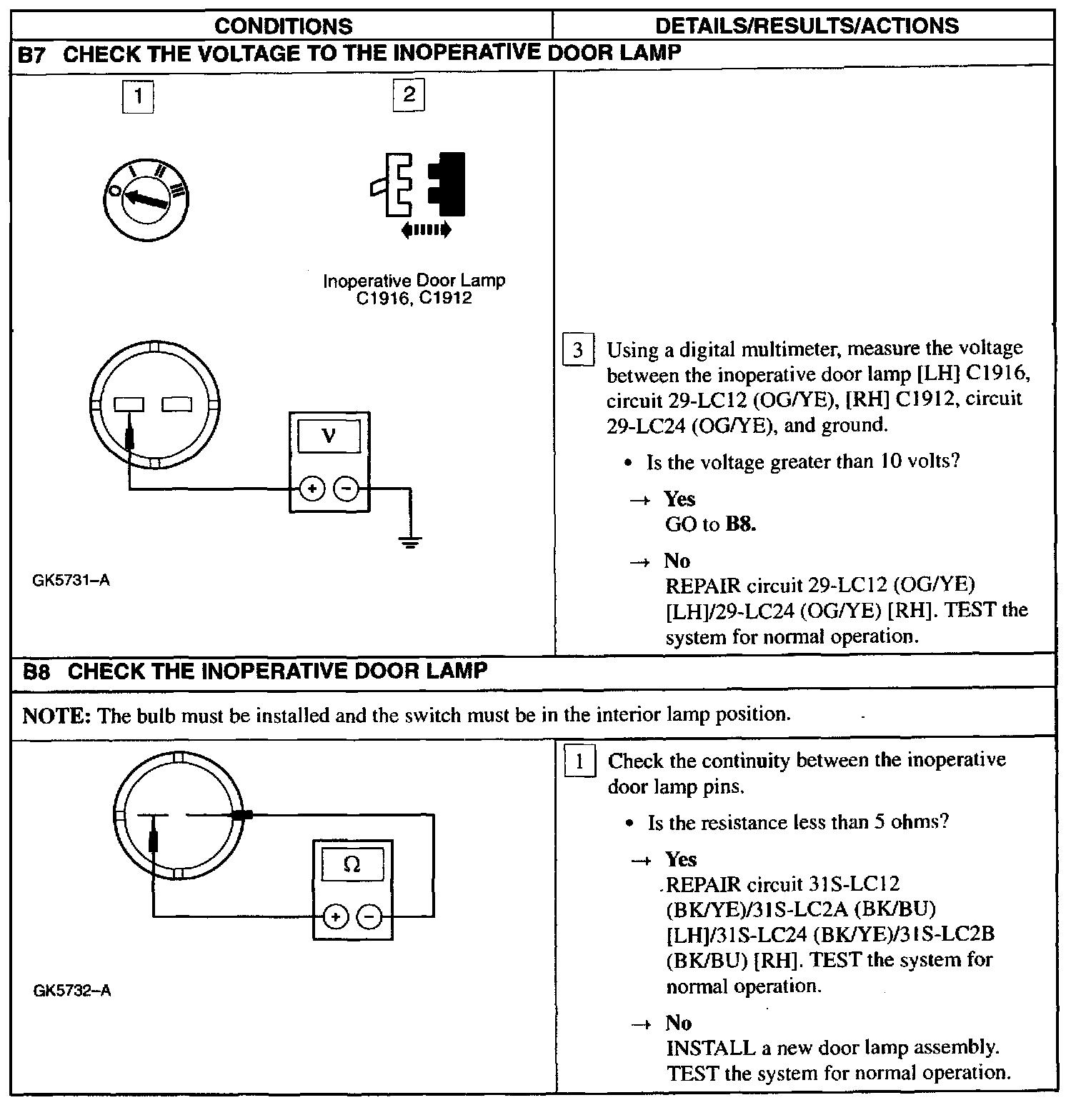

B7 - B8:

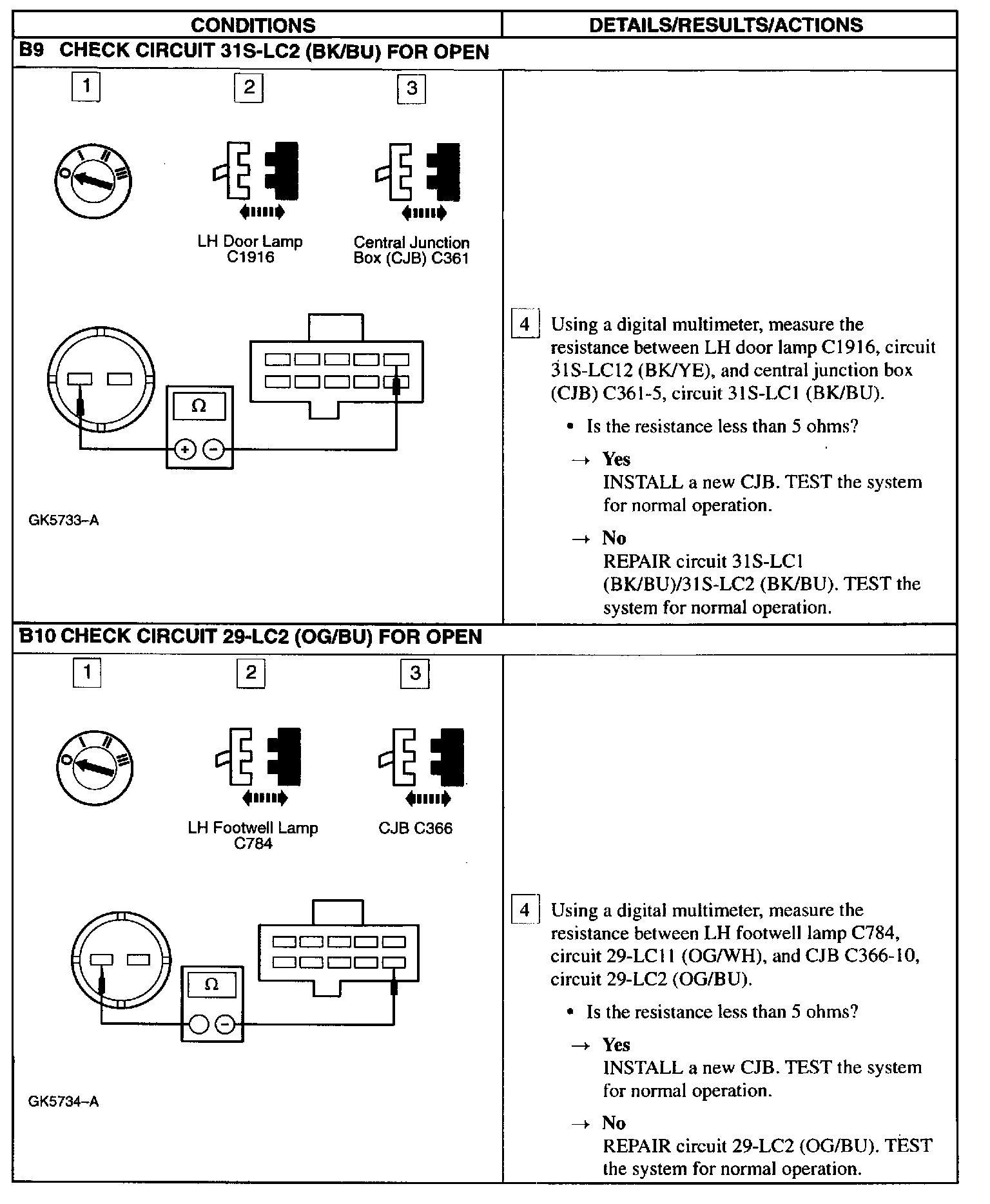

B9 - B10:
