Home >> Mercury >> 2000 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Lighting and Horns >> Brake Lamp >> Testing and Inspection >> Pinpoint Tests >> Test I: Stoplamps Are On Continuously

Test I: Stoplamps Are On Continuously

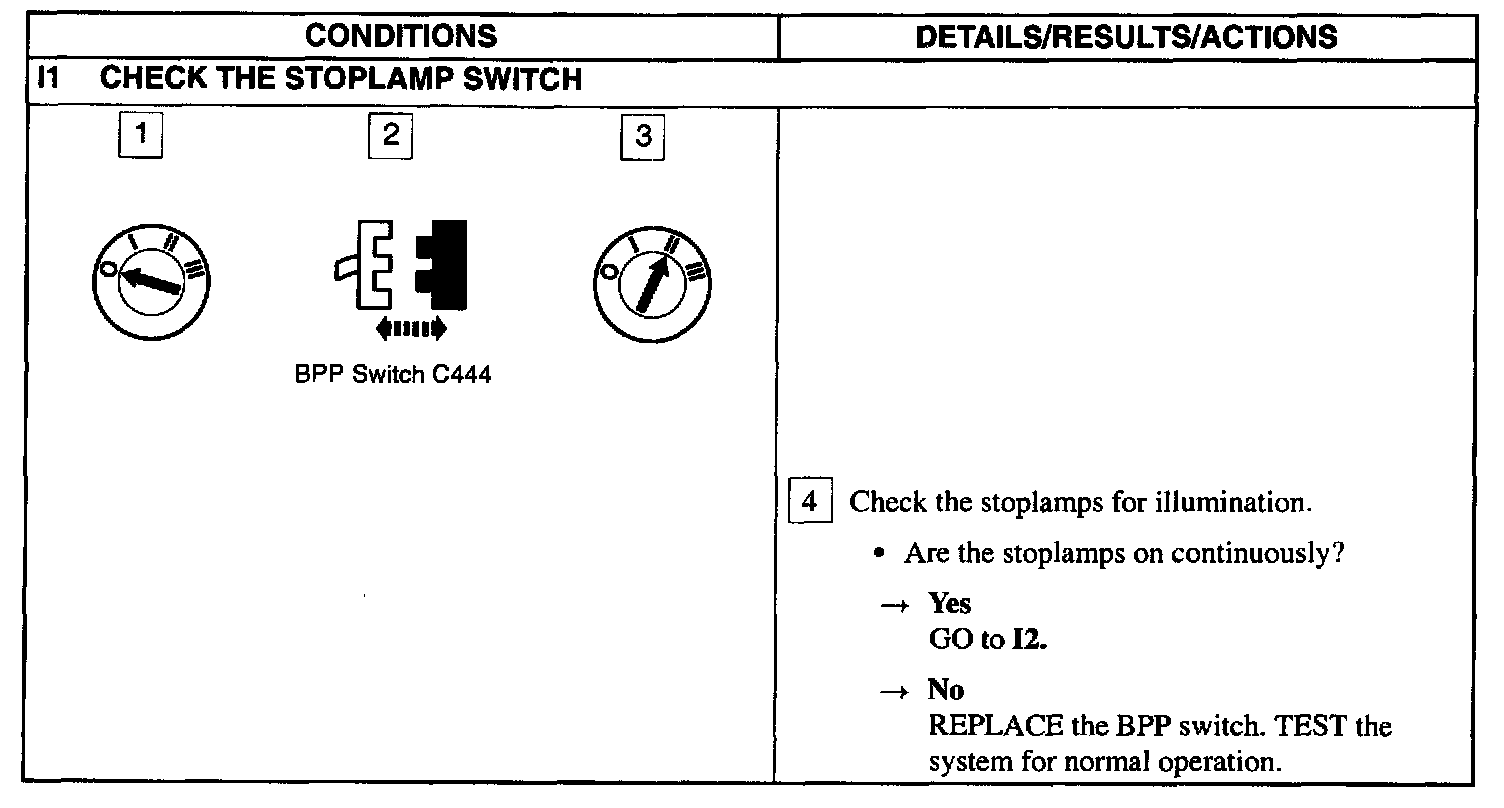

I1:

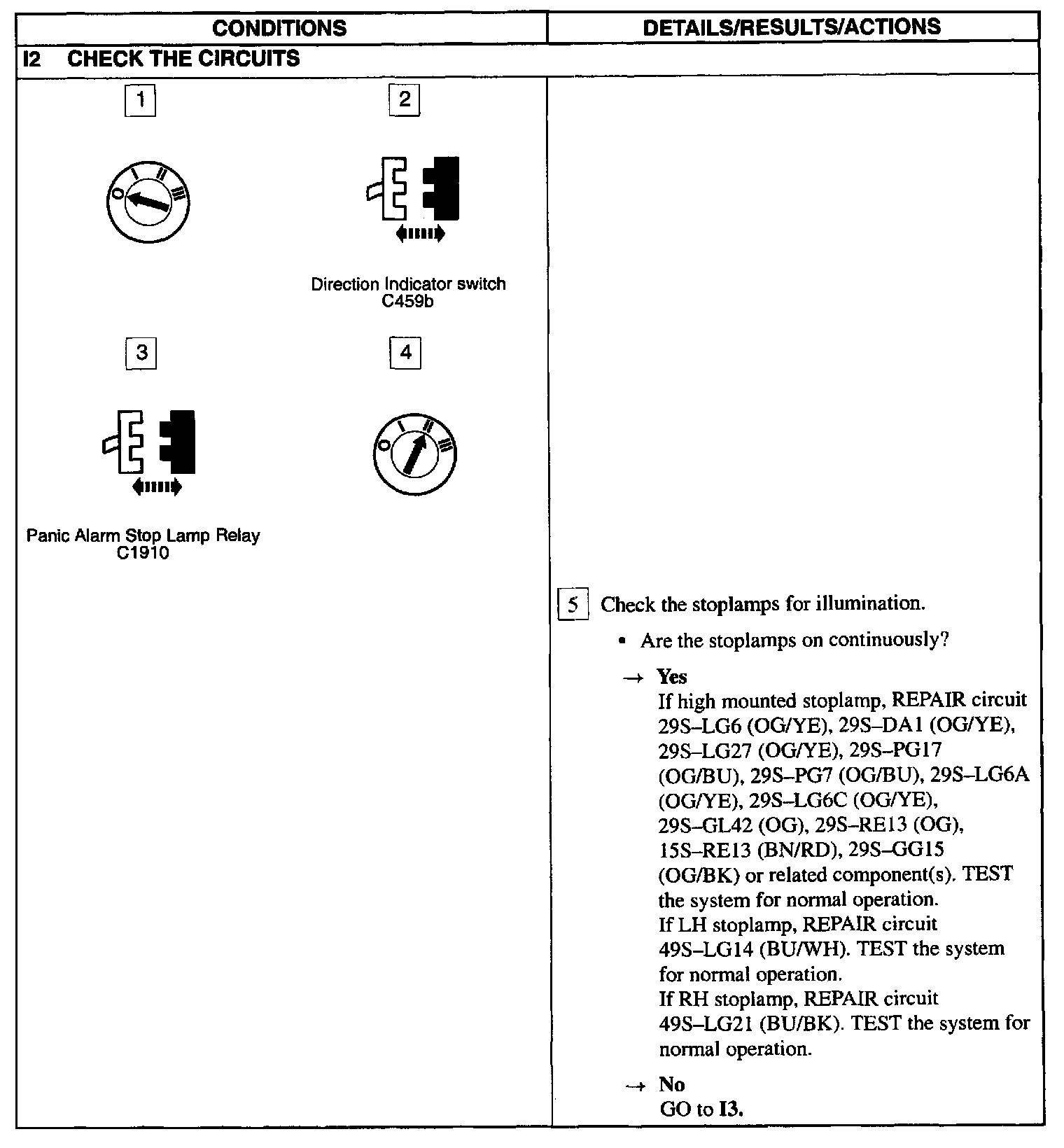

I2:

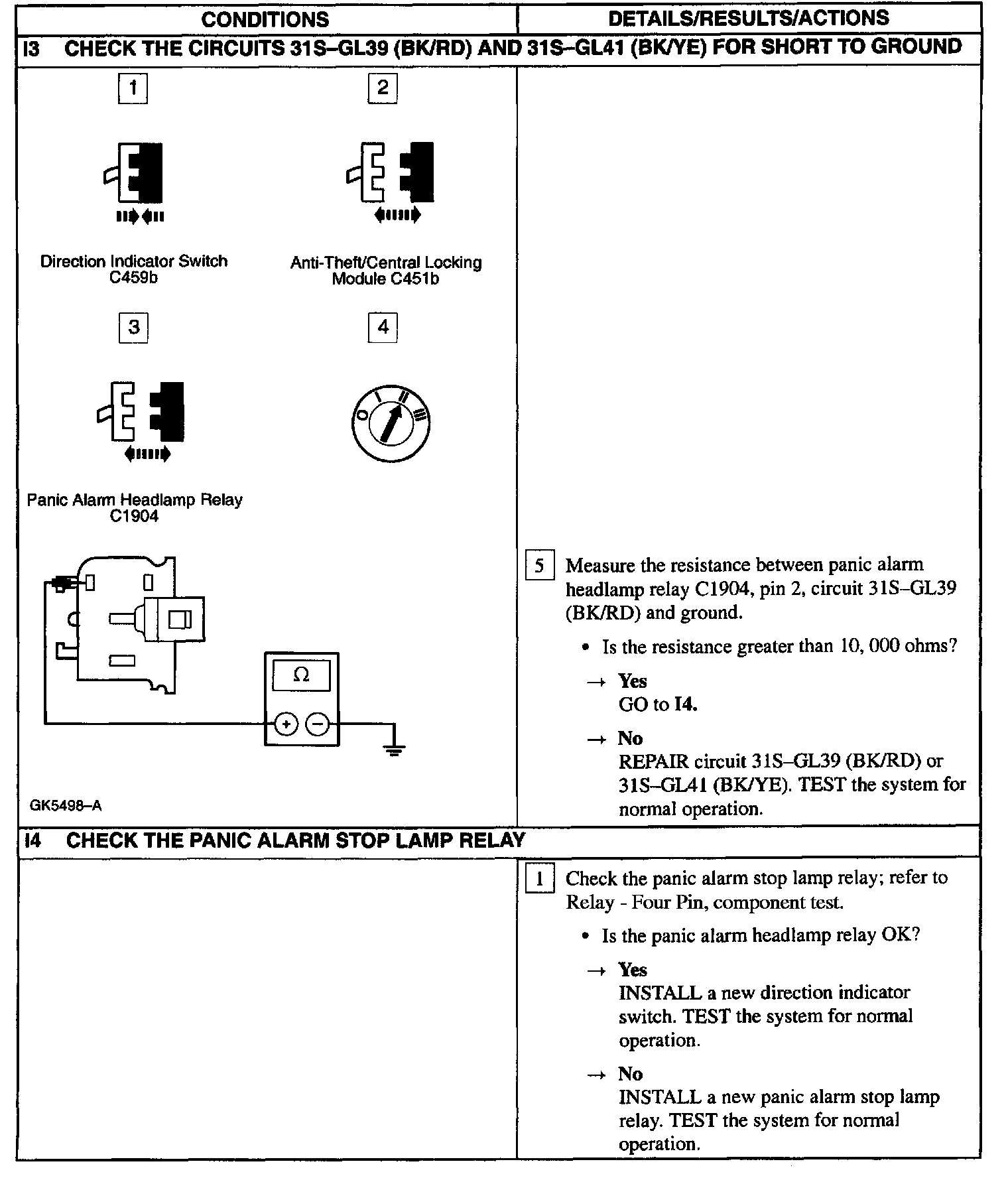

I3 - I4:
