Initial Inspection and Diagnostic Overview

NOTE: All measurements must be carried out using a digital multimeter.

1. Verify the customer concern by operating the stoplamps.
2. Visually inspect for obvious signs of mechanical and electrical damage:

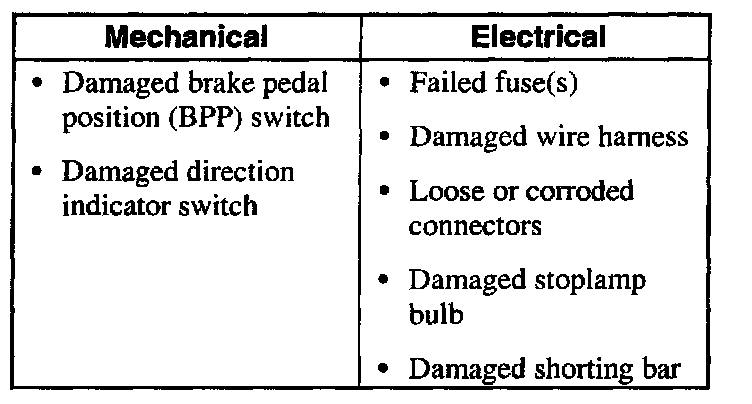

VISUAL INSPECTION CHART

3. If the concern is not visually evident, determine the symptom and proceed to the Symptom Chart. Symptom Related Diagnostic Procedures
