Electrical Diagrams

DETAILED DIAGRAMS

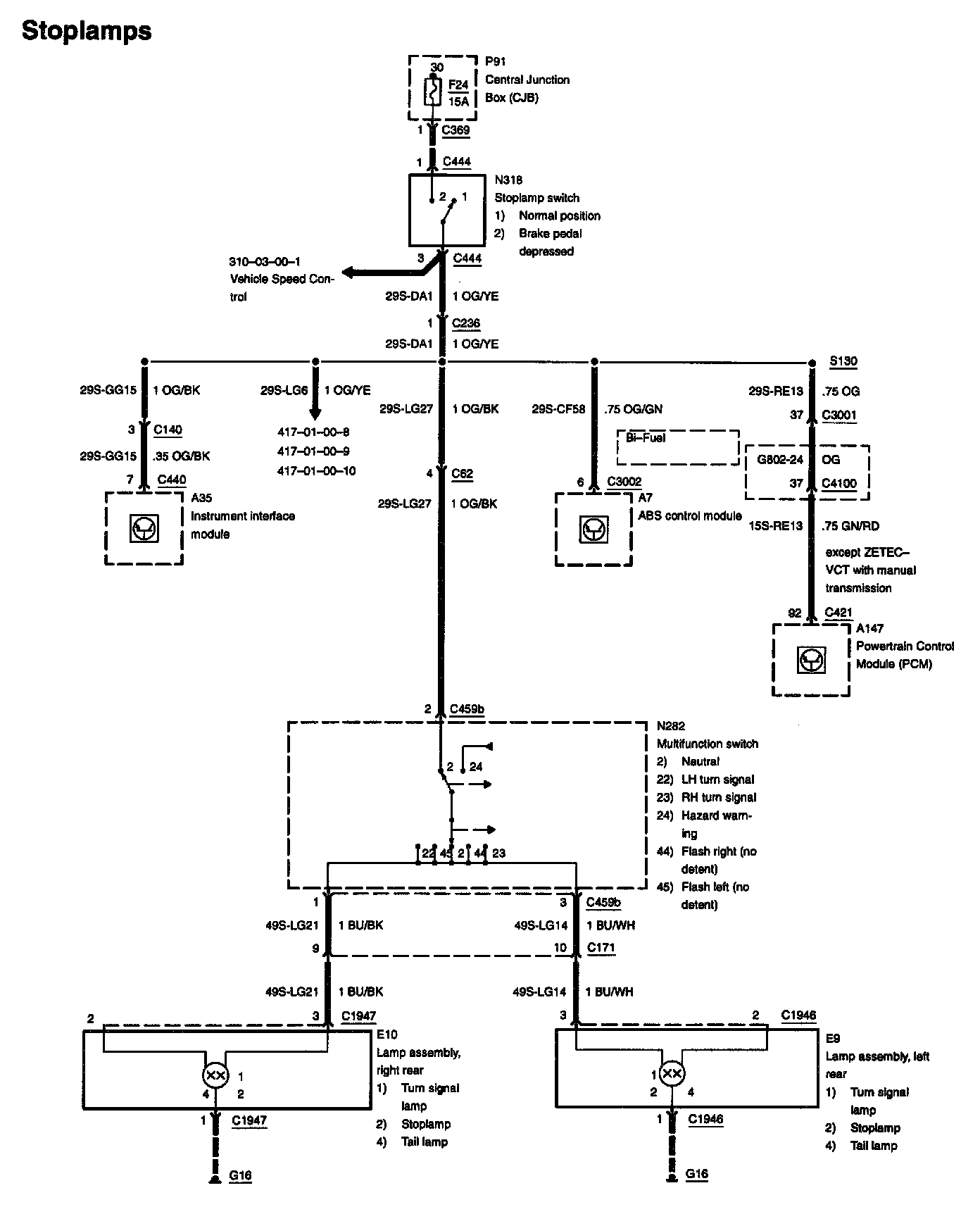

Diagram 417-01-00-7:

Anti-Lock Brake System Control Module
Central Junction Box
Fuse F24
Instrument Interface Module
Lamp Assembly, Left Rear
Lamp Assembly, Right Rear
Multifunction Switch
Powertrain Control Module
Stop Lamp
Stop Lamp Switch
Tail Lamp
Turn Signal Lamp

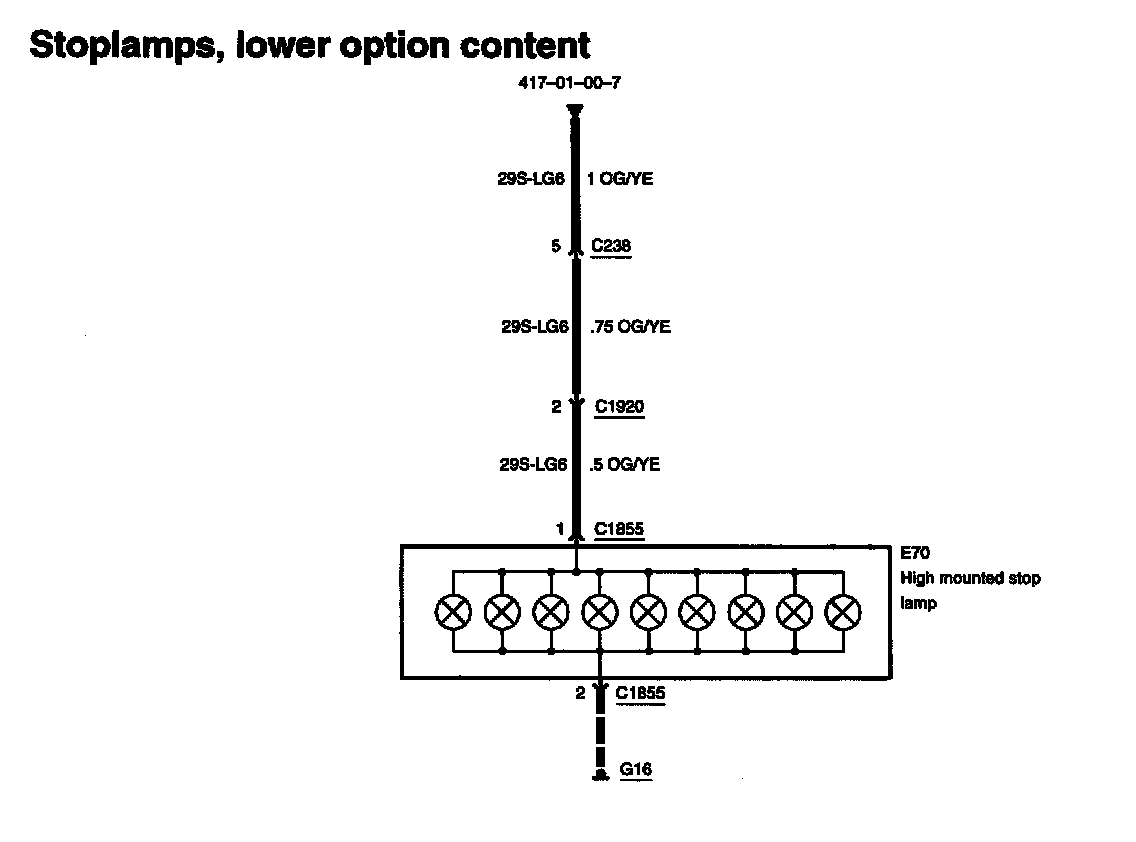

Diagram 417-01-00-8:

High Mounted Stop Lamp

Diagram 417-01-00-9:

High Mounted Stop Lamp
Panic Alarm Stoplamp Relay

Diagram 417-01-00-10:

High Mounted Stop Lamp
Panic Alarm Stoplamp Relay


RELATED DIAGRAMS

Diagram 310-03-00-1:
